Rubber timing belt HTD 5M

Description

Rubber timing belt HTD 5M introduction

Type = HTD 5M perimeter = 320mm (mm) teeth = 64 teeth

Two tooth pitch = center distance = 5mm (mm)
With a thickness: tooth height = 2.06mm (mm) tooth belt containing a total thickness = 3.8mm (mm)

Materials made of high quality synthetic leather belt with neoprene rubber, reinforcing materials for high-quality glass fiber cord, toothed surface with high wear-resistant nylon elastic cloth protection.
Song Rao dynamic performance and anti-cracking performance of the products are better, ozone excellent performance, but also has anti-aging, heat resistance, wear-resistant properties.

Caution:
1) Note that when you purchase the product surface clean, the belt should not be distorted, with teeth to be full.
2) products in transportation, installation process, non-tortuous, otherwise it will damage the reinforcing material (glass fibers), impact strength belt use.
3) products in the installation and use of the process can not be artificially scratched belt, not with chemicals (especially the strong oxidizing acid), try to avoid long-term contact with oil and water, so as not to affect the product life.
4) When replacing the product, it must make the belt tension to a minimum, in order to remove the prohibited under a high tension situation, the use of non-professional tool hard to pry down.

Model: XL,L,H,XH,XXH,3M,5M,8M,14M,T5,T10,T20 Etc.

According to the drawing or sample custom, high frequency welding, reliable technology, perfect processing.

Application of rubber 5M timing belt:

Rubber timing belt is widely used in 3d printer, machines, etc.

Delivery of rubber 5M timing belt:

Express FEDEX, UPS, TNT, DHL, EMS, we have very competitive prices.

They can be sent within 1-3days.

By sea,air or other transportation way.

If have any questions,please feel free to contact us.

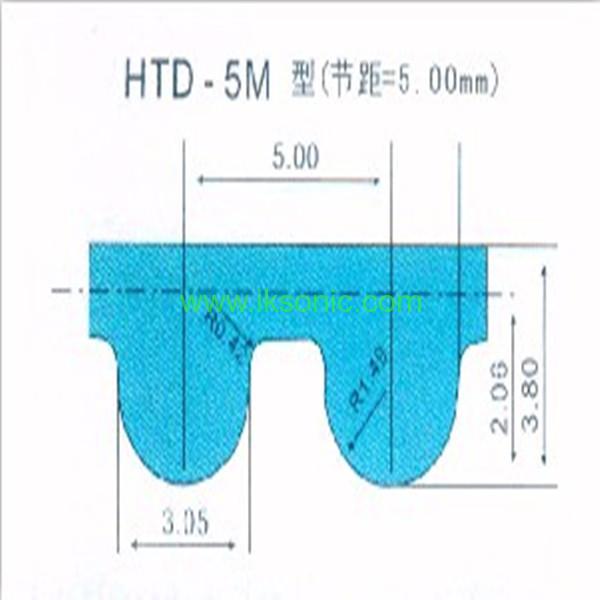

Drawing of Rubber timing belt HTD 5M.

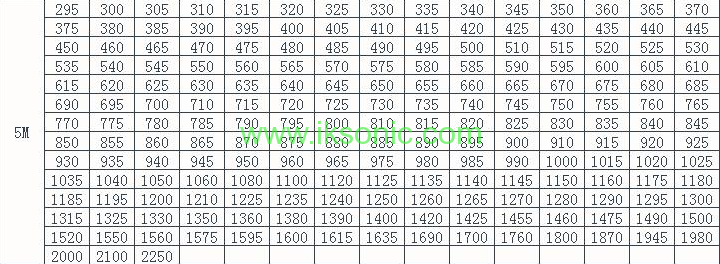

Rubber timing belt HTD 5M specification sheet

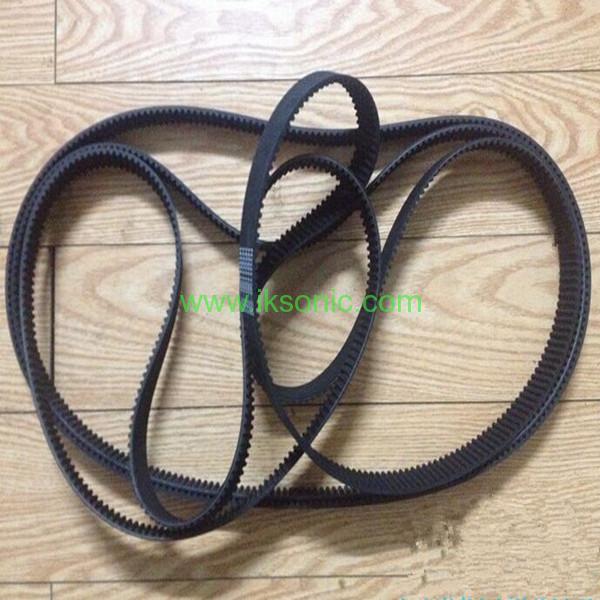

Product Show
