Flexible Graphite Braided Packing Rings for Valves
Compression-moulded rings made from braided graphite packing. Contact IKSONIC for custom dimensions, reinforcement options and wholesale supply enquiries.
- Description
- Contact Us
Description
Flexible Graphite Braided Packing Rings
Flexible graphite packing rings are formed by compression moulding braided graphite packing. The source describes graphite yarn that can be reinforced with fibres or metal wire, including steel, copper or nickel. The reinforcement material and ring density should be specified for the required construction; these options are not standard features of every ring.
IKSONIC is a China supplier for wholesale graphite packing ring enquiries. Discuss custom dimensions, reinforcement requirements and factory sourcing for valve, pump and industrial sealing applications.
Construction and Size Options
- Braided graphite packing, compression moulded into rings.
- Ring dimensions and density can be specified to customer requirements.
- Fibre or metal-wire reinforcement can be discussed for the selected construction.
- Special sizes and non-standard products are available by enquiry.
Specifications
| Item | Source-listed specification |
|---|---|
| Product type | Flexible graphite braided packing ring |
| Construction | Braided graphite packing, compression moulded into rings |
| Reinforcement options | Fibres or steel, copper or nickel wire; confirm the selected material |
| Packing cross-section range | 3 × 3 mm to 50 × 50 mm |
| Finished ring dimensions | Inside diameter, outside diameter and height to be confirmed for the order |
| Density | Can be specified; no numerical density is given in the source |
| Custom supply | Special sizes and non-standard products to customer requirements |
The 3 × 3 mm to 50 × 50 mm values describe the packing cross-section, not the inside or outside diameter of a finished ring.
Source-Listed Technical Parameters
| Parameter | Source value |
|---|---|
| Pressure | 8–25 MPa |
| Temperature | −100 to 280 °C |
| pH range | 2–12 |
| Linear speed | 0–15 m/s |
These values reproduce the source listing and are not independently verified performance ratings. The source does not assign separate values to each reinforcement option or application, and the stated limits must not be assumed to apply simultaneously. Confirm the ring construction, medium, concentration, temperature, pressure and motion conditions before ordering.
Applications and Media
The source describes static sealing under elevated temperature and pressure and lists pumps, valves and rotating machinery as application areas. Suitability for a moving shaft or a particular equipment design must be confirmed for the selected packing construction.
Listed media include hot water, superheated steam, heat-transfer fluids, ammonia solutions, hydrocarbons and low-temperature liquids. The source excludes certain strong oxidizers. The media list and pH range do not establish universal chemical compatibility; review the actual fluid and operating conditions for each application.
Ordering and Wholesale Enquiries
For a quotation, provide the required inside diameter, outside diameter, ring height, quantity, reinforcement material and density if specified. Include the equipment type, medium, temperature, pressure and shaft speed or other movement details. Non-standard requirements can be reviewed against your dimensions or sample.

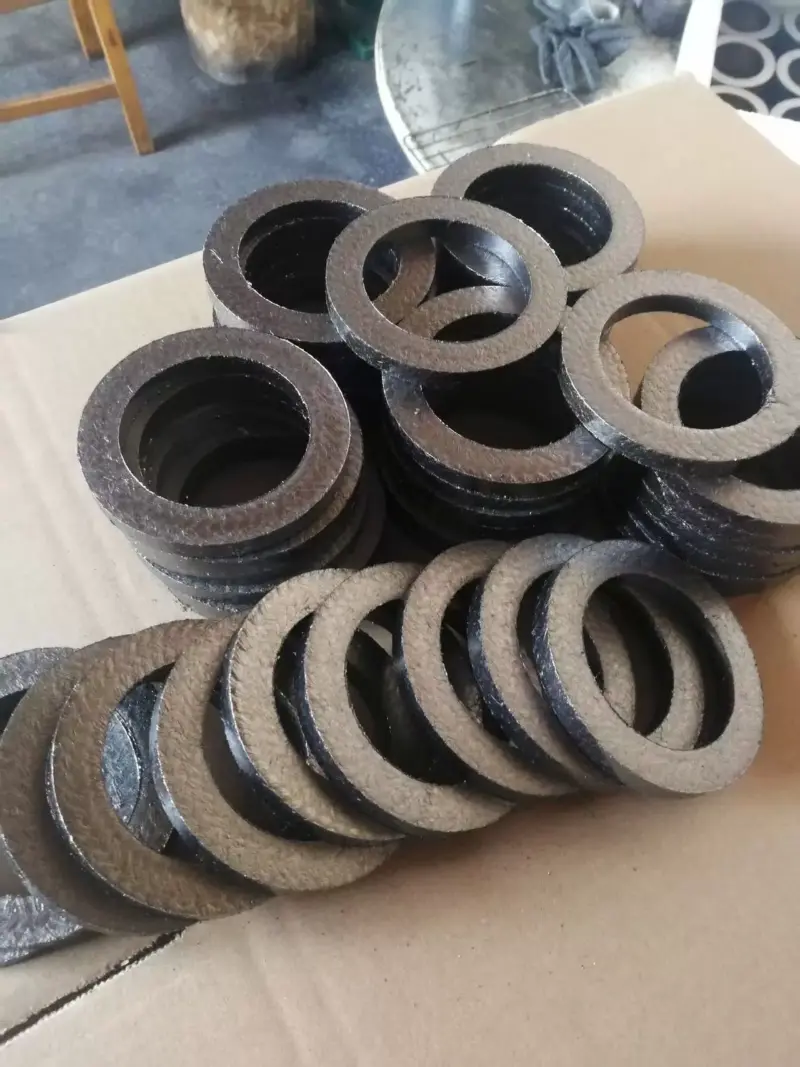

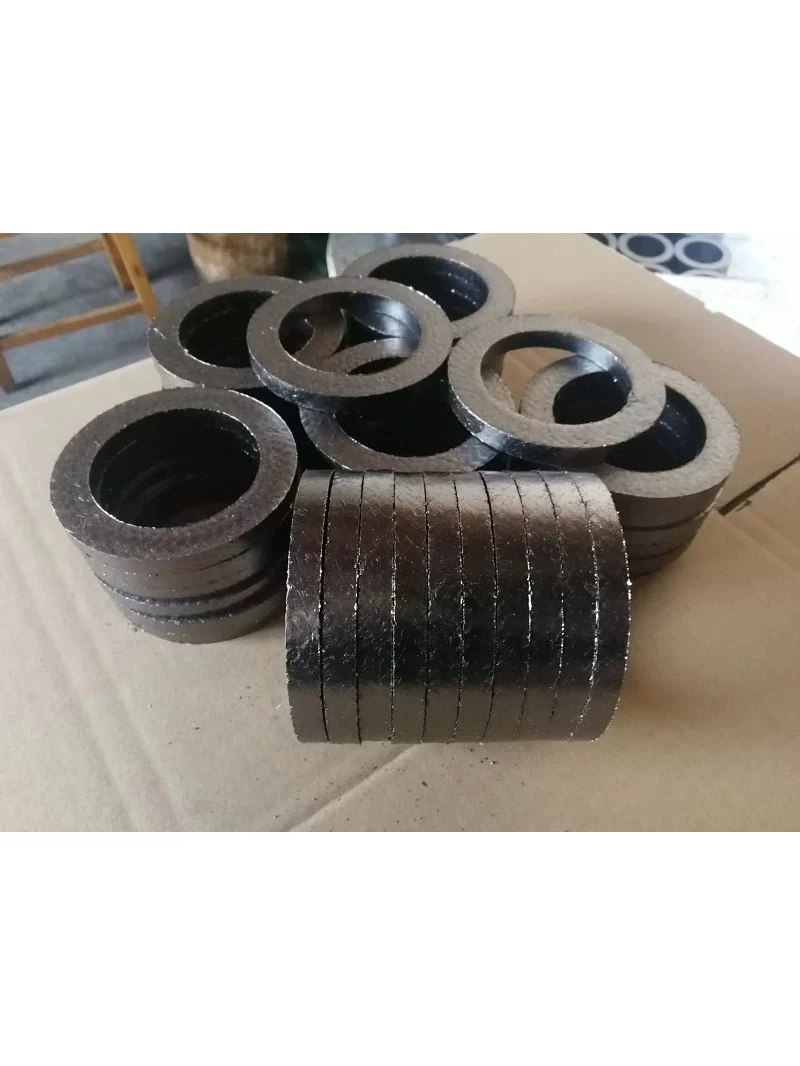

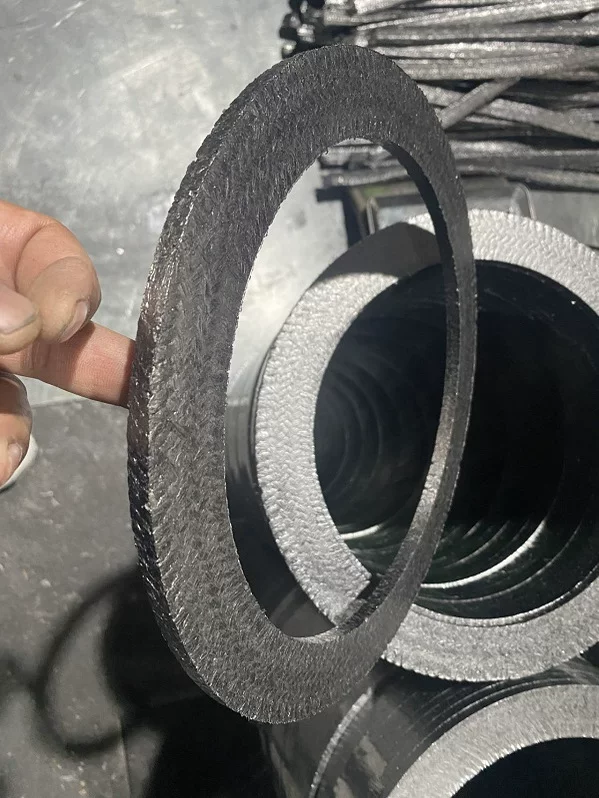

The photographs show source product examples, including an assortment, a single ring held for a closer view and stacked rings. They do not define the supplied quantity, a complete kit or IKSONIC factory ownership.
Contact IKSONIC to discuss wholesale supply, custom graphite packing ring specifications and factory sourcing in China.
