Pump Piston Seals and Wipers – 194237 / 162844 References

Description

Pump Piston Seals and Wipers – 194237 / 162844 References

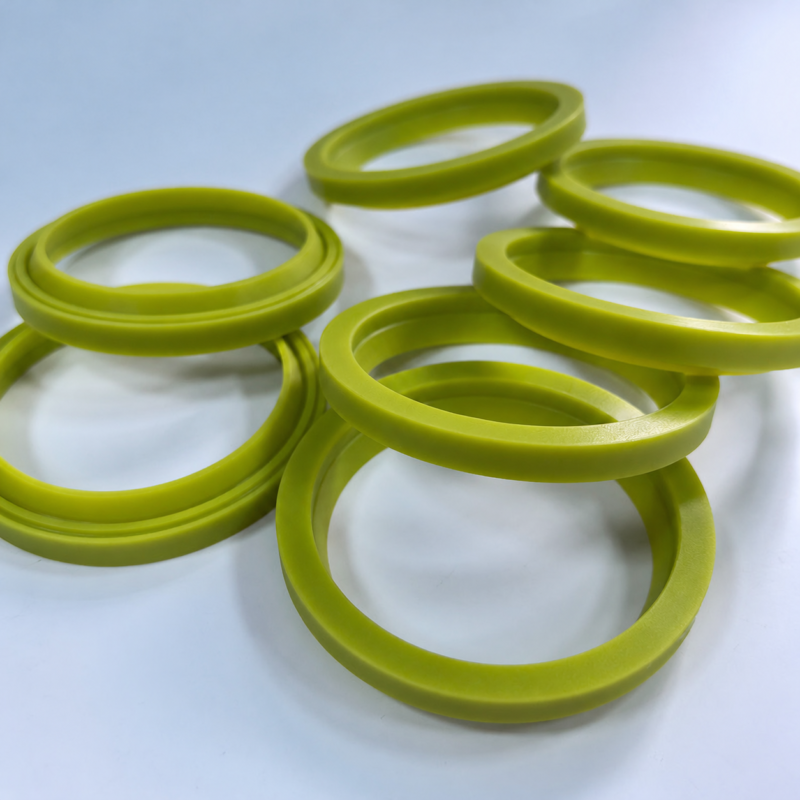

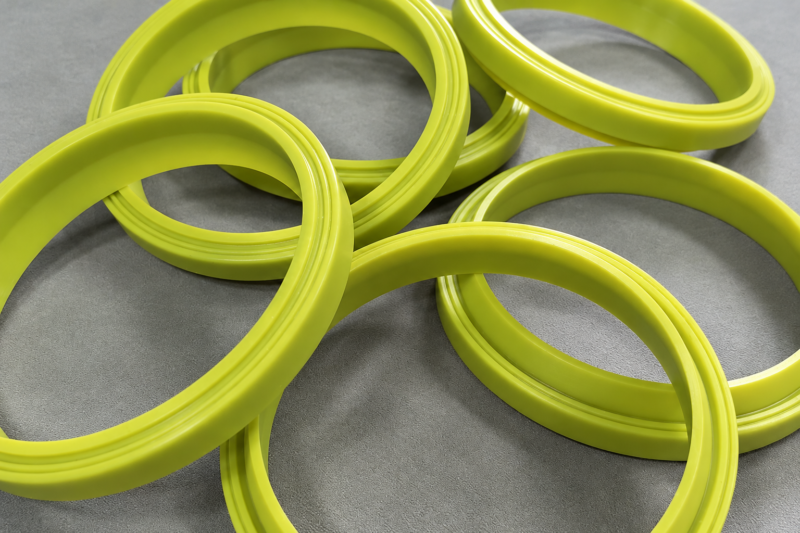

Pump piston seals and wipers are identified with 194237 and 162844 references for the relevant BINKS pump application. Green and sky-blue options are recorded. Specify whether the required component is the piston seal or the wiper; the references should not be treated as two names for an interchangeable part.

Options and identification

Options include green and sky blue. The green piston seal is identified as UPE in the product information. Confirm the material and reference for the component you need. Confirm the selected option, supplied quantity, and dimensions before ordering.

Check the complete seal geometry

Compare the complete seal profile, not just its outer diameter. Provide the shaft or housing dimensions, the seal width, and a clear photograph of the contact surfaces. Identify the equipment and the part number when available. The mounting arrangement, medium, and operating conditions should be considered together when choosing a replacement.

Frequently asked questions

Is a matching diameter enough? No. The section profile, width, mounting arrangement, and mating surfaces also matter when identifying a replacement seal.

What if the old seal has no legible number? Send photographs, measured dimensions, and the equipment model. Mark which measurements were taken from the seal and which came from the shaft or housing.

Request a quotation

Contact IKSONIC with the medium, temperature, pressure requirements, and movement of the assembly. If the component has a spring or separate support ring, identify those parts in the photographs and confirm whether they must be supplied together.

When replacing an existing component, include photographs showing both the part and its installation position. Keep all measured values together with their units, and identify any dimensions that still need checking. This helps keep the requested option clear when confirming the order.
