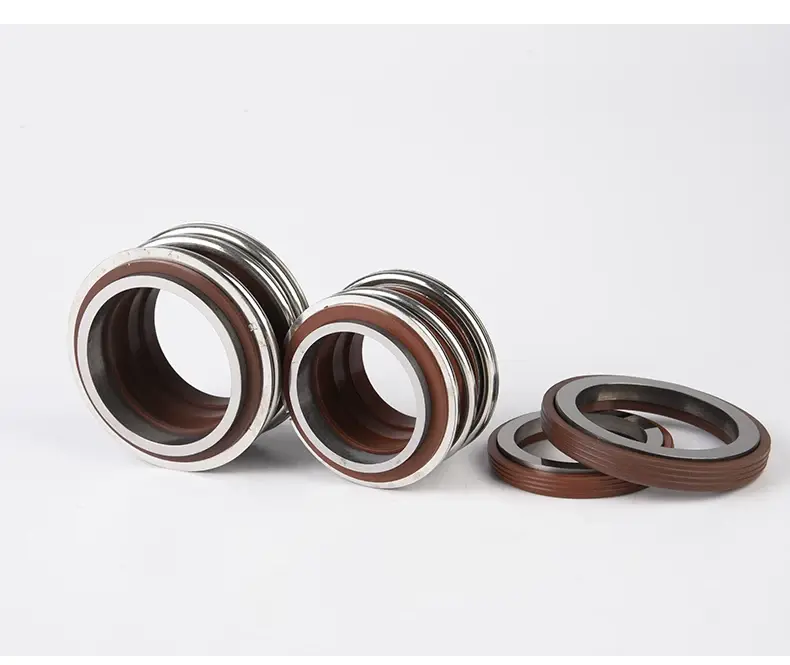

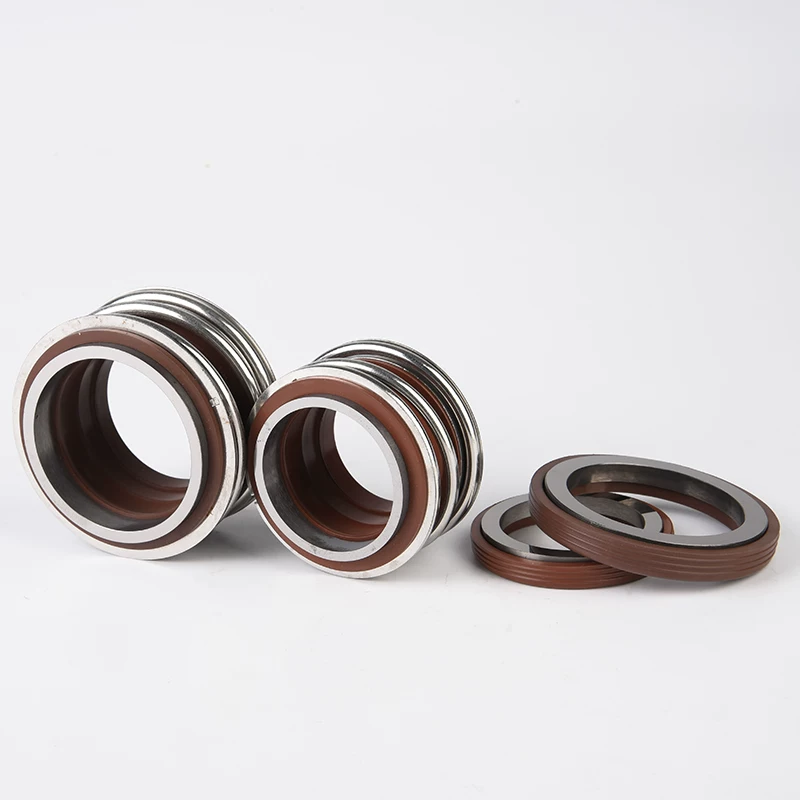

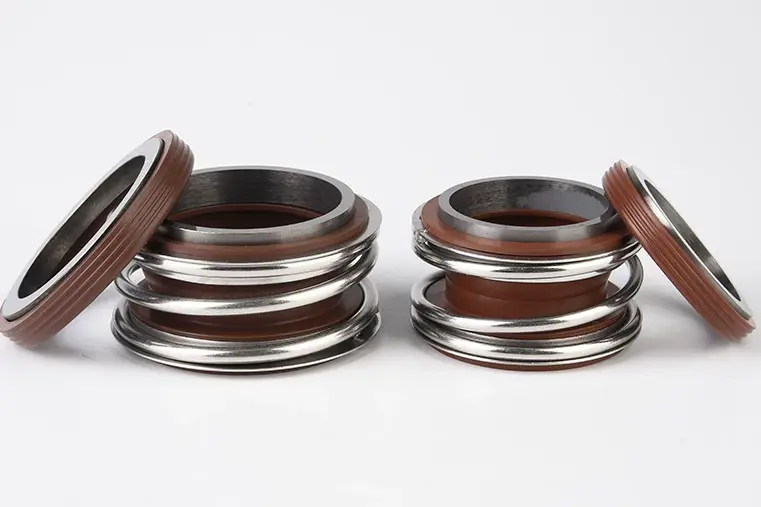

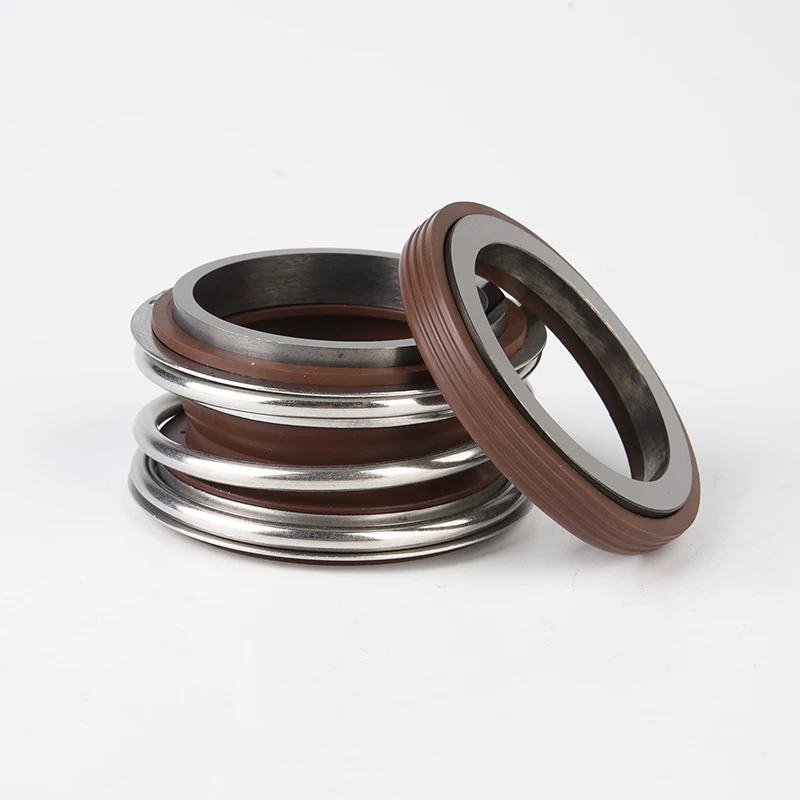

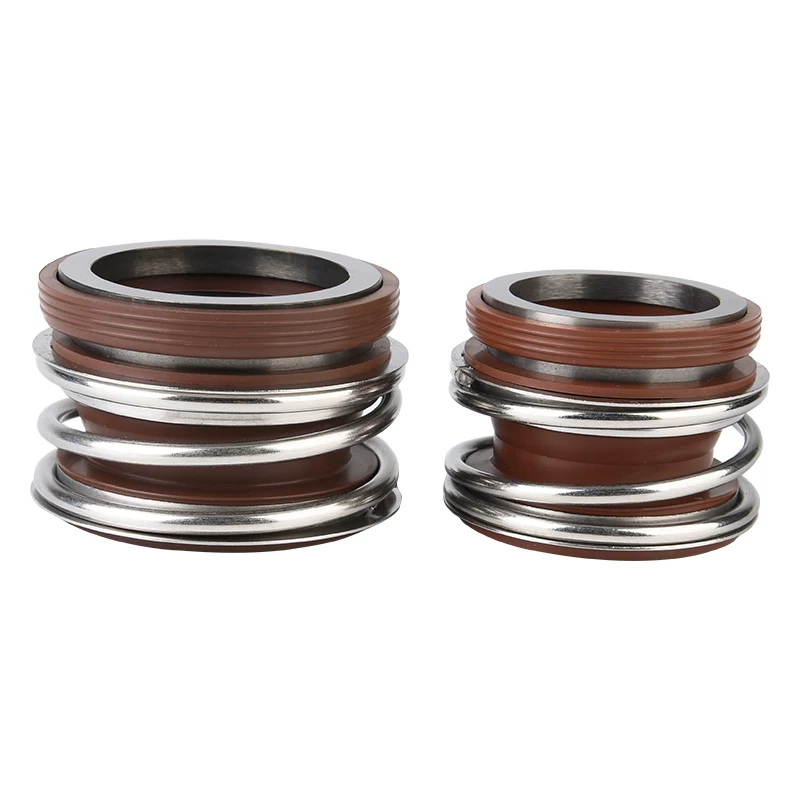

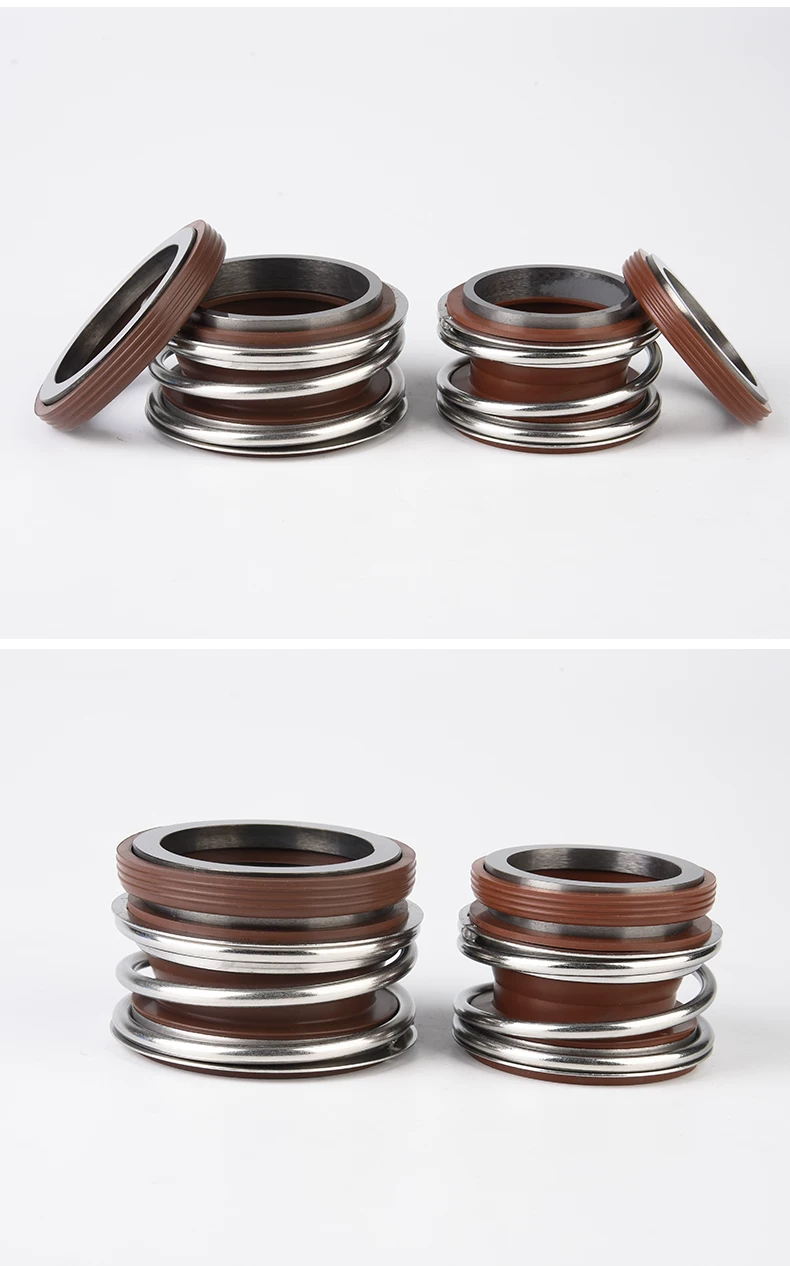

Mechanical Seal Water Pump Seal Ring MG1/109 Alloy Silicon Carbide Graphite High Temperature Pipe Pump Shaft Seal by IKSONIC CO., LTD.
China factory direct mechanical seal for water pumps. MG1/109 alloy, silicon carbide & graphite faces. High temperature & corrosion resistant. Custom OEM support available.
- Description
- Contact Us
Description
Product Description
IKSONIC CO., LTD. offers premium quality Mechanical Seal Model MG1/109, specifically designed for water pumps, pipeline pumps, and general rotating equipment. This seal combines a durable alloy metal shell with high-performance silicon carbide and graphite sealing faces, ensuring excellent wear resistance, high-temperature tolerance, and reliable leak-free operation. As a direct China factory manufacturer, we provide cost-effective solutions and support custom designs per your drawings.
Key Features
- Material: Alloy metal shell with silicon carbide (SiC) rotating face and graphite stationary face.
- Temperature Range: Suitable for high-temperature applications up to 200°C (392°F).
- Pressure Range: Designed for medium pressure conditions up to 1.5 MPa.
- Media Compatibility: Works with water, oil, mild chemicals, and other non-aggressive fluids.
- Standard Size: MG1/109 series, interchangeable with common industry standards.
- Factory Direct: Competitive pricing, fast delivery, and OEM/ODM services available.
Q&A
Q1: What is the main application of this mechanical seal?
A1: It is widely used in water pumps, pipeline pumps, centrifugal pumps, and other rotating equipment requiring a reliable shaft seal.
Q2: What materials are used for the sealing faces?
A2: The rotating face is made of silicon carbide (SiC) and the stationary face is made of carbon graphite, providing excellent wear and heat resistance.
Q3: Can this seal withstand high temperatures?
A3: Yes, it is designed for high-temperature environments up to 200°C (392°F).
Q4: Is this seal suitable for corrosive media?
A4: It is suitable for water, oil, and mild chemicals. For highly corrosive media, please consult our technical team for material upgrades.
Q5: Do you offer custom sizes or designs?
A5: Yes, as a factory, we can customize the seal according to your drawings or specifications. Contact us for details.
Q6: What is the pressure rating of this seal?
A6: The standard pressure rating is up to 1.5 MPa (approx. 217 psi).
Q7: How do I install this mechanical seal?
A7: Installation should follow standard pump seal procedures. Ensure the shaft and housing are clean, and the seal is properly aligned. A detailed installation guide is available upon request.
Q8: What is the minimum order quantity (MOQ)?
A8: For standard models, MOQ is 10 pieces. For custom orders, MOQ may vary; please inquire.
