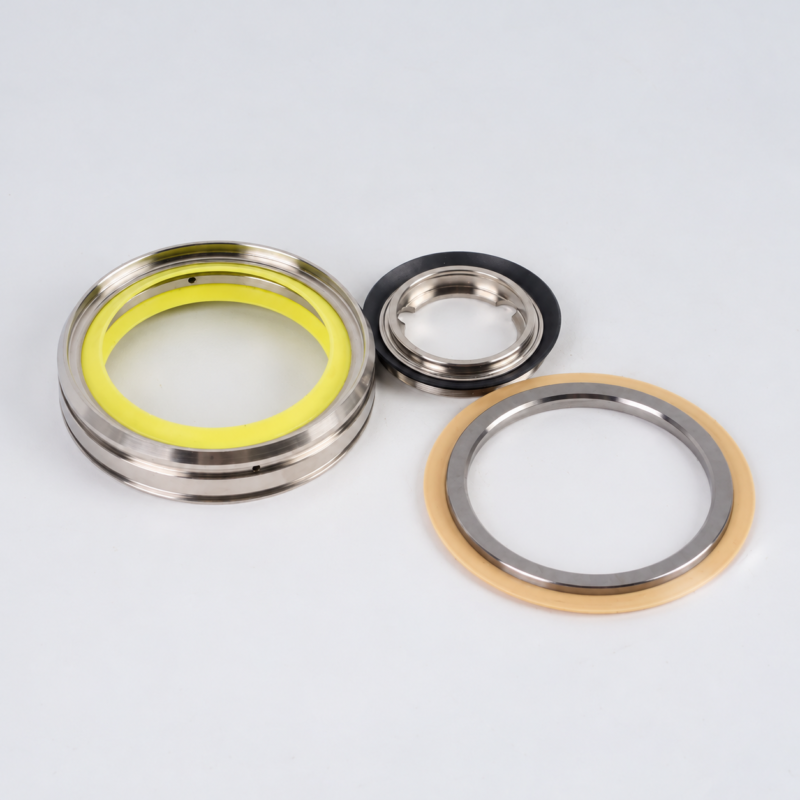

Three assorted vacuum pump shaft seals supplied by IKSONIC: a large yellow-centered ring at left, a smaller black-rimmed seal above center, and a tan-rimmed ring at lower right.

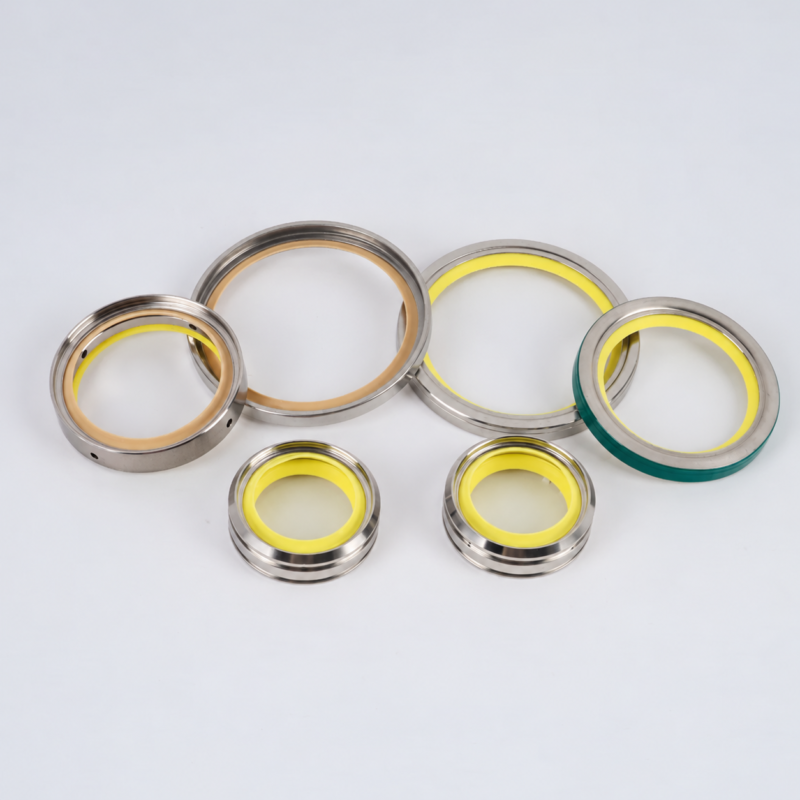

Six assorted vacuum pump shaft seal rings supplied by IKSONIC, with four larger rings behind two smaller yellow-centered rings on a light gray background.

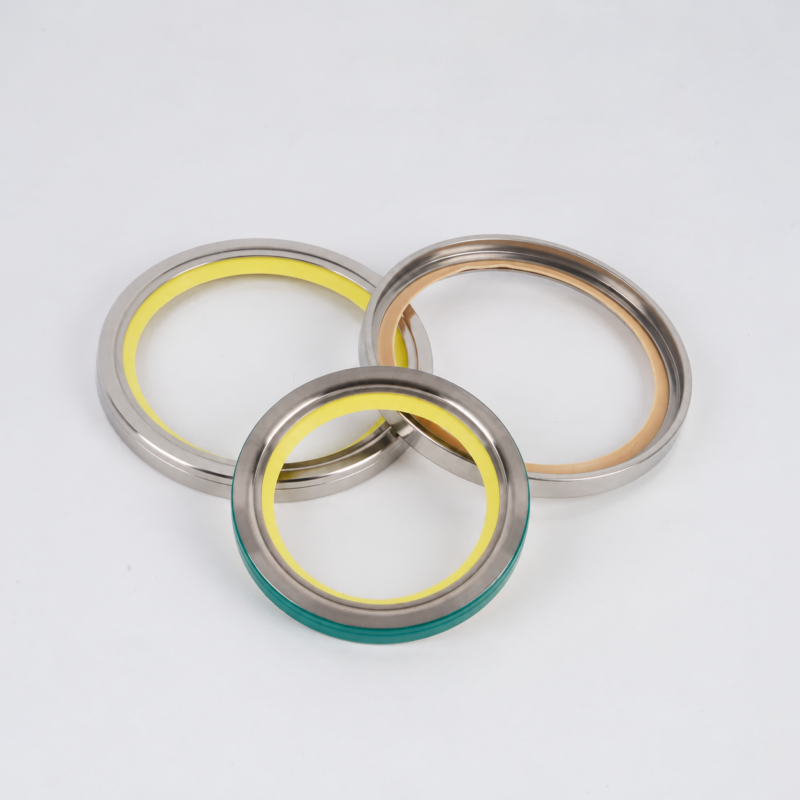

Three overlapping vacuum pump shaft seal rings supplied by IKSONIC, with a yellow inner edge at rear left, a tan inner edge at rear right, and a green outer edge on the front ring.
Three assorted vacuum pump shaft seals supplied by IKSONIC: a large yellow-centered ring at left, a smaller black-rimmed seal above center, and a tan-rimmed ring at lower right.
Six assorted vacuum pump shaft seal rings supplied by IKSONIC, with four larger rings behind two smaller yellow-centered rings on a light gray background.
Three overlapping vacuum pump shaft seal rings supplied by IKSONIC, with a yellow inner edge at rear left, a tan inner edge at rear right, and a green outer edge on the front ring.

Metal Vacuum Pump Shaft Seal Components

Large IKSONIC metal-cased rotary oil seal held by hand, with additional seals visible behind it. Metal-Cased Rotary Shaft Oil Seals: TA, SA, TB and SB
Vacuum pump shaft seal rings with dark gray inner lips and gold-colored outer lips, shown in a low stack with one ring leaning across the right side; supplied by IKSONIC in China. Vacuum Pump Shaft Seal Rings – 45×65×4 and 54×73×4

IKSONIC manufactures metal vacuum pump shaft seal components to required dimensions and configurations. Specify the pump model, seal profile, material and installation dimensions.

SKU: 1040508434520 Category:
somdn_product_page

Description

Vacuum Pump Shaft Seal Components

IKSONIC manufactures metal vacuum pump shaft seal components in China for replacement and wholesale orders. The product photographs show several ring configurations and sealing profiles. Confirm the dimensions and configuration of the required component; similar appearance does not establish interchangeability.

Specifications and Selection

Item Product specifications
Product category Vacuum pump shaft seal components
Construction description Metal sealing components; exact metal grade and sealing-element material require confirmation
Model and size Custom dimensions; specify the required model and dimensions or provide a drawing.
Pump compatibility Must be checked for the exact pump model and seal position

These components are made to the required size and configuration. Please specify diameter, thickness, tolerances and operating requirements. Similar appearance does not establish identical dimensions or function.

Information for a Replacement Enquiry

Send the pump manufacturer and complete model, the location of the seal, any reference number and the required quantity. Clear photographs of the existing component from the front, rear and side help identify its configuration. Include measured dimensions and their units, together with operating conditions that need to be checked.

Select the shaft seal component for the exact pump model and seal position. The product photographs do not establish compatibility with every vacuum pump.

Frequently Asked Questions

Can I select a replacement from the photograph alone?

No. Compare the actual dimensions, sealing profile, reference number and pump application before ordering. The photos are not dimensioned drawings.

Are the sealing materials identified by their colors?

No. The visible colors do not establish a polymer grade or material composition. Specify the required material or provide the existing component information for confirmation.

What sizes can I order?

For a custom order, please provide the required dimensions, units and configuration rather than selecting an assumed size.

Can IKSONIC support wholesale enquiries?

For wholesale or replacement orders, provide your component specification and quantity. Pricing, suitability and supply details are confirmed separately.

Contact IKSONIC

Contact IKSONIC with your vacuum pump model, seal reference, dimensions, photographs and required operating conditions.

Worldwide Delivery

We manufacture in China and ship worldwide. For orders suitable for international express, delivery typically takes 3–7 days after dispatch, excluding production and order preparation. Transit times vary by destination and customs clearance. Confirm the shipping method and estimated transit time for your order.
