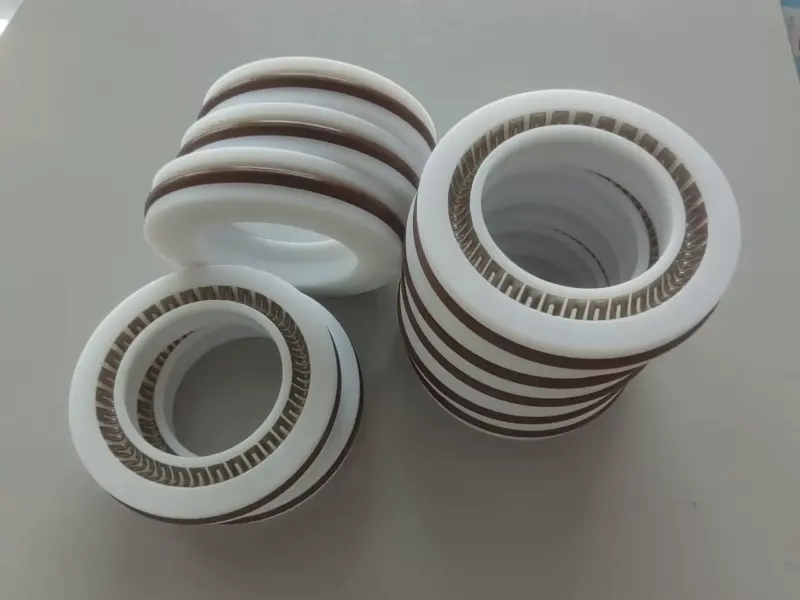

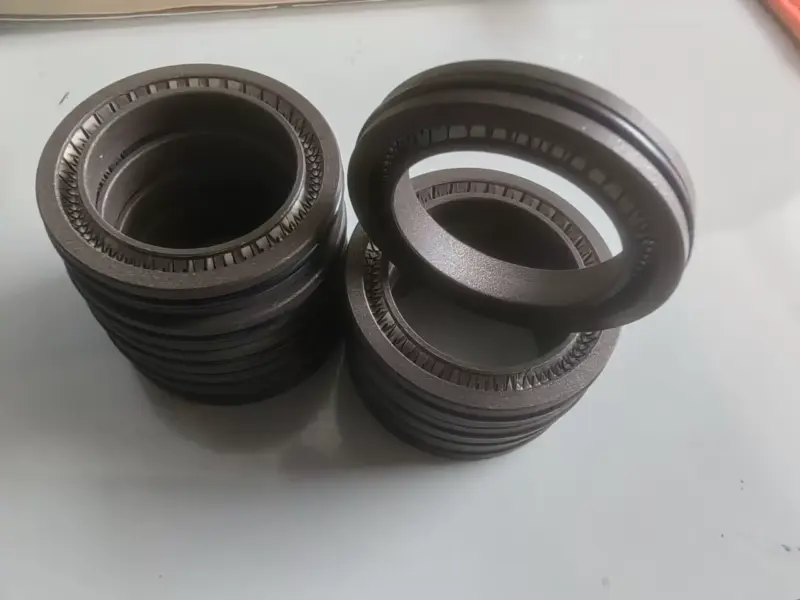

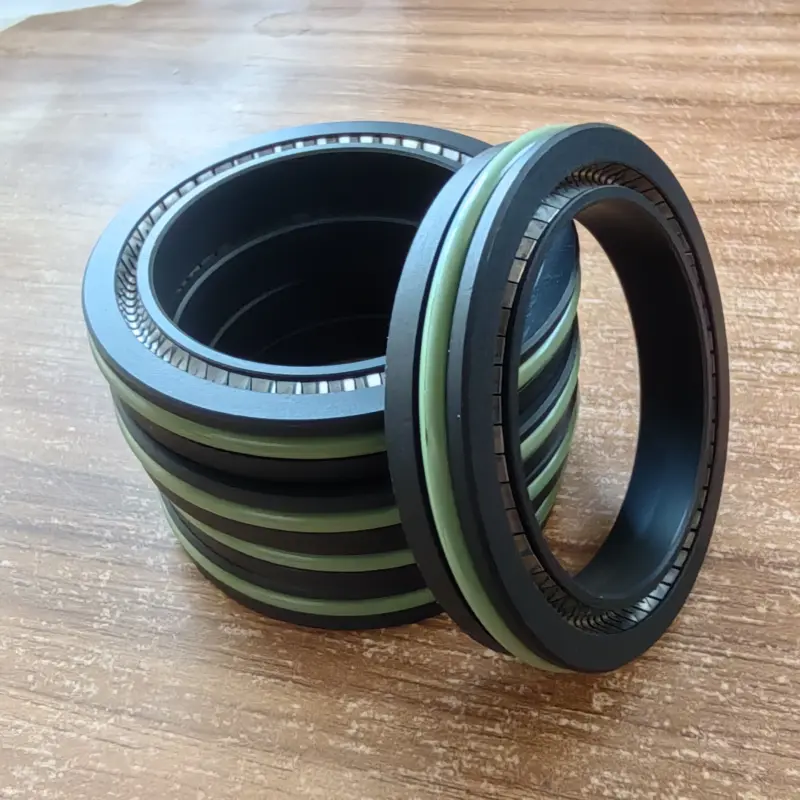

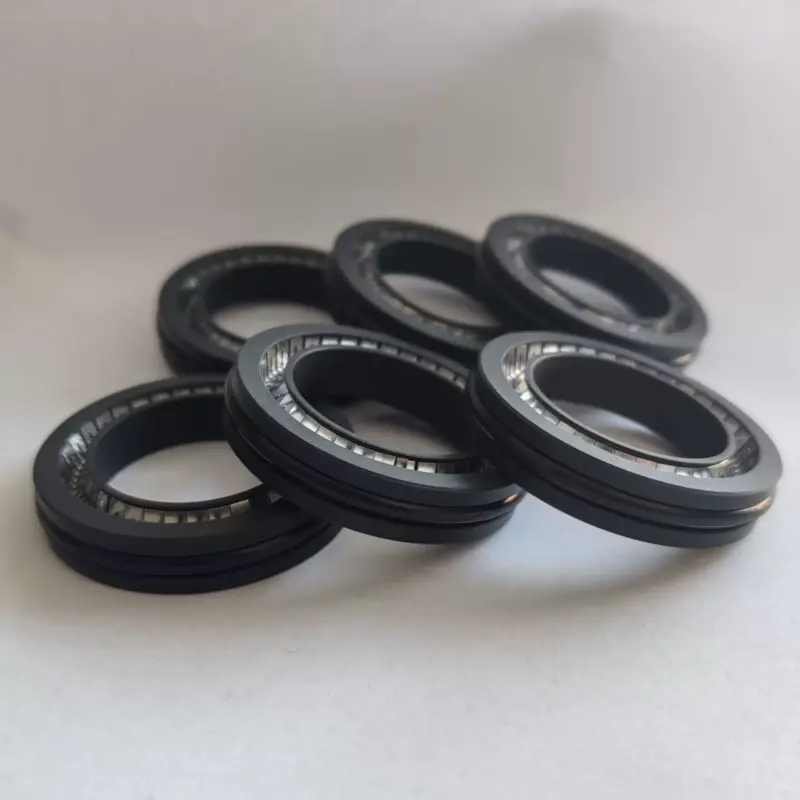

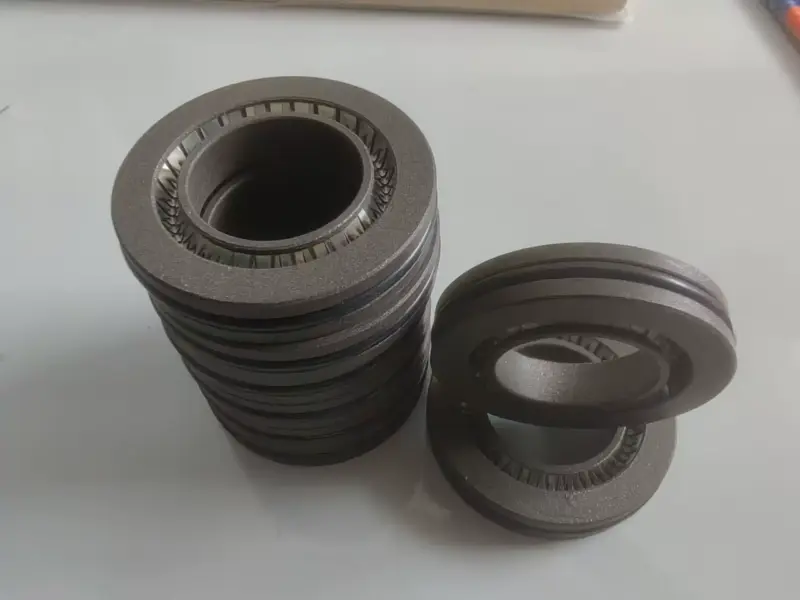

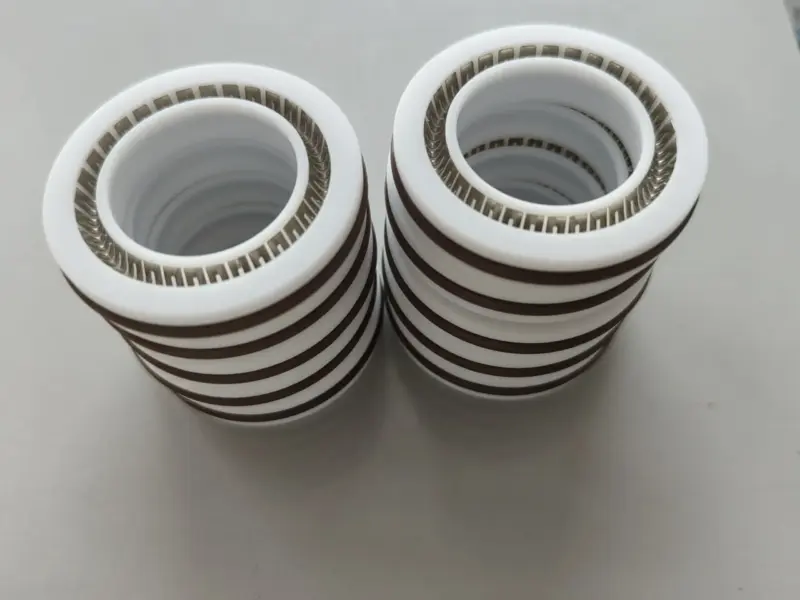

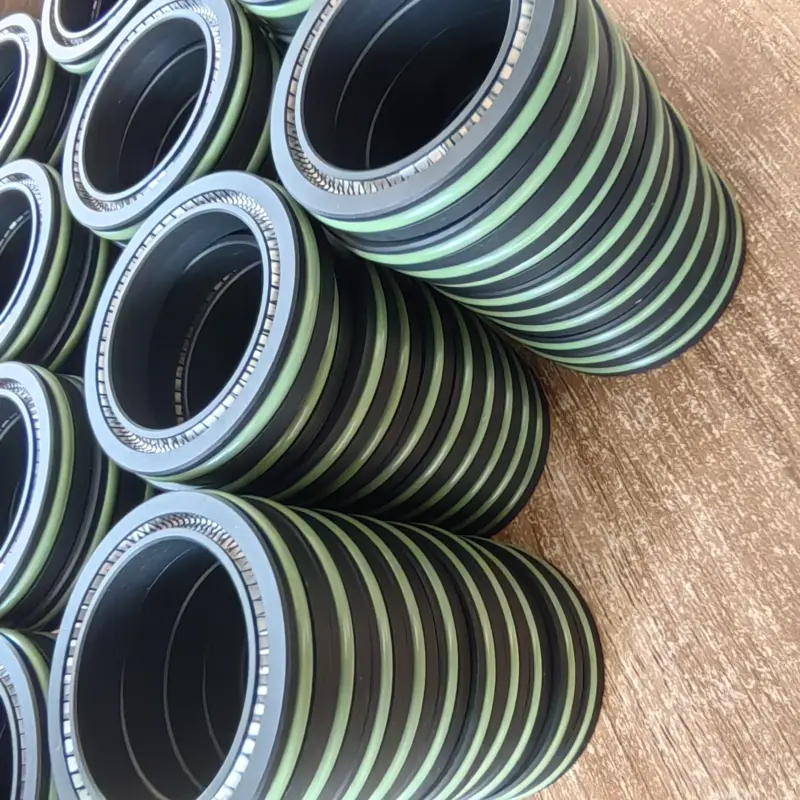

High Temperature Wear Resistant PTFE Oil Seal Rotary Shaft Seal, Teflon FKM Oil Seal by IKSONIC CO., LTD.
✓ Direct China factory, competitive factory pricing
✓ Custom manufacturing per your drawings & specifications
✓ Superior wear & high temperature resistance for extended service life
✓ Wide material options: PTFE, Teflon, FKM (Viton), and more
- Description
- Contact Us
Description
Product Description
IKSONIC CO., LTD. offers premium quality high temperature wear resistant PTFE (Polytetrafluoroethylene) skeleton oil seals, also known as Teflon oil seals or FKM (Fluorocarbon) oil seals. Designed for rotary shaft applications, these seals provide exceptional durability, chemical resistance, and thermal stability. As a direct China factory, we ensure strict quality control and cost-effective solutions for your industrial sealing needs. We support custom manufacturing based on your drawings and specifications.
Key Features
- High Temperature Resistance: Operates reliably in extreme heat environments up to 260°C (500°F) for PTFE, and up to 200°C (392°F) for FKM.
- Excellent Wear Resistance: Low friction coefficient and self-lubricating properties reduce wear and extend seal life.
- Chemical & Corrosion Resistance: Resistant to most chemicals, solvents, oils, and aggressive media.
- Customizable Design: Available in various sizes, shapes, and materials (PTFE, Teflon, FKM, etc.) per your drawings.
- Factory Direct Pricing: Eliminate middlemen and enjoy competitive prices with consistent quality.
Specifications
- Material: PTFE (Polytetrafluoroethylene), Teflon, FKM (Viton), NBR, etc.
- Type: Rotary shaft seal, skeleton oil seal, spring energized seal
- Temperature Range: -40°C to +260°C (PTFE), -20°C to +200°C (FKM)
- Hardness: Shore A 70-90 (depending on material)
- Pressure: Up to 0.5 MPa (static), 0.3 MPa (dynamic)
- Speed: Up to 20 m/s (depending on design)
- Application: Pumps, compressors, gearboxes, motors, hydraulic systems, automotive, industrial machinery
Q&A
Q1: What is the difference between PTFE and FKM oil seals?
A1: PTFE offers superior chemical resistance and higher temperature tolerance (up to 260°C), while FKM (Viton) provides excellent oil and fuel resistance with good elasticity. Choose based on your specific operating conditions.
Q2: Can you manufacture custom sizes?
A2: Yes, as a factory, we can produce any size and shape according to your drawings or samples. Please provide detailed dimensions and material requirements.
Q3: What is the minimum order quantity (MOQ)?
A3: Our MOQ is flexible. For standard sizes, we accept small orders. For custom designs, MOQ may vary; please contact us for details.
Q4: How long is the lead time?
A4: For standard products, lead time is 7-15 days. For custom orders, it depends on complexity and quantity, typically 15-30 days.
Q5: Do you provide samples?
A5: Yes, we offer samples for quality evaluation. Sample cost and shipping are negotiable.
Q6: What industries are these seals used in?
A6: They are widely used in automotive, aerospace, chemical processing, oil & gas, food processing, pharmaceutical, and general industrial machinery.
Q7: How do I ensure the correct seal selection?
A7: Provide us with shaft diameter, housing bore, operating temperature, pressure, speed, and media. Our engineers will recommend the best material and design.
Q8: What is the warranty policy?
A8: We offer a 12-month warranty against manufacturing defects. Please inspect upon receipt and report any issues promptly.
