Description

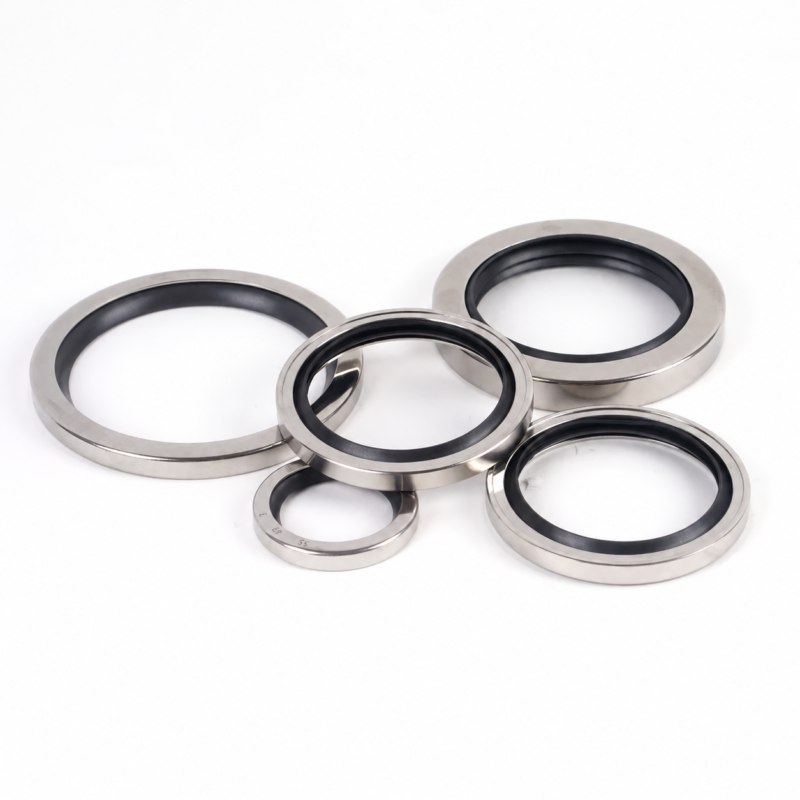

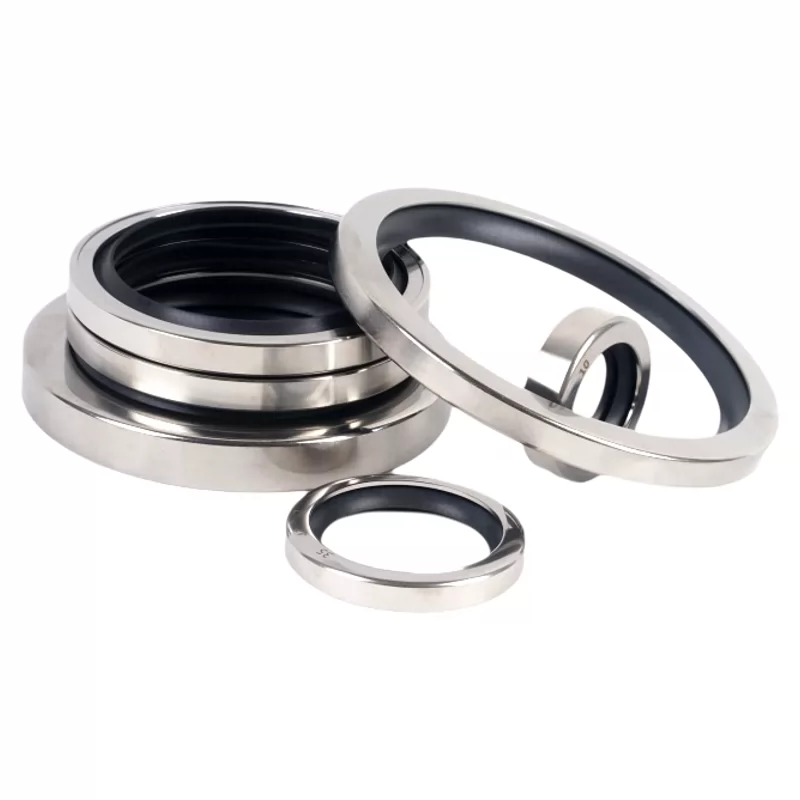

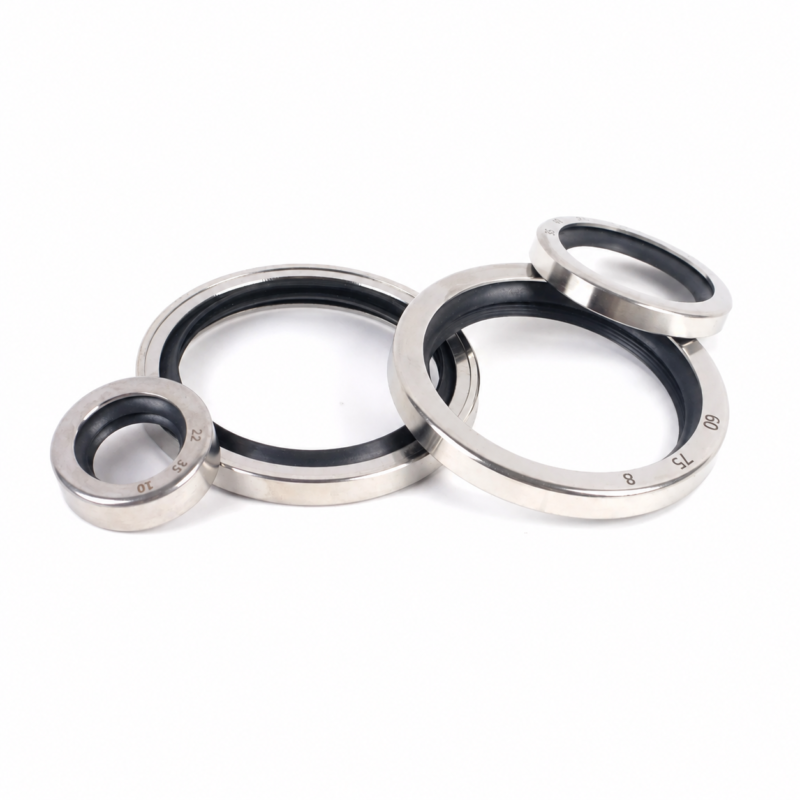

Imported PTFE Oil Seals for Air-Compressor Shafts
IKSONIC is a China-based supplier of finished stainless-steel PTFE oil seals for air-compressor shaft-sealing enquiries. The source describes the product as imported and highlights double-lip seals, while its option list also includes single-lip configurations. Black and yellow options are identified individually in the size table.
IKSONIC is the supplier contact for this product. The source does not identify the country of origin or original manufacturer. Match the complete size, lip arrangement and application requirements before selecting a replacement.
Listed Size, Lip and Color Options
The size strings below follow the product selection exactly. The source does not state their units or identify the order of the three dimensions. Confirm the complete dimensions and units for the selected seal; do not assume that the numbers represent a particular diameter or width.
All 103 source option rows are retained, representing 102 distinct size, lip and color combinations. The repeated 60*82*8 single-lip black entry is shown twice because it appears twice in the source.
| Row | Listed size | Lip configuration | Color |
|---|---|---|---|
| 1 | 58*73*10 | Double-lip | Black |
| 2 | 58*80*8 | Double-lip | Black |
| 3 | 58*80*10 | Double-lip | Black |
| 4 | 58*80*12 | Double-lip | Black |
| 5 | 60*70*8 | Double-lip | Black |
| 6 | 60*72*8 | Double-lip | Black |
| 7 | 60*72*10 | Double-lip | Black |
| 8 | 60*72*8 | Single-lip | Black |
| 9 | 60*75*8 | Single-lip | Black |
| 10 | 60*75*10 | Double-lip | Black |
| 11 | 60*75*12 | Double-lip | Black |
| 12 | 60*75*8 | Double-lip | Black |
| 13 | 60*75*8 | Single-lip | Yellow |
| 14 | 60*75*12 | Single-lip | Yellow |
| 15 | 60*78*8 | Double-lip | Black |
| 16 | 60*78*10 | Double-lip | Black |
| 17 | 60*78*8 | Double-lip | Yellow |
| 18 | 60*80*8 | Double-lip | Black |
| 19 | 60*80*10 | Double-lip | Black |
| 20 | 60*80*12 | Double-lip | Black |
| 21 | 60*80*8 | Single-lip | Black |
| 22 | 60*80*10 | Single-lip | Black |
| 23 | 60*80*10 | Double-lip | Yellow |
| 24 | 60*80*12 | Single-lip | Black |
| 25 | 60*82*8 | Single-lip | Black |
| 26 | 60*82*12 | Double-lip | Black |
| 27 | 60*82*12 | Single-lip | Black |
| 28 | 60*85*8 | Double-lip | Black |
| 29 | 60*85*10 | Double-lip | Black |
| 30 | 60*85*12 | Double-lip | Black |
| 31 | 60*85*8 | Single-lip | Black |
| 32 | 60*85*10 | Single-lip | Black |
| 33 | 60*85*12 | Single-lip | Black |
| 34 | 60*85*12 | Double-lip | Yellow |
| 35 | 60*82*8 | Single-lip | Black |
| 36 | 60*83*12 | Double-lip | Black |
| 37 | 60*90*8 | Double-lip | Black |
| 38 | 60*90*10 | Double-lip | Black |
| 39 | 60*90*12 | Double-lip | Black |
| 40 | 60*90*8 | Single-lip | Black |
| 41 | 60*90*10 | Single-lip | Black |
| 42 | 60*95*12 | Double-lip | Black |
| 43 | 60*100*12 | Double-lip | Black |
| 44 | 65*75*8 | Double-lip | Black |
| 45 | 65*80*8 | Double-lip | Black |
| 46 | 65*80*10 | Double-lip | Black |
| 47 | 65*80*12 | Double-lip | Black |
| 48 | 65*80*10 | Single-lip | Black |
| 49 | 65*80*12 | Single-lip | Black |
| 50 | 65*82*12 | Double-lip | Black |
| 51 | 65*82*8 | Double-lip | Black |
| 52 | 65*83*12 | Double-lip | Black |
| 53 | 65*84*10 | Double-lip | Black |
| 54 | 65*85*8 | Double-lip | Black |
| 55 | 65*85*10 | Double-lip | Black |
| 56 | 65*85*12 | Double-lip | Black |
| 57 | 65*85*10 | Double-lip | Yellow |
| 58 | 65*85*12 | Double-lip | Yellow |
| 59 | 65*87*10 | Double-lip | Black |
| 60 | 65*90*8 | Double-lip | Black |
| 61 | 65*90*10 | Double-lip | Black |
| 62 | 65*90*10 | Double-lip | Yellow |
| 63 | 65*90*10 | Single-lip | Black |
| 64 | 65*90*12 | Single-lip | Black |
| 65 | 65*90*12 | Double-lip | Black |
| 66 | 65*90*13 | Double-lip | Black |
| 67 | 65*90*15 | Double-lip | Black |
| 68 | 65*95*10 | Double-lip | Yellow |
| 69 | 65*100*10 | Double-lip | Black |
| 70 | 65*100*12 | Double-lip | Black |
| 71 | 65*100*8 | Double-lip | Black |
| 72 | 65*100*8 | Single-lip | Black |
| 73 | 66*82*10 | Double-lip | Black |
| 74 | 66*90*12 | Double-lip | Black |
| 75 | 67*87*10 | Double-lip | Black |
| 76 | 67*92*12 | Double-lip | Black |
| 77 | 68*90*10 | Double-lip | Black |
| 78 | 68*94*12 | Double-lip | Black |
| 79 | 68*90*12 | Double-lip | Black |
| 80 | 68*90*9 | Double-lip | Black |
| 81 | 70*82*8 | Double-lip | Black |
| 82 | 70*85*8 | Double-lip | Black |
| 83 | 70*85*10 | Double-lip | Black |
| 84 | 70*85*12 | Double-lip | Black |
| 85 | 70*90*8 | Double-lip | Black |
| 86 | 70*90*10 | Double-lip | Black |
| 87 | 70*90*12 | Double-lip | Black |
| 88 | 70*90*12 | Single-lip | Black |
| 89 | 70*90*10 | Single-lip | Black |
| 90 | 70*90*10 | Double-lip | Yellow |
| 91 | 70*90*12 | Double-lip | Yellow |
| 92 | 70*92*10 | Double-lip | Black |
| 93 | 70*95*8 | Double-lip | Black |
| 94 | 70*95*8 | Single-lip | Black |
| 95 | 70*95*10 | Double-lip | Black |
| 96 | 70*95*10 | Single-lip | Black |
| 97 | 70*95*12 | Double-lip | Black |
| 98 | 70*95*12 | Single-lip | Black |
| 99 | 70*100*10 | Double-lip | Black |
| 100 | 70*100*10 | Single-lip | Black |
| 101 | 70*100*12 | Single-lip | Black |
| 102 | 70*100*12 | Double-lip | Black |
| 103 | 70*110*10 | Double-lip | Black |
Lip count and color apply only to the option in the same row. Color does not establish a PTFE compound, material grade or media compatibility. No size option has been mapped to the letter-coded types or layer constructions below.
Separate Seal-Type Reference
The shared product detail sheet also describes the following letter-coded seal types. These are reference designs, not assigned specifications for the size options above. Use only the row for a confirmed type; do not infer a type code from size, color or lip count.
| Type | Speed | Pressure | Design and application |
|---|---|---|---|
| A | ≤ 30 m/s | ≤ 10 bar | Standard type; optional oil-return thread designs. |
| AR | ≤ 30 m/s | ≤ 10 bar | Oil-return thread variant of Type A; direction to be confirmed. |
| AL | ≤ 30 m/s | ≤ 10 bar | Oil-return thread variant of Type A; direction to be confirmed. |
| C | ≤ 30 m/s | ≤ 10 bar | Type A with an additional dust-exclusion lip. |
| B | ≤ 18 m/s | ≤ 35 bar | Double-lip rotary seal for higher-pressure applications. |
| BR | ≤ 18 m/s | ≤ 35 bar | Oil-return thread variant of Type B; direction to be confirmed. |
| BL | ≤ 18 m/s | ≤ 35 bar | Oil-return thread variant of Type B; direction to be confirmed. |
| D | ≤ 18 m/s | ≤ 35 bar | Type B with an additional dust-exclusion element. |
| L | ≤ 30 m/s | ≤ 1.5 bar | Low-friction design for bearing protection. |
| LB | ≤ 30 m/s | ≤ 1.5 bar | Type L with an additional dust-exclusion lip. |
| LC | ≤ 8 m/s | ≤ 3.5 bar | Enhanced-flexibility design for shaft roundness and runout variation. |
| LD | ≤ 8 m/s | ≤ 3.5 bar | Type LC with an additional dust-exclusion element. |
| LA | ≤ 25 m/s | ≤ 1.5 bar | Symmetric lips for separating two different fluids, such as in centrifuges. |
Separate Construction Reference and Temperature Limits
The detail sheet separately describes single-, double- and triple-layer constructions. A layer classification must not be treated as a direct equivalent of the single- or double-lip option labels.
Temperature information requires confirmation: one product image advertises PTFE at −30°C to 300°C, while the construction detail sheet lists −60°C to 260°C. These statements have not been reconciled. The ranges below are source references only; neither range is a verified operating rating for any listed size option. Confirm the required service temperature for the exact seal.
| Construction | Metal material | Source-listed temperature, unverified for size options | Listed linear speed | Features and example applications |
|---|---|---|---|---|
| Single-layer | 304 stainless steel | −60°C to 260°C | ≤ 25 m/s | Single-layer seal construction. The supplier describes wear, oil and corrosion resistance. Water pumps, air compressors and other compressors. |
| Double-layer | 304 stainless steel | −60°C to 260°C | ≤ 25 m/s | Adds an oil-return feature to the single-layer construction. The supplier describes bidirectional rotation for this construction. Screw air compressors, motors, air-conditioning equipment, blowers and automation equipment. |
| Triple-layer | 304 stainless steel | −60°C to 260°C | ≤ 25 m/s | Adds a dust-exclusion lip to the double-layer construction to help limit the ingress of dust, water and contaminants, together with a threaded sealing lip. The supplier describes single-direction or bidirectional rotation. Screw air compressors and chemical-fluid or gas sealing applications; exact media compatibility requires confirmation. |
Reference Boundaries
- The size options, letter-coded types and layer constructions are three separate source classifications. No mapping between them has been supplied.
- The type-specific speed and pressure values are separate source-listed limits. The construction speed and temperature figures do not replace those values. No simultaneous speed, pressure and temperature operating envelope is established.
- The shared B/BR/BL description states a PV value of 100 bar·m/s without a printed inequality. It does not establish a combined operating point and is not extended to D or any other type.
- AR, AL, BR and BL remain distinct variants. The source uses inconsistent directional terms, so confirm actual shaft rotation and oil-return thread direction. Do not apply construction-level rotation descriptions to individual type codes or size options.
- The 304 stainless steel statement belongs to the construction reference. It does not establish the material of every component or the metal grade of every size option.
- Application examples do not establish compatibility with every fluid or gas. Confirm the exact medium, concentration, temperature, pressure, lubrication and shaft conditions for the selected seal.
Frequently Asked Questions
Are these all double-lip seals?
No. Although the source title highlights double-lip seals, the option list contains both single-lip and double-lip entries. Select the configuration stated in the same row as the required size and color.
Are the listed sizes in millimeters?
The source does not specify a unit or the order of the three dimensions. Confirm the dimensions and units rather than assuming a diameter or width convention.
Do the reference ratings apply to every size?
No. The source does not map the size options to the letter-coded types or layer constructions. The temperature statements also conflict, so the exact operating limits require confirmation for the selected part.
Does the color identify the PTFE material grade?
No. Black and yellow are source-listed colors only. Confirm the PTFE compound and compatibility with the intended medium separately.
Where are the seals manufactured?
The source describes the product as imported but does not specify its country of origin or original manufacturer. IKSONIC is presented as the supplier contact, not as the manufacturer.
What should I include in an enquiry?
Provide the listed size, lip configuration, color and quantity, together with confirmed dimensions and units. Include the existing seal reference or drawing, equipment application, shaft rotation, medium, speed, pressure, temperature and lubrication conditions.
Discuss Your Seal Specification with IKSONIC
For replacement, custom-size or wholesale enquiries, contact IKSONIC with the complete seal specification and application conditions. Identify any requirement not explicitly covered by the listed option so it can be reviewed for the exact part.
