PTFE TC Rotary Shaft Seals – Multiple Size Options

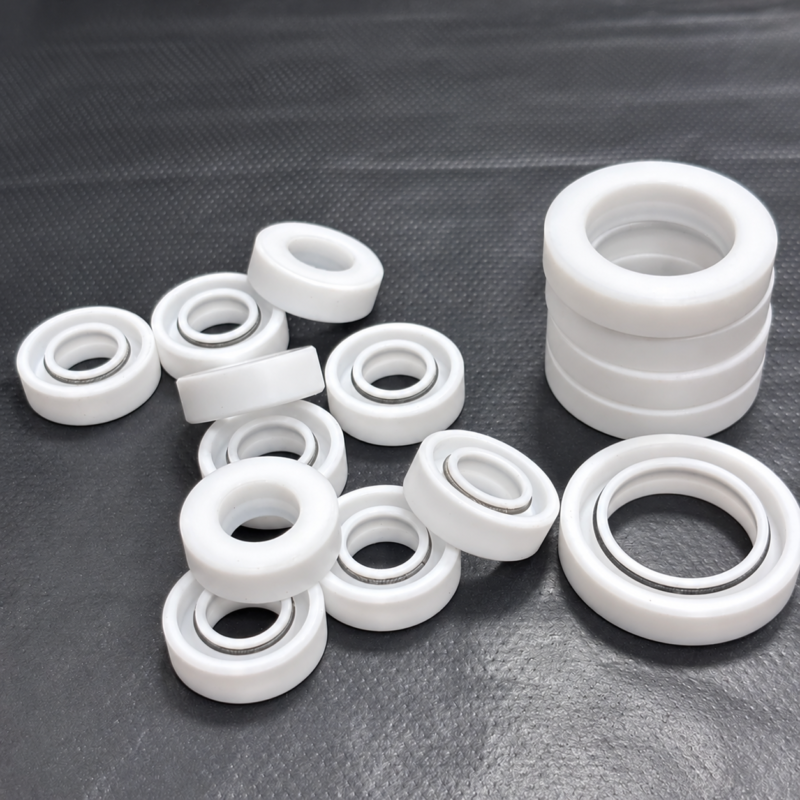

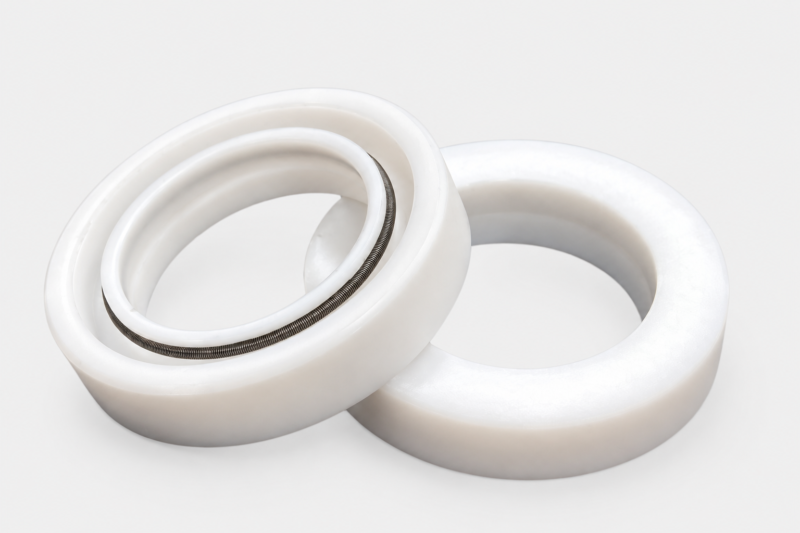

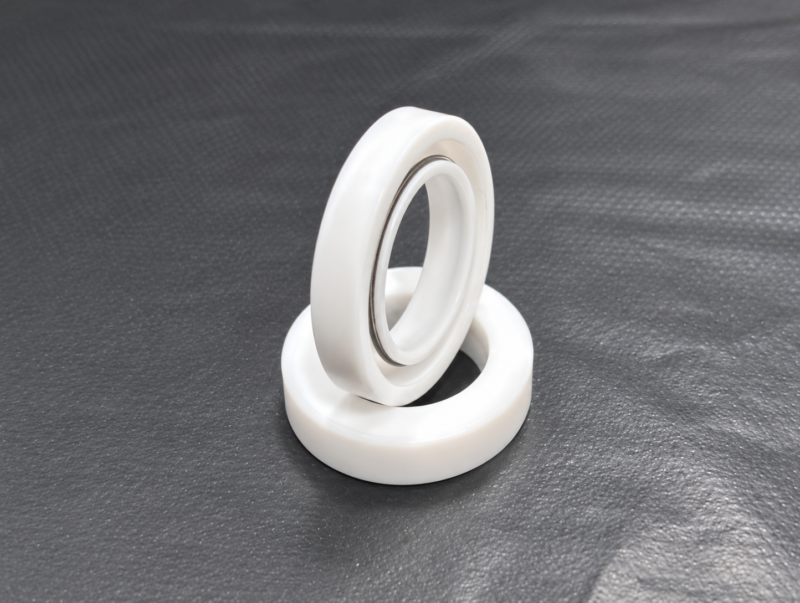

PTFE TC rotary shaft seals are available in multiple size combinations. The product information identifies high-temperature, high-pressure, corrosion, and acid/alkali resistance without specifying numerical operating limits. Match the seal geometry to the shaft and housing, and confirm the conditions for the selected size and material grade.
Options and identification
Available option labels include 8*16*7, 10*18*5, 15*30*7, 18*30*7. Confirm the selected option, supplied quantity, and dimensions before ordering. Where a size is presented as a code, confirm its measurement order and units with the selected configuration.
Measure the shaft and housing
Confirm the shaft diameter, housing bore, and available seal width. Include the lip arrangement and any supporting components when identifying a replacement. Keep the measurement order consistent throughout your inquiry. The operating medium, shaft movement, and temperature requirements should be checked along with the dimensions before selecting the seal.
Frequently asked questions
Can I choose by outer diameter alone? No. The shaft interface, housing fit, width, and lip arrangement must also match the installation.
What should I send if the dimensions are unclear? Provide a photograph and identify the measurement locations. Distinguish the shaft diameter from the seal outer diameter.
Request a quotation
Include the rotation conditions, medium, temperature, pressure requirements, and quantity. For an existing installation, provide any markings from the removed seal and indicate whether the replacement must retain a particular lip configuration.
When replacing an existing component, include photographs showing both the part and its installation position. Keep all measured values together with their units, and identify any dimensions that still need checking. This helps keep the requested option clear when confirming the order.
Contact IKSONIC for a TC rotary shaft seals quotation.
