PTFE Male Compression Fittings, Including 1/4-28UNF
Straight PTFE male compression fittings in 286 listed thread and diameter combinations. Includes metric, G, NPT, PT, ZG and 1/4-28UNF options. Confirm exact thread, diameter notation and application requirements before ordering.
- Description
- Contact Us
Description

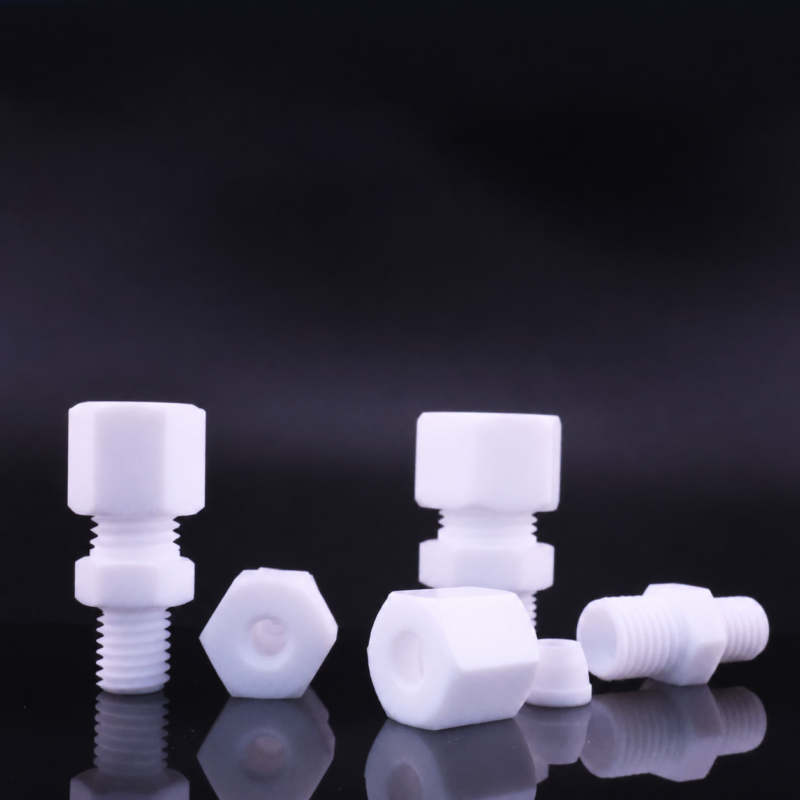

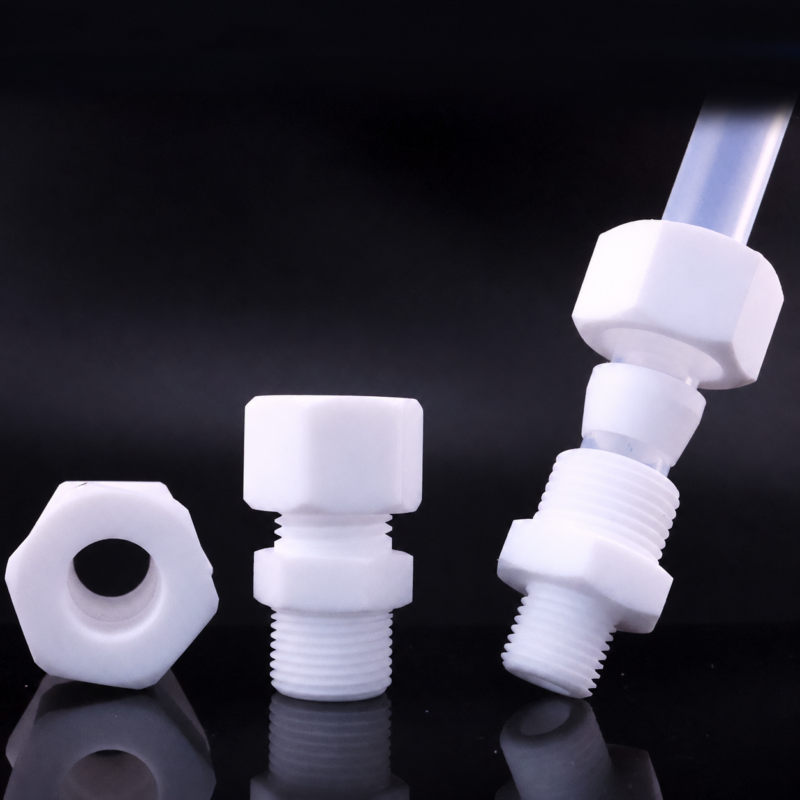

PTFE Male Compression Fittings from IKSONIC
IKSONIC supplies straight PTFE male compression fittings from China for connecting tubing to a matching female-thread port. This range includes metric, G, NPT, PT, ZG and 1/4-28UNF designations, with each listed thread and diameter combination shown separately below. Select the exact model rather than assuming that similar thread labels are interchangeable.
Product Overview
- Material: polytetrafluoroethylene (PTFE), described in the listing as new material.
- Configuration: straight compression tube connection with an external male thread.
- Model selection: 286 individually listed combinations, including seven 1/4-28UNF options.
Specifications / Models
The table retains the listed numeric thread and diameter designations. Explicit Chinese inch labels are translated as inch; no diameter unit or omitted metric pitch has been added. Diameter symbols and fractional values are retained as listed. Confirm the diameter meaning, unit, tube dimensions and mating thread before ordering.
Nine models specify a 1-inch male thread without naming its standard. The 1/4-28UNF options labelled φ1/4mm and φ3/8mm contain unusual fraction-plus-mm notation and require confirmation; these labels have not been silently converted to inches or decimal sizes. PT and ZG labels remain separate.
| Model designation | Male thread designation | Diameter designation | Selection note |
|---|---|---|---|
| M5-φ3 | M5 | φ3 | Thread pitch not stated. Diameter unit not stated. |
| M5-φ3.175 | M5 | φ3.175 | Thread pitch not stated. Diameter unit not stated. |
| M5-φ4 | M5 | φ4 | Thread pitch not stated. Diameter unit not stated. |
| M5-φ6 | M5 | φ6 | Thread pitch not stated. Diameter unit not stated. |
| M5-φ6.35 | M5 | φ6.35 | Thread pitch not stated. Diameter unit not stated. |
| M6-φ3 | M6 | φ3 | Thread pitch not stated. Diameter unit not stated. |
| M6-φ3.175 | M6 | φ3.175 | Thread pitch not stated. Diameter unit not stated. |
| M6-φ4 | M6 | φ4 | Thread pitch not stated. Diameter unit not stated. |
| M6-φ5 | M6 | φ5 | Thread pitch not stated. Diameter unit not stated. |
| M6-φ6 | M6 | φ6 | Thread pitch not stated. Diameter unit not stated. |
| M6-φ6.35 | M6 | φ6.35 | Thread pitch not stated. Diameter unit not stated. |
| M8-φ3 | M8 | φ3 | Thread pitch not stated. Diameter unit not stated. |
| M8-φ3.175 | M8 | φ3.175 | Thread pitch not stated. Diameter unit not stated. |
| M8-φ4 | M8 | φ4 | Thread pitch not stated. Diameter unit not stated. |
| M8-φ5 | M8 | φ5 | Thread pitch not stated. Diameter unit not stated. |
| M8-φ6 | M8 | φ6 | Thread pitch not stated. Diameter unit not stated. |
| M8-φ6.35 | M8 | φ6.35 | Thread pitch not stated. Diameter unit not stated. |
| M8-φ8 | M8 | φ8 | Thread pitch not stated. Diameter unit not stated. |
| M8-φ9.525 | M8 | φ9.525 | Thread pitch not stated. Diameter unit not stated. |
| M8-φ10 | M8 | φ10 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ3 | M10 | φ3 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ3.175 | M10 | φ3.175 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ4 | M10 | φ4 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ5 | M10 | φ5 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ6 | M10 | φ6 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ6.35 | M10 | φ6.35 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ8 | M10 | φ8 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ9.525 | M10 | φ9.525 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ10 | M10 | φ10 | Thread pitch not stated. Diameter unit not stated. |
| M10-φ12 | M10 | φ12 | Thread pitch not stated. Diameter unit not stated. |
| M12*1.5-φ6 | M12*1.5 | φ6 | Diameter unit not stated. |
| M12*1.5-φ6.35 | M12*1.5 | φ6.35 | Diameter unit not stated. |
| M12*1.5-φ8 | M12*1.5 | φ8 | Diameter unit not stated. |
| M12*1.5-φ9.525 | M12*1.5 | φ9.525 | Diameter unit not stated. |
| M12*1.5-φ10 | M12*1.5 | φ10 | Diameter unit not stated. |
| M12*1.5-φ12 | M12*1.5 | φ12 | Diameter unit not stated. |
| M14*1.5-Ф6 | M14*1.5 | Ф6 | Diameter unit not stated. |
| M14*1.5-Ф6.35 | M14*1.5 | Ф6.35 | Diameter unit not stated. |
| M14*1.5-Ф8 | M14*1.5 | Ф8 | Diameter unit not stated. |
| M14*1.5-Ф9.525 | M14*1.5 | Ф9.525 | Diameter unit not stated. |
| M14*1.5-Ф10 | M14*1.5 | Ф10 | Diameter unit not stated. |
| M14*1.5-Ф12 | M14*1.5 | Ф12 | Diameter unit not stated. |
| M16*1.5-Ф6 | M16*1.5 | Ф6 | Diameter unit not stated. |
| M16*1.5-Ф8 | M16*1.5 | Ф8 | Diameter unit not stated. |
| M16*1.5-Ф10 | M16*1.5 | Ф10 | Diameter unit not stated. |
| M16*1.5-Ф12 | M16*1.5 | Ф12 | Diameter unit not stated. |
| M18*1.5-Ф6 | M18*1.5 | Ф6 | Diameter unit not stated. |
| M18*1.5-Ф8 | M18*1.5 | Ф8 | Diameter unit not stated. |
| M18*1.5-Ф10 | M18*1.5 | Ф10 | Diameter unit not stated. |
| M18*1.5-Ф12 | M18*1.5 | Ф12 | Diameter unit not stated. |
| M20*1.5-Ф6 | M20*1.5 | Ф6 | Diameter unit not stated. |
| M20*1.5-Ф8 | M20*1.5 | Ф8 | Diameter unit not stated. |
| M20*1.5-Ф10 | M20*1.5 | Ф10 | Diameter unit not stated. |
| M20*1.5-Ф12 | M20*1.5 | Ф12 | Diameter unit not stated. |
| M20*1.5-Ф14 | M20*1.5 | Ф14 | Diameter unit not stated. |
| M20*1.5-Ф16 | M20*1.5 | Ф16 | Diameter unit not stated. |
| M20*1.5-Ф18 | M20*1.5 | Ф18 | Diameter unit not stated. |
| M20*1.5-Ф19 | M20*1.5 | Ф19 | Diameter unit not stated. |
| M20*1.5-Ф19.05(3/4) | M20*1.5 | Ф19.05(3/4) | Diameter unit not stated. |
| M20*1.5-Ф20 | M20*1.5 | Ф20 | Diameter unit not stated. |
| M20*1.5-Ф22 | M20*1.5 | Ф22 | Diameter unit not stated. |
| M20*1.5-Ф24 | M20*1.5 | Ф24 | Diameter unit not stated. |
| M20*1.5-Ф25 | M20*1.5 | Ф25 | Diameter unit not stated. |
| M20*1.5-Ф25.4(1″) | M20*1.5 | Ф25.4(1″) | Confirm mating thread and tube dimensions. |
| M20*1.5-Ф30 | M20*1.5 | Ф30 | Diameter unit not stated. |
| M20*1.5-Ф32 | M20*1.5 | Ф32 | Diameter unit not stated. |
| G1/8-φ1 | G1/8 | φ1 | Diameter unit not stated. |
| G1/8-φ1.5875 | G1/8 | φ1.5875 | Diameter unit not stated. |
| G1/8-φ2 | G1/8 | φ2 | Diameter unit not stated. |
| G1/8-φ3 | G1/8 | φ3 | Diameter unit not stated. |
| G1/8-φ1/8（3.175） | G1/8 | φ1/8（3.175） | Diameter unit not stated. |
| G1/8-φ4 | G1/8 | φ4 | Diameter unit not stated. |
| G1/8-φ5 | G1/8 | φ5 | Diameter unit not stated. |
| G1/8-φ6 | G1/8 | φ6 | Diameter unit not stated. |
| G1/8-φ1/4（6.35） | G1/8 | φ1/4（6.35） | Diameter unit not stated. |
| G1/8-φ8 | G1/8 | φ8 | Diameter unit not stated. |
| G1/8-φ3/8（9.525） | G1/8 | φ3/8（9.525） | Diameter unit not stated. |
| G1/8-φ10 | G1/8 | φ10 | Diameter unit not stated. |
| G1/8-φ12 | G1/8 | φ12 | Diameter unit not stated. |
| G1/8-φ12.7(1/2) | G1/8 | φ12.7(1/2) | Diameter unit not stated. |
| G1/8-φ13 | G1/8 | φ13 | Diameter unit not stated. |
| G1/8-φ14 | G1/8 | φ14 | Diameter unit not stated. |
| G1/8-φ16 | G1/8 | φ16 | Diameter unit not stated. |
| G1/8-φ18 | G1/8 | φ18 | Diameter unit not stated. |
| G1/4-φ2 | G1/4 | φ2 | Diameter unit not stated. |
| G1/4-φ3 | G1/4 | φ3 | Diameter unit not stated. |
| G1/4-φ1/8（3.175） | G1/4 | φ1/8（3.175） | Diameter unit not stated. |
| G1/4-φ4 | G1/4 | φ4 | Diameter unit not stated. |
| G1/4-φ5 | G1/4 | φ5 | Diameter unit not stated. |
| G1/4-φ6 | G1/4 | φ6 | Diameter unit not stated. |
| G1/4-φ6.35 | G1/4 | φ6.35 | Diameter unit not stated. |
| G1/4-φ8 | G1/4 | φ8 | Diameter unit not stated. |
| G1/4-φ3/8（9.525） | G1/4 | φ3/8（9.525） | Diameter unit not stated. |
| G1/4-φ10 | G1/4 | φ10 | Diameter unit not stated. |
| G1/4-φ12 | G1/4 | φ12 | Diameter unit not stated. |
| G1/4-φ1/2（12.7） | G1/4 | φ1/2（12.7） | Diameter unit not stated. |
| G1/4-φ14 | G1/4 | φ14 | Diameter unit not stated. |
| G1/4-φ16 | G1/4 | φ16 | Diameter unit not stated. |
| G1/4-φ20 | G1/4 | φ20 | Diameter unit not stated. |
| G1/4-φ22 | G1/4 | φ22 | Diameter unit not stated. |
| G1/4-φ24 | G1/4 | φ24 | Diameter unit not stated. |
| G1/4-φ25 | G1/4 | φ25 | Diameter unit not stated. |
| G1/4-φ25.4(1″) | G1/4 | φ25.4(1″) | Confirm mating thread and tube dimensions. |
| G3/8-φ3 | G3/8 | φ3 | Diameter unit not stated. |
| G3/8-φ1/8（3.175） | G3/8 | φ1/8（3.175） | Diameter unit not stated. |
| G3/8-φ4 | G3/8 | φ4 | Diameter unit not stated. |
| G3/8-φ6 | G3/8 | φ6 | Diameter unit not stated. |
| G3/8-φ6.35 | G3/8 | φ6.35 | Diameter unit not stated. |
| G3/8-φ8 | G3/8 | φ8 | Diameter unit not stated. |
| G3/8-φ9.525 | G3/8 | φ9.525 | Diameter unit not stated. |
| G3/8-φ10 | G3/8 | φ10 | Diameter unit not stated. |
| G3/8-φ12 | G3/8 | φ12 | Diameter unit not stated. |
| G3/8-φ12.7 | G3/8 | φ12.7 | Diameter unit not stated. |
| G3/8-φ14 | G3/8 | φ14 | Diameter unit not stated. |
| G3/8-φ16 | G3/8 | φ16 | Diameter unit not stated. |
| G3/8-φ18 | G3/8 | φ18 | Diameter unit not stated. |
| G3/8-φ19 | G3/8 | φ19 | Diameter unit not stated. |
| G3/8-φ19.05(3/4) | G3/8 | φ19.05(3/4) | Diameter unit not stated. |
| G3/8-φ20 | G3/8 | φ20 | Diameter unit not stated. |
| G3/8-φ22 | G3/8 | φ22 | Diameter unit not stated. |
| G3/8-φ24 | G3/8 | φ24 | Diameter unit not stated. |
| G3/8-φ25 | G3/8 | φ25 | Diameter unit not stated. |
| G3/8-φ25.4(1″) | G3/8 | φ25.4(1″) | Confirm mating thread and tube dimensions. |
| G1/2-φ3 | G1/2 | φ3 | Diameter unit not stated. |
| G1/2-φ3.175 | G1/2 | φ3.175 | Diameter unit not stated. |
| G1/2-φ4 | G1/2 | φ4 | Diameter unit not stated. |
| G1/2-φ5 | G1/2 | φ5 | Diameter unit not stated. |
| G1/2-φ6 | G1/2 | φ6 | Diameter unit not stated. |
| G1/2-φ6.35 | G1/2 | φ6.35 | Diameter unit not stated. |
| G1/2-φ8 | G1/2 | φ8 | Diameter unit not stated. |
| G1/2-φ9.525 | G1/2 | φ9.525 | Diameter unit not stated. |
| G1/2-φ10 | G1/2 | φ10 | Diameter unit not stated. |
| G1/2-φ12 | G1/2 | φ12 | Diameter unit not stated. |
| G1/2-φ12.7 | G1/2 | φ12.7 | Diameter unit not stated. |
| G1/2-φ14 | G1/2 | φ14 | Diameter unit not stated. |
| G1/2-φ15 | G1/2 | φ15 | Diameter unit not stated. |
| G1/2-φ16 | G1/2 | φ16 | Diameter unit not stated. |
| G1/2-φ19.05 | G1/2 | φ19.05 | Diameter unit not stated. |
| G1/2-φ20 | G1/2 | φ20 | Diameter unit not stated. |
| G1/2-φ25.4(1 inch） | G1/2 | φ25.4(1 inch） | Confirm mating thread and tube dimensions. |
| G3/4-φ9.525 | G3/4 | φ9.525 | Diameter unit not stated. |
| G3/4-φ10 | G3/4 | φ10 | Diameter unit not stated. |
| G3/4-φ12 | G3/4 | φ12 | Diameter unit not stated. |
| G3/4-φ12.7 | G3/4 | φ12.7 | Diameter unit not stated. |
| G3/4-φ15 | G3/4 | φ15 | Diameter unit not stated. |
| G3/4-φ16 | G3/4 | φ16 | Diameter unit not stated. |
| G3/4-φ19.05 | G3/4 | φ19.05 | Diameter unit not stated. |
| G3/4-φ20 | G3/4 | φ20 | Diameter unit not stated. |
| G3/4-φ25.4（1 inch） | G3/4 | φ25.4（1 inch） | Confirm mating thread and tube dimensions. |
| 1 inch-φ6 | 1 inch | φ6 | Thread standard not stated; confirm before ordering. Diameter unit not stated. |
| 1 inch-φ1/4（6.35） | 1 inch | φ1/4（6.35） | Thread standard not stated; confirm before ordering. Diameter unit not stated. |
| 1 inch-φ8 | 1 inch | φ8 | Thread standard not stated; confirm before ordering. Diameter unit not stated. |
| 1 inch-φ3/8（9.525） | 1 inch | φ3/8（9.525） | Thread standard not stated; confirm before ordering. Diameter unit not stated. |
| 1 inch-φ10 | 1 inch | φ10 | Thread standard not stated; confirm before ordering. Diameter unit not stated. |
| 1 inch-φ12 | 1 inch | φ12 | Thread standard not stated; confirm before ordering. Diameter unit not stated. |
| 1 inch-φ12.7 | 1 inch | φ12.7 | Thread standard not stated; confirm before ordering. Diameter unit not stated. |
| 1 inch-φ3/4（19.05） | 1 inch | φ3/4（19.05） | Thread standard not stated; confirm before ordering. Diameter unit not stated. |
| 1 inch-φ1 inch（25.4） | 1 inch | φ1 inch（25.4） | Thread standard not stated; confirm before ordering. |
| NPT1/8-φ1/8（3.175） | NPT1/8 | φ1/8（3.175） | Diameter unit not stated. |
| NPT1/8-φ3 | NPT1/8 | φ3 | Diameter unit not stated. |
| NPT1/8-φ4 | NPT1/8 | φ4 | Diameter unit not stated. |
| NPT1/8-φ6 | NPT1/8 | φ6 | Diameter unit not stated. |
| NPT1/8-φ1/4（6.35） | NPT1/8 | φ1/4（6.35） | Diameter unit not stated. |
| NPT1/8-φ8 | NPT1/8 | φ8 | Diameter unit not stated. |
| NPT1/8-φ3/8（9.525） | NPT1/8 | φ3/8（9.525） | Diameter unit not stated. |
| NPT1/8-φ10 | NPT1/8 | φ10 | Diameter unit not stated. |
| NPT1/4-φ3 | NPT1/4 | φ3 | Diameter unit not stated. |
| NPT1/4-φ1/8（3.175） | NPT1/4 | φ1/8（3.175） | Diameter unit not stated. |
| NPT1/4-φ4 | NPT1/4 | φ4 | Diameter unit not stated. |
| NPT1/4-φ6 | NPT1/4 | φ6 | Diameter unit not stated. |
| NPT1/4-φ1/4（6.35） | NPT1/4 | φ1/4（6.35） | Diameter unit not stated. |
| NPT1/4-φ8 | NPT1/4 | φ8 | Diameter unit not stated. |
| NPT1/4-φ3/8（9.525） | NPT1/4 | φ3/8（9.525） | Diameter unit not stated. |
| NPT1/4-φ10 | NPT1/4 | φ10 | Diameter unit not stated. |
| NPT1/4-φ12 | NPT1/4 | φ12 | Diameter unit not stated. |
| NPT1/4-φ14 | NPT1/4 | φ14 | Diameter unit not stated. |
| NPT3/8-φ6 | NPT3/8 | φ6 | Diameter unit not stated. |
| NPT3/8-φ10 | NPT3/8 | φ10 | Diameter unit not stated. |
| NPT3/8-φ8 | NPT3/8 | φ8 | Diameter unit not stated. |
| NPT3/8-φ12 | NPT3/8 | φ12 | Diameter unit not stated. |
| NPT3/8-φ14 | NPT3/8 | φ14 | Diameter unit not stated. |
| NPT1/2-φ6 | NPT1/2 | φ6 | Diameter unit not stated. |
| NPT1/2-φ6.35 | NPT1/2 | φ6.35 | Diameter unit not stated. |
| NPT1/2-φ8 | NPT1/2 | φ8 | Diameter unit not stated. |
| NPT1/2-φ3/8（9.525） | NPT1/2 | φ3/8（9.525） | Diameter unit not stated. |
| NPT1/2-φ10 | NPT1/2 | φ10 | Diameter unit not stated. |
| NPT1/2-φ1/2（12.7） | NPT1/2 | φ1/2（12.7） | Diameter unit not stated. |
| NPT1/2-φ14 | NPT1/2 | φ14 | Diameter unit not stated. |
| NPT1/2-φ16 | NPT1/2 | φ16 | Diameter unit not stated. |
| NPT1/2-φ19.05 | NPT1/2 | φ19.05 | Diameter unit not stated. |
| NPT1/2-φ20 | NPT1/2 | φ20 | Diameter unit not stated. |
| NPT3/4-φ1/2（12.7） | NPT3/4 | φ1/2（12.7） | Diameter unit not stated. |
| NPT3/4-φ16 | NPT3/4 | φ16 | Diameter unit not stated. |
| NPT3/4-φ19.05 | NPT3/4 | φ19.05 | Diameter unit not stated. |
| NPT3/4-φ1 inch（25.4） | NPT3/4 | φ1 inch（25.4） | Confirm mating thread and tube dimensions. |
| NPT1 inch-φ1/2（12.7） | NPT1 inch | φ1/2（12.7） | Diameter unit not stated. |
| NPT1 inch-φ19.05 | NPT1 inch | φ19.05 | Diameter unit not stated. |
| NPT1 inch-φ25.4 | NPT1 inch | φ25.4 | Diameter unit not stated. |
| PT1/8-φ3 | PT1/8 | φ3 | Diameter unit not stated. |
| PT1/8-φ1/8（3.175） | PT1/8 | φ1/8（3.175） | Diameter unit not stated. |
| PT1/8-φ4 | PT1/8 | φ4 | Diameter unit not stated. |
| PT1/8-φ5 | PT1/8 | φ5 | Diameter unit not stated. |
| PT1/8-φ6 | PT1/8 | φ6 | Diameter unit not stated. |
| PT1/8-φ1/4（6.35） | PT1/8 | φ1/4（6.35） | Diameter unit not stated. |
| PT1/8-φ8 | PT1/8 | φ8 | Diameter unit not stated. |
| PT1/8-φ3/8（9.525） | PT1/8 | φ3/8（9.525） | Diameter unit not stated. |
| PT1/8-φ10 | PT1/8 | φ10 | Diameter unit not stated. |
| PT1/8-φ12 | PT1/8 | φ12 | Diameter unit not stated. |
| PT1/4-φ3 | PT1/4 | φ3 | Diameter unit not stated. |
| PT1/4-φ1/8（3.175） | PT1/4 | φ1/8（3.175） | Diameter unit not stated. |
| PT1/4-φ4 | PT1/4 | φ4 | Diameter unit not stated. |
| PT1/4-φ5 | PT1/4 | φ5 | Diameter unit not stated. |
| PT1/4-φ6 | PT1/4 | φ6 | Diameter unit not stated. |
| PT1/4-φ1/4（6.35） | PT1/4 | φ1/4（6.35） | Diameter unit not stated. |
| PT1/4-φ8 | PT1/4 | φ8 | Diameter unit not stated. |
| ZG1/4-φ3/8（9.525） | ZG1/4 | φ3/8（9.525） | Diameter unit not stated. |
| PT1/4-φ10 | PT1/4 | φ10 | Diameter unit not stated. |
| PT1/4-φ12 | PT1/4 | φ12 | Diameter unit not stated. |
| PT1/4-φ1/2（12.7） | PT1/4 | φ1/2（12.7） | Diameter unit not stated. |
| PT1/4-φ14 | PT1/4 | φ14 | Diameter unit not stated. |
| PT1/4-φ16 | PT1/4 | φ16 | Diameter unit not stated. |
| PT1/4-φ18 | PT1/4 | φ18 | Diameter unit not stated. |
| PT1/4-φ20 | PT1/4 | φ20 | Diameter unit not stated. |
| PT3/8-φ3 | PT3/8 | φ3 | Diameter unit not stated. |
| PT3/8-φ1/8（3.175） | PT3/8 | φ1/8（3.175） | Diameter unit not stated. |
| PT3/8-φ4 | PT3/8 | φ4 | Diameter unit not stated. |
| PT3/8-φ6 | PT3/8 | φ6 | Diameter unit not stated. |
| PT3/8-φ1/4（6.35） | PT3/8 | φ1/4（6.35） | Diameter unit not stated. |
| PT3/8-φ8 | PT3/8 | φ8 | Diameter unit not stated. |
| PT3/8-φ3/8（9.525） | PT3/8 | φ3/8（9.525） | Diameter unit not stated. |
| PT3/8-φ10 | PT3/8 | φ10 | Diameter unit not stated. |
| PT3/8-φ12 | PT3/8 | φ12 | Diameter unit not stated. |
| PT3/8-φ1/2（12.7） | PT3/8 | φ1/2（12.7） | Diameter unit not stated. |
| ZG3/8-φ14 | ZG3/8 | φ14 | Diameter unit not stated. |
| PT3/8-φ16 | PT3/8 | φ16 | Diameter unit not stated. |
| PT3/8-φ18 | PT3/8 | φ18 | Diameter unit not stated. |
| PT1/2-φ3 | PT1/2 | φ3 | Diameter unit not stated. |
| PT1/2-φ1/8（3.175） | PT1/2 | φ1/8（3.175） | Diameter unit not stated. |
| PT1/2-φ4 | PT1/2 | φ4 | Diameter unit not stated. |
| PT1/2-φ6 | PT1/2 | φ6 | Diameter unit not stated. |
| PT1/2-φ1/4（6.35） | PT1/2 | φ1/4（6.35） | Diameter unit not stated. |
| PT1/2-φ8 | PT1/2 | φ8 | Diameter unit not stated. |
| PT1/2-φ3/8（9.525） | PT1/2 | φ3/8（9.525） | Diameter unit not stated. |
| PT1/2-φ10 | PT1/2 | φ10 | Diameter unit not stated. |
| PT1/2-φ12 | PT1/2 | φ12 | Diameter unit not stated. |
| PT1/2-φ1/2（12.7） | PT1/2 | φ1/2（12.7） | Diameter unit not stated. |
| PT1/2-φ14 | PT1/2 | φ14 | Diameter unit not stated. |
| ZG1/2-φ15 | ZG1/2 | φ15 | Diameter unit not stated. |
| PT1/2-φ16 | PT1/2 | φ16 | Diameter unit not stated. |
| ZG1/2-φ18 | ZG1/2 | φ18 | Diameter unit not stated. |
| PT1/2-φ3/4（19.05） | PT1/2 | φ3/4（19.05） | Diameter unit not stated. |
| ZG1/2-φ20 | ZG1/2 | φ20 | Diameter unit not stated. |
| PT1/2-φ22 | PT1/2 | φ22 | Diameter unit not stated. |
| PT1/2-φ1 inch（25.4） | PT1/2 | φ1 inch（25.4） | Confirm mating thread and tube dimensions. |
| PT3/4-φ6 | PT3/4 | φ6 | Diameter unit not stated. |
| PT3/4-φ1/4（6.35） | PT3/4 | φ1/4（6.35） | Diameter unit not stated. |
| PT3/4-φ8 | PT3/4 | φ8 | Diameter unit not stated. |
| PT3/4-φ3/8（9.525） | PT3/4 | φ3/8（9.525） | Diameter unit not stated. |
| PT3/4-φ10 | PT3/4 | φ10 | Diameter unit not stated. |
| PT3/4-φ12 | PT3/4 | φ12 | Diameter unit not stated. |
| PT3/4-φ1/2（12.7） | PT3/4 | φ1/2（12.7） | Diameter unit not stated. |
| PT3/4-φ14 | PT3/4 | φ14 | Diameter unit not stated. |
| PT3/4-φ16 | PT3/4 | φ16 | Diameter unit not stated. |
| PT3/4-φ18 | PT3/4 | φ18 | Diameter unit not stated. |
| PT3/4-φ3/4（19.05） | PT3/4 | φ3/4（19.05） | Diameter unit not stated. |
| PT3/4-φ20 | PT3/4 | φ20 | Diameter unit not stated. |
| PT3/4-φ22 | PT3/4 | φ22 | Diameter unit not stated. |
| PT3/4-φ25 | PT3/4 | φ25 | Diameter unit not stated. |
| PT3/4-φ1 inch（25.4） | PT3/4 | φ1 inch（25.4） | Confirm mating thread and tube dimensions. |
| PT1 inch-φ6 | PT1 inch | φ6 | Diameter unit not stated. |
| PT1 inch-φ6.35 | PT1 inch | φ6.35 | Diameter unit not stated. |
| PT1 inch-φ8 | PT1 inch | φ8 | Diameter unit not stated. |
| PT1 inch-φ10 | PT1 inch | φ10 | Diameter unit not stated. |
| PT1 inch-φ12 | PT1 inch | φ12 | Diameter unit not stated. |
| PT1 inch-φ12.7 | PT1 inch | φ12.7 | Diameter unit not stated. |
| PT1 inch-φ3/4（19.05） | PT1 inch | φ3/4（19.05） | Diameter unit not stated. |
| PT1 inch-φ20 | PT1 inch | φ20 | Diameter unit not stated. |
| PT1 inch-φ22 | PT1 inch | φ22 | Diameter unit not stated. |
| PT1 inch-φ1 inch（25.4） | PT1 inch | φ1 inch（25.4） | Confirm mating thread and tube dimensions. |
| 1/4-28UNF-φ3.2mm | 1/4-28UNF | φ3.2mm | Confirm mating thread and tube dimensions. |
| 1/4-28UNF-φ4mm | 1/4-28UNF | φ4mm | Confirm mating thread and tube dimensions. |
| 1/4-28UNF-φ4.8mm | 1/4-28UNF | φ4.8mm | Confirm mating thread and tube dimensions. |
| 1/4-28UNF-φ6mm | 1/4-28UNF | φ6mm | Confirm mating thread and tube dimensions. |
| 1/4-28UNF-φ1/4mm | 1/4-28UNF | φ1/4mm | Unusual fraction-plus-mm label retained; confirm diameter and unit. |
| 1/4-28UNF-φ8mm | 1/4-28UNF | φ8mm | Confirm mating thread and tube dimensions. |
| 1/4-28UNF-φ3/8mm | 1/4-28UNF | φ3/8mm | Unusual fraction-plus-mm label retained; confirm diameter and unit. |
Selection and Ordering
Confirm thread standard, pitch where applicable, tube size and installation dimensions for the selected model. Pressure and temperature ratings, dimensional tolerances, certifications and chemical compatibility are not specified in this listing and must be confirmed for the intended service. Material selection alone does not establish suitability for every fluid or operating condition.
Wholesale and Factory Sourcing
For wholesale purchasing or factory sourcing, send IKSONIC the exact model designation, required quantity, mating-port details and operating conditions. As a China supplier, IKSONIC can review your sourcing inquiry against the requested specifications. Contact IKSONIC to discuss PTFE male compression fittings for your application.
If you have any questions or products request, please leave message or call us.
Email: [email protected]
WhatsApp/Mobile/WeChat: +86-13370616532 , +86-15315489052
WeChat: taishanfu
Skype ID: wingxsonic
Scan the QR code above, add me on WeChat.
