PTFE Threaded Rods, Nuts and Washers

Description

PTFE Threaded Rods, Nuts and Washers

Select PTFE threaded rods and separately specified nuts and washers for your assembly. This range includes 15 rod models from M3 to M30, 17 nut models from M3 to M36 and 81 washer options from M3 to M30. Rod lengths are 500 mm for M3 and 1000 mm for the other listed rod sizes.

IKSONIC is a China manufacturer and wholesale supplier of PTFE components. Send your selected models and quantities to our factory for a specification review. Custom rod, nut and washer enquiries are welcome, subject to confirmation of feasibility and final dimensions.

Product Overview

• Material: Polytetrafluoroethylene (PTFE).
• Product types: Threaded rods, nuts and washers, selected separately.
• Defined models: 113 across the three product types.
• Rod length units: Millimeters (mm).
• Washer model format: Nominal M-size × thickness in millimeters, where a thickness is specified.
• Custom enquiries: General custom requirements, custom nuts and custom washer size × thickness.

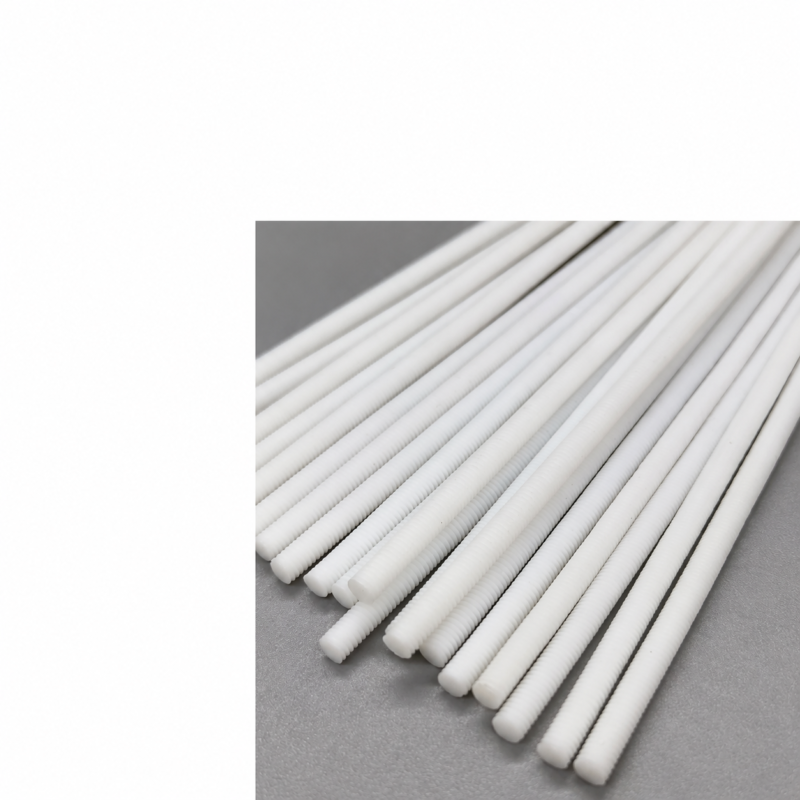

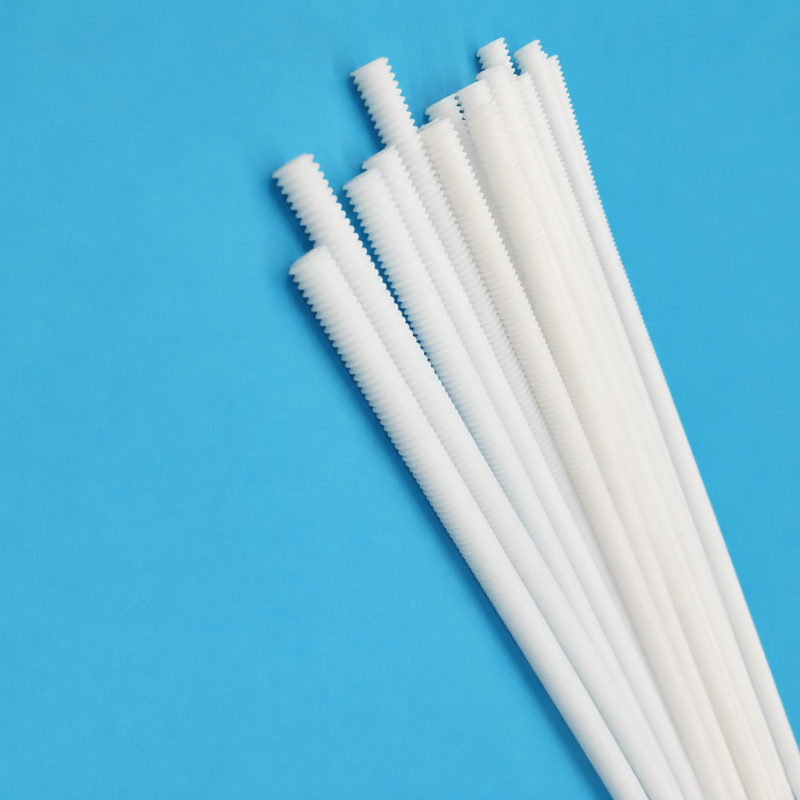

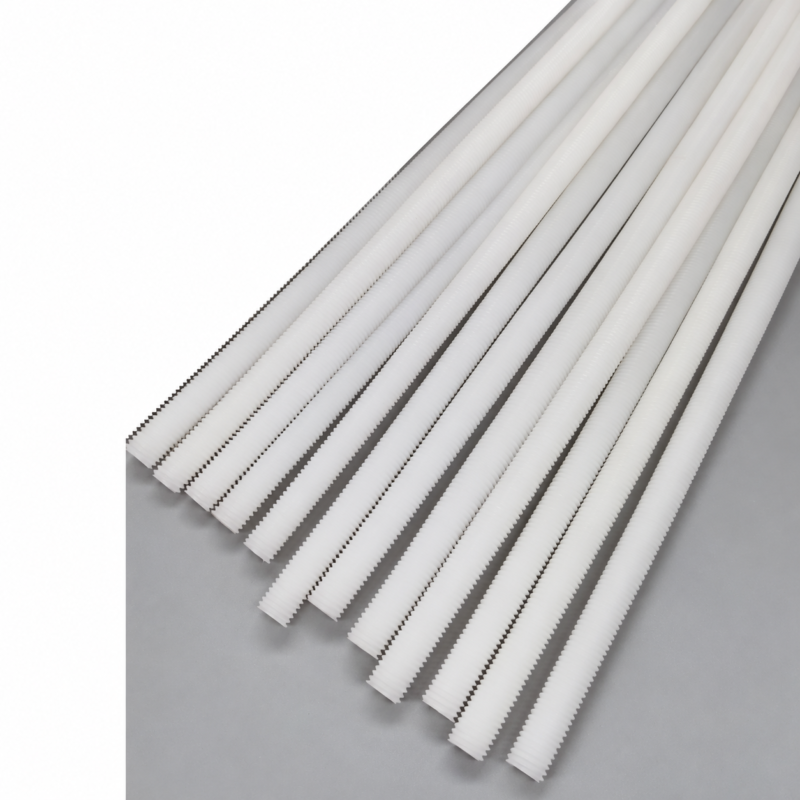

PTFE Threaded Rod Models

Each row identifies one rod model. The M-designation identifies the thread size; the number after the multiplication sign is rod length in mm. Thread pitch and tolerances must be confirmed for the selected model.

Rod model	Thread designation	Length (mm)
M3 × 500 mm	M3	500
M4 × 1000 mm	M4	1000
M5 × 1000 mm	M5	1000
M6 × 1000 mm	M6	1000
M8 × 1000 mm	M8	1000
M10 × 1000 mm	M10	1000
M12 × 1000 mm	M12	1000
M14 × 1000 mm	M14	1000
M16 × 1000 mm	M16	1000
M18 × 1000 mm	M18	1000
M20 × 1000 mm	M20	1000
M22 × 1000 mm	M22	1000
M24 × 1000 mm	M24	1000
M27 × 1000 mm	M27	1000
M30 × 1000 mm	M30	1000

Nut Models

These nut models are separate options, not a statement that nuts are included with every rod. Confirm pitch, nut dimensions, material requirements and compatibility with the selected rod.

Nut model	Thread designation
M3 nut	M3
M4 nut	M4
M5 nut	M5
M6 nut	M6
M8 nut	M8
M10 nut	M10
M12 nut	M12
M14 nut	M14
M16 nut	M16
M18 nut	M18
M20 nut	M20
M22 nut	M22
M24 nut	M24
M27 nut	M27
M30 nut	M30
M33 nut	M33
M36 nut	M36

Washer Models and Thickness Options

The tables preserve every listed washer option. For models with two numbers, the first is the nominal M-size and the second is thickness in mm. “Standard size” is a listing label, not a claim of compliance with a specific standard: inner diameter, outer diameter and thickness must be confirmed. M18 to M30 washer labels do not provide thickness. Entries marked “Optional order note” retain the ordering-note option attached to those specific models.

M3, M4, M5 Washer Options

Washer model	Nominal size	Thickness (mm)	Selection note
M3 washer	M3	Not specified	Standard size; dimensions to confirm
M3 × 1 mm washer	M3	1	Optional order note
M3 × 2 mm washer	M3	2
M3 × 3 mm washer	M3	3
M3 × 4 mm washer	M3	4	Optional order note
M3 × 5 mm washer	M3	5
M3 × 6 mm washer	M3	6
M3 × 8 mm washer	M3	8
M3 × 10 mm washer	M3	10	Optional order note
M4 washer	M4	Not specified	Standard size; dimensions to confirm
M4 × 1 mm washer	M4	1
M4 × 2 mm washer	M4	2	Optional order note
M4 × 3 mm washer	M4	3
M4 × 4 mm washer	M4	4
M4 × 5 mm washer	M4	5
M4 × 6 mm washer	M4	6
M4 × 8 mm washer	M4	8
M4 × 10 mm washer	M4	10
M5 washer	M5	Not specified	Standard size; dimensions to confirm
M5 × 1 mm washer	M5	1
M5 × 2 mm washer	M5	2
M5 × 3 mm washer	M5	3
M5 × 4 mm washer	M5	4
M5 × 5 mm washer	M5	5
M5 × 6 mm washer	M5	6
M5 × 8 mm washer	M5	8
M5 × 10 mm washer	M5	10

M6, M8 Washer Options

Washer model	Nominal size	Thickness (mm)	Selection note
M6 washer	M6	Not specified	Standard size; dimensions to confirm
M6 × 1 mm washer	M6	1
M6 × 2 mm washer	M6	2
M6 × 3 mm washer	M6	3
M6 × 4 mm washer	M6	4
M6 × 5 mm washer	M6	5
M6 × 6 mm washer	M6	6
M6 × 8 mm washer	M6	8
M6 × 10 mm washer	M6	10
M8 washer	M8	Not specified	Standard size; dimensions to confirm
M8 × 1 mm washer	M8	1
M8 × 2 mm washer	M8	2
M8 × 3 mm washer	M8	3
M8 × 4 mm washer	M8	4
M8 × 5 mm washer	M8	5
M8 × 6 mm washer	M8	6
M8 × 8 mm washer	M8	8
M8 × 10 mm washer	M8	10

M10, M12 Washer Options

Washer model	Nominal size	Thickness (mm)	Selection note
M10 washer	M10	Not specified	Standard size; dimensions to confirm
M10 × 2 mm washer	M10	2
M10 × 3 mm washer	M10	3
M10 × 5 mm washer	M10	5
M10 × 8 mm washer	M10	8
M10 × 10 mm washer	M10	10
M10 × 15 mm washer	M10	15
M10 × 20 mm washer	M10	20
M12 washer	M12	Not specified	Standard size; dimensions to confirm
M12 × 2 mm washer	M12	2
M12 × 5 mm washer	M12	5
M12 × 8 mm washer	M12	8
M12 × 10 mm washer	M12	10
M12 × 15 mm washer	M12	15
M12 × 20 mm washer	M12	20

M14, M16 Washer Options

Washer model	Nominal size	Thickness (mm)	Selection note
M14 washer	M14	Not specified	Standard size; dimensions to confirm
M14 × 2 mm washer	M14	2
M14 × 3 mm washer	M14	3
M14 × 5 mm washer	M14	5
M14 × 10 mm washer	M14	10
M14 × 15 mm washer	M14	15
M14 × 20 mm washer	M14	20
M16 washer	M16	Not specified	Standard size; dimensions to confirm
M16 × 2 mm washer	M16	2
M16 × 3 mm washer	M16	3
M16 × 5 mm washer	M16	5
M16 × 8 mm washer	M16	8
M16 × 10 mm washer	M16	10
M16 × 15 mm washer	M16	15
M16 × 20 mm washer	M16	20

M18, M20, M22, M24, M27, M30 Washer Options

Washer model	Nominal size	Thickness (mm)	Selection note
M18 washer	M18	Not specified	Dimensions to confirm
M20 washer	M20	Not specified	Dimensions to confirm
M22 washer	M22	Not specified	Dimensions to confirm
M24 washer	M24	Not specified	Dimensions to confirm
M27 washer	M27	Not specified	Dimensions to confirm
M30 washer	M30	Not specified	Dimensions to confirm

Selection and Wholesale Enquiries

Choose each rod, nut and washer independently and specify the quantity required for each. For rods, confirm the thread designation, pitch, length and tolerances. For nuts, confirm the mating thread and overall dimensions. For washers, confirm inner diameter, outer diameter and thickness rather than relying on the nominal M-size alone.

For a custom enquiry, provide the component type, dimensions and units, required tolerances, quantity and intended operating conditions. Any application-specific material, insulation or chemical-compatibility requirements should be reviewed before ordering. This model list does not provide load ratings, tightening torque, numerical temperature limits or a certification claim.

Contact IKSONIC for a wholesale enquiry or to review a custom PTFE fastener specification. The final quotation should identify the exact components and quantities included.

Frequently Asked Questions

Which PTFE threaded rod lengths are listed?

The M3 rod is listed at 500 mm. M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27 and M30 rods are listed at 1000 mm.

Are nuts and washers supplied with the rods?

Nuts and washers are listed as separate selections. Specify all required components and quantities so their inclusion can be confirmed in the quotation.

What does a washer model such as M10 × 5 mm mean?

It identifies the nominal M10 washer size with a listed thickness of 5 mm. It does not specify inner or outer diameter; confirm those dimensions separately.

Does “standard size” identify a dimensional standard?

No specific dimensional standard or full dimensions are provided for those washer options. Confirm inner diameter, outer diameter and thickness before ordering.

Can I enquire about custom sizes?

Yes. Custom enquiries can cover rods, nuts and washer size and thickness. Provide your dimensions, units, tolerances and quantities for review; feasibility and the final scope require confirmation.
