NM Coupling Sets – Unmachined Bore Options

Description

NM Coupling Sets – Unmachined Bore Options

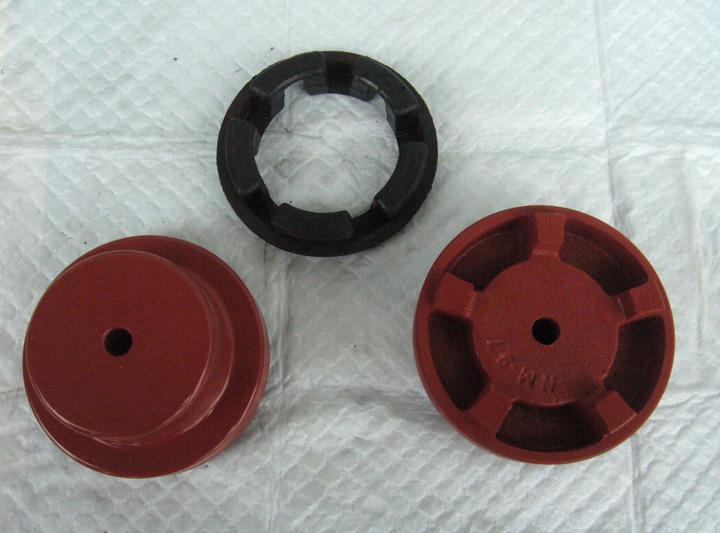

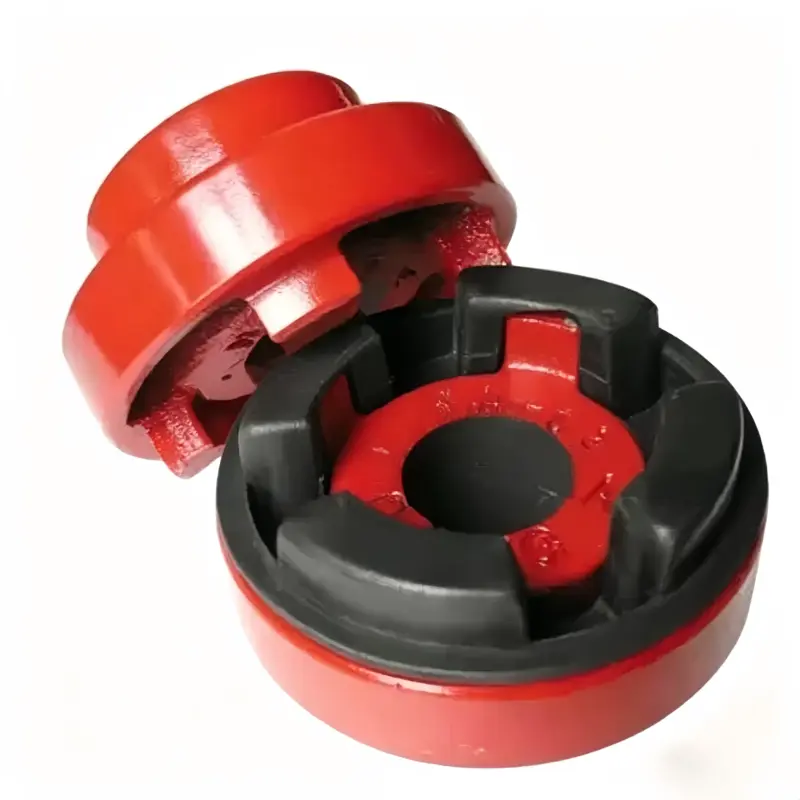

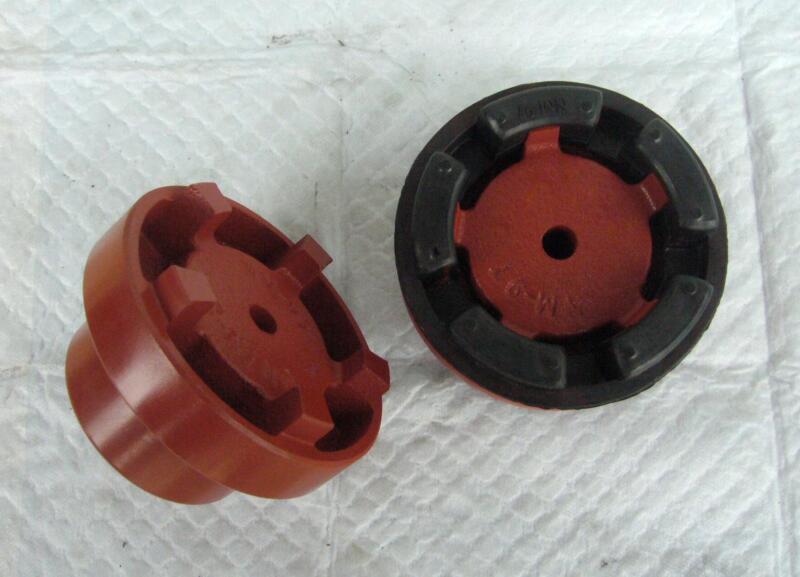

NM coupling sets are offered with outer diameters of 67, 82, 97, 112, 128, 148, and 168 mm. The coupling options are described as having unmachined bores, with one elastic insert included per set. Specify the required shaft and bore arrangement before ordering, and confirm any machining requirements separately.

Options and identification

Available option labels include outer diameter 67 complete set, outer diameter 82 complete set, outer diameter 97 complete set, outer diameter 112 complete set. Confirm the selected option, supplied quantity, and dimensions before ordering.

Match the shaft connection

Confirm both shaft diameters, the required bore arrangement, and the coupling size. Check the available installation space and identify any keyway or machining requirements. Keep a complete coupling assembly distinct from an insert-only order. The model reference should be considered alongside the full mechanical arrangement.

Frequently asked questions

Does the pictured coupling establish the bore size? No. Confirm bore dimensions and any machining requirements for the selected assembly.

Can I order only an insert? Specify that requirement clearly so it is not confused with a complete coupling set.

Request a quotation

Contact IKSONIC with the equipment model, coupling reference, shaft dimensions, and quantity. Include photographs of the existing assembly and any legible markings. Confirm the components and machining included in the order before purchasing.

When replacing an existing component, include photographs showing both the part and its installation position. Keep all measured values together with their units, and identify any dimensions that still need checking. This helps keep the requested option clear when confirming the order.
