Flight Controller Damping Grommets – M3*8.5 and M2*8.5

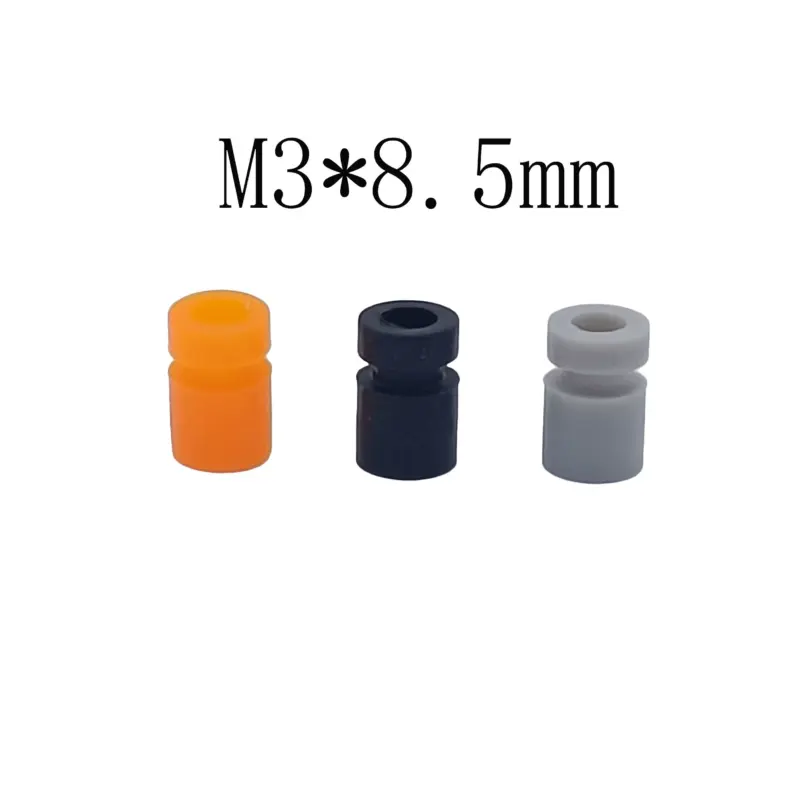

Four orange, black and grey flight-controller damping-part options. Model-specific dimensions are listed from source illustrations; material requires confirmation.
- Description
- Contact Us
Description
Flight Controller Damping Grommets

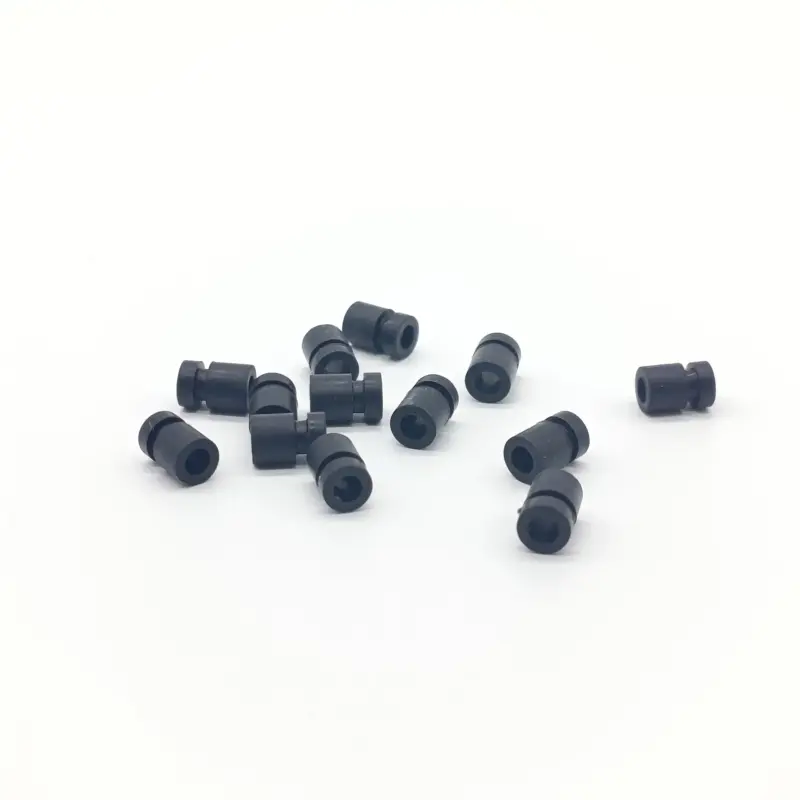

IKSONIC supplies cylindrical flight-controller damping parts in four source-listed model and color options. Photographs show a central bore and an external retaining groove. Select the option by its designation and verify the mounting dimensions rather than assuming all colors share every listed detail.
Specifications / Models
| Designation | Color | Outer diameter | Bore | Height | Groove outer diameter | Groove height | Source unit note |
|---|---|---|---|---|---|---|---|
| M3*8.5 | Orange | 5.5 | 3 | 8.5 | 3.8 | 1.5 | Not printed in orange detail |
| M3*8.5 | Black | 5.5 | 3 | 8.5 | 3.8 | 1.5 | mm |

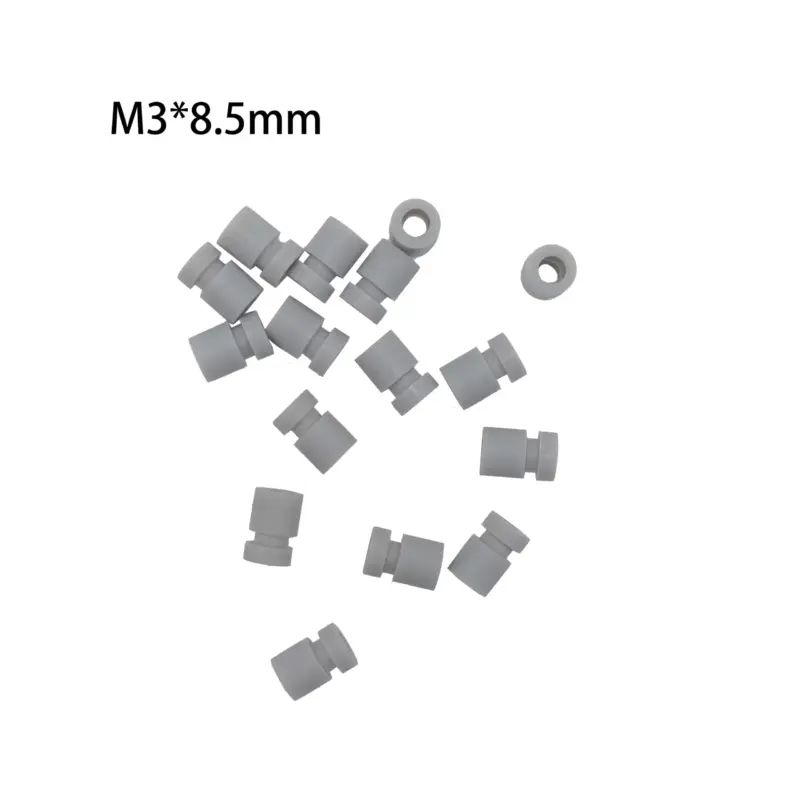

| M3*8.5 | Grey | Not specified | Not specified | Not specified | Not specified | Not specified | Model photograph labelled M3*8.5mm |
| M2*8.5 | Orange | 5.5 | 2 | 8.5 | 3.8 | 1.5 | Not printed in M2 detail |

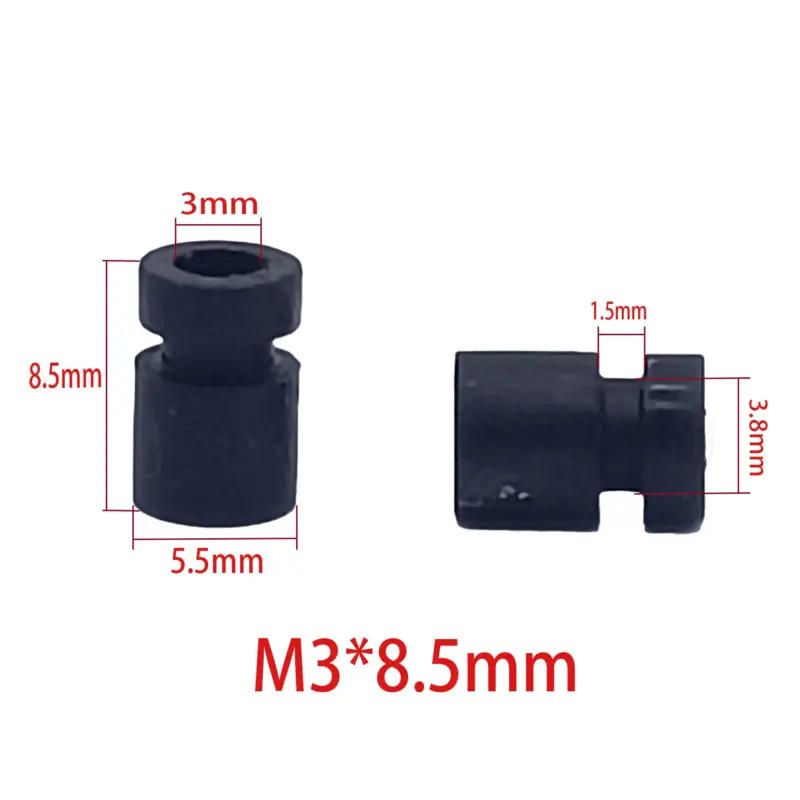

Numbers are transcribed from the corresponding source illustrations. The black M3 diagram explicitly gives millimeters. The orange detail photographs do not print a unit, so their values are retained without assigning one. The grey photograph labels the model M3*8.5mm but does not provide the full dimension set. No tolerance or metric thread standard is established by the M designation.
Material and Fit Confirmation
The available product title and options do not specify the material compound, hardness or load rating. These require confirmation for the selected item. The source mentions F4/F732K flight-controller applications; exact compatibility should be checked against your assembly and mounting arrangement.
Wholesale Supply
Contact IKSONIC, a China supplier, for wholesale orders and factory sourcing inquiries. Provide the model, color, quantity, board mounting details and required material so the configuration can be checked before quotation.
Frequently Asked Questions
Are M2 and M3 options identical?
No. Their orange source illustrations list bore values of 2 and 3 respectively. Do not substitute one option without checking fit.
Are the photographs a dimensional inspection report?
No. They are source illustrations, not an inspection report or a tolerance guarantee. Confirm any critical requirement before ordering.
