Nylon Bushings and Flanged Insulating Sleeves

Description

Nylon Bushings and Flanged Insulating Sleeves

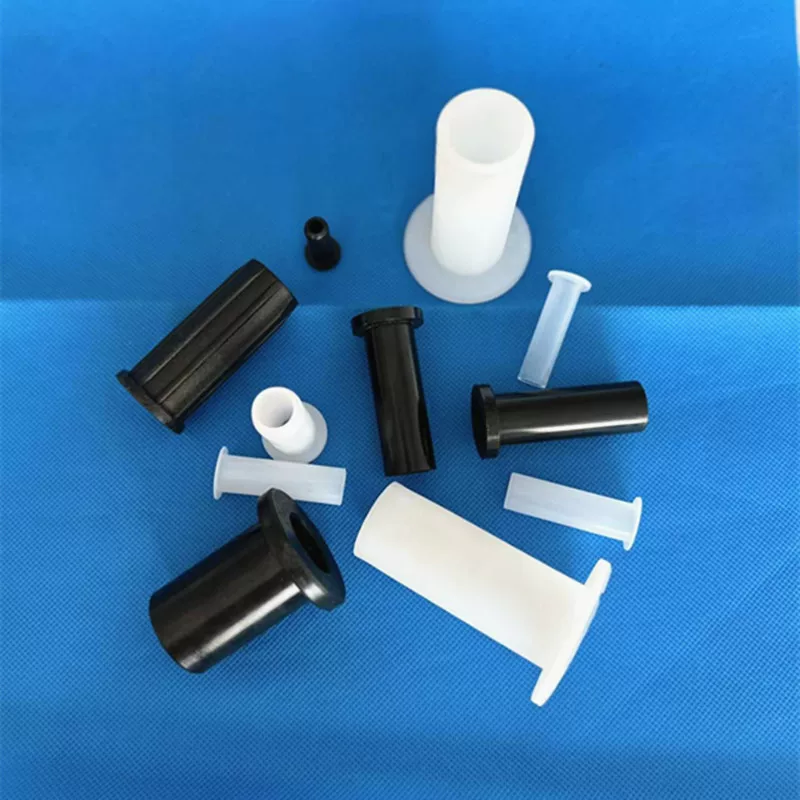

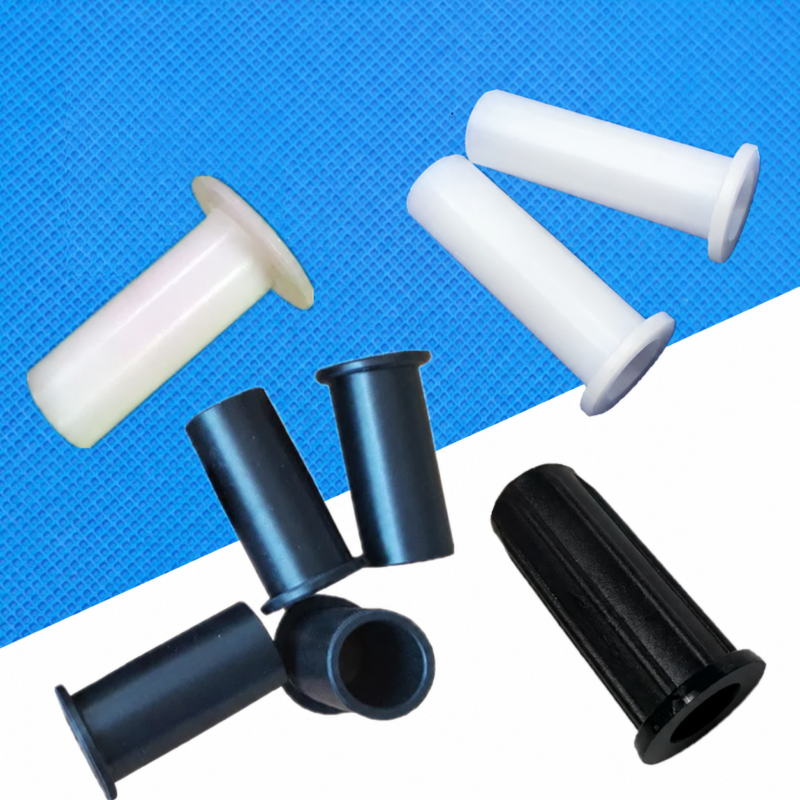

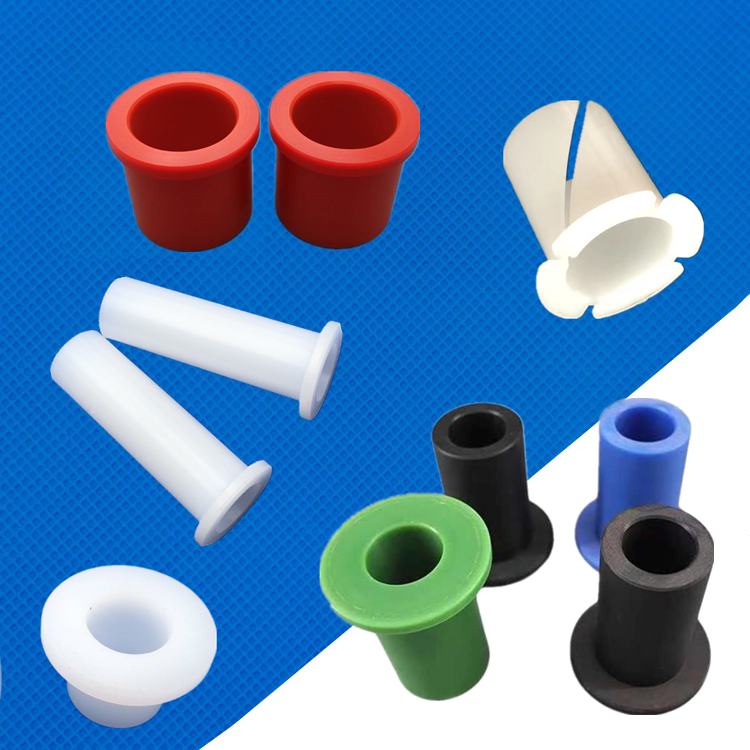

This collection includes extended, flanged, ribbed, grooved, notched and threaded bushing or sleeve options, as identified by their individual listings. Materials vary by model: matching catalog diagrams identify nylon, PA6, PA66, reinforced nylon and PP for selected options; the option list also explicitly names PTFE and rubber variants. Do not apply one material to the entire range.

Model selection and catalog dimensions

The list below preserves all 157 product/model entries. Custom machining is also available for inquiry. Matching catalog information is included for 43 directly matched or partially readable options. A further 13 possible diagram associations have conflicts and are clearly marked for confirmation, not presented as final specifications.

• The original M and T notation is retained as model identification. No universal interpretation of those characters is imposed across the range.
• Catalog dimensions are transcribed only from the corresponding readable diagram. Millimeters are shown only where the cell states that unit or the individual dimension carries an mm/MM suffix. Other units remain unstated.
• Body length below flange is not overall height. An overall height is listed only when printed by the source; it is not calculated or silently reconciled.
• Materials, grades and colors are model-specific. Unlabeled properties remain unconfirmed. Reinforcement type and percentage are not specified.
• For rows without a confirmed diagram mapping, numeric option notation is preserved without assigning dimensional roles or units beyond the explicit labels.
• These are catalog selection details, not approved manufacturing dimensions. Confirm fit, units, tolerances, material and any noted discrepancy before ordering.

Listed model options and available specifications

Option references preserve the original positions. References 001 and 002 are not product/model entries; reference 001 is the custom-machining inquiry option. No unmapped catalog model is substituted for a listed option.

Option reference	Original model notation with translated features	Readable catalog specification and confirmation status
003	M3.1-11	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
004	M3.4-10.3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
005	M3.4-14.4	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
006	M3.6-6T14	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
007	M3.6-7	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
008	M4-7.2; outer: 5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
009	M4-8	Matched catalog diagram. bore diameter: 4 mm; body outer diameter: 5.5 mm; flange diameter: 10 mm; body length below flange: 8 mm; flange thickness: 2 mm.
010	M4-11.5T9; outer: 7.2; step: 1.5	Matched catalog diagram. bore diameter: 4 mm; body outer diameter: 7.2 mm; flange diameter: 9 mm; body length below flange: 11.5 mm; flange thickness: 1.5 mm. Diagram material: PP. Diagram color: white by default; black available by request.
011	M4-12.5T10; outer: 5; step: 1.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
012	Inner: 4; tapered feature	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
013	M4-13.5T10; outer: 5; step: 1.5	Matched catalog diagram. bore diameter: 4 mm; body outer diameter: 5 mm; flange diameter: 10 mm; body length below flange: 13.5 mm; flange thickness: 1.5 mm.
014	PTFE M4.7-9.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
015	M5-10T10; outer: 7.1; step: 1.5	Matched catalog diagram. bore diameter: 5 mm; body outer diameter: 7.1 mm; flange diameter: 10 mm; body length below flange: 10 mm; flange thickness: 1.5 mm.
016	M5-12T10; outer: 7.2; step: 1.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
017	M5-10.5; outer: 8	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
018	M5.1-18T15; outer: 9.1; step: 3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
019	M5-19	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
020	M5.3-20	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
021	M5-28.5T14; outer: 10; step: 1.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
022	M5; recessed-hole notation: 14.5-81.5; external ribs	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
023	M5-86; small-hole inside diameter: 5; drilled-hole value: 14.9	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
024	M5.5-11	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
025	M6-10T12; outer: 8.1; step: 2	Possible corresponding diagram; confirmation required. bore diameter: 6 mm; body outer diameter: 8.13 mm; flange diameter: 12 mm; body length below flange: 10 mm; flange thickness: 2 mm. Option outer value 8.1 differs from the diagram body outer diameter 8.13 mm.
026	M6.1-10T13; outer: 9.08; step: 3.2	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
027	M6-25.5T16; outer: 10; step: 2.97	Matched catalog diagram. bore diameter: 6 mm; body outer diameter: 10 mm; flange diameter: 16 mm; body length below flange: 25.5 mm; flange thickness: 2.97 mm; overall height: 28.5 mm. Diagram material: nylon. Diagram color: black. Overall height 28.5 mm, body length 25.5 mm and flange thickness 2.97 mm are all source-printed values; their arithmetic is not normalized.
028	M6.8-13.9T18; outer: 12.2; step: 3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
029	M6-22; outer: 8	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
030	PTFE M6-23.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
031	M6-23T20; outer: 8; step: 2	Matched catalog diagram. bore diameter: 6 mm; body outer diameter: 8 mm; flange diameter: 20 mm; body length below flange: 23 mm; flange thickness: 2 mm.
032	M6.2-17.5T15; outer: 8.04; step: 0.5	Possible corresponding diagram; confirmation required. bore diameter: 6.2 mm; body outer diameter: 8.04 mm; flange diameter: 15 mm; body length below flange: 17.5 mm; flange thickness: 0.55 mm. Option step value 0.5 differs from the diagram flange thickness 0.55 mm. The raster is soft and requires manual confirmation.
033	M6.7-12.7T15; outer: 9.5; step: 3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
034	M7.5-11	Matched catalog diagram. bore diameter: 7.5 mm; body outer diameter: 9 mm; flange diameter: 14.5 mm; body length below flange: 11 mm; flange thickness: 1 mm. Diagram material: nylon.
035	M7-23.5; outer: 9	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
036	M7.2-29; outer: 10	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
037	M8-10.5; outer diameter: 10.6	Matched catalog diagram. bore diameter: 8 (unit not stated); body outer diameter: 10.6 (unit not stated); flange diameter: 16 mm; body length below flange: 10.5 (unit not stated); flange thickness: 1.5 (unit not stated). Diagram material: PA6 nylon. Only flange diameter is explicitly marked mm in this cell; other units are not stated.
038	M8.15-13T15; outer: 10.5; step: 1.3	Possible corresponding diagram; confirmation required. bore diameter: 8.15 mm; body outer diameter: 10.55 mm; flange diameter: 15 mm; body length below flange: 13 mm; flange thickness: 1.3 mm. Option outer value 10.5 differs from the diagram body outer diameter 10.55 mm.
039	M8-11.2T12; outer: 9.6; step: 1.2	Matched catalog diagram. bore diameter: 8 mm; body outer diameter: 9.6 mm; flange diameter: 12 mm; body length below flange: 11.2 mm; flange thickness: 1.2 mm; overall height: 12.4 mm. Diagram material: nylon. Diagram color: white.
040	M8-15; outer: 10.4	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
041	M8.2-15; outer: 13.6	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
042	M8-15; outer: 17.8; T22	Possible corresponding diagram; confirmation required. bore diameter: 8.2 mm; body outer diameter: 17.8 mm; flange diameter: 22 mm; body length below flange: 15 mm; flange thickness: 2 mm. Diagram material: nylon. Diagram color: black. Option begins M8; the otherwise matching diagram shows an 8.2 mm bore. Confirm the model association.
043	M8-16; outer diameter: 14	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
044	M8-16T12.8; outer: 9.5; step: 1.5	Possible corresponding diagram; confirmation required. bore diameter: 8 mm; body outer diameter: 9.55 mm; flange diameter: 12.8 mm; body length below flange: 16 mm; flange thickness: 1.5 mm. Option outer value 9.5 differs from the diagram body outer diameter 9.55 mm.
045	M8-23T20; outer: 10; step: 2	Matched catalog diagram. bore diameter: 8 mm; body outer diameter: 10 mm; flange diameter: 20 mm; body length below flange: 23 mm; flange thickness: 2 mm.
046	M8.9-19	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
047	M9-15.2	Matched catalog diagram. bore diameter: 9 mm; body outer diameter: 10.8 mm; flange diameter: 16.2 mm; body length below flange: 15.2 mm; flange thickness: 1.7 mm. Diagram material: PA6 nylon.
048	M9-69.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
049	M9.4-12.5T17; outer: 11.2; step: 3	Matched catalog diagram. bore diameter: 9.4 mm; body outer diameter: 11.2 mm; flange diameter: 17 mm; body length below flange: 12.5 mm; flange thickness: 3 mm.
050	M9.8-23	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
051	M9.95-18T14; outer: 11.95; step: 1.2	Matched catalog diagram. bore diameter: 9.95 (unit not stated); body outer diameter: 11.95 (unit not stated); flange diameter: 14 (unit not stated); body length below flange: 18 (unit not stated); flange thickness: 1.2 (unit not stated). Units are not stated in this cell.
052	M9.2-54.5; black	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
053	M9-70; reinforced designation	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
054	M10-12T20	Matched catalog diagram. bore diameter: 10 (unit not stated); body outer diameter: 12 (unit not stated); flange diameter: 20 (unit not stated); flange thickness: 2 (unit not stated); body length below flange: 12 (unit not stated). Units are not stated in this cell.
055	M10.1-19T20; outer: 12; step: 1.5	Matched catalog diagram. bore diameter: 10.1 mm; body outer diameter: 12 mm; flange diameter: 20 mm; flange thickness: 1.5 mm; body length below flange: 19 mm. Diagram material: PA6 nylon.
056	M10-18.4	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
057	M10-20.3T20; outer: 12; step: 3	Matched catalog diagram. bore diameter: 10 mm; body outer diameter: 12 mm; flange diameter: 20 mm; flange thickness: 3 mm; body length below flange: 20.3 mm. Diagram material: PA66 nylon.
058	M10.2-16.4	Matched catalog diagram. bore diameter: 10.2 mm; body outer diameter: 15.9 mm; flange diameter: 25 mm; flange thickness: 2.8 mm; body length below flange: 16.4 mm. Diagram material: PA6 nylon.
059	T20M10-19; outer diameter: 13	Possible corresponding diagram; confirmation required. bore diameter: 10.1 (unit not stated); body outer diameter: 13 mm; flange diameter: 20 mm; flange thickness: 1.5 (unit not stated); body length below flange: 19 mm. Option begins M10; candidate diagram shows a bore value of 10.1. Confirm the association.
060	M10-20.5T20	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
061	M10.2-2121; outer: 16.7; step: 4	Possible corresponding diagram; confirmation required. bore diameter: 10.2 mm; body outer diameter: 16.7 mm; flange diameter: 21 mm; flange thickness: 4 mm; body length below flange: 21 mm. Diagram material: PA6 nylon. Option contains the unchanged sequence 2121. A candidate diagram separately shows body length 21 mm and flange diameter 21 mm; this does not authorize correcting the option code.
062	M10-22.7	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
063	M10-36.5; outer: 17	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
064	M10.5-14.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
065	M10.5-22T25; outer: 16; step: 4	Matched catalog diagram. bore diameter: 10.5 mm; body outer diameter: 16 mm; flange diameter: 25 mm; flange thickness: 4 mm; body length below flange: 22 mm. Diagram material: PA6 nylon.
066	M10.7-18T24; outer: 16; step: 2	Matched catalog diagram. bore diameter: 10.7 mm; body outer diameter: 16 mm; flange diameter: 24 mm; flange thickness: 2 mm; body length below flange: 18 mm. Diagram material: PA6 nylon.
067	M10-23T23.7; outer: 13.1; step: 2.1	Possible corresponding diagram; confirmation required. bore diameter: 10.3 (unit not stated); body outer diameter: 13.1 (unit not stated); flange diameter: 23.7 (unit not stated); flange thickness: 2.1 (unit not stated); body length below flange: 23 (unit not stated). Option begins M10; candidate diagram shows a bore value of 10.3. Confirm the association.
068	M10-44T18; outer: 12.1; step: 2	Matched catalog diagram. bore diameter: 10 mm; body outer diameter: 12.1 mm; flange diameter: 18 mm; flange thickness: 2 mm; body length below flange: 44 mm. Diagram material: nylon. Diagram color: black and white. Small bore and body-outer annotations are lower clarity; confirm against the drawing before technical use.
069	M10-50	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
070	M10-70.7; outer: 21	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
071	M11.2-17	Matched catalog diagram. bore diameter: 11.2 mm; body outer diameter: 28.8 mm; flange diameter: 32.2 mm; flange thickness: 3.2 mm; body length below flange: 17 mm. Diagram material: PA6 nylon.
072	M11-22	Possible corresponding diagram; confirmation required. bore diameter: 11.2 (unit not stated); flange diameter: 32.2 (unit not stated); flange thickness: 3.2 (unit not stated); body length below flange: 22 (unit not stated). Option begins M11; candidate diagram shows a bore value of 11.2. Body outer dimension is unreadable and omitted.
073	M12.2-13	Possible corresponding diagram; confirmation required. bore diameter: 12.2 mm; body outer diameter: 14.22 mm; flange diameter: 24 mm; flange thickness: 2 mm; body length below flange: 13.1 mm. Option is M12.2-13; candidate catalog model is M12.2-13.1 with body length 13.1 mm.
074	M12-19.4	Matched catalog diagram. bore diameter: 12 mm; flange diameter: 36.5 mm; flange thickness: 2.3 mm; body length below flange: 19.4 mm. Diagram material: PA66 nylon. Body outer dimension is blurred and omitted.
075	M12; threaded; outer: 16.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
076	M12.2-34	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
077	M12.2-20T24; outer: 14.3; step: 2	Matched catalog diagram. bore diameter: 12.2 mm; flange diameter: 24 mm; flange thickness: 2 mm; body length below flange: 20 mm. Diagram material: nylon. Diagram color: white. Body outer dimension is not securely readable and is omitted.
078	M12-19.5	Possible corresponding diagram; confirmation required. bore diameter: 12.1 mm; body outer diameter: 16.5 mm; flange diameter: 22.5 mm; flange thickness: 4 mm; body length below flange: 19.5 mm. Diagram material: PA6 nylon. Option begins M12; candidate diagram shows a 12.1 mm bore. Confirm the association.
079	M12.15-60	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
080	M12.3-24	Matched catalog diagram. bore diameter: 12.3 mm; body outer diameter: 17.2 mm; flange diameter: 23.2 mm; flange thickness: 2.1 mm; body length below flange: 24 mm. Diagram material: PA6 nylon.
081	Notched M12.5-18	Matched catalog diagram. bore diameter: 12.5 (unit not stated); body outer diameter: 14 mm; flange diameter: 18.6 (unit not stated); flange thickness: 0.7 (unit not stated); body length below flange: 18 (unit not stated); overall height: 18.7 mm; opening width, illustrated slot 1: 2 mm; opening width, illustrated slot 2: 1.5 mm; slanted opening width: 1 (unit not stated). Opening widths refer to different illustrated slots and are not merged into a single width.
082	M12.5-13	Matched catalog diagram. bore diameter: 12.5 (unit not stated); body outer diameter: 15 (unit not stated); flange diameter: 23.8 (unit not stated); flange thickness: 4 (unit not stated); body length below flange: 13 (unit not stated). Units are not stated in this cell.
083	M12.5-17.5	Matched catalog diagram. bore diameter: 12.5 mm; body outer diameter: 14.5 mm; flange diameter: 22.8 mm; flange thickness: 3.5 mm; body length below flange: 17.5 mm. Diagram material: reinforced nylon.
084	M12.6-23.2T27.3; outer: 18.7; step: 3.3	Matched catalog diagram. outer dimension, lower dimension line: 18.7 mm; flange diameter: 27.3 mm; flange thickness: 3.3 mm; body length below flange: 23.2 mm. Bore and another lower span are blurred and omitted; the drawing may show two distinct outer dimensions.
085	M12.9-11.9	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
086	Rubber; inner: 13; outer: 30.8; total height: 28.3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
087	M13-21T22; outer: 16.1; step: 1.1	Matched catalog diagram. bore diameter: 13 mm; body outer diameter: 16.1 mm; flange diameter: 22 mm; flange thickness: 1.1 mm; body length below flange: 21 mm; overall height: 22 mm. Diagram color: black and white. The source prints overall height 22 mm, body length 21 mm and flange thickness 1.1 mm. These do not arithmetically agree; confirm before technical use.
088	M13-49T21; outer: 14.9; step: 1	Matched catalog diagram. bore diameter: 13 mm; body outer diameter: 14.9 mm; flange diameter: 21 mm; flange thickness: 1 mm; body length below flange: 49 mm.
089	M13.2-47.8T27.3; outer: 19; step: 3.2	Matched catalog diagram. flange diameter: 27.3 (unit not stated); flange thickness: 3.2 (unit not stated); body length below flange: 47.8 (unit not stated); outer dimension, middle dimension line: 19 (unit not stated). Small bore and lowest outer dimension are blurred and omitted. Units are not stated in this cell.
090	M14-17	Matched catalog diagram. bore diameter: 14 mm; body outer diameter: 16 mm; flange diameter: 28 mm; body length below flange: 17 mm; flange thickness: 3 mm. Diagram material: reinforced nylon.
091	M14.2-15	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
092	M14.4-28.8T25; outer: 19.2; step: 2	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
093	M15-17	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
094	M15.6-27.7T35; outer: 24.9; step: 3.1	Matched catalog diagram. bore diameter: 15.6 mm; body outer diameter: 24.9 mm; flange diameter: 35 mm; body length below flange: 27.7 mm; flange thickness: 3.1 mm. Diagram material: nylon. Diagram color: black.
095	M15-26T38.5; outer: 23.7; step: 4	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
096	M15-33.5T22; outer: 18; step: 2	Matched catalog diagram. bore diameter: 15 mm; body outer diameter: 18 mm; flange diameter: 22 mm; body length below flange: 33.5 mm; flange thickness: 2 mm.
097	M15.2-11.3	Matched catalog diagram. bore diameter: 15.2 mm; body outer diameter: 18.7 mm; flange diameter: 25 mm; body length below flange: 11.3 mm; flange thickness: 2.7 mm. Diagram material: PP. Diagram color: black.
098	M15.2-60.2T30.2; outer: 21; step: 5.2	Possible corresponding diagram; confirmation required. bore diameter: 15.2 (unit not stated); body outer diameter: 21.15 (unit not stated); flange diameter: 30.2 (unit not stated); body length below flange: 60.2 (unit not stated); flange thickness: 5.2 (unit not stated). Option outer value 21 differs from the candidate diagram body outer value 21.15. Units are not stated in the cell.
099	M16-15; outer: 18	Matched catalog diagram. bore diameter: 16 mm; body outer diameter: 18 mm; flange diameter: 28 mm; body length below flange: 15 mm; flange thickness: 3 mm.
100	M16.1-23.1T27; outer: 24.9; step: 3	Matched catalog diagram. bore diameter: 16.1 mm; body outer diameter: 24.9 mm; flange diameter: 27 mm; body length below flange: 23.1 mm; flange thickness: 3 mm.
101	M16.1-29T31; outer: 26.4; step: 2.5	Matched catalog diagram. bore diameter: 16.1 mm; body outer diameter: 26.4 mm; flange diameter: 31 mm; body length below flange: 29 mm; flange thickness: 2.5 mm; overall height: 31.5 mm.
102	M16-29; outer: 27.2	Possible corresponding diagram; confirmation required. bore diameter: 16.1 mm; body outer diameter: 27.2 mm; flange diameter: 35.5 mm; body length below flange: 29 mm; flange thickness: 2.5 mm; overall height: 31.5 mm. Diagram color: black. Option label is M16-29; candidate diagram label is M16.1-29 black. Confirm the association.
103	M16.2-27.5T28; outer: 20.8; step: 7	Matched catalog diagram. bore diameter: 16.2 mm; body outer diameter: 20.8 mm; flange diameter: 28 mm; body length below flange: 27.5 mm; flange thickness: 7 mm. Diagram material: nylon.
104	M16-20T32; outer: 18; step: 3	Matched catalog diagram. bore diameter: 16 (unit not stated); body outer diameter: 18 (unit not stated); flange diameter: 32 (unit not stated); body length below flange: 20 (unit not stated); flange thickness: 3 (unit not stated). Diagram material: reinforced nylon. Units are not stated in this cell.
105	M16.8-18	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
106	M16.9-11.8	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
107	M16.2-19; outer: 18.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
108	M16.9-19.7	Matched catalog diagram. bore diameter: 16.9 mm; body outer diameter: 24.7 mm; flange diameter: 27.1 mm; body length below flange: 19.7 mm; flange thickness: 3 mm. Diagram material: nylon. Diagram color: white.
109	M17.1-25T41; outer: 25.8; step: 5	Matched catalog diagram. bore diameter: 17.1 mm; body outer diameter: 25.8 mm; flange diameter: 41 mm; body length below flange: 25 mm; flange thickness: 5 mm. Diagram material: PA6 nylon.
110	M17.2-17	Matched catalog diagram. bore diameter: 17.2 mm; body outer diameter: 25 mm; flange diameter: 27.3 mm; body length below flange: 17 mm; flange thickness: 3 mm; overall height: 20 mm. Diagram material: nylon. Diagram color: white.
111	M17.8-28.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
112	M18-11	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
113	M18.3-18	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
114	M18.3-19.7T35; outer: 21.4; step: 1.9	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
115	M18-20T34; outer: 20; step: 3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
116	M18.5-22.7	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
117	M18.6-19.8T29; outer: 21.5; step: 1.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
118	M19-41.5T30; outer: 23; step: 4	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
119	M19-68	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
120	M19.5-23	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
121	M20-16	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
122	M20-20T34; outer: 22; step: 3; reinforced designation	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
123	M20-20T30; outer: 23; step: 2	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
124	M20-24	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
125	M20-24T30; outer: 24; step: 2	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
126	M20.3-17	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
127	Inner: 20.8; outer: 29.7; total height: 20	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
128	M21-10	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
129	M21-21T38; outer: 24.6; step: 3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
130	M20-20T49.8; outer: 30; step: 5; machined option	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
131	M20.4-19.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
132	PTFE M22.7-20	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
133	M22.7-56.3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
134	Inner: 23.2; inner: 26; T58; total height: 22.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
135	M24.1-36.1	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
136	M24.5-23.6T35.5; outer: 27.7; step: 1.6	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
137	M24.8-27.5; grooved	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
138	M25.2-52.4T50; outer: 34.9; step: 7; black	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
139	Inner: 25; outer: 43.8; total height: 52; T62	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
140	M25.4-80T55; outer: 32; step: 3.2	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
141	Ribbed; inner: 25.8; outer: 31.6; total height: 27.7	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
142	Inner: 25; keyway; external groove	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
143	M26-25T35; outer: 32; step: 5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
144	Inner: 26; outer: 43; total height: 35	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
145	M27-55T50; outer: 33; step: 5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
146	T60; inner: 27.6; outer: 34; thickness: 17.6	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
147	Inner: 29; outer: 38.3; total height: 19.5; T46.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
148	Inner: 29.9; outer: 39.7; total height: 42	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
149	M30-21T38.5; outer: 36.5; step: 3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
150	Inner: 30.8; outer: 33; total height: 29; T35	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
151	Inner: 31; outer: 35.3; total height: 26	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
152	Inner: 31; outer: 39.7; total height: 42	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
153	Inner: 34.2; outer: 38.5; total height: 35	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
154	M35.3-22.3T50.8; outer: 46.5; step: 2.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
155	M35.5-20T48.2; outer: 39.8; step: 2	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
156	M36-26.7T50; outer: 45; step: 4.3	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
157	M36.6; outer: 39; total height: 39	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
158	Inner: 52; outer: 68; steps at both ends	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.
159	Inner: 80.5; outer: 95.6; total height: 80.5	No confirmed diagram mapping in this review. Use the listed option notation for inquiry; complete dimensions and units require confirmation.

Additional option-label clarifications

• Reference 134 repeats inner values 23.2 and 26 with T58 and total height 22.5. Their distinct roles remain unconfirmed.
• Reference 022 retains the recessed-hole notation 14.5-81.5 without assigning each number to a geometric feature.
• Reference 023 gives small-hole inside diameter 5 and a drilled-hole value 14.9; the latter geometry and position remain unconfirmed.
• References 053 and 122 use a reinforced designation without identifying the reinforcement material or grade.
• Reference 142 does not state keyway or external groove dimensions. Reference 158 does not state overall height or individual step dimensions.
• PTFE is explicitly named for M4.7-9.5, M6-23.5 and M22.7-20. The inner 13 / outer 30.8 / total height 28.3 option is explicitly named rubber.

Model-specific inquiries and custom machining

Provide the option reference or complete listed notation, required quantity and a dimensional drawing or specification. Confirm material, color, units, finished dimensions and tolerances before ordering. For custom machining, provide the required geometry and material for specification review.

Operating temperatures, load capacities, electrical insulation ratings, certifications and application compatibility are not established by this listing and must not be assumed.

For wholesale inquiries, contact IKSONIC with the option reference, quantity and material requirements.

Email: [email protected]

WhatsApp/Mobile/WeChat: +86-13370616532  , +86-15315489052

WeChat: taishanfu

Skype ID: wingxsonic
