Laser Protective Lens Seals and Gaskets

Description

Laser Protective Lens Seals and Gaskets

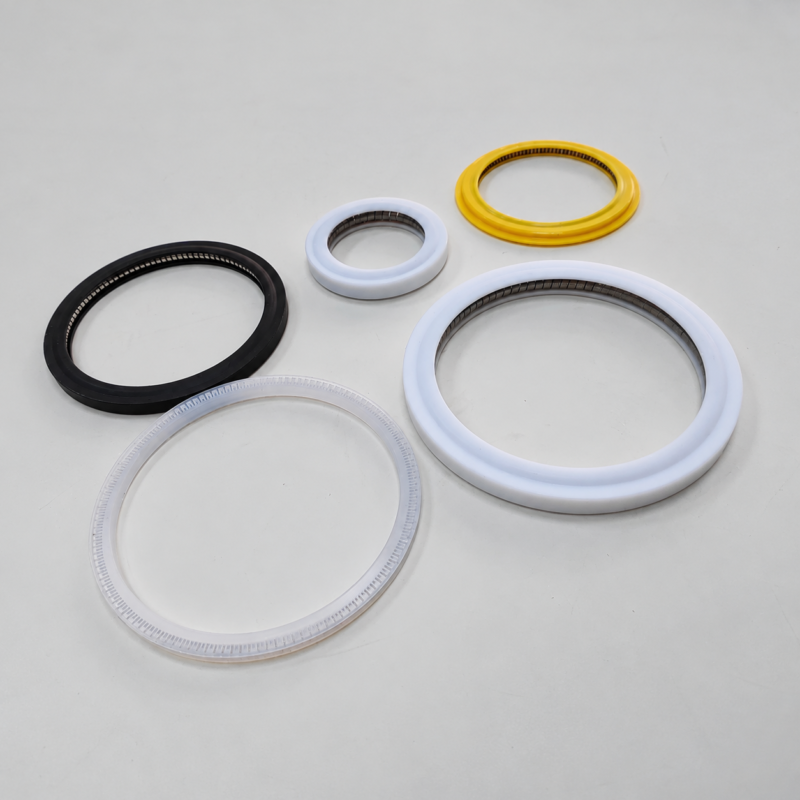

This laser protective lens seal range includes sealing rings, spring-energized seals and metal gaskets for the protective-lens area of fiber laser cutting heads. White and yellow options are listed. The photographs show several ring profiles, so identify the exact cutting-head model and component position before selecting a replacement.

Choose the correct lens sealing component

A lens seal and a metal gasket can have different roles in the same assembly. Check whether you need the sealing ring, a support component or a complete set. Compare the lens seating arrangement and retaining hardware with the part being replaced. Also confirm the selected color, quantity and dimensions before ordering.

Laser protective lens seal identification

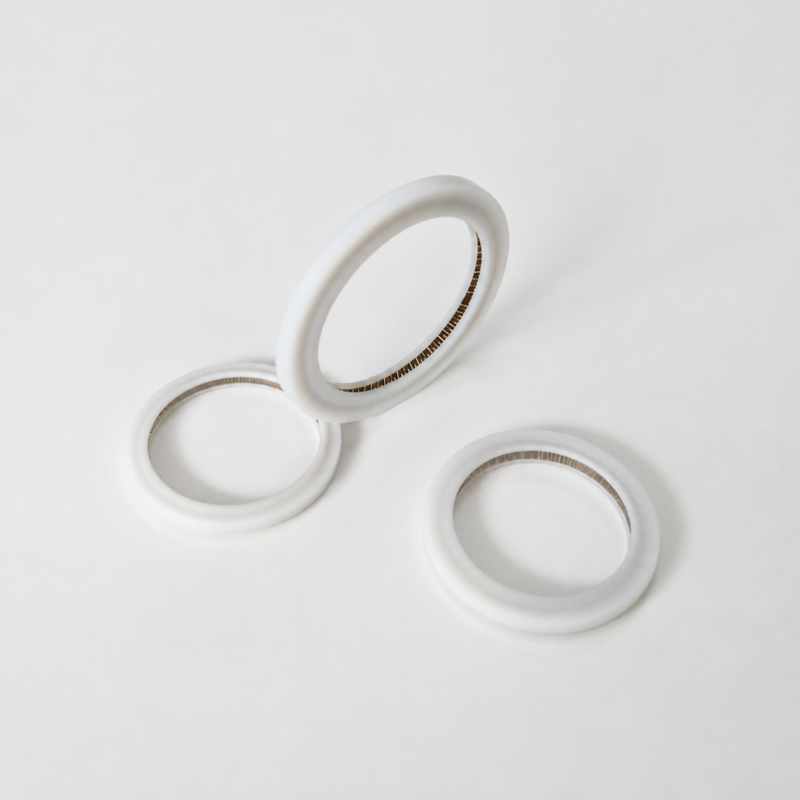

Start with the cutting-head model and any part number on the original packaging. Then provide the inside diameter, outside diameter and overall thickness of the component. A side-view photograph helps show the section profile. For a spring-energized ring, include a clear view of the spring and its position inside the seal.

Keep measurements and units together. Mark any values taken from the housing rather than the removed ring. If the old component is worn or distorted, explain that when sending the measurements. This makes it easier to distinguish the original geometry from damage during service.

Frequently asked questions

Is a matching diameter enough? No. The section profile, thickness, lens holder and mating surfaces also matter. Choose a replacement for the complete assembly rather than by color alone.

Can I request a seal and gasket together? Identify each component in your photographs and state which parts you need. Confirm the supplied contents before placing an order.

Request a quotation

Send the cutting-head model, component photographs, required dimensions and quantity through our product inquiry page. Include the operating conditions and any material requirement for your application. We can then discuss the laser protective lens seal option and the parts needed for your installation.
