1140H Elevator Door Belt, 13 mm Width
1140H-13mm elevator door belt with source-listed 2895.6 mm circumference. A separate 13 mm open-ended polyurethane and steel-cord option is also listed. Ask IKSONIC for configuration-specific wholesale supply.
- Description
- Contact Us
Description
1140H Elevator Door Belt, 13 mm Width

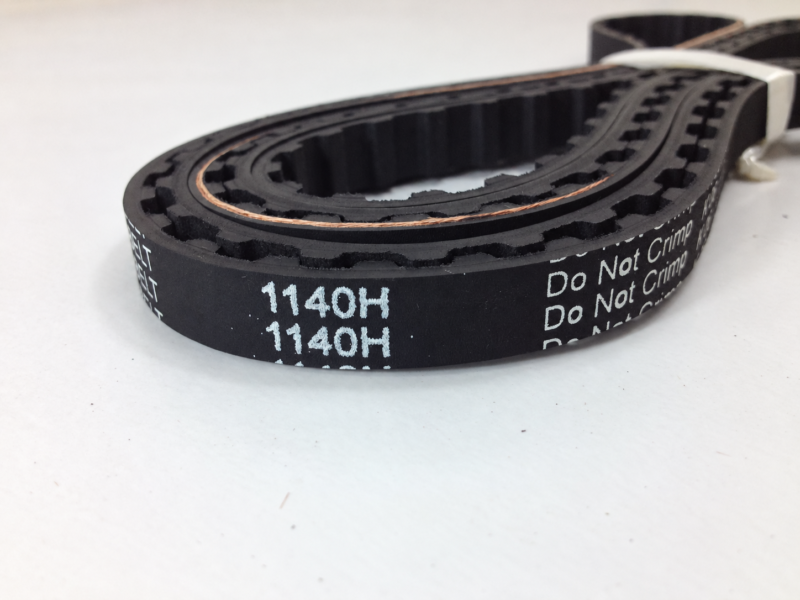

IKSONIC supplies the 1140H elevator door belt for replacement-part inquiries and wholesale sourcing. The source-listed configuration is 1140H-13mm, with a circumference of 2895.6 mm. The main photograph shows the actual 1140H marking on a black toothed belt.
As a China supplier, IKSONIC helps buyers identify the belt configuration before ordering. Match the existing belt marking, tooth profile, width and required length to the door operator. A similar appearance alone does not establish compatibility.
Specifications and Models
| Source-listed option | Width | Length or circumference | Construction information |
|---|---|---|---|
| 1140H-13mm | 13 mm | 2895.6 mm circumference, as listed for this configuration | Black toothed belt shown; material and reinforcement require confirmation |
| H-profile open-ended belt | 13 mm | Specify required cut length; no circumference stated | Polyurethane with steel-cord reinforcement, specified for this option only |

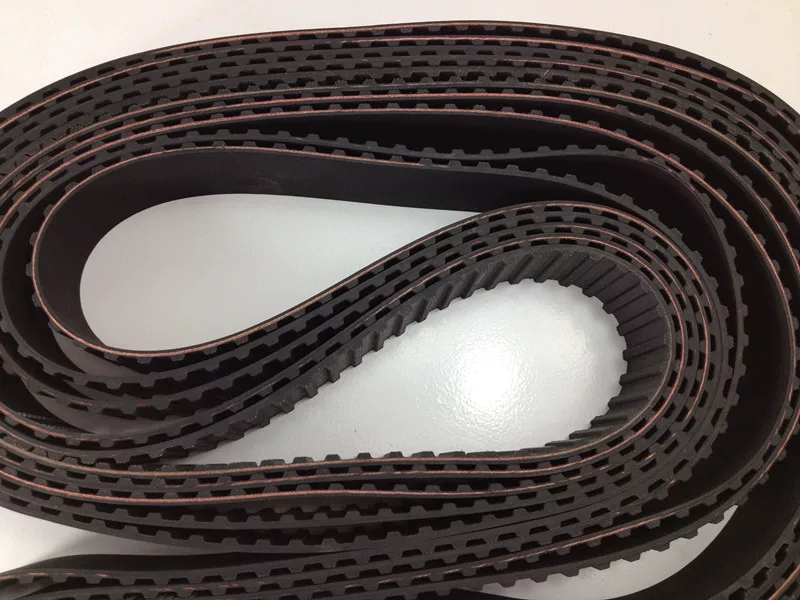

The open-ended option is separate from the 1140H configuration. Its polyurethane and steel-cord description must not be applied to the black 1140H belt without confirmation. The photographs illustrate the black belt and tooth arrangement, not the separate polyurethane option.
Information Needed for Selection
Send a clear photograph of the existing belt marking, a tooth-face view, the measured width and the door-operator identification. Indicate whether you need a closed belt or an open-ended length. Include the quantity and destination for a wholesale quotation.
The source identifies an elevator door-drive application. Compatibility, installation and tension adjustment should be checked by the responsible elevator maintenance professional. This page does not establish original-equipment status or universal suitability for a particular elevator brand.
Frequently Asked Questions
Does 2895.6 mm apply to both options?
No. It is the circumference listed for 1140H-13mm. The open-ended option requires a specified cut length.
Is the 1140H belt made from steel-reinforced polyurethane?
The source explicitly assigns that construction to the separate open-ended H-profile option. Confirm the material and reinforcement of the 1140H configuration before ordering.
Are pulleys or installation components included?
This inquiry page covers belts. Identify any additional components separately in your request.
How do I request a quotation?
Contact IKSONIC with the selected configuration, belt photographs, quantity and delivery destination. No online selling price is specified on this inquiry page.
