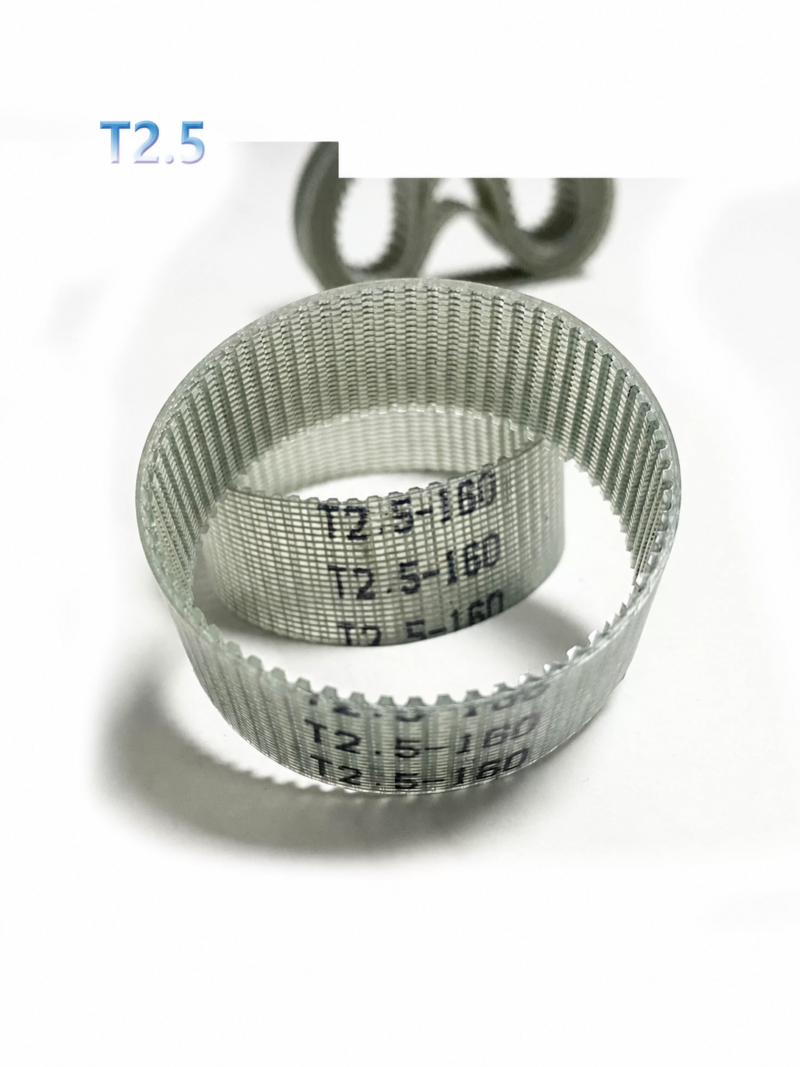

IKSONIC T2.5 polyurethane timing belts with visible inner teeth and reinforcement grid, main product view.

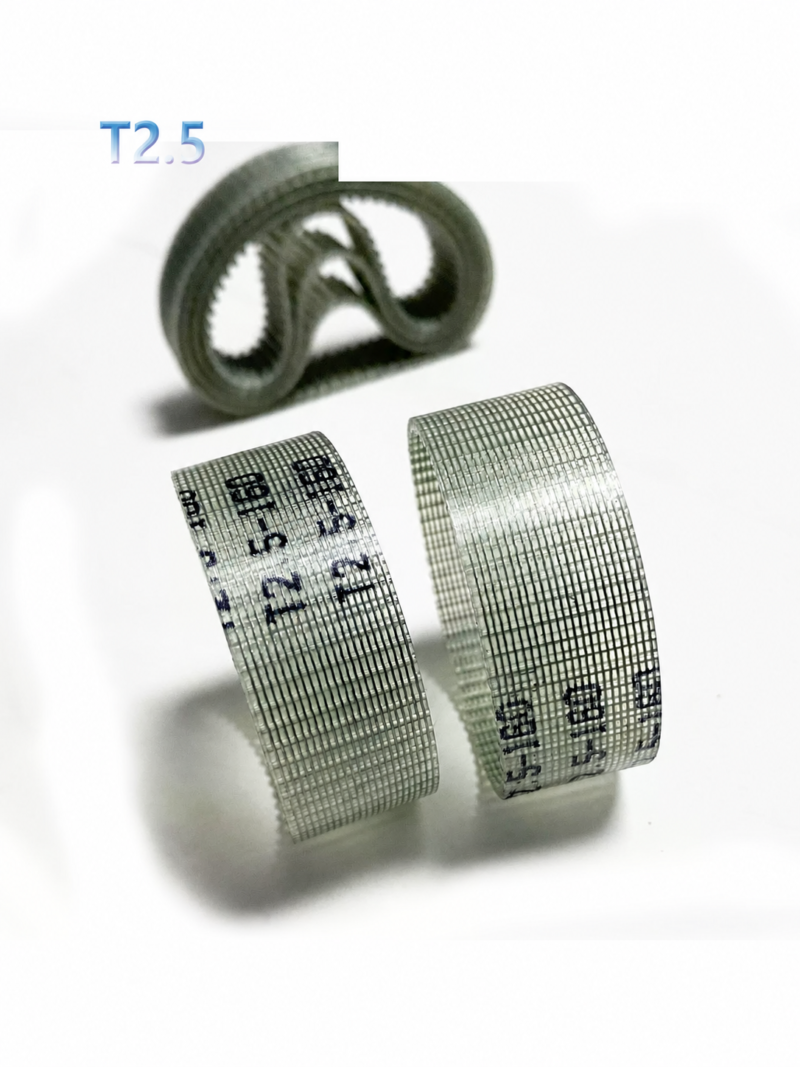

IKSONIC T2.5 polyurethane timing belts standing upright, showing reinforcement grid and printed model markings.

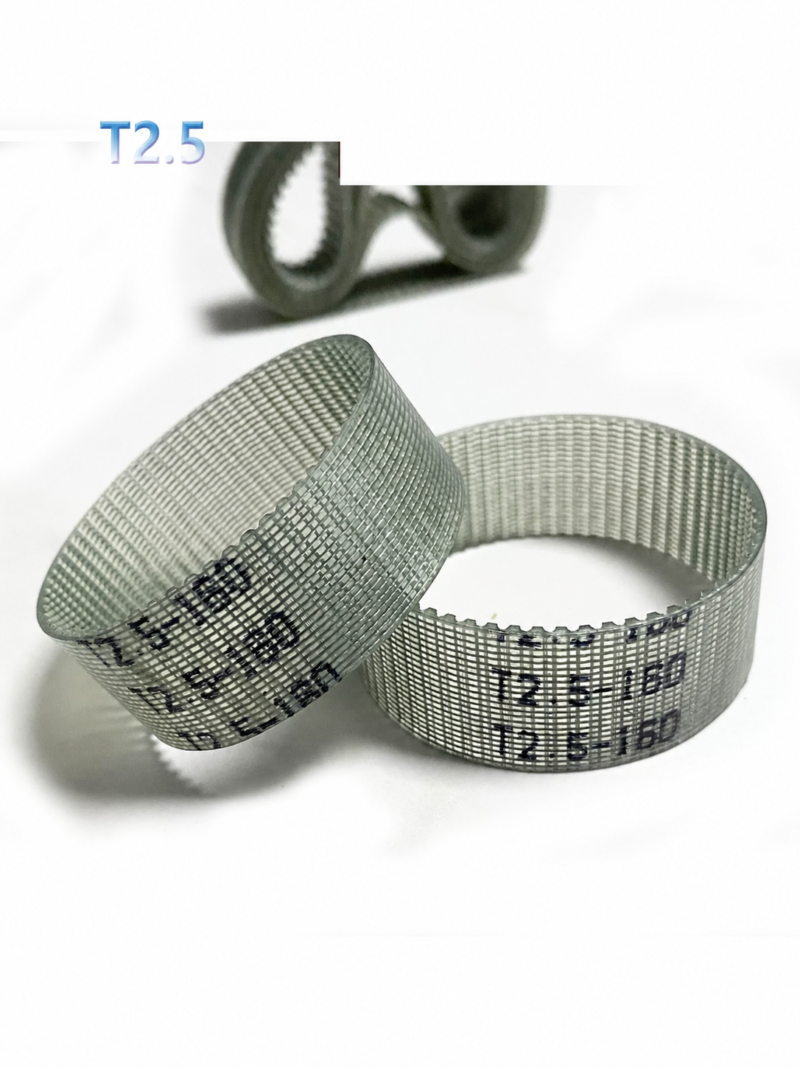

IKSONIC T2.5 polyurethane timing belts in an angled view, showing inner teeth, reinforcement grid and model markings.
IKSONIC T2.5 polyurethane timing belts with visible inner teeth and reinforcement grid, main product view.
IKSONIC T2.5 polyurethane timing belts standing upright, showing reinforcement grid and printed model markings.
IKSONIC T2.5 polyurethane timing belts in an angled view, showing inner teeth, reinforcement grid and model markings.

T2.5 PU Seamless Trapezoidal Timing Belt

Grey S5M polyurethane timing belt profile example showing two overlapping loops marked S5M-415-25PU and a blurred rolled belt behind — IKSONIC China supplier catalog. S5M PU Timing Belts, Grey Steel-Wire Seamless, 575 / 580 / 595 / 600
Black herringbone-tooth belt across a coiled length, supplied by IKSONIC in China. Herringbone Elevator Door Belt, 12.5 mm

IKSONIC manufactures T2.5 PU seamless timing belts with a trapezoidal tooth profile. Compare 50 model entries and eight widths: 4, 10, 15, 20, 25, 30, 40 and 50 mm. Specify the model, width and quantity.

SKU: 1048561495446 Category:
somdn_product_page

Description

T2.5 Polyurethane Seamless Trapezoidal Timing Belt

IKSONIC manufactures T2.5 polyurethane (PU) seamless timing belts with a trapezoidal tooth profile. Select the model and required width from the specifications below for replacement or wholesale orders.

Product Specifications

T2.5 PU timing belt overview
Item Specification
Product type Industrial timing belt / transmission belt
Profile designation T2.5
Material Polyurethane (PU)
Form Seamless endless belt
Tooth profile Trapezoidal
Listed models 50 model entries, shown individually below
Listed widths 4, 10, 15, 20, 25, 30, 40 and 50 mm
Width selection Width cut to requirement, as stated for each listed model
Model code units Confirm dimensions and units separately; model codes alone are not length measurements
Other specifications Enquire separately; additional specifications are not counted as listed models

Listed Models and Tooth Counts

Choose from 50 model entries below. Confirm any unspecified tooth count and the dimensional units for your selected belt; do not infer these from the model code.

Check before ordering: T2.5-212 is listed with 85 teeth. Confirm the model and tooth count together before ordering; do not substitute T2.5-212.5 without confirmation. Tooth counts are not stated for T2.5-230 or T2.5-650.

All 50 listed T2.5 models
Model identifier as listed Tooth count as listed Selection note
T2.5–145 58 Width cut to requirement
T2.5–160 64 Width cut to requirement
T2.5-177.5 71 Width cut to requirement
T2.5-180 72 Width cut to requirement
T2.5-182.5 73 Width cut to requirement
T2.5-187.5 75 Width cut to requirement
T2.5-190 76 Width cut to requirement
T2.5-197.5 79 Width cut to requirement
T2.5-200 80 Width cut to requirement
T2.5-210 84 Width cut to requirement
T2.5-212 85 Confirm the T2.5-212 model designation and 85-tooth count together before ordering.
T2.5-220 88 Width cut to requirement
T2.5-225 90 Width cut to requirement
T2.5-230 Not stated Tooth count is not stated; confirm before ordering.
T2.5-245 98 Width cut to requirement
T2.5-260 104 Width cut to requirement
T2.5- 265 106 Width cut to requirement
T2.5-277.5 111 Width cut to requirement
T2.5-280 112 Width cut to requirement
T2.5-285 114 Width cut to requirement
T2.5-290 116 Width cut to requirement
T2.5-305 122 Width cut to requirement
T2.5-317 .5 127 Width cut to requirement
T2.5-330 132 Width cut to requirement
T2.5-372.5 149 Width cut to requirement
T2.5-380 152 Width cut to requirement
T2.5-395 158 Width cut to requirement
T2.5-400 160 Width cut to requirement
T2.5-420 168 Width cut to requirement
T2.5-430 172 Width cut to requirement
T2.5-440 176 Width cut to requirement
T2.5-470 188 Width cut to requirement
T2.5-480 192 Width cut to requirement
T2.5-492.5 197 Width cut to requirement
T2.5-500 200 Width cut to requirement
T2.5-505 202 Width cut to requirement
T2.5-540 216 Width cut to requirement
T2.5-570 228 Width cut to requirement
T2.5-600 240 Width cut to requirement
T2.5-620 248 Width cut to requirement
T2.5-650 Not stated Tooth count is not stated; confirm before ordering.
T2.5-662.5 265 Width cut to requirement
T2.5-680 272 Width cut to requirement
T2.5-700 280 Width cut to requirement
T2.5-780 312 Width cut to requirement
T2.5-880 352 Width cut to requirement
T2.5-915 366 Width cut to requirement
T2.5-950 380 Width cut to requirement
T2.5-1185 474 Width cut to requirement
T2.5-1750 700 Width cut to requirement

Belt Width Options

Choose the width separately from the model identifier. These are the eight width options; confirm the required model and width combination before ordering.

Listed belt widths
Width
4 mm
10 mm
15 mm
20 mm
25 mm
30 mm
40 mm
50 mm

Selecting Your T2.5 PU Timing Belt

  • Read the exact model marking on the existing belt or equipment specification.
  • State the required belt width in mm and the quantity.
  • Check the tooth count where it is known, especially for the entries marked for confirmation.
  • Confirm the belt and pulley requirements before selecting a replacement.

For other specifications, please provide your required model, dimensions and quantity. Confirm availability separately.

Frequently Asked Questions

What type of timing belt is listed?

This is a T2.5 polyurethane (PU) seamless timing belt with a trapezoidal tooth profile.

Which belt widths are listed?

The listed widths are 4, 10, 15, 20, 25, 30, 40 and 50 mm. The model entries state that the width is cut to requirement. Confirm the required model and width combination before ordering.

Are all model details confirmed?

Confirm the T2.5-212 model designation and 85-tooth count together before ordering. Tooth counts for T2.5-230 and T2.5-650 also require confirmation. Specify dimensional requirements separately rather than treating model codes as verified length measurements.

How can I enquire about wholesale supply from China?

Send IKSONIC the exact model marking, required width in mm and quantity. Include the tooth count where known, and identify any details that need confirmation. Ask about unlisted specifications separately.

Enquire with IKSONIC

For wholesale T2.5 PU timing belt orders, contact IKSONIC with your model, width and quantity. Please highlight any model or tooth-count details that need checking.
