Custom Alumina Ceramic Liner Plates for Chutes and Hoppers
IKSONIC manufactures custom alumina ceramic liner plates for industrial chutes, hoppers and pipelines. Send us your drawing, dimensions and hole layout, and confirm whether the required construction includes rubber backing. Manufactured in China and shipped worldwide.
- Description
- Contact Us
Description
Custom Alumina Ceramic Liner Plates
IKSONIC manufactures custom alumina ceramic liner plates in China and supports wholesale inquiries. Our nonstandard lining components are made to supplied drawings for industrial chutes, hoppers and pipelines. Please specify the required dimensions and configuration.
Specifications and Ordering Options
| Item | Reference information |
|---|---|
| Product type | Alumina ceramic liner plate |
| Primary material | Alumina ceramic |
| Optional backing material | Rubber, depending on the specified lining configuration |
| Specification format | Nonstandard; customized to requirements |
| Ordering option 1 | Custom alumina ceramic liner |
| Ordering option 2 | Made to supplied drawings |
| Dimensions and hole layout | Made to the dimensions and hole layout specified for your part |
Select the material for the required hardness, temperature, wear and impact conditions. Material grade, ceramic content, backing construction and fastening method should be confirmed for the selected part.
Applications and Selection
Potential inquiries include ceramic lining for chutes, hoppers and industrial pipelines. Other application inquiries include electronics and electrical equipment, automotive, metallurgy, steel, chemical and cement industries. Suitability depends on the actual material flow, loading and installation conditions.
- Provide the equipment location, lining area and existing liner arrangement.
- Specify plate dimensions, thickness, hole sizes and hole positions where applicable.
- Describe abrasion, impact, temperature and chemical exposure.
- Confirm whether ceramic-only components or a rubber-containing configuration is required.
- State the quantity and any required inspection or material documentation.
We manufacture the components to the agreed specification. Confirm production details and the final drawing before ordering.
Frequently Asked Questions
Are all plates supplied in the sizes shown in the photograph?

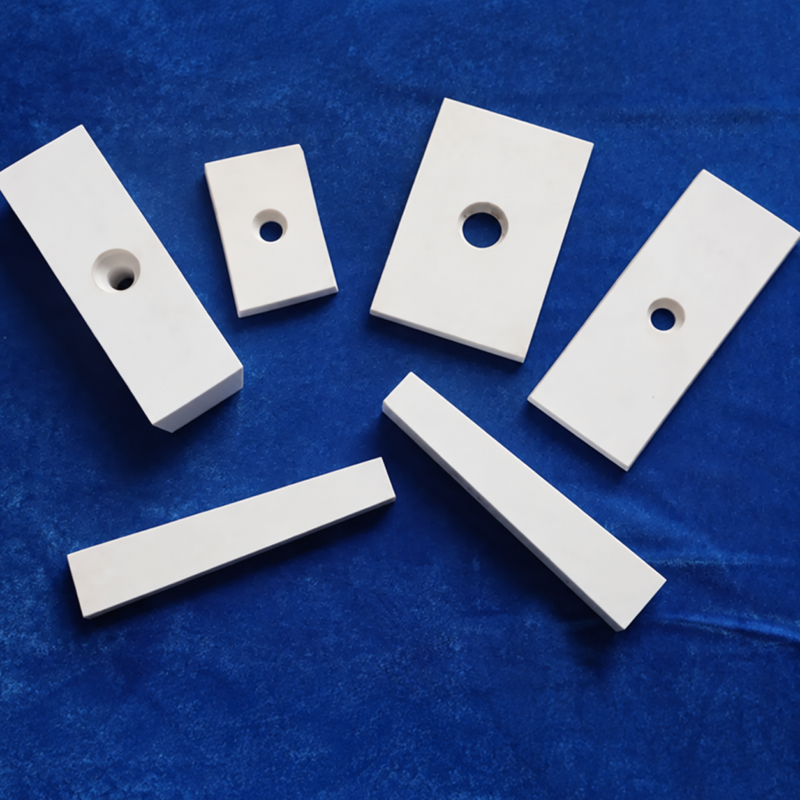

The photograph illustrates different shapes, including drilled plates and solid strips. It is not a dimensioned drawing or a fixed-size catalog. Confirm the required geometry when requesting a quotation.
Does every liner include rubber?
No. Alumina ceramic and rubber constructions must be selected for the required configuration. Specify the required lining arrangement before supply.
Can the parts be made to a drawing?
We support manufacture to drawing. Please provide a complete dimensioned drawing and the manufacturing requirements for your part.
Is a fire rating or maximum operating temperature specified?
No certified fire rating or numerical temperature limit is established here. Request application-specific technical documentation rather than assuming a rating.
Request a Quotation
For wholesale orders, contact IKSONIC for a quotation with your dimensions, configuration, quantity and service conditions.
Worldwide Delivery
Manufactured in China and shipped worldwide. For orders suitable for international express, delivery typically takes 3–7 days after dispatch, excluding production and order preparation. Transit times vary by destination and customs clearance. Confirm the shipping method and estimated transit time for your order.
