Custom Alumina Ceramic Rubber Liner Panels

Description

Custom Alumina Ceramic Rubber Liner Panels

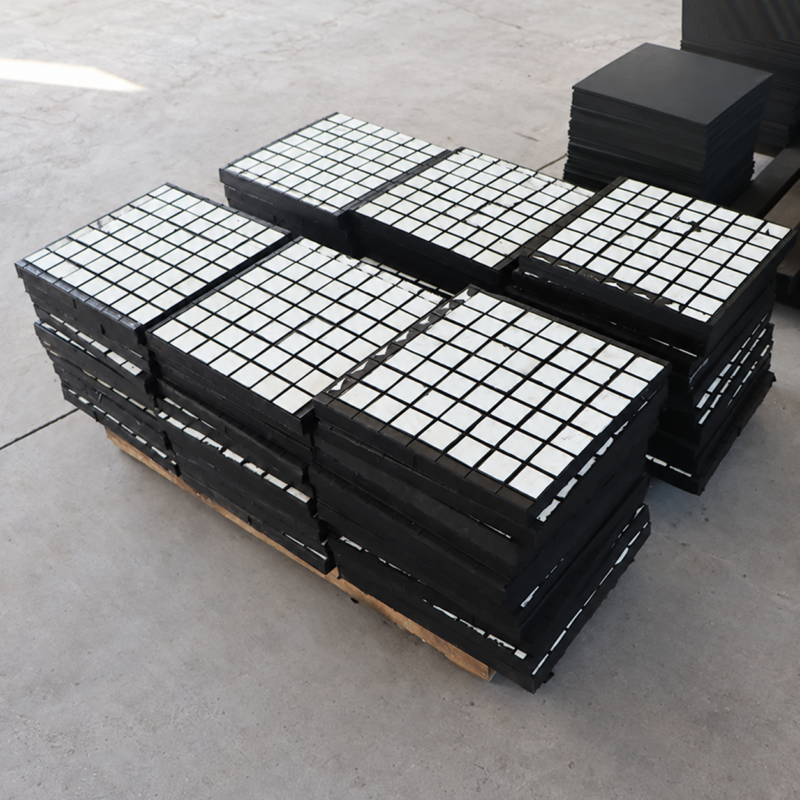

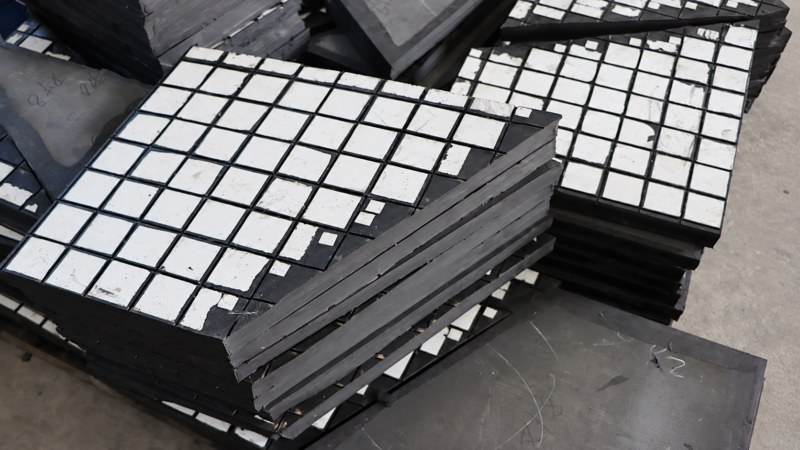

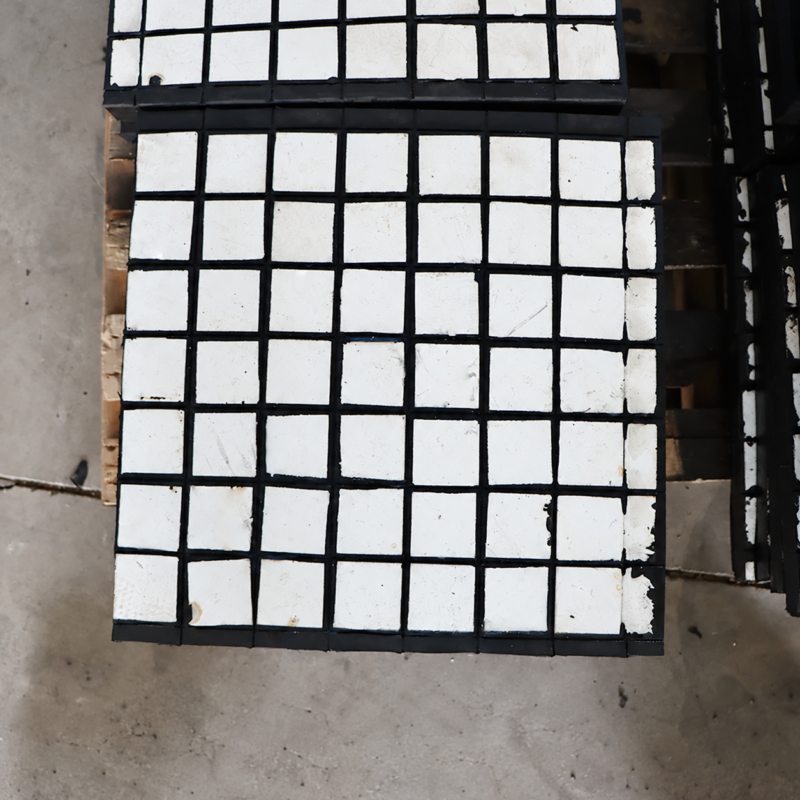

IKSONIC manufactures custom alumina ceramic rubber liner panels in China and supports wholesale inquiries. The range includes three-in-one ceramic liners and two-in-one rubber-composite ceramic liners. The photographs show square ceramic tile surfaces, dark backing and assembled lining examples. Confirm the required construction and installation arrangement before ordering.

Specifications and Configurations

Item	Specification
Product	Three-in-one wear-resistant ceramic liner
Ceramic material	Alumina ceramic
Composite option	Two-in-one rubber-composite ceramic liner
Dimensions	Customized to requirements; confirm length, width and thickness for each part
Layout	Confirm ceramic tile arrangement, edge profile and mounting details against the requested drawing
General features	Wear resistance, impact resistance, ease of installation, vibration reduction and noise reduction

We manufacture the panels to the agreed dimensions and service requirements. The two construction descriptions are not interchangeable: specify whether you need a two-in-one or three-in-one liner and confirm each layer, backing and fastening method. Do not infer a ceramic grade, rubber compound or steel thickness from a photograph.

Applications

Application inquiries include material conveying and batching systems in metallurgy and steel, coal mining, mining, ports, cement and thermal power generation. Examples include batching bins, hoppers and other equipment locations exposed to impact and abrasive material flow.

Actual suitability depends on the handled material and operating conditions. Ask for the selected configuration’s technical information where temperature, chemical exposure or impact loading matters. The general feature descriptions above are not numerical test results or service-life guarantees.

Information Needed for a Quotation

• Equipment location and the material being conveyed or stored.
• Panel length, width, overall thickness and a dimensioned drawing if available.
• Required ceramic layout, rubber backing and any additional backing layer.
• Mounting method, hole positions, edge requirements and replacement-liner reference.
• Quantity, operating conditions and required inspection documentation.

We manufacture the liner panels to the agreed configuration.

Frequently Asked Questions

Are these standard-size ceramic liner panels?

We manufacture custom sizes. Send the dimensions for each panel instead of estimating sizes from the images.

Does this product cover both two-in-one and three-in-one liners?

Yes, we manufacture both two-in-one and three-in-one liners. Confirm the complete construction for the requested item; the layer arrangement must not be assumed from the naming alone.

Can I use the same mounting arrangement as my current liner?

Please provide the required drawing and mounting details. Matching dimensions and fastening requirements should be confirmed before supply.

Discuss Your Lining Requirement

For wholesale supply inquiries, request a quotation from IKSONIC with your liner drawing, configuration and quantity.

Worldwide Delivery

Manufactured in China and shipped worldwide. For orders suitable for international express, delivery typically takes 3–7 days after dispatch, excluding production and order preparation. Transit times vary by destination and customs clearance. Confirm the shipping method and estimated transit time for your order.
