PTFE Food Conveyor Belt for Bread and Pancake Machines
PTFE conveyor belt options for bread, pancake, flatbread and rice-noodle-sheet machinery. Choose blue oil-seepage-resistant, black antistatic or off-white belt options. Confirm finished dimensions, construction, operating limits and required documentation for your application.
- Three listed application-focused color options
- Custom-size enquiries by finished circumference and width
- Product reference: 731027185236
- Description
- Contact Us
Description
PTFE Food Conveyor Belt for Bread, Pancake and Rice-Noodle Machinery
Choose a PTFE food conveyor belt around the product you handle and the machine it runs on. This listing includes blue oil-seepage-resistant, black antistatic and off-white rice-noodle and pancake belt options for food-processing equipment. The product reference is 731027185236.
For wholesale purchasing or factory sourcing in China, contact IKSONIC with your required belt configuration. Color alone does not establish thickness, electrical performance, operating limits or food-contact compliance. Confirm those details for the exact belt before ordering.
Available Options
| Option | Application description | Confirm before ordering |
|---|---|---|

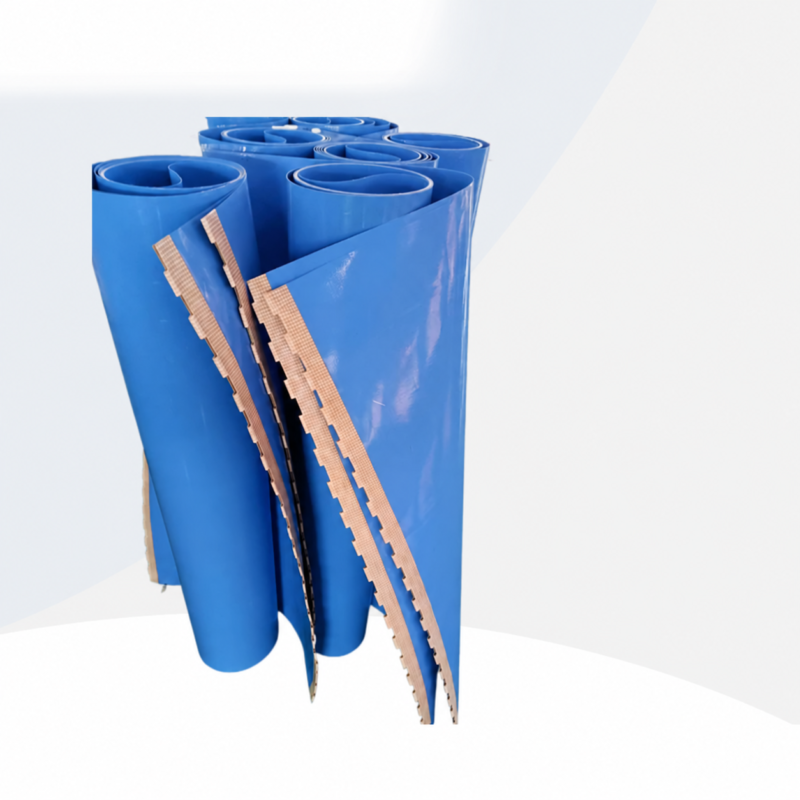

| Blue oil-seepage-resistant food belt | Food-processing conveyor applications requiring an oil-seepage-resistant belt option. | Confirm thickness, finished size, joint construction and performance with the actual food and oil exposure. |

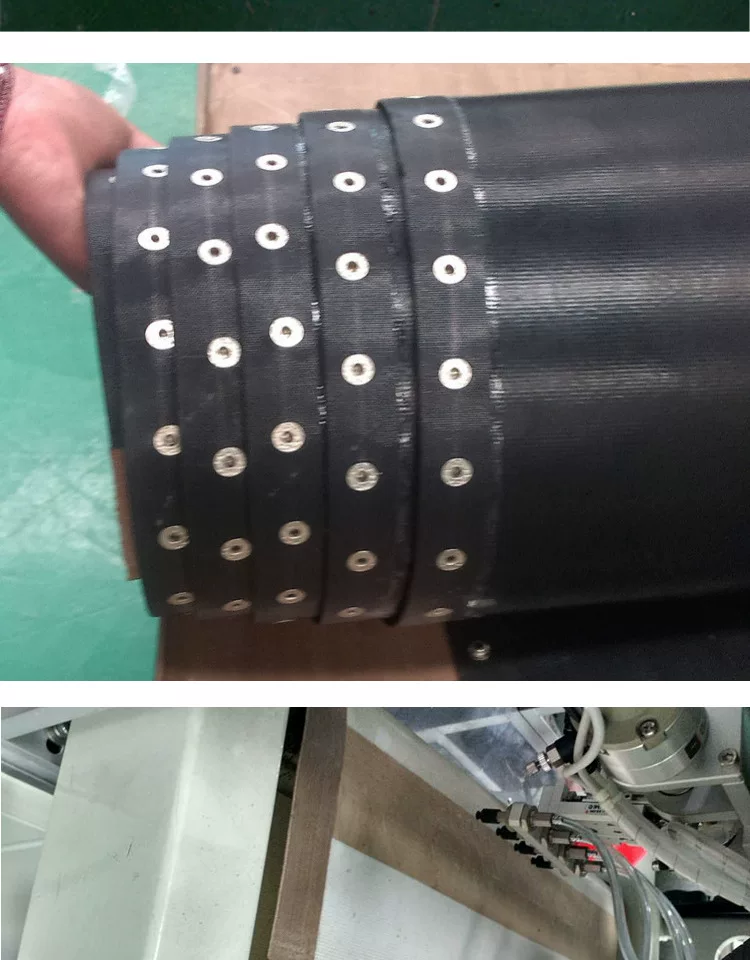

| Black antistatic belt | Conveyor applications where an antistatic belt option is requested. | Confirm electrical resistance, test method, grounding requirements and suitability for the equipment. |
| Off-white rice-noodle and pancake belt | Rice-noodle-sheet, pancake and flatbread machinery. | Confirm the machine model, product contact conditions, thickness and finished dimensions. |
The listed option names describe their intended selection focus. They do not establish test results, performance thresholds or certification. Bread-making, pancake, flatbread and rice-noodle-sheet applications should be assessed against the actual machine and production conditions.
Material Reference Specifications
Reference only: the source specification chart below lists white, brown and black material. It does not include blue and is not a confirmed specification matrix for the three options above. White must not be assumed to mean the listed off-white option, and the black reference rows do not by themselves establish the specification of the antistatic option.
| Thickness (mm) | Source maximum width (mm) | Tensile strength (source notation) | Reference colors |
|---|---|---|---|
| 0.25 | 2400 | 1422N ± 50N/5CM | White / Brown / Black |
| 0.30 | 2600 | 1642N ± 50N/5CM | White / Brown / Black |
| 0.35 | 2600 | 1722N ± 50N/5CM | White / Brown / Black |
| 0.50 | 2600 | 1822N ± 50N/5CM | White / Brown / Black |
| 0.65 | 2600 | 2252N ± 50N/5CM | White / Brown / Black |
| 0.75 | 2600 | 2642N ± 50N/5CM | White / Brown / Black |
| 0.90 | 2600 | 3267N ± 50N/5CM | White / Brown / Black |
| 1.0 | 2600 | 3822N ± 50N/5CM | White / Brown / Black |
Tensile figures retain the source notation. The source does not specify the test standard, material direction or a confirmed mapping to each orderable option. Maximum width is a material reference, not a guarantee of finished belt width. Request an approved specification for the selected color, thickness and finished construction.
Specify the Belt for Your Equipment
Measure the existing belt or use the machine manufacturer’s belt specification when preparing an enquiry. State the finished belt circumference and width separately, and identify how the circumference was measured. Include the required thickness and describe the joint or seam if one is needed.
- Application: bread, pancake, flatbread, rice-noodle sheet or another specified process.
- Configuration: preferred option, finished circumference, width, thickness and joint details.
- Equipment: machine model, roller dimensions if available, operating speed and tension requirements.
- Process conditions: continuous and peak temperatures, contact time, oil exposure and cleaning methods.
- Order requirements: quantity, dimensional tolerances and any required food-contact or electrical-performance documentation.
Custom sizing is described in the source information. Available dimensions, construction and tolerances still need to be confirmed for the exact belt. No temperature rating, antistatic resistance value or food-contact certification is established by this listing.
Frequently Asked Questions
Which PTFE food conveyor belt options are listed?
Three options are listed: blue oil-seepage-resistant food belt, black antistatic belt, and off-white rice-noodle and pancake belt. These are application descriptions, not complete technical specifications. Confirm the selected option against your equipment and process.
Does the thickness table apply to the blue food belt?
Not automatically. The reference table identifies white, brown and black material only. It does not identify blue, and it does not establish a specification match for all three listed options. Request a confirmed specification for the exact belt and color before ordering.
Can I request a belt to match my machine dimensions?
Provide the finished belt circumference and width, required thickness, joint details and machine model with your enquiry. Custom dimensions are described in the source information, but availability, construction and manufacturing tolerances must be confirmed for the selected belt.
What is the operating temperature rating?
A verified operating temperature rating for each listed option is not available. Provide the continuous and peak process temperatures, exposure time and cleaning conditions so that the appropriate belt specification can be checked. Do not use a generic material rating as a finished-belt operating limit.
Is food-contact certification included?
The listing describes food-processing applications, but it does not establish food-contact certification for the exact belt supplied. If documentation is required, identify the applicable market, food type and operating conditions in your enquiry and request the relevant documentation before purchase.
Does the black option have a confirmed antistatic rating?
It is listed as an antistatic option, but no verified electrical resistance value or test method is provided for that option. Confirm the required electrical performance and equipment compatibility before specifying it.
What information should I send for a wholesale quotation?
Include the selected color and application, finished circumference, width, thickness, quantity, machine model, operating conditions, joint requirements and any required compliance documentation. Drawings or clear photos of the existing belt can help clarify the required configuration.
Request a Belt Specification or Wholesale Quotation
Contact IKSONIC with product reference 731027185236 and your machine requirements. For a replacement belt, include the existing belt dimensions and clear photos or a drawing. Request confirmation of the selected option, finished dimensions, joint construction and required documentation before placing an order.
