Woven Mesh Conveyor Belts for Drying and Cooling
IKSONIC manufactures woven mesh conveyor belts for drying and cooling equipment. Applications include tea processing, seafood handling, rice-noodle drying and tofu-skin cooling or drying equipment. Confirm the selected belt material and contact requirements before use; an application name alone does not establish food-contact certification.
Selectable mesh options
| Size designation | Mesh designation |
|---|---|
| 3 × 3 | 8 mesh |
| 2 × 2 | 13 mesh |
| 1 × 1 | 18 mesh |
| 0.5 × 0.5 | 25 mesh |
| 4 × 4 | 6 mesh |
Confirm the dimensional units, intended aperture and measurement method for your selected mesh before ordering. Do not treat a size designation alone as a complete dimensional specification.
Catalog specification references
The following seven specification references are separate from the five mesh selections above. Confirm which specification applies to your selected mesh; do not assume a one-to-one correspondence.
| Reference row | Warp wire diameter (mm) | Weft wire diameter (mm) | Warp density (strands/cm) | Weft density (strands/cm) | Aperture (µm) | Open area | Thickness value (unit not stated) | Mass (g/m²) |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 0.5 | 10.5 | 10 | 400 × 650 | 28.50% | 0.9 | 590 |
| 2 | 0.5 | 0.5 | 11 | 10.6 | 350 × 450 | 21.00% | 0.89 | 680 |
| 3 | 0.5 | 0.5 | 6.6 | 6.2 | 1000 × 1100 | 46.23% | 0.98 | 390 |
| 4 | 0.7 | 0.7 | 6.7 | 6.7 | 750 × 750 | 28.00% | 1.24 | 860 |
| 5 | 0.7 | 0.7 | 7.6 | 6.2 | 600 × 800 | 26.50% | 1.59 | 810 |
| 6 | 0.8 | 0.8 | 6 | 5.5 | 800 × 800 | 29% | 1.99 | 930 |
| 7 | 0.8 | 0.8 | 5.7 | 5 | 800 × 1200 | 33.60% | 1.59 | 860 |
Specify the complete belt
Provide belt width, finished length or circumference, mesh opening, required edge construction and joint style. Include the machine model and process conditions. The photographs show several woven mesh and edge constructions; a color or photograph alone is not a material grade or a guaranteed specification.
For food-processing service, identify the food, contact conditions and documentation required. Material, cleaning compatibility and temperature suitability need confirmation for the actual belt selected.
Frequently asked questions
Do the seven catalog rows correspond to the five selectable meshes?
Do not assume a one-to-one correspondence. Specify the required mesh, wire diameters, aperture, thickness and finished dimensions for your order.
Can I select by color?

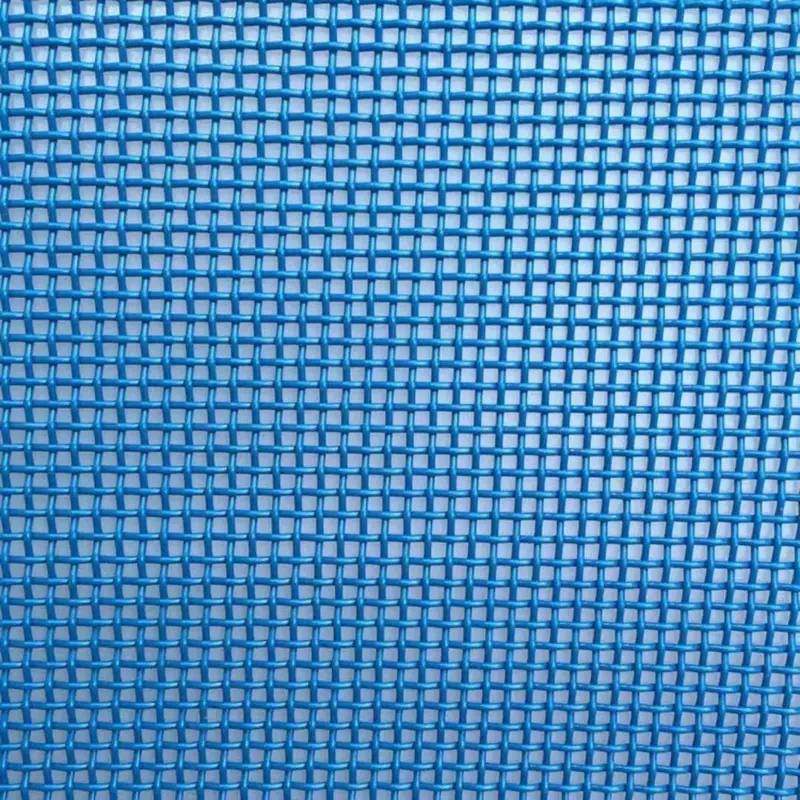

Use the confirmed construction and dimensions, not color alone. The gallery contains white and blue examples with different edge details.
Browse IKSONIC conveyor belts and send your specifications for factory-equipment replacement and wholesale supply inquiries.
Worldwide Delivery
We manufacture in China and ship worldwide. For orders suitable for international express, delivery typically takes 3–7 days after dispatch, excluding production and order preparation. Transit times vary by destination and customs clearance. Confirm the shipping method and estimated transit time for your order.
