45-Degree Clamp-Style Pipe Connectors

Description

45-Degree Clamp-Style Pipe Connectors

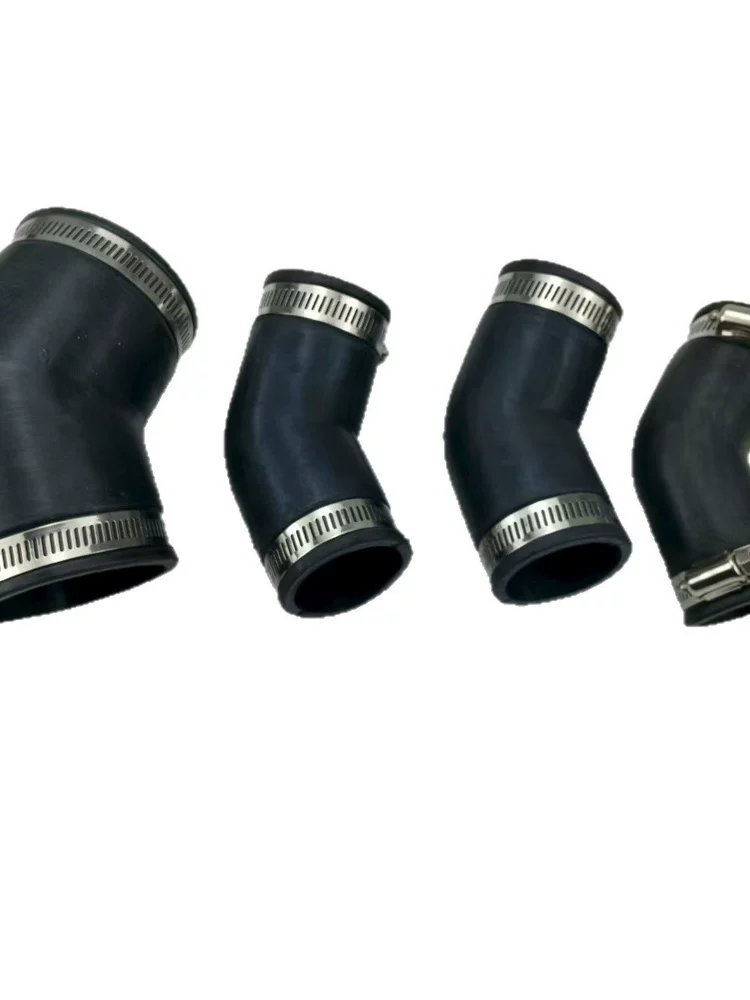

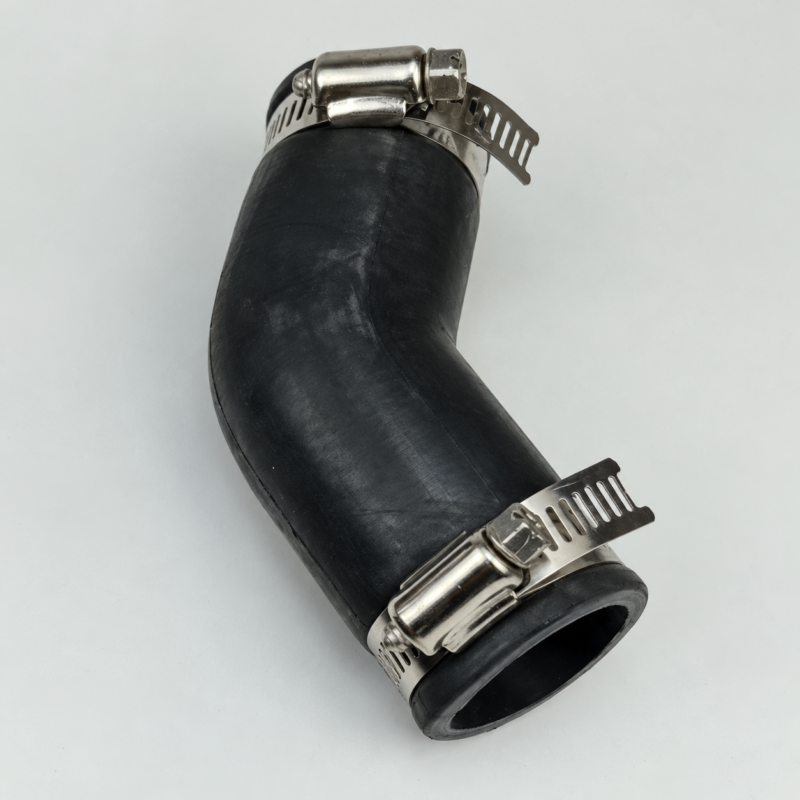

These black angled pipe connectors provide a 45-degree configuration for pipe layouts that change direction. The product image shows angled connectors with metal hose clamps. Check the connector orientation and the available installation space as well as the connection size when preparing a replacement or new assembly.

Choose the connection size

The selection includes DN25, DN32, DN40, DN50, DN63, DN60, DN76, DN90, DN100, DN125, DN110, and DN160 labels. Reducer labels DN20–50 and DN25–65 are also present. Confirm the actual pipe-interface dimensions and the reducer geometry instead of assuming that every DN label defines the complete connector.

Installation details to confirm

Measure both pipe interfaces and check the available axial space. Confirm the connector material, the required clamp arrangement, and whether clamps are included with the selected option. Share the conveyed medium, operating temperature, and pressure requirements so the offered configuration can be checked against your application. A dimensional match alone does not establish suitability for every fluid or operating condition.

Frequently asked questions

Can I order by nominal pipe size alone? Include the measured interface dimensions as well. Nominal size does not replace a check of the connector and pipe geometry.

Does the photograph show the exact order quantity? Confirm the quantity and included hardware for your selected option before ordering.

Request the right connector

Contact IKSONIC with the required size combination, quantity, and a photo or sketch of the existing joint. For a reducer, identify both ends clearly and include the available connection height. IKSONIC can use these details to clarify the configuration you need.
