Clamp-Style Pipe Connectors – Extended Size Range

Description

Clamp-Style Pipe Connectors – Extended Size Range

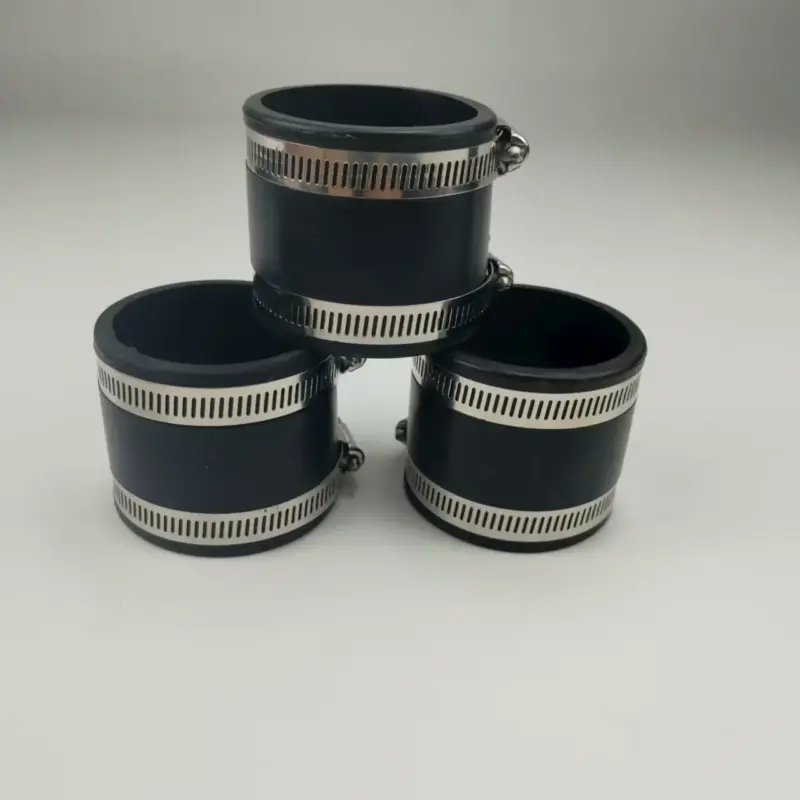

This clamp-style connector range includes straight sizes and reducer configurations. The photograph shows three black straight connectors with metal hose clamps. Compare the complete size combination when choosing a replacement: an identical diameter can appear with a different connector height in another product range.

Choose the connection size

Selections include OD40/ID32/H90, OD60/ID50/H90, OD120/ID110/H100, and OD195/ID175/H150. A reducer option is recorded as OD100/ID90 to OD75/ID65, H100. The OD120/ID110 option here has a height value of 100. Confirm the units and both interfaces for the selected configuration.

Installation details to confirm

Measure both pipe interfaces and check the available axial space. Confirm the connector material, the required clamp arrangement, and whether clamps are included with the selected option. Share the conveyed medium, operating temperature, and pressure requirements so the offered configuration can be checked against your application. A dimensional match alone does not establish suitability for every fluid or operating condition.

Frequently asked questions

Can I order by nominal pipe size alone? Include the measured interface dimensions as well. Nominal size does not replace a check of the connector and pipe geometry.

Does the photograph show the exact order quantity? Confirm the quantity and included hardware for your selected option before ordering.

Request the right connector

Contact IKSONIC with the required size combination, quantity, and a photo or sketch of the existing joint. For a reducer, identify both ends clearly and include the available connection height. IKSONIC can use these details to clarify the configuration you need.
