PTFE Flanged Bushings, Sleeves and Insulating Washers

Description

PTFE Flanged Bushings and Sleeves

IKSONIC supplies PTFE flanged bushings, straight sleeves, guiding bushes and insulating washers for industrial component enquiries. The source range includes several stepped and flanged profiles as well as plain sleeves. Identify the exact part configuration before selecting a replacement.

Choose the Correct Profile

Check the bore, outside diameter, body height and any flange or shoulder dimensions together. A shared bore size does not make two bushings interchangeable. Where a source designation leaves the geometry unclear, confirm it against the required component rather than treating the label as a complete drawing.

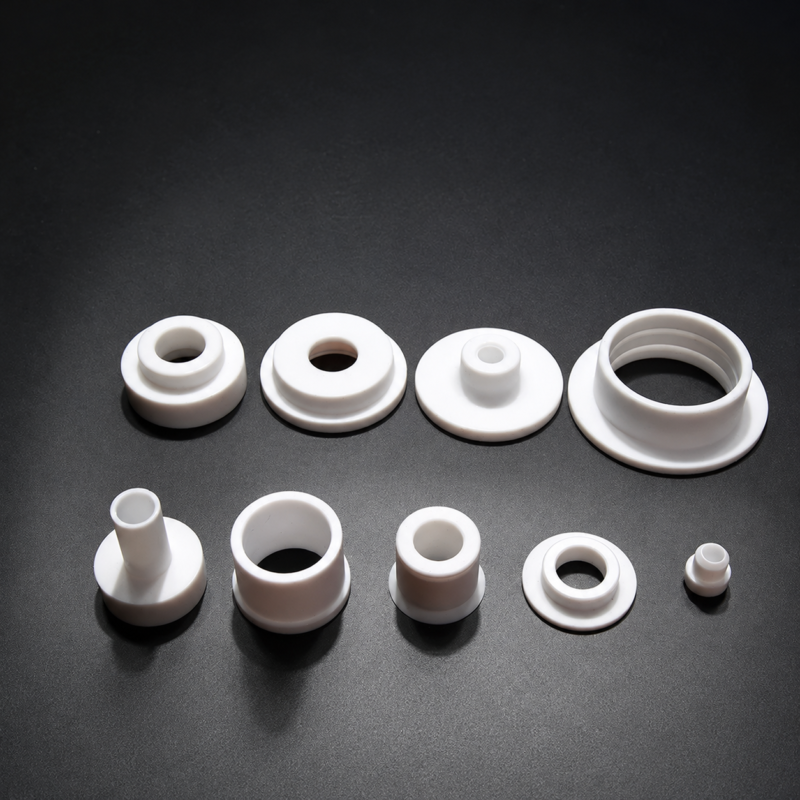

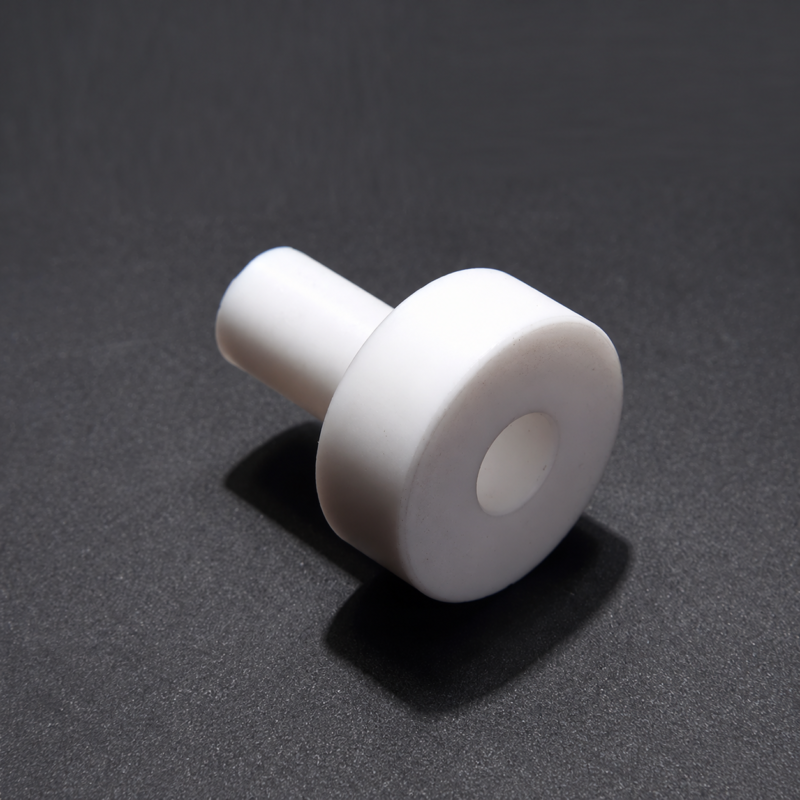

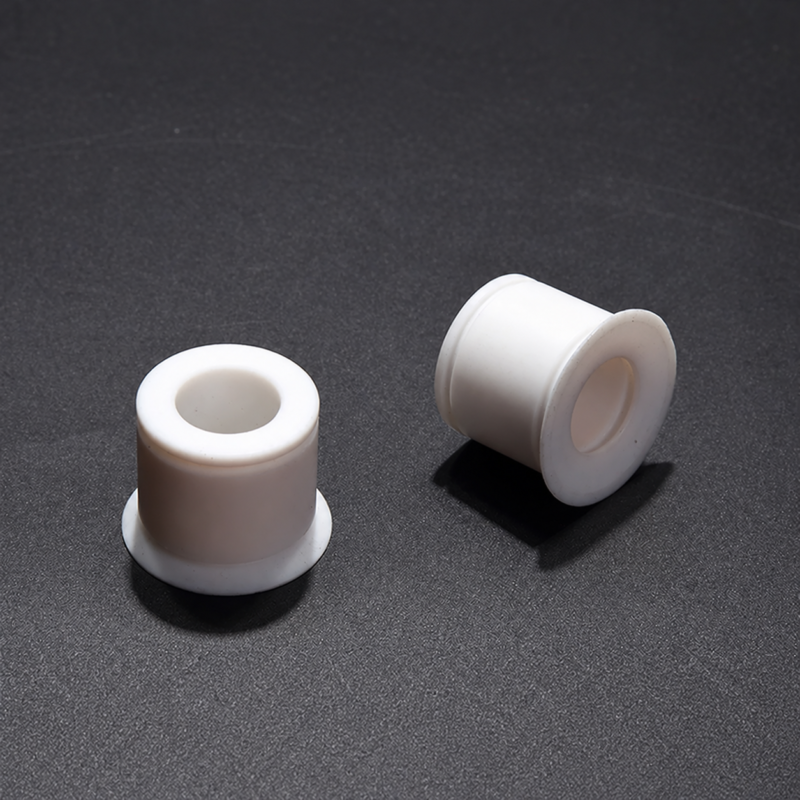

PTFE is the material stated for this range. The photographs show representative profiles, not a promise that every listed option has the same shape, colour or dimensions. Black PTFE is specified for selected entries; no filler composition is assumed.

Specifications / Models

Material: PTFE (polytetrafluoroethylene). The source lists flanged bushings, sleeves and washer-style components, including two options explicitly identified as black PTFE. Filler composition is not specified.

Units: Dimensions are in millimetres (mm), as indicated on the source dimension sheet. ID means inside diameter; OD means outside diameter. In the option list, height is retained without assuming body height or total height unless the source identifies it. In the drawing tables, body height is the length below the flange, and total height includes the flange. A dash means that the source does not provide that dimension.

Model notation: M and T strings are retained as source designations, not treated as thread specifications or independently decoded measurements. Each option is listed separately; dimensions from one example must not be applied to another model.

Selector labels: Color names such as Silver, Burgundy and Army green are source option labels, not verified physical product colors. Confirm the actual supplied color. Only the two options expressly described as black PTFE are identified as such.

Source Model Options

No.	Source option / model, in English	Dimensions stated in the option (mm)	Source notes / confirmation needed
1	Custom machining	Not supplied.	Custom machining is listed as an option; confirm the required geometry and dimensions.
2	M2.5-8 / OD 5	OD 5.	M2.5-8 is the source model designation; its component values are not independently defined.
3	T6 / ID 3.2 / OD 4 / height 4 / PTFE	ID 3.2; OD 4; height 4.	Source selector label: Silver. T6 is retained as source shorthand. See independent drawing example F1.
4	3.5-4.8 / OD 4.5	OD 4.5.	3.5-4.8 is the source designation; the meanings of 3.5 and 4.8 require confirmation.
5	T9 / ID 4.2 / OD 7.05 / height 5 / PTFE	ID 4.2; OD 7.05; height 5.	Source selector label: Milky white. T9 is retained as source shorthand. See independent drawing example F2.
6	M3-6 / OD 3.5	OD 3.5.	M3-6 is retained without inferring bore diameter or height.
7	M4.2-3 / OD 9	OD 9.	M4.2-3 is retained without inferring bore diameter or height; do not substitute dimensions from the T9 option.
8	M4.7-9.5 / OD 6.6 / PTFE	OD 6.6.	M4.7-9.5 is retained without expansion. This is not the M4.7-7.3 drawing example.
9	T8M4.7 / OD 6 / height 7.3 / PTFE	OD 6; height 7.3.	Source selector label: White. T8M4.7 is retained as source shorthand. The separately identified F4 diagram gives its own dimensions.
10	ID 5 / OD 8 / height 1 / T12 / step 1 / PTFE	ID 5; OD 8; height 1; step dimension 1.	Source selector label: Burgundy. T12 and the meaning of the step dimension require confirmation; height is not identified as body or total height.
11	M5.2-3.5 / PTFE	Not separately defined.	Retain M5.2-3.5 as the source designation; confirm its dimension mapping.
12	T12 / ID 6 / OD 8 / height 9 / PTFE	ID 6; OD 8; height 9.	Source selector label: Off-white. T12 is retained as source shorthand. F3 separately states total height 10 and flange thickness 1; do not treat the option height 9 as total height.
13	M6.5-1.5 / PTFE	Not separately defined.	Retain M6.5-1.5 as the source designation; confirm its dimension mapping.
14	T15 / ID 6 / height 5 / PTFE	ID 6; height 5.	Source selector label: Khaki. T15 is retained as source shorthand. See independent drawing example F5.
15	M6-6 / OD 8.1 / PTFE	OD 8.1.	M6-6 is retained without inferring bore diameter or height.
16	T13 / ID 6 / OD 8.1 / total height 24.5	ID 6; OD 8.1; total height 24.5.	The source explicitly identifies 24.5 as total height. T13 is retained as source shorthand.
17	Black PTFE / M7.9-8	Not separately defined.	The source explicitly specifies black PTFE; no filler composition is stated. Confirm the M7.9-8 dimension mapping.
18	M8.1-4 / OD 9.2 / PTFE	OD 9.2.	M8.1-4 is retained without inferring bore diameter or height.
19	T15 / ID 8.2 / height 7.5 / PTFE	ID 8.2; height 7.5.	Source selector label: Dark gray. T15 is retained as source shorthand. See independent drawing example F6.
20	m9-9 / OD 13 / PTFE	OD 13.	The source uses lowercase m9-9. Its dimension mapping is not assumed from the separate F7 example.
21	T18 / ID 10 / OD 12 / height 4 / PTFE	ID 10; OD 12; height 4.	Source selector label: Gray. T18 is retained as source shorthand. F8 is independently labeled M10-4 in the source drawing.
22	M10.1-4 / OD 11.2 / T20	OD 11.2.	M10.1-4 and T20 are retained as source designations. Do not substitute the dimensions of F8 or F9.
23	M10-13 / OD 14 / Black PTFE	OD 14.	The source explicitly specifies black PTFE; no filler composition is stated. Confirm the M10-13 dimension mapping.
24	T20 / ID 12.1 / height 6	ID 12.1; height 6.	Source selector label: White. T20 is retained as source shorthand. See independent drawing example F9.
25	M12-14 / OD 15 / PTFE	OD 15.	M12-14 is retained without inferring bore diameter or height.
26	M16-16 / PTFE	See drawing example F10 for the diagram explicitly labeled M16-16.	Source selector label: Army green. F10 is the exact model designation printed on the source drawing.
27	M16.5-20 / PTFE	Not separately defined.	Retain M16.5-20 as the source designation; confirm its dimension mapping.
28	M18-4 / PTFE	Not separately defined.	Retain M18-4 as the source designation; confirm its dimension mapping.
29	T38 / ID 22 / OD 25 / height 12 / PTFE	ID 22; OD 25; height 12.	Source selector label: Orange-red. T38 is retained as source shorthand. F11 is independently labeled M22-12 in the source drawing.
30	M20.5-26 / PTFE	Not separately defined.	Retain M20.5-26 as the source designation; confirm its dimension mapping.
31	M22.7-20 / OD 26 / PTFE	OD 26.	M22.7-20 is retained without inferring bore diameter or height. Do not substitute dimensions from the ID 22 example.
32	Straight sleeves below	Not applicable.	This is a source selector section marker, not a dimensioned model. The individual entries below retain any stated shoulder or washer features.
33	ID 3 / OD 5 / height 2.7	ID 3; OD 5; height 2.7.	Height is stated in the option.
34	ID 3 / OD 11 / height 18 / with shoulder	ID 3; OD 11; height 18.	The source explicitly says with shoulder. Shoulder geometry and whether 18 is total height are not specified.
35	OD 10 / ID 5 / thickness 2	OD 10; ID 5; thickness 2.	Thickness, rather than height, is the source term.
36	OD 6 / ID 4 / height 4.5 / PTFE	OD 6; ID 4; height 4.5.	Source selector label: Magenta. See independent sleeve example S1.
37	ID 6 / ID 4 / height 11 / PTFE (source conflict)	Conflicting ID values 6 and 4; height 11. OD is not defined in this option.	Source selector label: Pink. Conflicting source notation: ID 6 / ID 4 / height 11 / PTFE. It states ID twice. Confirm before ordering; do not silently replace the first ID with OD. S2 is a separate drawing example, not a corrected option.
38	ID 6 / OD 8 / height 12 / PTFE	ID 6; OD 8; height 12.	Source selector label: Red. See independent sleeve example S3.
39	OD 6.2 / ID 2.8 / height 18 / PTFE	OD 6.2; ID 2.8; height 18.	Height is stated in the option.
40	ID 6.3 / OD 8.2 / height 13 / PTFE	ID 6.3; OD 8.2; height 13.	Height is stated in the option.
41	ID 8.15 / OD 9.8 / height 17 / PTFE	ID 8.15; OD 9.8; height 17.	Height is stated in the option.
42	OD 26 / ID 9 / thickness 8	OD 26; ID 9; thickness 8.	Thickness, rather than height, is the source term.

Independent Source Drawing Examples: Flanged Bushings

The examples below reproduce dimensions from the source sheet, separately from the option list. F1–F11 are reference labels used only to identify positions in that sheet, not additional supplier model numbers. Only model names actually printed on the drawings are shown as model names. Similar-looking options are not automatically equivalent, and no missing total heights have been calculated.

Drawing reference / printed model	ID (mm)	Body OD (mm)	Flange OD (mm)	Body height (mm)	Flange thickness (mm)	Total height (mm)
F1: first row, left; no model name printed	3.2	4	6	4	1	—
F2: first row, center; no model name printed	4.2	7.05	9	5	1.5	—
F3: first row, right; no model name printed	6	8	12	—	1	10
F4: second row, left; printed model M4.7-7.3	4.7	6	8	7.3	1.2	—
F5: second row, center; no model name printed	6	12	15	5	2	7
F6: second row, right; no model name printed	8.2	10.2	15	7.5	2	—
F7: third row, left; no model name printed	9	13	23	9	3	—
F8: third row, center; printed model M10-4	10	12	18	4	1	—
F9: third row, right; no model name printed	12.1	13.9	20	6	2	—
F10: fourth row, left; printed model M16-16	16	17.7	24	16	1	—
F11: fourth row, center; printed model M22-12	22	25	38	12	2	—

Independent Source Drawing Examples: Sleeves and Other Shapes

S1–S6 identify the positions in the source sheet’s sleeves/bushing section and are not supplier model numbers. The source image cuts off some information at its lower edge; only legible values are included.

Drawing reference	ID (mm)	OD (mm)	Height (mm)	Notes
S1: first row, left	4	6	4.5	Straight sleeve; all three values are explicitly labeled.
S2: first row, center	4	6	11	Straight sleeve; all three values are explicitly labeled. This does not silently correct the conflicting ID/ID text of source option 37.
S3: first row, right	6	8	12	Straight sleeve; all three values are explicitly labeled.
S4: second row, left	6	18	—	Only the clearly visible ID and OD are transcribed; height is not legible in the supplied image.
S5: second row, center	—	—	—	Stepped bushing photograph marked as pure PTFE. Visible annotations are 6.5, 10, 15 and 18; complete feature assignments and drawing details require confirmation. These values are not assigned to an option or to a dimension column.
S6: second row, right	8.2	15	—	Washer-style example. ID and OD are explicitly labeled; the height line is cut off and is not transcribed.

Before specifying a fit: Confirm the selected source option, complete geometry, tolerances, actual color and any missing dimensions. No tolerance, verified operating-temperature rating or application-specific certification is established by the information above.

Custom PTFE Parts from a China Manufacturer and Supplier

IKSONIC is a China-based manufacturer and industrial-parts supplier supporting custom and wholesale enquiries. For factory procurement, provide the model or drawing reference, required quantities and installation details. State the working medium and operating conditions so the proposed material and geometry can be reviewed for the actual application.

Use the IKSONIC contact page to request a specification review and quotation. Confirm the final dimensions, tolerances, material grade and supply scope before ordering.

PTFE Bushing FAQ

Can you quote a custom sleeve or washer?

The source includes custom processing. Send the complete dimensions, tolerances and quantity for review; do not rely on a photograph alone to define a custom part.

Are flange thickness and total height the same?

No. Use the dimension labels shown for each individual model. If a source entry does not distinguish body height from overall height, confirm the required geometry before ordering.

Do the listed dimensions establish operating limits?

No. Dimensions identify geometry only. Temperature, pressure, chemical compatibility and any application-specific requirements need separate review for the proposed part.
