PTFE Hex Head Bolts and Screws M3-M30

Description

PTFE Hex Head Bolts and Screws

IKSONIC is a China manufacturer and supplier of PTFE hex head bolts and screws for wholesale purchasing and custom-size inquiries. This range uses PTFE (polytetrafluoroethylene) and includes hex head screw models from M3 to M30.

Select the exact model designation from the table below. The listed range contains 297 individual models; the individual models differ by size group. Custom dimensions can also be discussed with our team.

Product Overview

• Material: PTFE (polytetrafluoroethylene).
• Product type: hex head bolts and screws.
• Model groups: M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27 and M30.

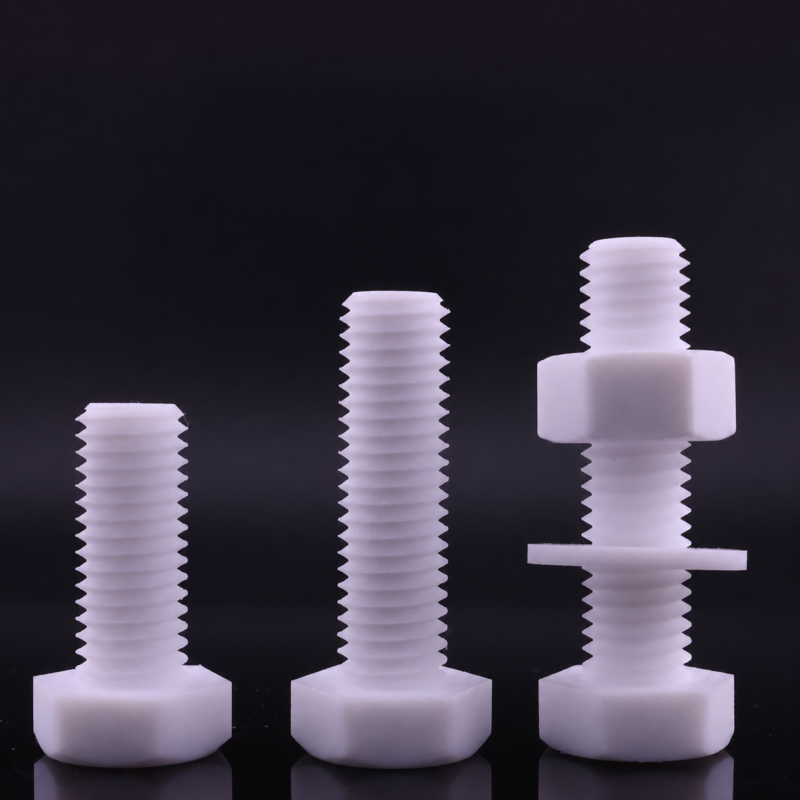

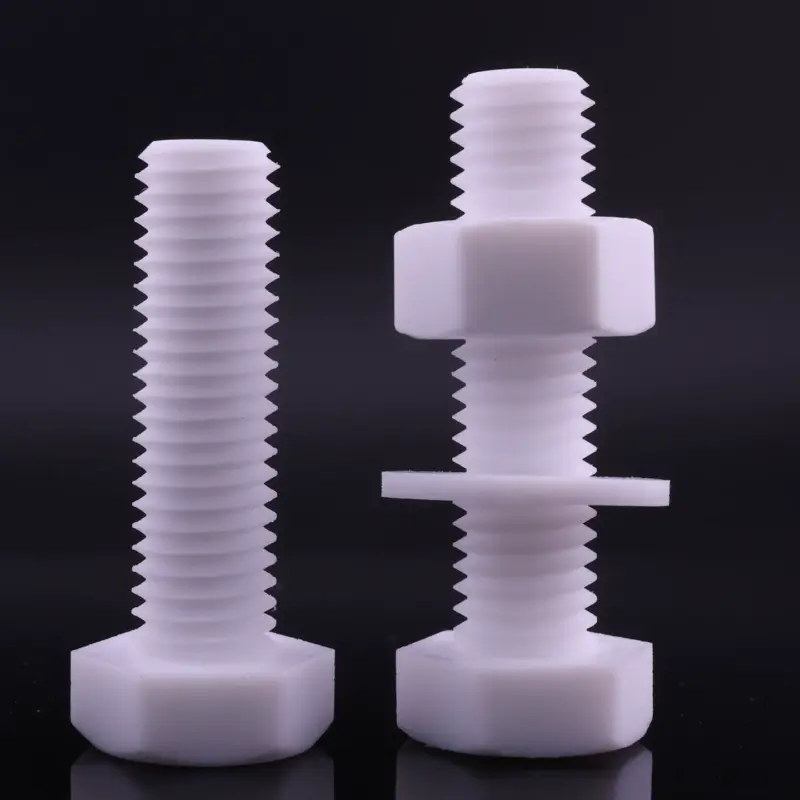

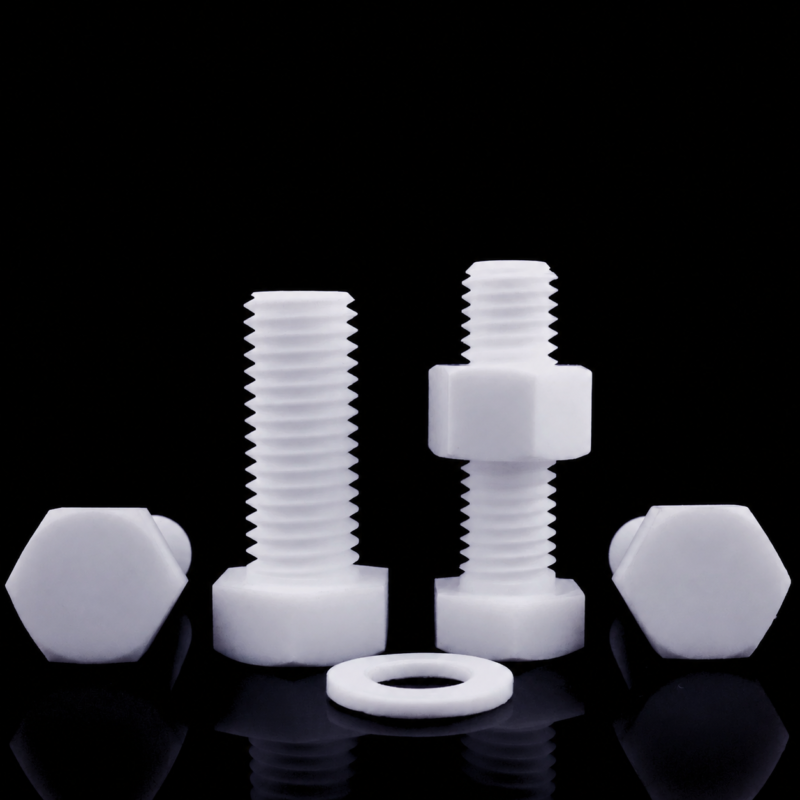

• Nuts and washers must be ordered separately; they are not included with the screws.

Reference Dimensions

The reference dimension chart lists the values below without stating dimensional units. Confirm the units and tolerances with IKSONIC before ordering. The chart leaves length (L) unspecified; select L using the length value in the chosen model designation from the complete model list.

Thread designation (d)	Pitch (P)	Head thickness (K)	Width across flats (S)	Length (L)
M3	0.5	2.2	5.5	By selected model
M4	0.7	3	7	By selected model
M5	0.8	3.7	8	By selected model
M6	1	4.2	10	By selected model
M8	1.25	5.5	13	By selected model
M10	1.5	6.6	16	By selected model
M12	1.75	7.7	18	By selected model
M14	2	9	21	By selected model
M16	2	10.2	24	By selected model
M18	2.5	11.8	27	By selected model
M20	2.5	12.8	30	By selected model
M22	2.5	14.3	34	By selected model
M24	3	15.3	36	By selected model
M27	3	17.3	41	By selected model
M30	3.5	19	46	By selected model

Complete Model List

Each of the 297 models has its own row below. The length value is reproduced from the model designation without adding an unsupported unit. Refer to the chart above for pitch and head dimensions. Confirm dimensional units and tolerances before ordering.

PTFE hex head screw model	Thread group	Listed length value
M3 × 6	M3	6
M3 × 8	M3	8
M3 × 10	M3	10
M3 × 12	M3	12
M3 × 15	M3	15
M3 × 16	M3	16
M3 × 20	M3	20
M3 × 25	M3	25
M3 × 30	M3	30
M3 × 35	M3	35
M3 × 40	M3	40
M4 × 6	M4	6
M4 × 8	M4	8
M4 × 10	M4	10
M4 × 12	M4	12
M4 × 15	M4	15
M4 × 16	M4	16
M4 × 20	M4	20
M4 × 25	M4	25
M4 × 30	M4	30
M4 × 35	M4	35
M4 × 40	M4	40
M4 × 45	M4	45
M4 × 50	M4	50
M5 × 6	M5	6
M5 × 8	M5	8
M5 × 10	M5	10
M5 × 12	M5	12
M5 × 15	M5	15
M5 × 16	M5	16
M5 × 20	M5	20
M5 × 25	M5	25
M5 × 30	M5	30
M5 × 35	M5	35
M5 × 40	M5	40
M5 × 45	M5	45
M5 × 50	M5	50
M5 × 55	M5	55
M5 × 60	M5	60
M5 × 65	M5	65
M5 × 70	M5	70
M5 × 75	M5	75
M5 × 80	M5	80
M6 × 6	M6	6
M6 × 8	M6	8
M6 × 10	M6	10
M6 × 12	M6	12
M6 × 15	M6	15
M6 × 16	M6	16
M6 × 20	M6	20
M6 × 25	M6	25
M6 × 30	M6	30
M6 × 35	M6	35
M6 × 40	M6	40
M6 × 45	M6	45
M6 × 50	M6	50
M6 × 55	M6	55
M6 × 60	M6	60
M6 × 65	M6	65
M6 × 70	M6	70
M6 × 75	M6	75
M6 × 80	M6	80
M6 × 90	M6	90
M6 × 100	M6	100
M6 × 110	M6	110
M6 × 120	M6	120
M8 × 8	M8	8
M8 × 10	M8	10
M8 × 12	M8	12
M8 × 15	M8	15
M8 × 16	M8	16
M8 × 20	M8	20
M8 × 25	M8	25
M8 × 30	M8	30
M8 × 35	M8	35
M8 × 40	M8	40
M8 × 45	M8	45
M8 × 50	M8	50
M8 × 55	M8	55
M8 × 60	M8	60
M8 × 65	M8	65
M8 × 70	M8	70
M8 × 75	M8	75
M8 × 80	M8	80
M8 × 90	M8	90
M8 × 100	M8	100
M8 × 110	M8	110
M8 × 120	M8	120
M10 × 10	M10	10
M10 × 12	M10	12
M10 × 15	M10	15
M10 × 16	M10	16
M10 × 20	M10	20
M10 × 25	M10	25
M10 × 30	M10	30
M10 × 35	M10	35
M10 × 40	M10	40
M10 × 45	M10	45
M10 × 50	M10	50
M10 × 55	M10	55
M10 × 60	M10	60
M10 × 65	M10	65
M10 × 70	M10	70
M10 × 75	M10	75
M10 × 80	M10	80
M10 × 85	M10	85
M10 × 90	M10	90
M10 × 95	M10	95
M10 × 100	M10	100
M10 × 110	M10	110
M10 × 120	M10	120
M10 × 130	M10	130
M10 × 140	M10	140
M10 × 150	M10	150
M12 × 10	M12	10
M12 × 12	M12	12
M12 × 15	M12	15
M12 × 20	M12	20
M12 × 25	M12	25
M12 × 30	M12	30
M12 × 35	M12	35
M12 × 40	M12	40
M12 × 45	M12	45
M12 × 50	M12	50
M12 × 55	M12	55
M12 × 60	M12	60
M12 × 65	M12	65
M12 × 70	M12	70
M12 × 75	M12	75
M12 × 80	M12	80
M12 × 85	M12	85
M12 × 90	M12	90
M12 × 95	M12	95
M12 × 100	M12	100
M12 × 105	M12	105
M12 × 110	M12	110
M12 × 120	M12	120
M12 × 130	M12	130
M12 × 140	M12	140
M12 × 150	M12	150
M14 × 15	M14	15
M14 × 20	M14	20
M14 × 25	M14	25
M14 × 30	M14	30
M14 × 35	M14	35
M14 × 40	M14	40
M14 × 45	M14	45
M14 × 50	M14	50
M14 × 55	M14	55
M14 × 60	M14	60
M14 × 65	M14	65
M14 × 70	M14	70
M14 × 75	M14	75
M14 × 80	M14	80
M14 × 85	M14	85
M14 × 90	M14	90
M14 × 95	M14	95
M14 × 100	M14	100
M14 × 110	M14	110
M14 × 120	M14	120
M14 × 130	M14	130
M14 × 140	M14	140
M14 × 150	M14	150
M14 × 160	M14	160
M14 × 170	M14	170
M14 × 180	M14	180
M16 × 15	M16	15
M16 × 20	M16	20
M16 × 25	M16	25
M16 × 30	M16	30
M16 × 35	M16	35
M16 × 40	M16	40
M16 × 45	M16	45
M16 × 50	M16	50
M16 × 55	M16	55
M16 × 60	M16	60
M16 × 65	M16	65
M16 × 70	M16	70
M16 × 75	M16	75
M16 × 80	M16	80
M16 × 85	M16	85
M16 × 90	M16	90
M16 × 95	M16	95
M16 × 100	M16	100
M16 × 110	M16	110
M16 × 120	M16	120
M16 × 130	M16	130
M16 × 140	M16	140
M16 × 150	M16	150
M16 × 160	M16	160
M16 × 170	M16	170
M16 × 180	M16	180
M16 × 190	M16	190
M16 × 200	M16	200
M18 × 20	M18	20
M18 × 25	M18	25
M18 × 30	M18	30
M18 × 35	M18	35
M18 × 40	M18	40
M18 × 45	M18	45
M18 × 50	M18	50
M18 × 55	M18	55
M18 × 60	M18	60
M18 × 65	M18	65
M18 × 70	M18	70
M18 × 75	M18	75
M18 × 80	M18	80
M18 × 85	M18	85
M18 × 90	M18	90
M18 × 95	M18	95
M18 × 100	M18	100
M18 × 110	M18	110
M18 × 120	M18	120
M18 × 130	M18	130
M18 × 140	M18	140
M18 × 150	M18	150
M20 × 30	M20	30
M20 × 40	M20	40
M20 × 50	M20	50
M20 × 55	M20	55
M20 × 60	M20	60
M20 × 65	M20	65
M20 × 70	M20	70
M20 × 75	M20	75
M20 × 80	M20	80
M20 × 85	M20	85
M20 × 90	M20	90
M20 × 95	M20	95
M20 × 100	M20	100
M20 × 110	M20	110
M20 × 120	M20	120
M20 × 130	M20	130
M20 × 140	M20	140
M20 × 150	M20	150
M20 × 160	M20	160
M20 × 170	M20	170
M20 × 180	M20	180
M20 × 190	M20	190
M20 × 200	M20	200
M22 × 50	M22	50
M22 × 60	M22	60
M22 × 70	M22	70
M22 × 80	M22	80
M22 × 90	M22	90
M22 × 100	M22	100
M22 × 110	M22	110
M22 × 120	M22	120
M22 × 130	M22	130
M22 × 140	M22	140
M22 × 150	M22	150
M22 × 160	M22	160
M24 × 50	M24	50
M24 × 60	M24	60
M24 × 70	M24	70
M24 × 80	M24	80
M24 × 90	M24	90
M24 × 100	M24	100
M24 × 110	M24	110
M24 × 120	M24	120
M24 × 130	M24	130
M24 × 140	M24	140
M24 × 150	M24	150
M24 × 160	M24	160
M24 × 180	M24	180
M24 × 200	M24	200
M27 × 50	M27	50
M27 × 60	M27	60
M27 × 70	M27	70
M27 × 80	M27	80
M27 × 90	M27	90
M27 × 100	M27	100
M27 × 110	M27	110
M27 × 120	M27	120
M27 × 130	M27	130
M27 × 140	M27	140
M27 × 150	M27	150
M27 × 160	M27	160
M27 × 170	M27	170
M27 × 180	M27	180
M27 × 190	M27	190
M27 × 200	M27	200
M30 × 50	M30	50
M30 × 60	M30	60
M30 × 70	M30	70
M30 × 80	M30	80
M30 × 90	M30	90
M30 × 100	M30	100
M30 × 110	M30	110
M30 × 120	M30	120
M30 × 130	M30	130
M30 × 140	M30	140
M30 × 150	M30	150
M30 × 160	M30	160
M30 × 170	M30	170
M30 × 180	M30	180
M30 × 190	M30	190
M30 × 200	M30	200

Custom Sizes and Wholesale Inquiries

For a quotation from our China factory, send the exact model, quantity and any drawing or dimensional requirements. For a custom size, include the required thread specification, dimensions and intended use so our team can review the request.

Matching nuts and washers require a separate inquiry and order. Please specify them separately rather than assuming they are supplied as a set.

Frequently Asked Questions

Are nuts and washers included?

No. Matching nuts and washers require a separate inquiry and order.

How do I choose a model?

Select the exact thread group and listed length from the complete model list. Check the reference pitch and head dimensions, then confirm the dimensional units and tolerances with IKSONIC.

Can I request a custom size?

Yes. Send your dimensions, thread requirements, drawing and quantity for review. Custom production is subject to review and confirmation; submitting an inquiry does not guarantee availability or feasibility.

Contact IKSONIC to discuss PTFE hex head screws, custom dimensions and wholesale supply.
