PTFE Hex Nuts and Washers

Description

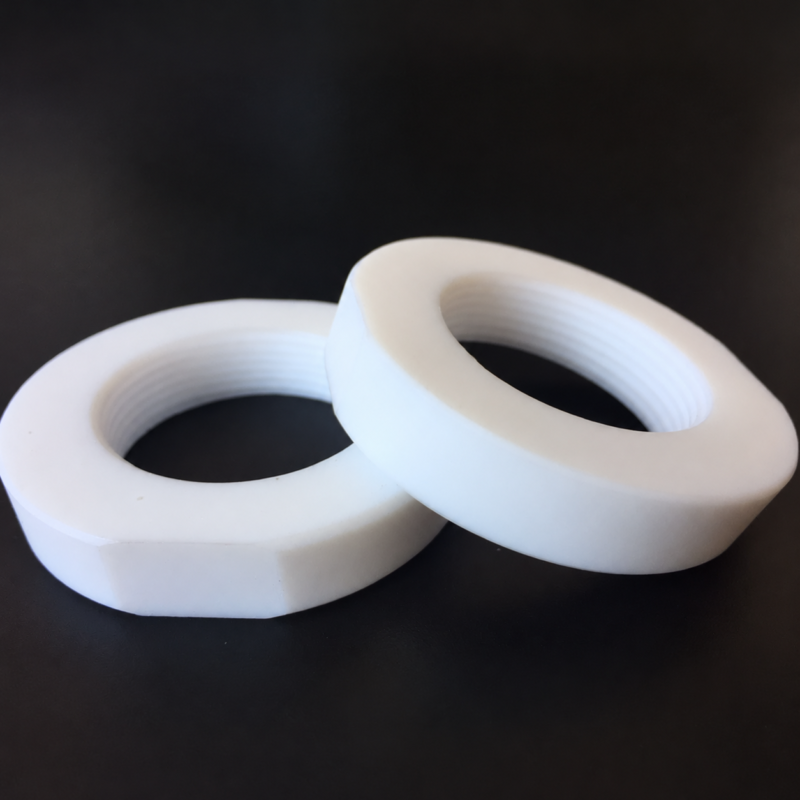

PTFE Hex Nuts and Washers

Choose PTFE hex nuts and separately specified washers for your component requirements. The listed range contains 17 hex nut models from M3 to M36 and 15 washer models from M3 to M30. Each model is listed individually below; intermediate sizes are not implied.

IKSONIC is a China manufacturer and wholesale supplier of PTFE components. Contact our factory with the models, quantities and dimensional requirements for your enquiry. Custom nut and washer requirements can be reviewed before a final specification and quotation are agreed.

Material and Product Selection

• Material: Polytetrafluoroethylene (PTFE).
• Defined models: 32 separate selections: 17 hex nuts and 15 washers.
• Nut configuration: External hexagonal shape; mating thread details must be confirmed.
• Washer selection: The M-designation identifies the nominal size, not a complete set of washer dimensions.
• Ordering scope: Select nuts and washers separately and specify the quantity of each.

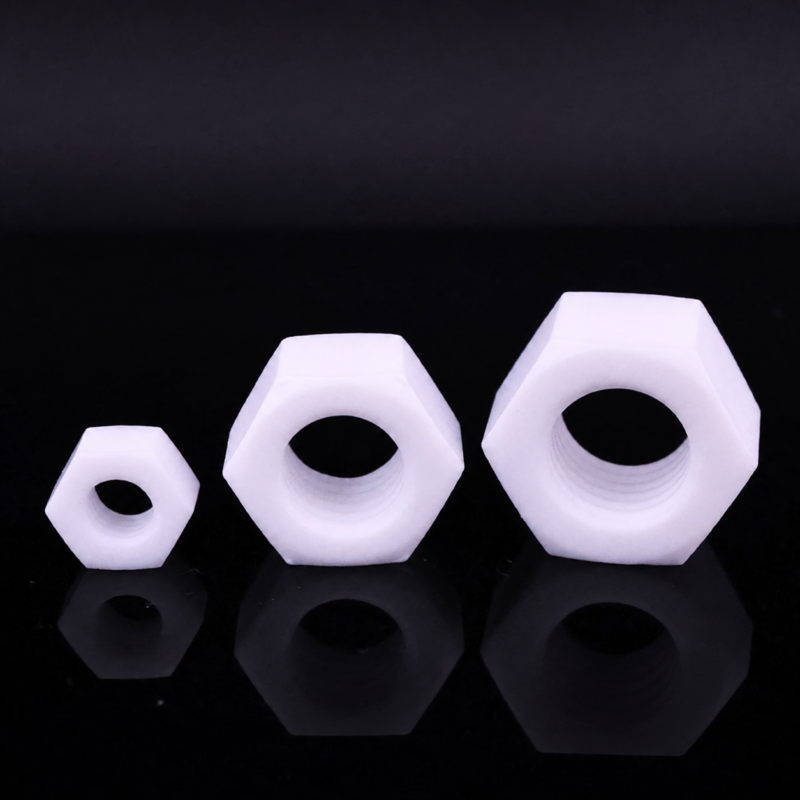

PTFE Hex Nut Models

The M-designations below identify the listed nut sizes. Thread pitch, thread standard, width across flats, height, tolerances and the dimensional units for the final specification must be confirmed. A size designation alone does not establish compatibility with a mating bolt or threaded rod.

Model	Thread designation	Material	Pitch and nut dimensions	Dimensional units
M3 hex nut	M3	PTFE	Confirm for selected model	To confirm
M4 hex nut	M4	PTFE	Confirm for selected model	To confirm
M5 hex nut	M5	PTFE	Confirm for selected model	To confirm
M6 hex nut	M6	PTFE	Confirm for selected model	To confirm
M8 hex nut	M8	PTFE	Confirm for selected model	To confirm
M10 hex nut	M10	PTFE	Confirm for selected model	To confirm
M12 hex nut	M12	PTFE	Confirm for selected model	To confirm
M14 hex nut	M14	PTFE	Confirm for selected model	To confirm
M16 hex nut	M16	PTFE	Confirm for selected model	To confirm
M18 hex nut	M18	PTFE	Confirm for selected model	To confirm
M20 hex nut	M20	PTFE	Confirm for selected model	To confirm
M22 hex nut	M22	PTFE	Confirm for selected model	To confirm
M24 hex nut	M24	PTFE	Confirm for selected model	To confirm
M27 hex nut	M27	PTFE	Confirm for selected model	To confirm
M30 hex nut	M30	PTFE	Confirm for selected model	To confirm
M33 hex nut	M33	PTFE	Confirm for selected model	To confirm
M36 hex nut	M36	PTFE	Confirm for selected model	To confirm

PTFE Washer Models

These washer options are separate from the nuts. Confirm inner diameter, outer diameter, thickness, tolerances and units for each selected washer. No measured washer dimensions are specified by the nominal M-size alone.

Model	Nominal size	Material	Inner diameter / outer diameter / thickness	Dimensional units
M3 washer	M3	PTFE	Confirm for selected model	To confirm
M4 washer	M4	PTFE	Confirm for selected model	To confirm
M5 washer	M5	PTFE	Confirm for selected model	To confirm
M6 washer	M6	PTFE	Confirm for selected model	To confirm
M8 washer	M8	PTFE	Confirm for selected model	To confirm
M10 washer	M10	PTFE	Confirm for selected model	To confirm
M12 washer	M12	PTFE	Confirm for selected model	To confirm
M14 washer	M14	PTFE	Confirm for selected model	To confirm
M16 washer	M16	PTFE	Confirm for selected model	To confirm
M18 washer	M18	PTFE	Confirm for selected model	To confirm
M20 washer	M20	PTFE	Confirm for selected model	To confirm
M22 washer	M22	PTFE	Confirm for selected model	To confirm
M24 washer	M24	PTFE	Confirm for selected model	To confirm
M27 washer	M27	PTFE	Confirm for selected model	To confirm
M30 washer	M30	PTFE	Confirm for selected model	To confirm

Cap Nut, G-Thread and Fine-Pitch Enquiries

The tables above cover hex nuts and washers only. Cap nuts are a separate nut configuration and should not be ordered by assuming that a hex nut model has a closed end. For cap nuts, G-thread nuts or fine-pitch nuts, provide the required configuration and full thread specification for review. No size schedule for those configurations is provided here.

How to Select and Request a Quotation

1. Choose the component type and exact model from the relevant table.
2. For hex nuts, confirm the mating thread size, pitch, thread standard, width across flats and height.
3. For washers, provide the required inner diameter, outer diameter and thickness.
4. Include dimensional units, tolerances, quantities and any application-specific material requirements.
5. For a cap nut, also specify the overall height and usable internal depth. For a custom thread, provide its full designation and pitch.

If your application has chemical-exposure, electrical-insulation, temperature or mechanical-load requirements, include the operating conditions for review. The model designations do not establish an application rating, tightening torque or certification.

Contact IKSONIC for a wholesale enquiry or a custom PTFE nut and washer specification review. Confirm the exact components and quantities included in the quotation before ordering.

Frequently Asked Questions

Which PTFE hex nut sizes are listed?

The hex nut models are M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33 and M36.

Which washer sizes are listed?

The washer models are M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27 and M30. Inner diameter, outer diameter and thickness must be confirmed separately.

Are washers included with each nut?

Nuts and washers are listed as separate selections. Specify the required quantity of each and confirm the scope of supply in the quotation.

Does an M-size specify the thread pitch?

The model list does not give a pitch for any nut. Confirm the complete thread specification and mating-part compatibility before ordering; do not assume a standard or fine pitch from the model name alone.

Are the listed hex nuts also cap nuts?

No cap-nut model is identified in these tables. Submit a separate cap-nut enquiry with the thread specification, external dimensions and required internal depth.

Can I enquire about custom sizes or thread pitches?

Yes. Send the component type, full dimensions with units, thread details, tolerances and quantities. Custom feasibility and the final specification require confirmation.
