Silicone Flight Controller Vibration Dampers, 10-Piece Pack
Silicone flight controller vibration dampers for FPV and model-aircraft board mounting. Supplied as 10 pieces of the selected model and color, with six M2 × 6.6 color options and four black M3 models. Check dimensions and fit before ordering. Electronics are not included.
- Description
- Contact Us
Description
Silicone Flight Controller Vibration Dampers

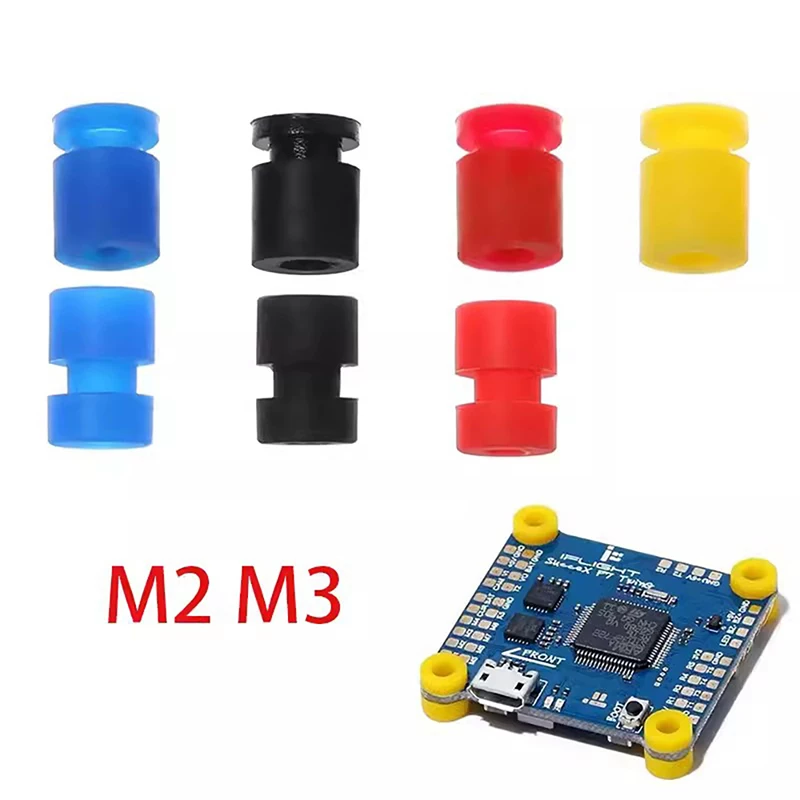

These silicone flight controller vibration dampers are designed for soft-mounting flight controller boards in FPV and model-aircraft assemblies. The compact, grooved bodies fit around the board mounting holes to provide a flexible interface. Choose the model and color to suit your board, mounting hardware and available clearance.
Each pack contains 10 silicone dampers in the selected model and color. Flight controller boards and other electronics shown in the photos are for installation illustration only and are not included.
Product Features
- Silicone material for a flexible flight-controller mounting interface.
- M2 × 6.6 options in red, purple, blue, black, yellow and transparent.
- Four black M3 model options: M3 × 8, M3 × 4.5, M3 × 6.6 and M3 × 7 × 2.5.
- Grooved profiles for board-mounting applications; select the dimensions for your assembly rather than relying on the model name alone.
- 10-piece pack for the selected option, not a mixed-model assortment.
Models and Reference Dimensions
All numeric dimensions below are in millimeters (mm). Bore means the through-hole diameter; outside diameter is the maximum body or flange diameter. Check these dimensions against the actual mounting arrangement before ordering.
| Model | Color | Bore (mm) | Outside diameter (mm) | Overall height (mm) |
|---|---|---|---|---|
| M2 × 6.6 | Red | 2 | 4.4 | 6.6 |
| M2 × 6.6 | Purple | 2 | 4.4 | 6.6 |
| M2 × 6.6 | Blue | 2 | 4.4 | 6.6 |
| M2 × 6.6 | Black | 2 | 4.4 | 6.6 |
| M2 × 6.6 | Yellow | 2 | 4.4 | 6.6 |
| M2 × 6.6 | Transparent | 2 | 4.4 | 6.6 |

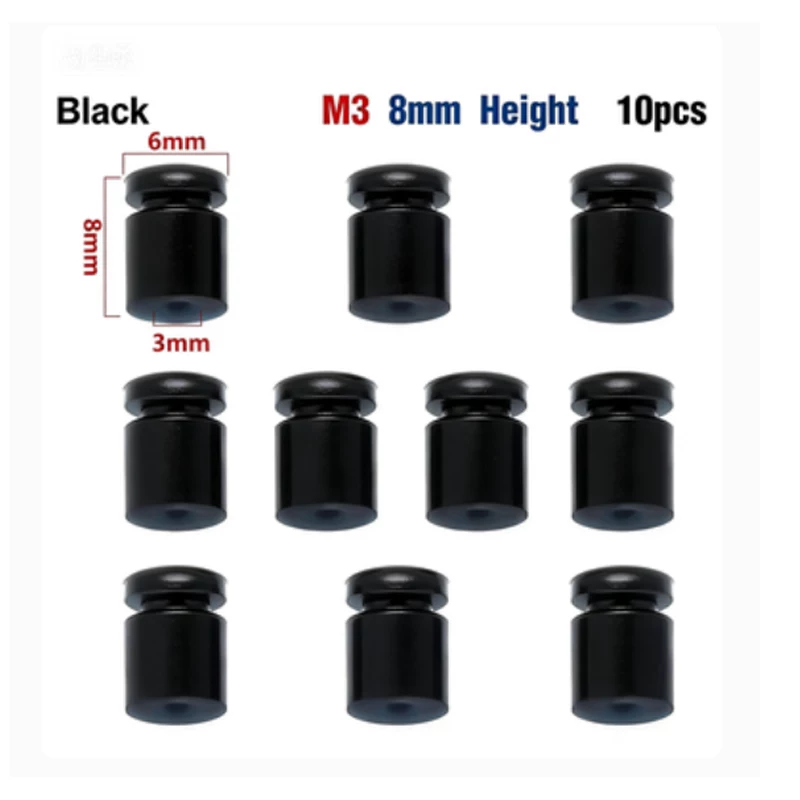

| M3 × 8 | Black | 3 | 6 | 8 |
| M3 × 4.5 | Black | 3 | 6 | 4.5 |
| M3 × 6.6 | Black | 3 | 6 | 6.6 |
| M3 × 7 × 2.5 | Black | Confirm by sample | Confirm by sample | Confirm by sample |
M3 × 7 × 2.5: This is a model identifier. Its individual dimensions have not been verified; confirm them from a sample before ordering. Do not read the three numbers as a confirmed bore, outside diameter and height.
Additional Drawing Details
- M2 × 6.6: the drawing shows a 3 mm neck diameter and a 1.5 mm axial groove opening. The sections above and below that opening are 2.0 mm and 3.1 mm high in the illustrated orientation.
- M3 × 4.5: the drawing shows a 4 mm neck diameter and a 1.5 mm axial groove opening. The sections above and below that opening are 1.4 mm and 1.6 mm high in the illustrated orientation.

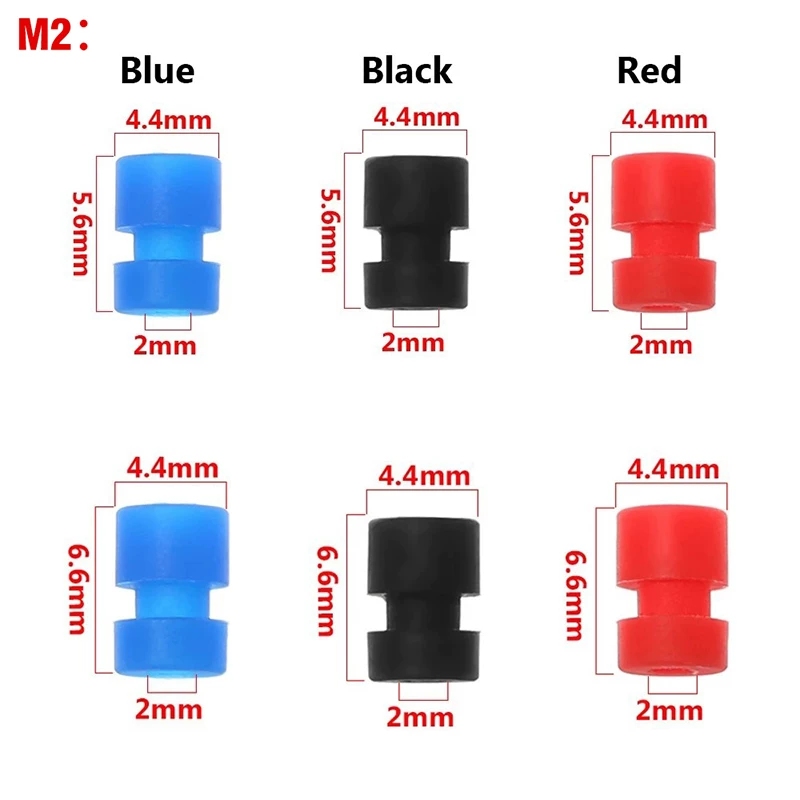

The M2 comparison image also shows a 5.6 mm-high version for illustration only. M2 × 5.6 is not one of the selectable models on this listing.
Selection and Installation
Compare the damper bore, outside diameter, groove geometry and overall height with your board holes, board thickness, fasteners and stack clearance. Board-family names alone do not establish compatibility. Dimensions shown are reference values; manufacturing tolerances, silicone hardness, load limits and measured vibration-isolation performance are not specified. Confirm fit with a sample for your application.
Wholesale Supply from IKSONIC
IKSONIC is a China-based supplier of silicone components for wholesale sourcing. For these silicone flight controller vibration dampers, specify the model, color and number of 10-piece packs in your inquiry. Contact IKSONIC to discuss wholesale requirements or confirm a model before ordering.
