Description
Silicone Gimbal Damping Balls

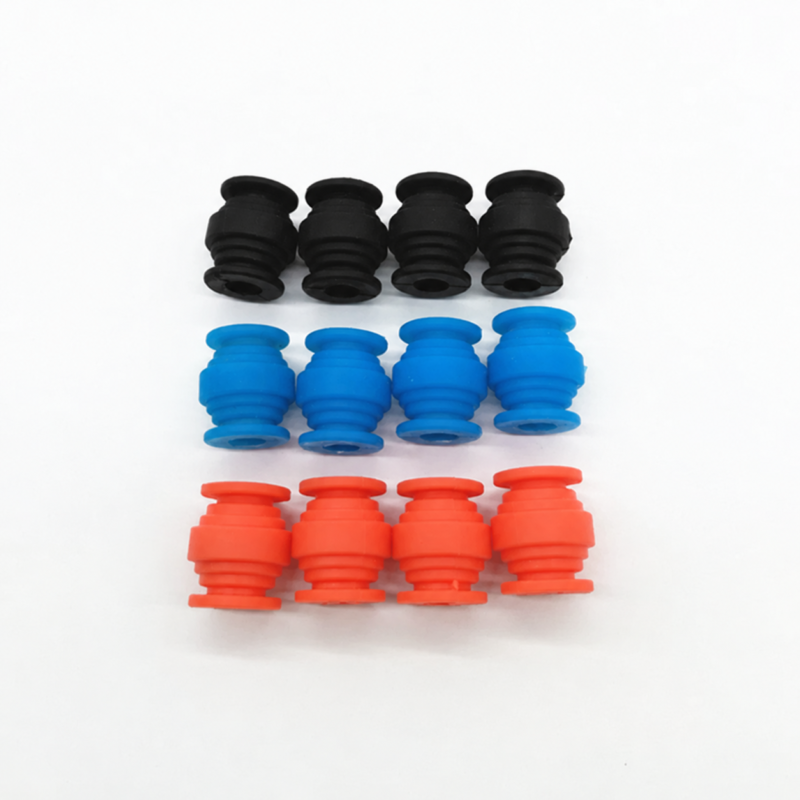

IKSONIC supplies silicone damping balls for AV gimbal mounting applications. This source-listed 20*17 range includes black, blue and red options. Compare the mounting geometry and specified hardness option before ordering; color alone does not identify the hardness.
Specifications / Models
| Source size reference | Color | Source hardness designation | Option quantity |
|---|---|---|---|
| 20*17 | Black | 30 degrees; scale not specified | 1 piece |
| 20*17 | Black | 55 degrees; scale not specified | 1 piece |

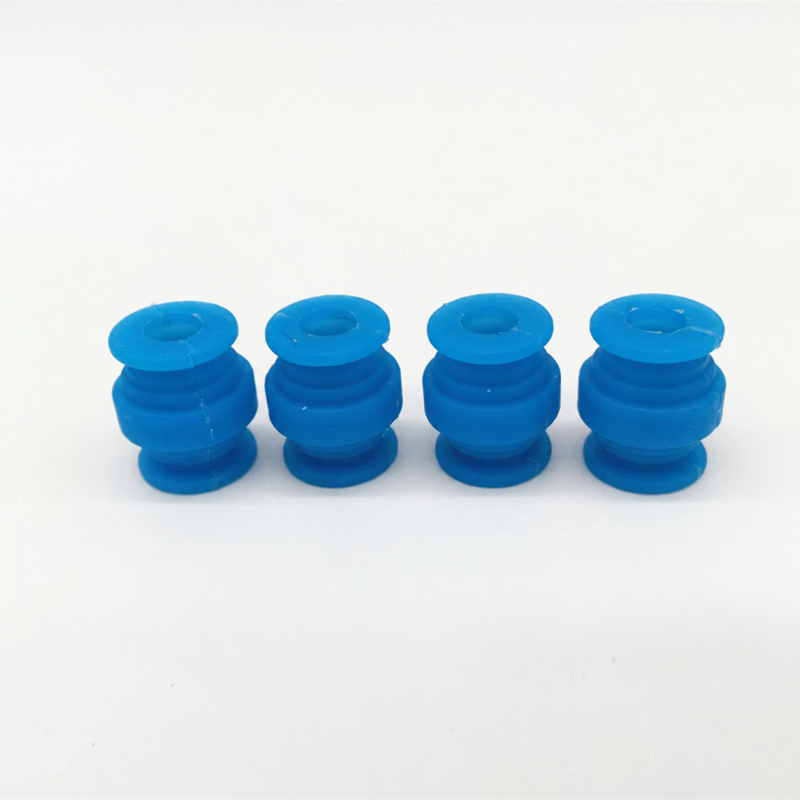

| 20*17 | Blue | 30 degrees; scale not specified | 1 piece |
| 20*17 | Red | 30 degrees; scale not specified | 1 piece |
The 30- and 55-degree values are the source hardness designations. A Shore scale is not stated, so do not treat these as verified Shore A values.
Source-Illustrated Dimensions
| Reference | Source notation | Selection note |
|---|---|---|
| Main dimensions | 20 × Φ17.5 × Φ7 mm | Retained in the order shown by the source photograph; confirm the measurement locations against your mount. |
| Retention feature | 1.5 × Φ9.5 mm | Source describes this as the retaining position; confirm mating plate and hole geometry. |
The option label is 20*17, while the photograph gives a 17.5 mm diameter in its detailed notation. These two source references are preserved rather than silently rounded or treated as identical. Confirm the final dimensional specification before ordering.
Selecting a Damper

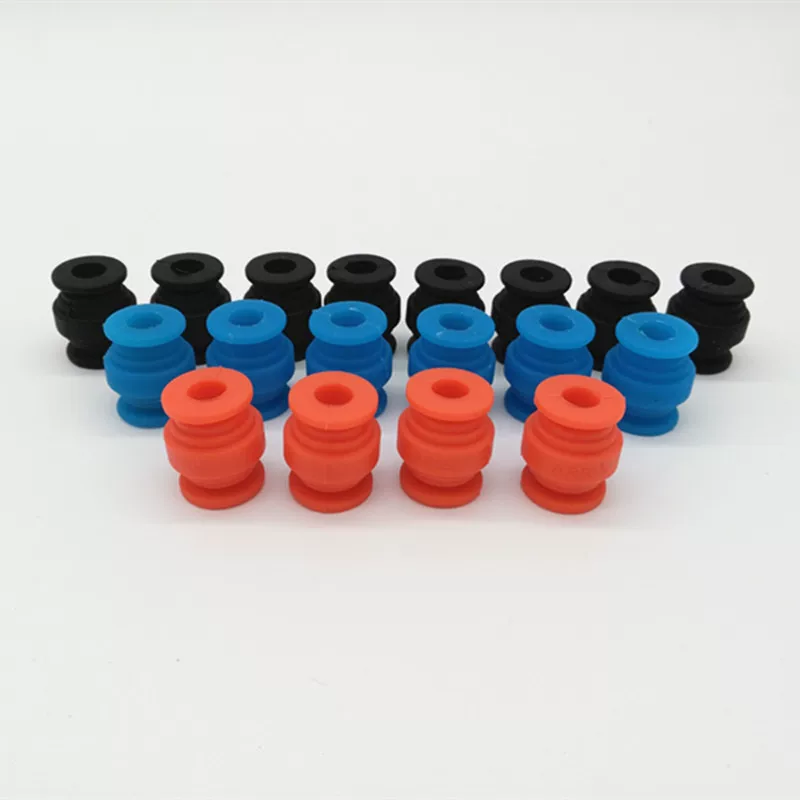

Provide photographs of the existing damper and mounting points, required quantity, color and hardness designation. Include measured dimensions and any required material or test specification. The photographs show example groups; each listed option is one piece, not the full photographed assortment.
No load rating, temperature limit, vibration-isolation curve or tolerance is supplied. Application suitability must be reviewed for the specific assembly rather than inferred from the appearance of the part.
China Supplier and Factory Sourcing
Contact IKSONIC for silicone gimbal damping ball wholesale inquiries and China supplier or factory sourcing. Include the required geometry and quantity so the supply specification can be confirmed with the supplier before ordering. Cameras, gimbals and mounting hardware are not included.
FAQ
Are the two black options the same hardness?
No. The source lists separate black 30-degree and 55-degree options. Confirm the hardness scale and requirement with your inquiry.
Can the dimensions be selected from the short model label alone?
No. Review the detailed source dimensions and confirm the measurement locations and mounting fit. The short 20*17 label does not replace dimensional confirmation.
How do I request a quotation?
Contact IKSONIC with the option, quantity and application requirements. Pricing is supplied by quotation; this is an inquiry-only product page.
