Clear Food-Grade Silicone Capillary Tubing

Description

Clear Food-Grade Silicone Capillary Tubing

IKSONIC supplies clear silicone capillary tubing in a range of listed inside and outside diameters. The source identifies this product as food-grade silicone tubing. Choose the complete inside-diameter and outside-diameter combination rather than specifying only one measurement.

IKSONIC is a China-based supplier for wholesale enquiries from equipment manufacturers, factory purchasing teams and maintenance buyers. Provide the required dimensions, length and application so the requested tube specification can be reviewed before ordering.

Specifications and Sizes

The table lists 55 diameter combinations. All inside and outside diameters are in millimeters. Each source size option is listed on a 10 m basis; confirm the required supplied length and packaging with your enquiry. No price is shown here.

Inside diameter (mm)	Outside diameter (mm)	Listed length (m)
0.5	1	10
0.5	1.5	10
0.5	1.8	10
0.5	2	10
0.5	2.5	10
0.5	3	10
0.6	1.2	10
0.6	1.5	10
0.6	1.8	10
0.6	2	10
0.8	1.9	10
0.8	3	10
1	1.5	10
1	2	10
1	2.5	10
1	3	10
1	4	10
1.2	2	10
1.2	3	10
1.3	2.3	10
1.5	2.5	10
1.5	3	10
1.5	3.5	10
1.5	4	10
1.6	3.2	10
1.8	3	10
2	3	10
2	4	10
2	5	10
2	6	10
2.5	4	10
2.5	5	10
3	4	10
3	5	10
3	6	10
3	7	10
4	5	10
4	6	10
4	7	10
5	6	10
5	7	10
5	8	10
6	7	10
6	8	10
6	9	10
7	8	10
7	9	10
7	10	10
8	10	10
8	11	10
9	12	10
10	12	10
10	13	10
12	14	10
12	15	10

Material and Application Review

The listed material is clear silicone, described as food-grade in the product source. This description does not establish FDA, LFGB or another particular certification. If you require a compliance report for a specific food-contact use, identify the intended contact medium and applicable requirements for review before ordering.

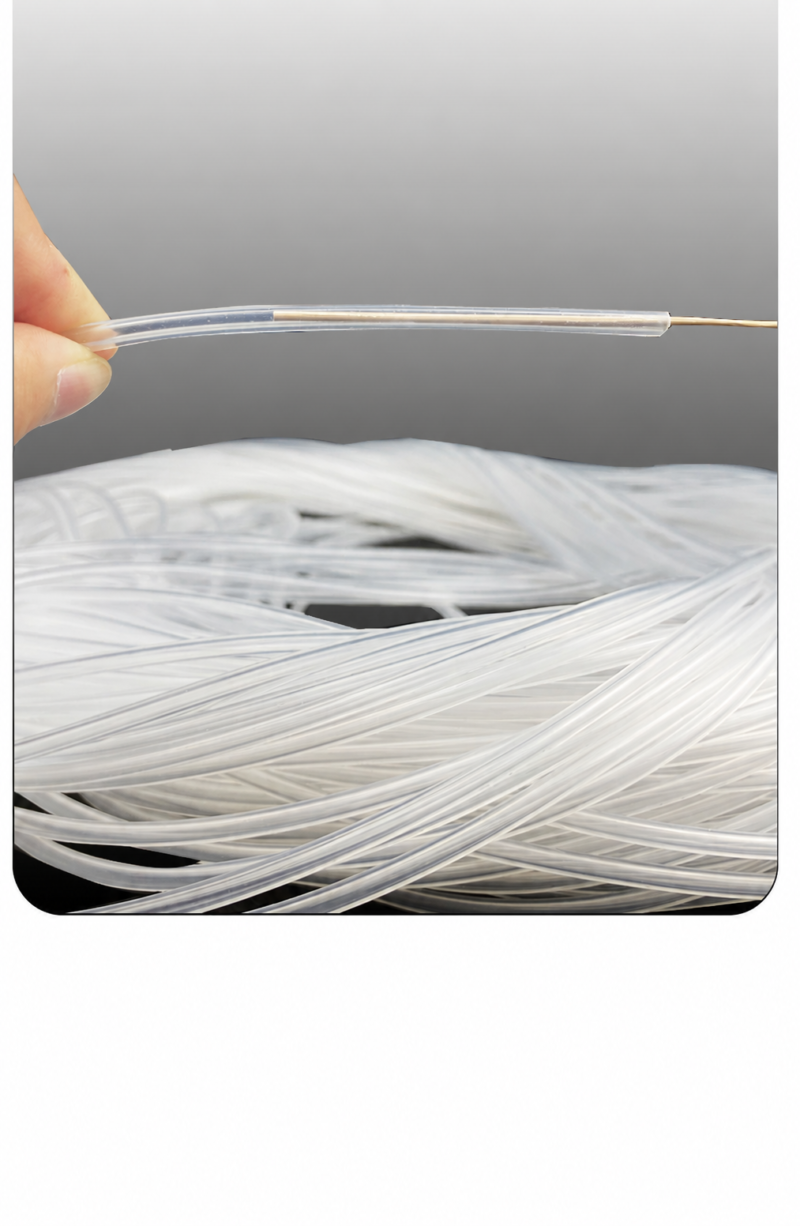

Confirm the actual service conditions, including temperature, pressure or vacuum, cleaning method and connection arrangement. The source lists a temperature range of −60°C to 200°C, but does not provide test conditions or a continuous-service limit. It also lists approximate hardness as 65 without identifying the hardness scale; confirm the scale and required value before ordering. No pressure rating or dimensional tolerance is assigned here. A photograph illustrates the tube appearance, not those operating limits.

How to Specify Your Tubing

State both inside diameter and outside diameter exactly as required. Tubes with the same inside diameter may have different outside diameters, so they are not automatically interchangeable at a fitting or clamp. Check the mating components as part of your selection.

For an existing machine, use its documented tube specification where available. If you are measuring a sample, explain which dimensions you measured and any tolerance requirement. Include total length, preferred cut lengths and quantity in the quotation request. Cut-to-length or other additional processing requires confirmation.

Frequently Asked Questions

What sizes can I enquire about?

The table contains 55 combinations, from the listed 0.5 mm inside-diameter options through the 12 mm inside-diameter options. Only the paired dimensions shown in each row are listed; the table does not imply that every possible inside and outside diameter combination is available.

Is the tubing food-grade?

The source describes this particular silicone tubing as food-grade. If a documented certification or a specific food-contact condition is required, please state it before ordering so the supporting information and suitability can be reviewed.

What does the 10 m length mean?

The source lists each size on a 10 m basis. Confirm the length and packaging you need when enquiring. This does not establish a minimum order quantity or promise a particular cut-length service.

Can I select tubing from the image alone?

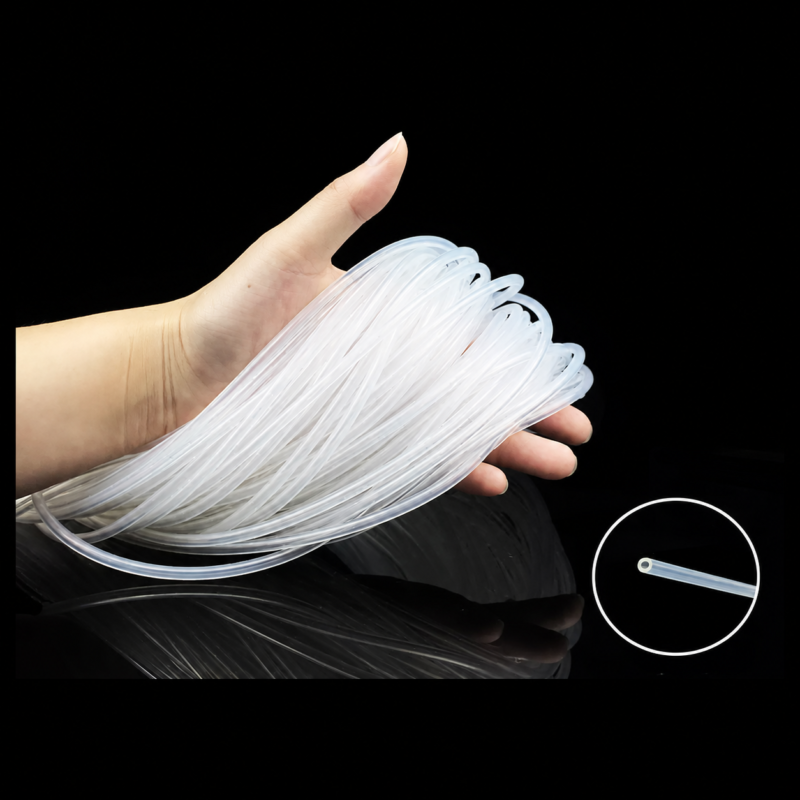

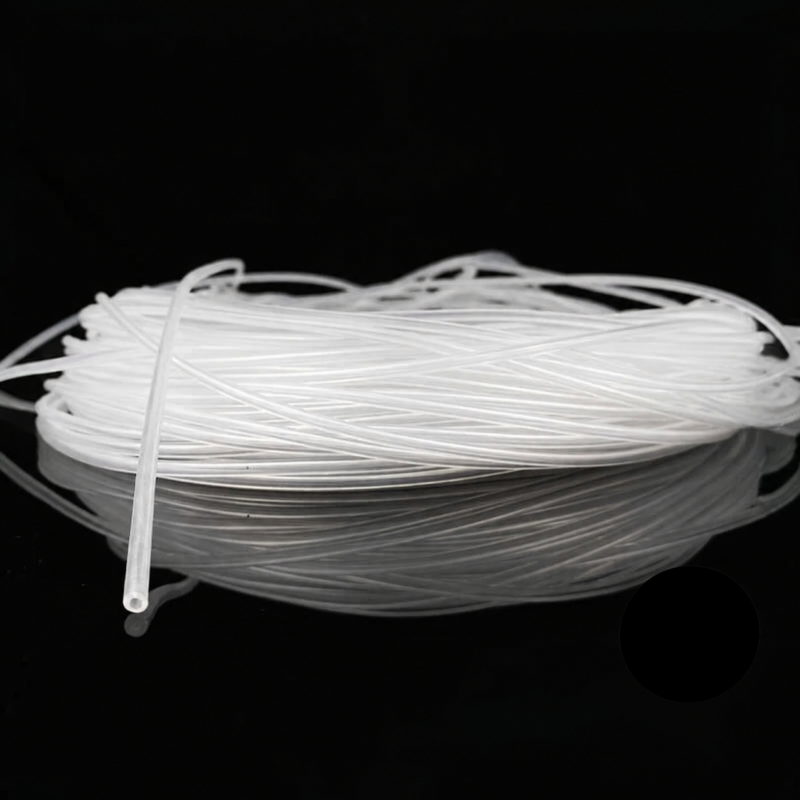

No. Images show general appearance and tube structure. Use the required inside diameter, outside diameter and application conditions to select a size; do not estimate a precise diameter from the picture.

Request a Wholesale Quotation

Contact IKSONIC with the exact diameter pair, total length and quantity. Include the intended medium and any compliance, tolerance or operating requirements. We can review the specification with you before quoting.
