Pneumatic Dispensing Valve Seals for Seamless Garment Equipment
Pneumatic dispensing valve seals for seamless garment equipment. Discuss valve fit, room-temperature duty and wholesale supply with IKSONIC.
- Description
- Contact Us
Description
Pneumatic Dispensing Valve Seals for Seamless Garment Equipment

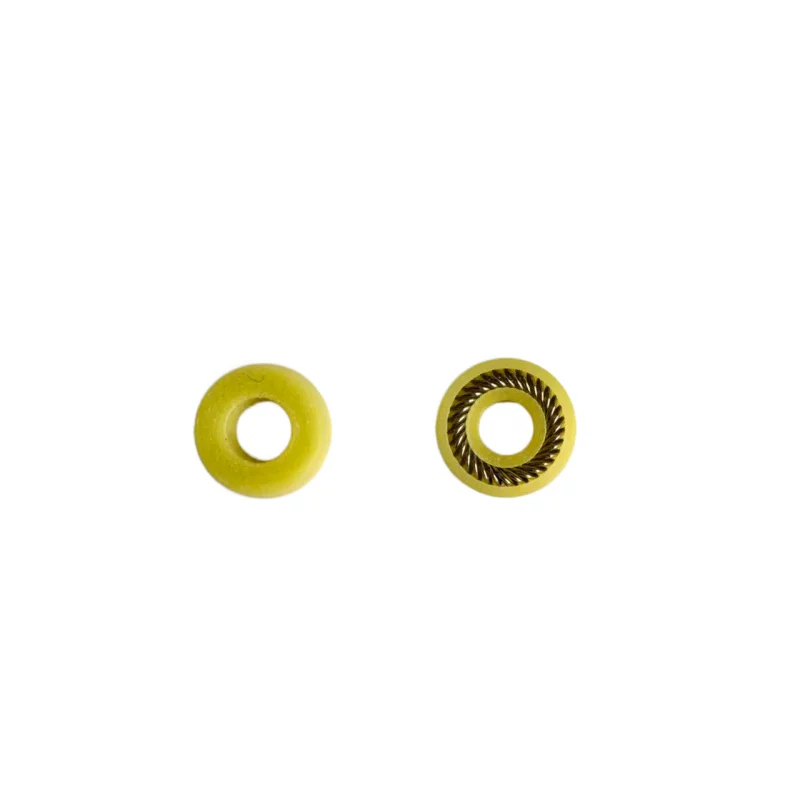

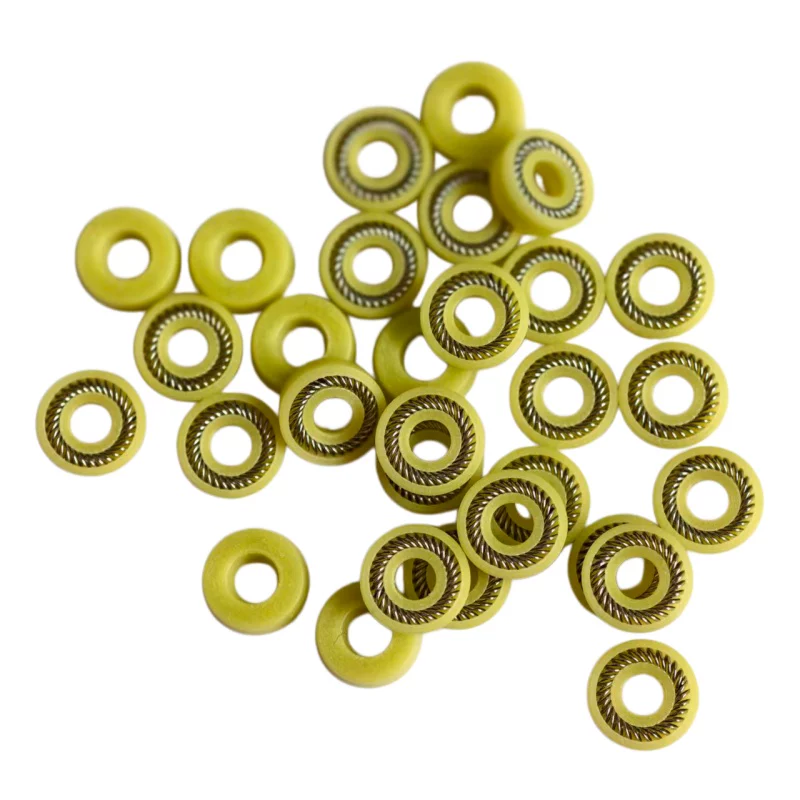

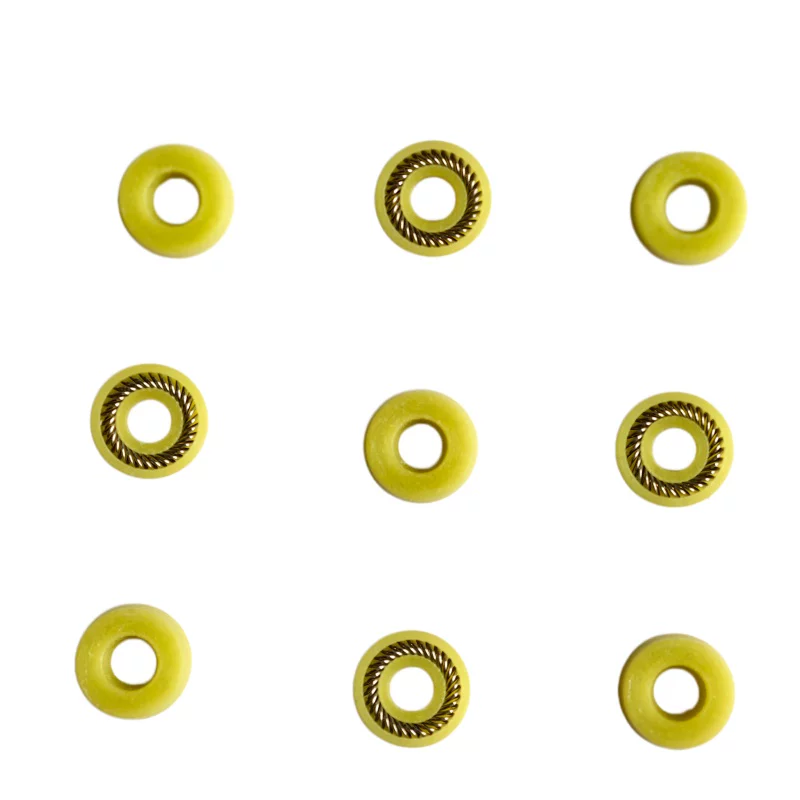

These pneumatic dispensing valve seals are spring-energized sealing components for adhesive dispensing equipment used in seamless garment production. The application range includes Changlin and Zuoma equipment inquiries. Designed for room-temperature, wear-resistant sealing applications, the component should be selected around the actual valve interface and adhesive process rather than the machine name alone.
The W505 material reference and canted-spring construction identify this configuration; retain both details when matching a replacement.
Specifications
| Specification | Details |
|---|---|
| Product type | Spring-energized pneumatic dispensing valve seal |
| Material reference | W505 |
| Spring arrangement | Canted spring |
| Equipment applications | Changlin and Zuoma seamless garment dispensing equipment; valve fit to be confirmed |
| Operating application | Room-temperature, wear-resistant sealing |
| Source-listed size designation | 3 × 6 × 2.4 (unit and dimension order to be confirmed) |
Selection guide
Identify the dispensing machine, valve model, and seal location. Provide the existing seal profile, the shaft or needle dimensions, and the housing groove measurements. A clear photograph of the removed seal and its installation orientation helps distinguish it from other sealing components in the same machine. Include any part reference used by your maintenance team.
Application details
Explain which adhesive the valve handles, the operating cycle, and whether the component contacts adhesive or belongs to the pneumatic section. Confirm the required seal material and spring construction for that duty. Wear resistance is a selection characteristic, not a stated service-life guarantee. Room-temperature operation also needs to account for any local process heating or cleaning conditions. For repeat purchasing, retain the confirmed profile together with the machine and valve reference so subsequent orders can be matched consistently.
Frequently asked questions
Is this a complete pneumatic dispensing valve? No, it is a replacement sealing component. Does a Changlin or Zuoma equipment reference guarantee fit? Confirm the particular valve and seal geometry before ordering. Is it intended for hot-melt service? This item addresses room-temperature applications; any higher-temperature use requires a separate suitability check. Can the same seal serve every garment adhesive? The material must be checked against the adhesive and cleaning fluids actually used.
China supplier and wholesale inquiries
IKSONIC is a China-based manufacturer and industrial-parts supplier supporting wholesale and custom inquiries. For this product, share the required quantity, equipment details, and the features that must match your existing assembly. Contact IKSONIC to discuss the appropriate configuration and request a quotation for your application.
