Spring-Energized Epoxy Dispensing Seals for Pneumatic Valves
These epoxy dispensing seals are spring-energized components for pneumatic precision dispensing valves. The application includes Maisite valve inquiries where a compact sealing profile is needed around the dispensing mechanism. The component is intended for sealing rather than replacing the complete valve, and selection should be based on the particular valve configuration and installation space.

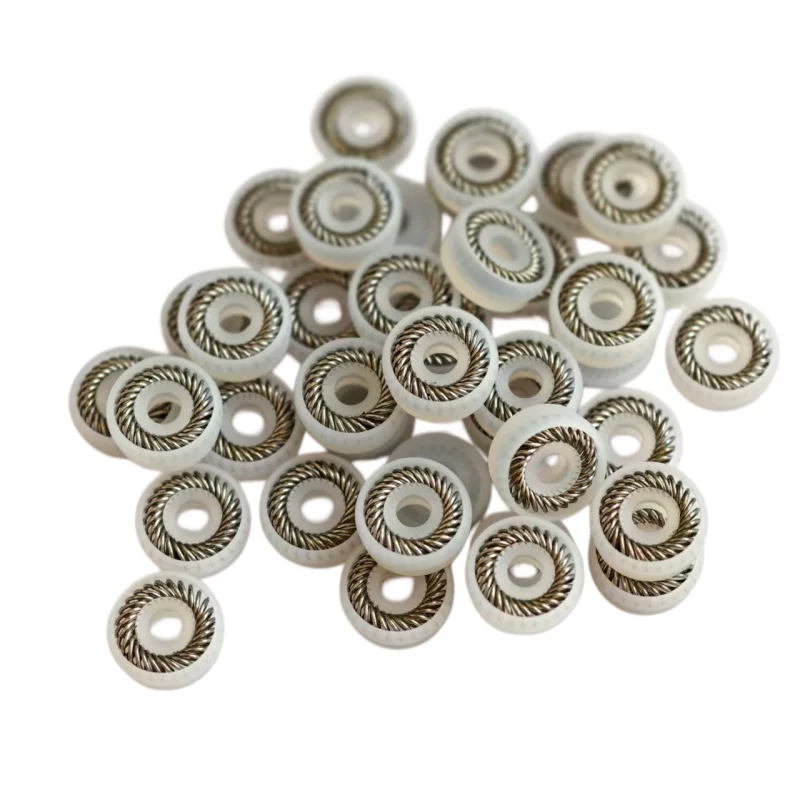

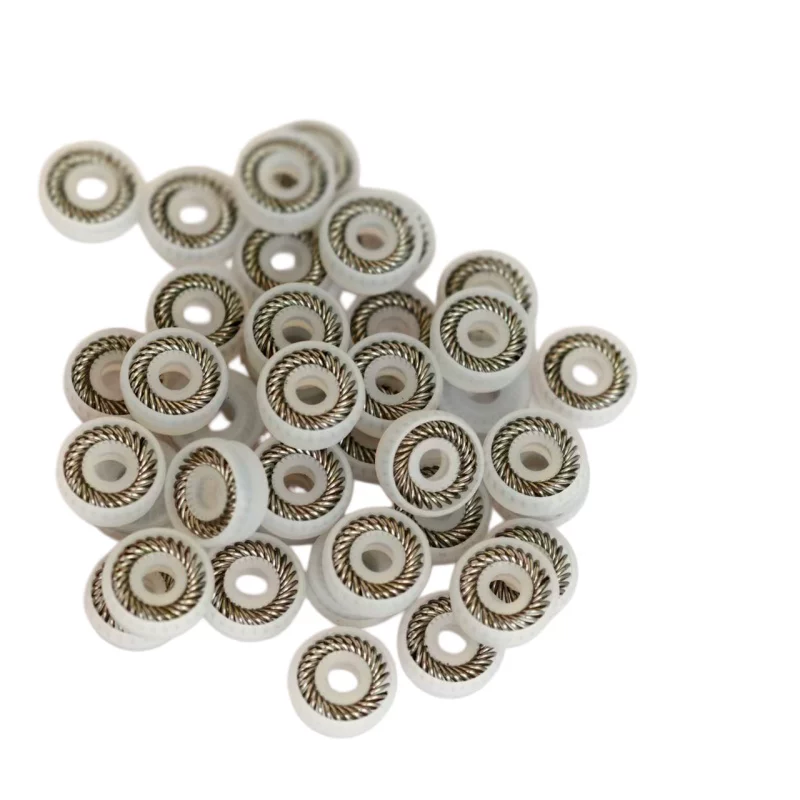

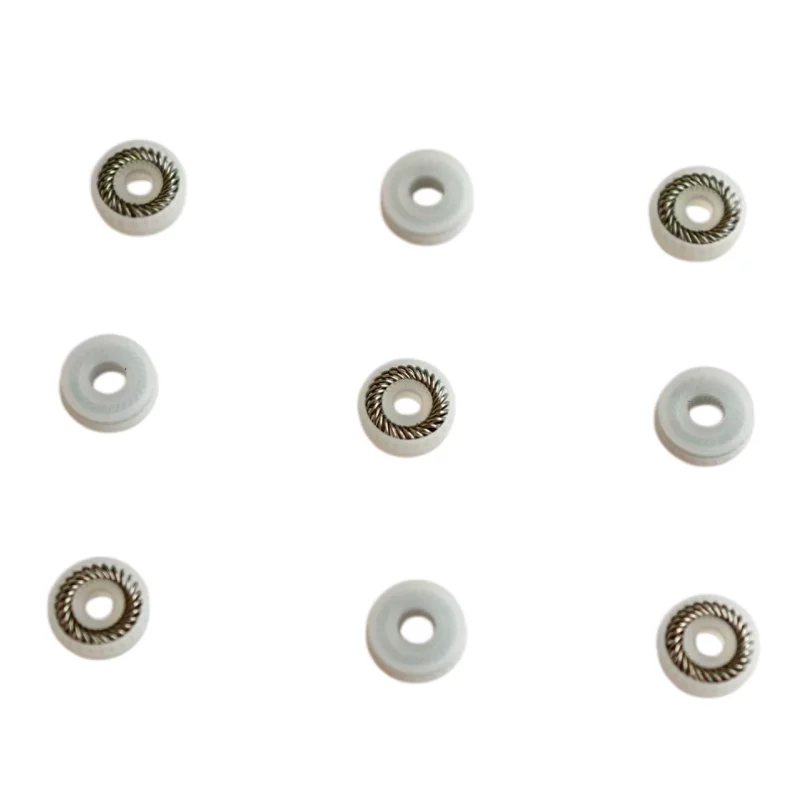

This configuration combines UPE with a canted spring, visible within the annular sealing channel; match both material and spring arrangement.
Specifications
| Specification | Details |
|---|---|
| Product type | Spring-energized pneumatic dispensing valve seal |
| Material | UPE |
| Spring arrangement | Canted spring |
| Equipment application | Maisite precision dispensing valves; exact valve fit to be confirmed |
| Dispensing application | Epoxy adhesive |
| Source-listed size designation | 3.18 × 8 × 3 (unit and dimension order to be confirmed) |
Selection guide
Provide the valve model, any existing seal reference, and the dimensions of the shaft or needle and housing groove. Include a section sketch or close photograph showing the lip orientation and spring arrangement. Match the entire seal profile before choosing a replacement. A familiar equipment brand or a similar outside diameter does not establish that two seals are interchangeable.
Application details
Identify the epoxy formulation, operating temperature, pressure, and movement conditions at the seal. Include the cleaning fluid and maintenance procedure if the component is exposed to them. Confirm the seal material and spring construction against this combination of conditions. If the machine dispenses different materials during different production runs, describe each relevant contact medium. For repeat orders, keep the agreed configuration with the equipment maintenance record so a change in adhesive or valve hardware can be reviewed before reuse.
Frequently asked questions
Is this a complete pneumatic valve? No, it is a spring-energized sealing component. Does the Maisite application reference establish original branded manufacture? It describes the equipment application; clarify any original-equipment requirement separately. Can a seal be selected from diameter alone? The profile, installed orientation, and available groove space must also match. Is all epoxy chemistry equivalent for sealing? No, the particular formulation and cleaning conditions need to be considered.
China supplier and wholesale inquiries
IKSONIC is a China-based manufacturer and industrial-parts supplier supporting wholesale and custom inquiries. For this product, share the required quantity, equipment details, and the features that must match your existing assembly. Contact IKSONIC to discuss the appropriate configuration and request a quotation for your application.
