8M PU Timing Belt, Seamless Steel-Wire Polyurethane

Description

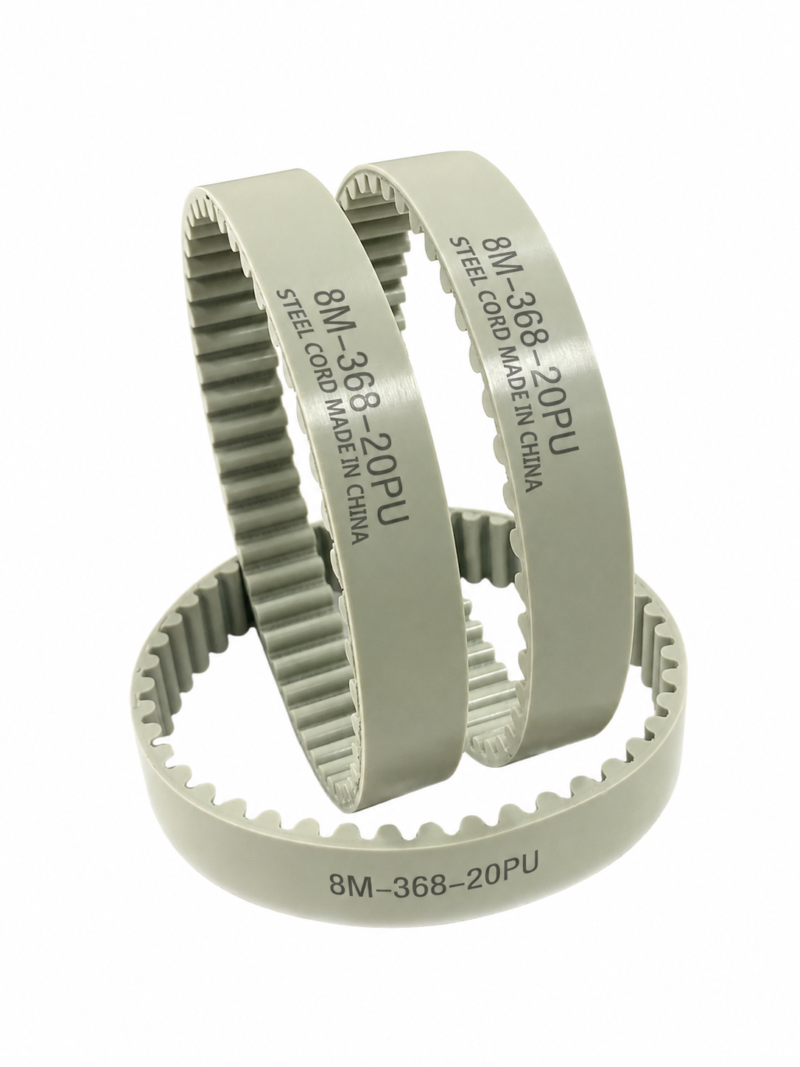

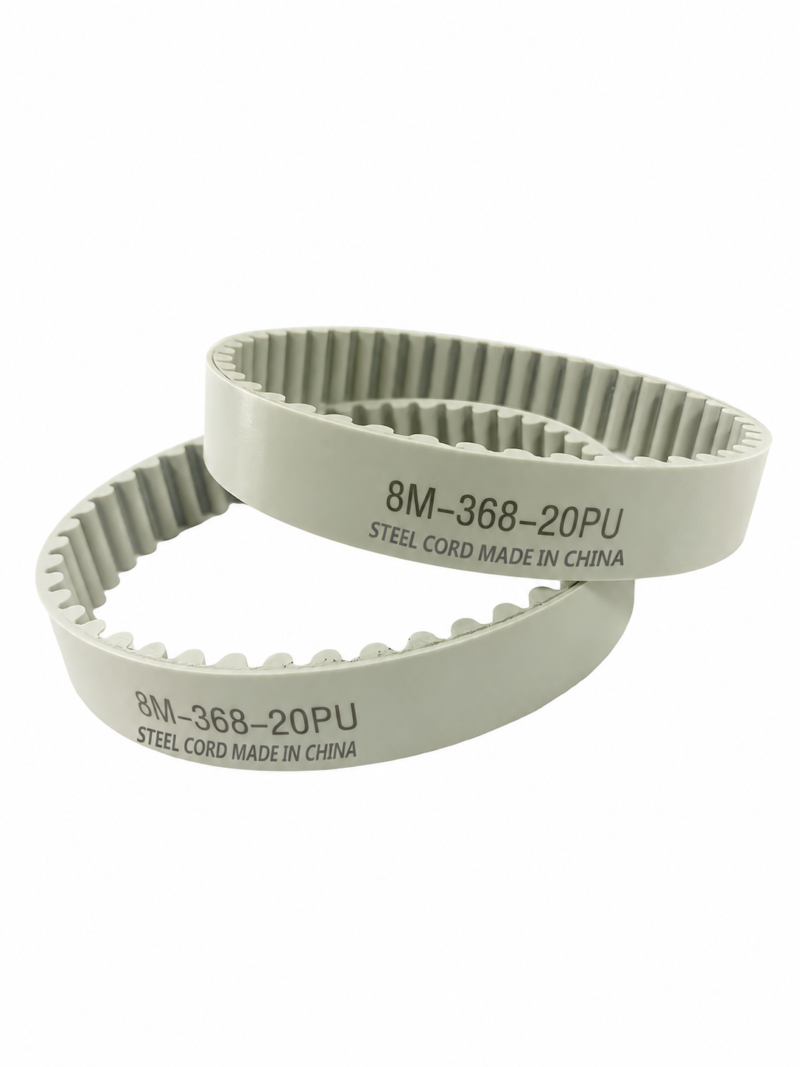

8M PU Timing Belt with Steel-Wire Reinforcement

The IKSONIC 8M PU timing belt has a polyurethane body, steel-wire reinforcement, seamless endless construction and curvilinear teeth. Select the required model and finished width, then confirm the belt dimensions and pulley compatibility for your application.

Construction and Width Options

• Belt material: polyurethane (PU).
• Reinforcement: steel wire.
• Construction: seamless endless belt.
• Tooth form: 8M curvilinear teeth.
• Listed widths: 10, 15, 20, 25, 30, 35, 40 and 50 mm.
• Width selection: specify the required finished width when requesting a cut-to-width belt.

Specifications / Models

The table lists 48 model options and the widths recorded for each model. Widths are in millimetres. Model codes are retained as product identifiers; no belt length or pitch dimension is inferred from them.

Model	Listed Widths (mm)
8M-352	10, 15, 20, 25, 30, 35, 40, 50
8M-360	10, 15, 20, 25, 30, 35, 40, 50
8M-368	10, 15, 20, 25, 30, 35, 40, 50
8M-376	10, 15, 20, 25, 30, 35, 40, 50
8M-400	10, 15, 20, 25, 30, 35, 40, 50
8M-432	10, 15, 20, 25, 30, 35, 40, 50
8M-448	10, 15, 20, 25, 30, 35, 40, 50
8M-480	10, 15, 20, 25, 30, 35, 40, 50
8M-496	10, 15, 20, 25, 30, 35, 40, 50
8M-520	10, 15, 20, 25, 30, 35, 40, 50
8M-526	10, 15, 20, 25, 30, 35, 40, 50
8M-528	10, 15, 20, 25, 30, 35, 40, 50
8M-536	10, 15, 20, 25, 30, 35, 40, 50
8M-544	10, 15, 20, 25, 30, 35, 40, 50
8M-560	10, 15, 20, 25, 30, 35, 40, 50
8M-568	10, 15, 20, 25, 30, 35, 40, 50
8M-576	10, 15, 20, 25, 30, 35, 40, 50
8M-584	10, 15, 20, 25, 30, 35, 40, 50
8M-592	10, 15, 20, 25, 30, 35, 40, 50
8M-600	10, 15, 20, 25, 30, 35, 40, 50
8M-608	10, 15, 20, 25, 30, 35, 40, 50
8M-616	10, 15, 20, 25, 30, 35, 40, 50
8M-624	10, 15, 20, 25, 30, 35, 40, 50
8M-632	10, 15, 20, 25, 30, 35, 40, 50
8M-640	10, 15, 20, 25, 30, 35, 40, 50
8M-648	10, 15, 20, 25, 30, 35, 40, 50
8M-656	10, 15, 20, 25, 30, 35, 40, 50
8M-672	10, 15, 20, 25, 30, 35, 40, 50
8M-680	10, 15, 20, 25, 30, 35, 40, 50
8M-696	10, 15, 20, 25, 30, 35, 40, 50
8M-712	10, 15, 20, 25, 30, 35, 40, 50
8M-720	10, 15, 20, 25, 30, 35, 40, 50
8M-736	10, 15, 20, 25, 30, 35, 40, 50
8M-744	10, 15, 20, 25, 30, 35, 40, 50
8M-776	10, 15, 20, 25, 30, 35, 40, 50
8M-800	10, 15, 20, 25, 30, 35, 40, 50
8M-808	10, 15, 20, 25, 30, 35, 40, 50
8M-824	10, 15, 20, 25, 30, 35, 40, 50
8M-848	10, 15, 20, 25, 30, 35, 40, 50
8M-856	10, 15, 20, 25, 30, 35, 40, 50
8M-864	10, 15, 20, 25, 30, 35, 40, 50
8M-904	10, 15, 20, 25, 30, 35, 40, 50
8M-944	10, 15, 20, 25, 30, 35, 40, 50
8M-952	10, 15, 20, 25, 30, 35, 40, 50
8M-960	10, 15, 20, 25, 30, 35, 40, 50
8M-1072	10, 15, 20, 25, 30, 35, 40, 50
8M-1120	10, 15, 20, 25, 30, 35, 40, 50
8M-1160	10, 15, 20, 25, 30, 35, 40, 50

Before ordering, confirm the selected model, finished width, tooth count, required belt dimensions and matching pulley profile. For an unlisted model or width, request confirmation rather than assuming availability.

Wholesale Inquiries

Contact IKSONIC, a China-based supplier, for wholesale 8M polyurethane timing belt inquiries. Provide the model, required width, quantity and application details so the specification can be reviewed. An existing belt marking or dimensional drawing can help identify a replacement.

Frequently Asked Questions

What is this timing belt made from?

This 8M timing belt has a polyurethane body with steel-wire reinforcement.

Is this an endless or open-ended belt?

This product is a seamless endless belt with curvilinear teeth, rather than an open-ended belt.

Which widths can I specify?

The listed widths are 10, 15, 20, 25, 30, 35, 40 and 50 mm. The Specifications / Models table shows the recorded options for each model. Confirm the finished width before ordering.

Is the model code enough to select a replacement?

Confirm the full specification, including the model, width, tooth count, belt dimensions and pulley profile. Do not rely on the model code alone to establish dimensional compatibility.

How do I request a wholesale quotation?

Send the model, finished width, quantity and application details to IKSONIC. For replacement belts, include the existing marking and measured dimensions where possible.
