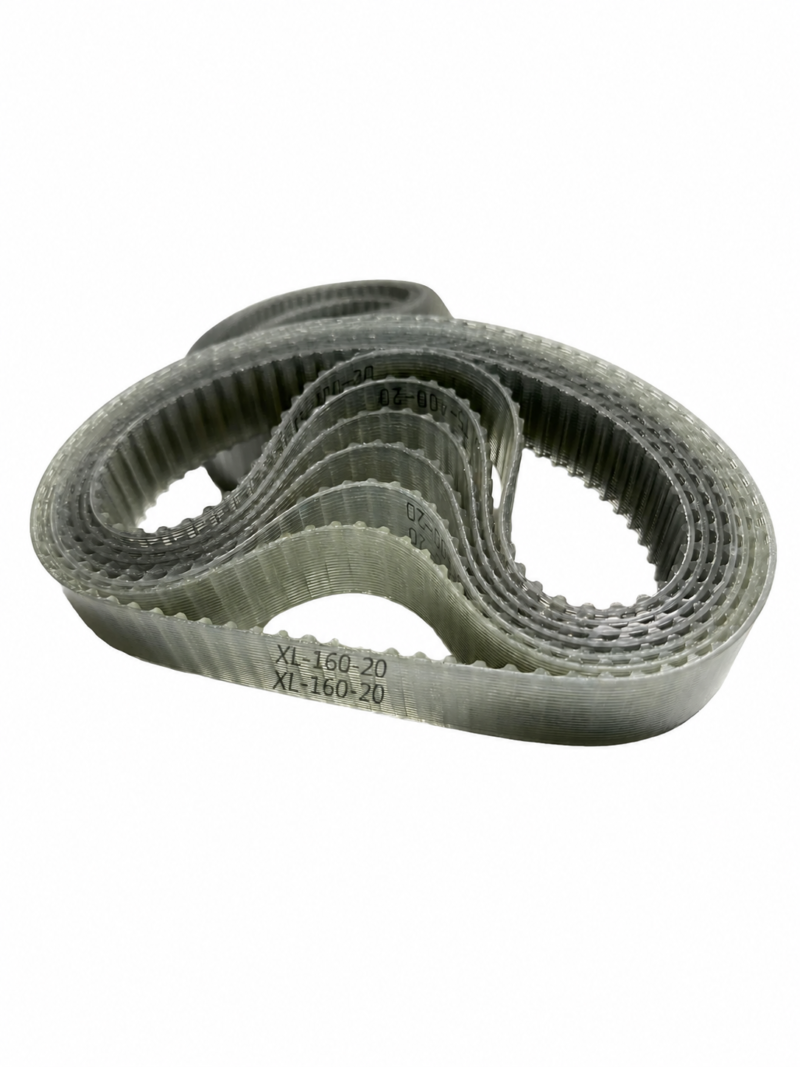

IKSONIC supplier photo of nested XL polyurethane timing belts with visible steel-wire reinforcement, inner teeth and original XL-160-20 markings on the front belt.

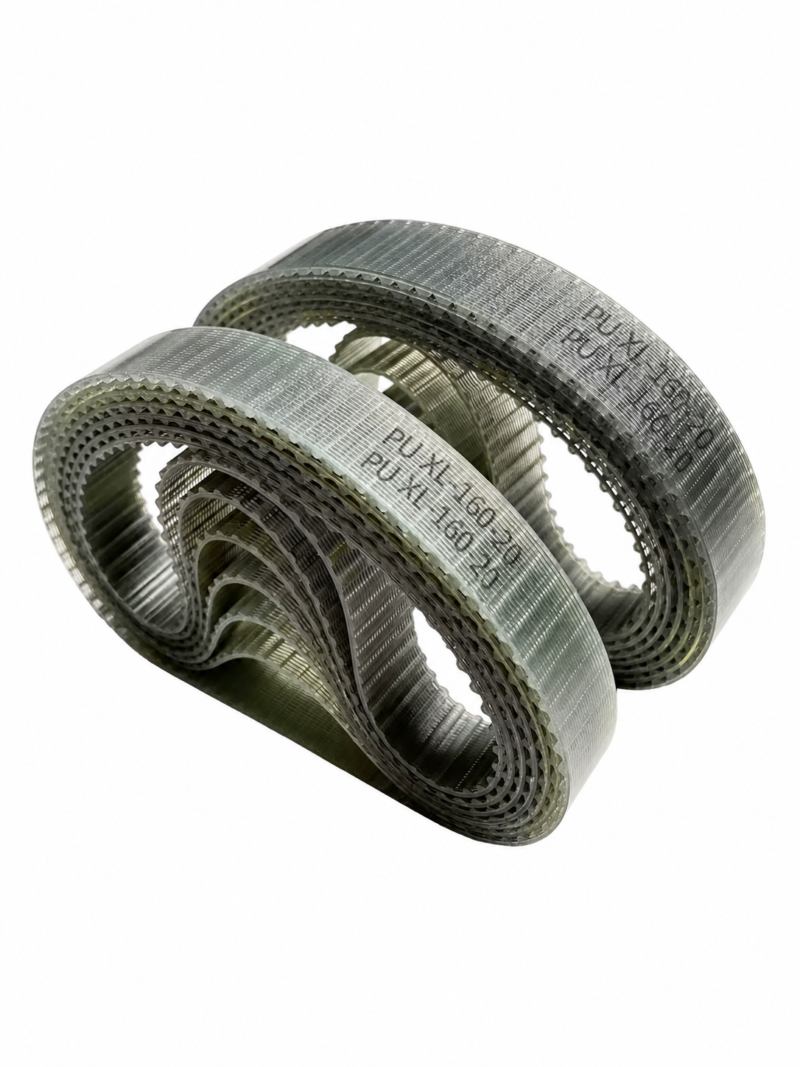

IKSONIC supplier photo of translucent steel-reinforced XL polyurethane timing belt coils in an angled looped arrangement, showing teeth and original PU XL-160-20 markings.

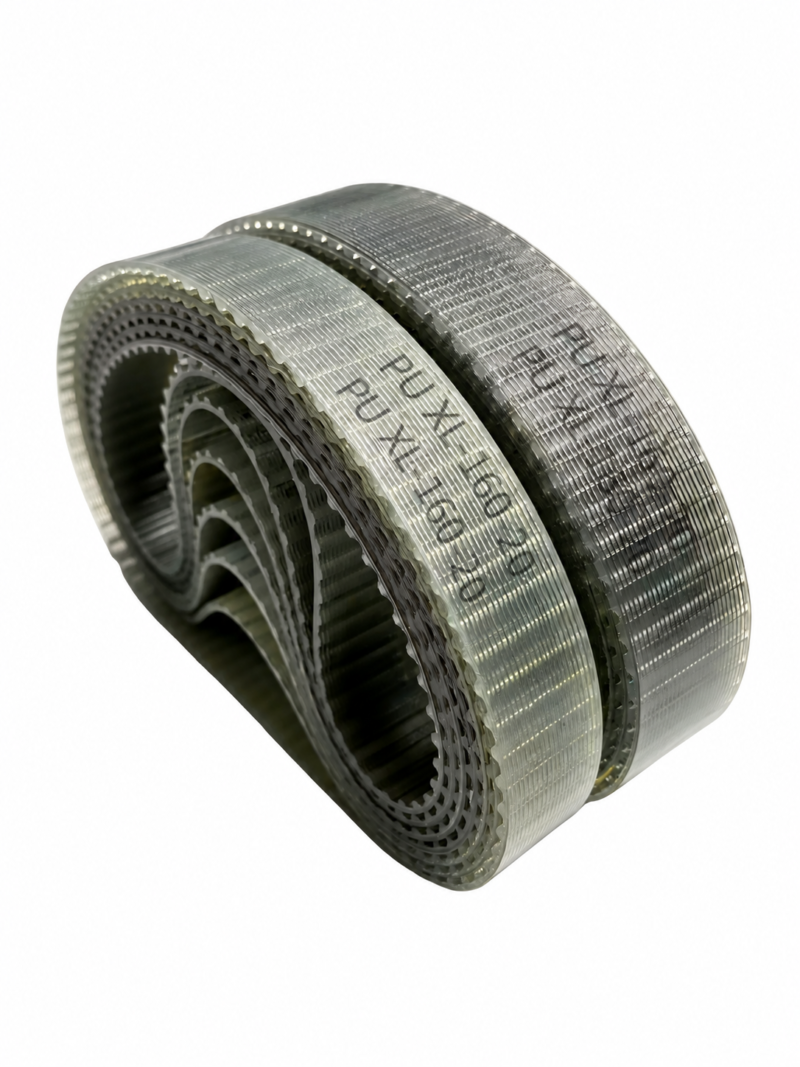

IKSONIC supplier photo of upright translucent XL polyurethane timing belt coils, showing layered inner teeth, steel-wire texture and original PU XL-160-20 markings.
IKSONIC supplier photo of nested XL polyurethane timing belts with visible steel-wire reinforcement, inner teeth and original XL-160-20 markings on the front belt.
IKSONIC supplier photo of translucent steel-reinforced XL polyurethane timing belt coils in an angled looped arrangement, showing teeth and original PU XL-160-20 markings.
IKSONIC supplier photo of upright translucent XL polyurethane timing belt coils, showing layered inner teeth, steel-wire texture and original PU XL-160-20 markings.

XL PU Steel Wire Timing Belt, Seamless Endless Models

Supplier photo of two overlapping gray 8M-368-20PU polyurethane timing belts with rounded inner teeth and steel cord markings. Supplied by IKSONIC in China. 8M PU Timing Belt, Seamless Steel-Wire Polyurethane
Fluorescent green 10TT5 polyurethane timing belt coil on original packaging; supplied by IKSONIC in China. 10TT5 Matte Seamless PU Textile Timing Belt

XL PU timing belt with steel wire, trapezoidal teeth and seamless endless construction. Select the exact model, stated tooth count and corresponding width from the detailed specifications. Contact IKSONIC for wholesale inquiries.

SKU: 1048277490986 Category:
somdn_product_page

Description

XL PU Timing Belt

IKSONIC offers XL PU timing belts for wholesale inquiries as a China-based manufacturer and supplier. This belt range uses polyurethane (PU) and steel wire, with a trapezoidal tooth profile and seamless endless construction. Choose the exact model and belt width from the Specifications / Models table below.

Material and Construction

  • Belt material: Polyurethane (PU).
  • Steel wire: Included in the belt construction.
  • Tooth profile: XL trapezoidal teeth.
  • Belt form: Seamless endless timing belt.
  • Width selection: The listed model options are marked for cutting to the required belt width.

Specifications / Models

Each row identifies an individual belt model, its stated tooth count and its corresponding listed widths. Select a model from this table rather than assuming that every intermediate model number is available.

Model Tooth count Listed belt widths
50XL 25 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
60XL 30 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
64XL 32 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
68XL 34 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
70XL 35 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
76XL 38 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
80XL 40 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
84XL 42 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
86XL 43 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
88XL 44 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
90XL 45 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
92XL 46 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
94XL 47 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
96XL 48 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
98XL 49 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
100XL 50 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
102XL 51 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
104XL 52 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
106XL 53 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
108XL 54 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
110XL 55 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
114XL 57 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
116XL 58 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
118XL 59 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
120XL 60 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
122XL 61 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
124XL 62 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
126XL 63 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
128XL 64 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
130XL 65 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
132XL 66 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
134XL 67 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
136XL 68 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
138XL 69 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
140XL 70 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
142XL 71 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
144XL 72 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
146XL 73 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
148XL 74 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
150XL 75 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
152XL 76 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
154XL 77 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
156XL 78 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
158XL 79 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
160XL 80 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
162XL 81 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
164XL 82 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
166XL 83 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
168XL 84 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
170XL 85 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
172XL 86 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
174XL 87 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
176XL 88 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
178XL 89 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
180XL 90 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
182XL 91 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
184XL 92 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
186XL 93 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
188XL 94 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
190XL 95 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
192XL 96 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
194XL 97 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
196XL 98 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
198XL 99 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
200XL 100 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
202XL 101 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
204XL 102 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
206XL 103 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
210XL 105 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
212XL 106 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
214XL 107 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
216XL 108 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
218XL 109 6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm

Selecting an XL PU Timing Belt

Match the required model, tooth count and width to your equipment specifications before ordering. Belt width is shown in millimetres (mm). Model numbers are identifiers; no belt length or pitch dimension is specified in this table.

For a wholesale inquiry, provide the exact model, required belt width and quantity. If a required model or width is not listed, ask IKSONIC to confirm it rather than selecting a different specification. Confirm any additional requirements, including color, before placing an order.

Wholesale Inquiries

Contact IKSONIC to discuss XL PU timing belt requirements with a China manufacturer and supplier. Include the selected model and width so the inquiry can be checked against the listed specifications.
