Elevator Door Timing Belts

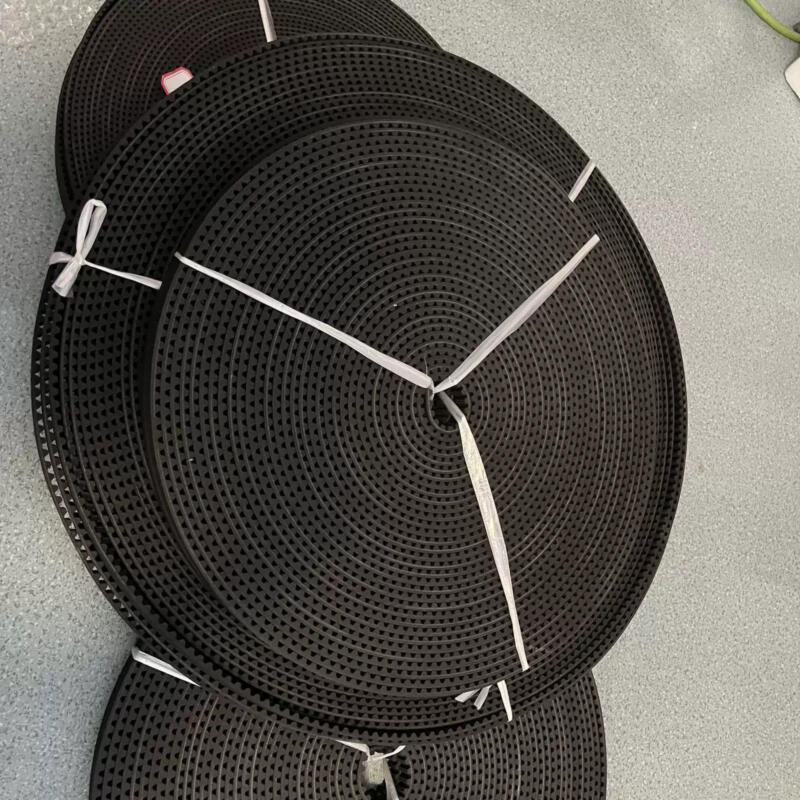

IKSONIC manufactures elevator door timing belts in China and supports wholesale enquiries. This range includes rubber belt options and separate black steel-cord options in multiple model and width combinations. Select the exact belt profile, width, reinforcement and required length for the door operator.

These belts are for elevator door drives only. They are not for elevator hoisting, suspension or load-bearing use. Compatibility with a particular door operator must be checked against its specified belt and pulley requirements.

Specifications / Models

Choose from 35 belt options: 17 rubber options and 18 black steel-cord options. Widths are in millimetres (mm); ordered length is in metres (m). Confirm the cut length and order quantity with us.

Rubber Belt Options

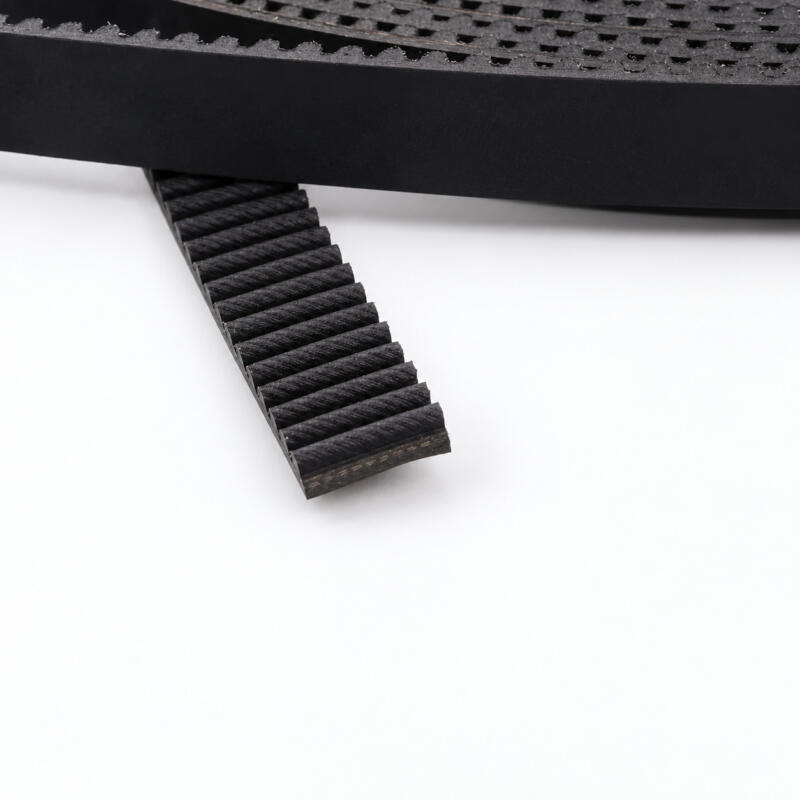

Select the exact HTD, STD or RPP profile shown for your chosen option. The illustrated rubber-belt construction uses a chloroprene rubber body, fiberglass tension cords and nylon tooth facing. Confirm this construction for your selected option; it does not apply to the separate steel-cord belt range.

Model / Profile	Belt Width	Material	Length Unit
L075	19 mm	Rubber	1 m ordering unit
3M	10 mm	Rubber	1 m ordering unit
3M	15 mm	Rubber	1 m ordering unit
3M	20 mm	Rubber	1 m ordering unit
HTD 5M	12 mm	Rubber	1 m ordering unit
STD S5M	12 mm	Rubber	1 m ordering unit
HTD 5M	15 mm	Rubber	1 m ordering unit
STD S5M	15 mm	Rubber	1 m ordering unit
HTD 5M	20 mm	Rubber	1 m ordering unit
HTD 5M	25 mm	Rubber	1 m ordering unit
HTD 8M	12 mm	Rubber	1 m ordering unit
STD S8M	12 mm	Rubber	1 m ordering unit
STD S8M	15 mm	Rubber	1 m ordering unit
HTD 8M	15 mm	Rubber	1 m ordering unit
HTD 8M	20 mm	Rubber	1 m ordering unit
STD S8M	20 mm	Rubber	1 m ordering unit
RPP 8M	15 mm	Rubber	1 m ordering unit

Black Steel-Cord Belt Options

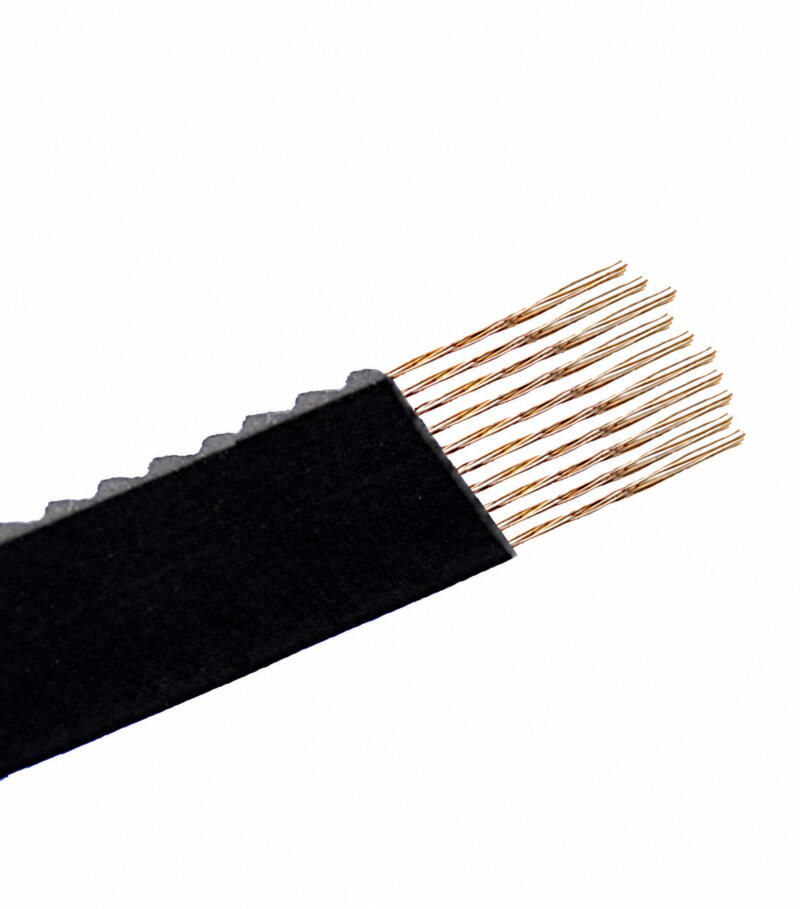

These black belts use steel-cord reinforcement. Specify the required belt-body material and confirm the exact tooth profile before ordering. Use each model designation as shown in the table; do not assume an additional HTD, STD or RPP profile designation.

Model	Belt Width	Reinforcement / Colour	Length Unit
5M	12 mm	Steel-cord reinforcement; black belt	Metres (m); order unit and minimum to confirm*
S5M	12 mm	Steel-cord reinforcement; black belt	1 m ordering unit
S5M	15 mm	Steel-cord reinforcement; black belt	1 m ordering unit
5M	15 mm	Steel-cord reinforcement; black belt	1 m ordering unit
5M	20 mm	Steel-cord reinforcement; black belt	1 m ordering unit
5M	25 mm	Steel-cord reinforcement; black belt	1 m ordering unit
5M	30 mm	Steel-cord reinforcement; black belt	1 m ordering unit
S8M	12 mm	Steel-cord reinforcement; black belt	1 m ordering unit
8M	12 mm	Steel-cord reinforcement; black belt	1 m ordering unit
8M	15 mm	Steel-cord reinforcement; black belt	1 m ordering unit
S8M	15 mm	Steel-cord reinforcement; black belt	1 m ordering unit
8M	20 mm	Steel-cord reinforcement; black belt	1 m ordering unit
8M	25 mm	Steel-cord reinforcement; black belt	1 m ordering unit
8M	30 mm	Steel-cord reinforcement; black belt	1 m ordering unit
3M	15 mm	Steel-cord reinforcement; black belt	1 m ordering unit
3M	20 mm	Steel-cord reinforcement; black belt	1 m ordering unit
3M	10 mm	Steel-cord reinforcement; black belt	1 m ordering unit
L075	19 mm	Steel-cord reinforcement; black belt	1 m ordering unit

*Order-unit clarification: For the black steel-cord 5M, 12 mm option, confirm the 1 m ordering unit, required cut lengths and whether a 5 m minimum applies to your order. Confirm minimum quantities separately for other options.

Rubber-Belt Reference Dimensions

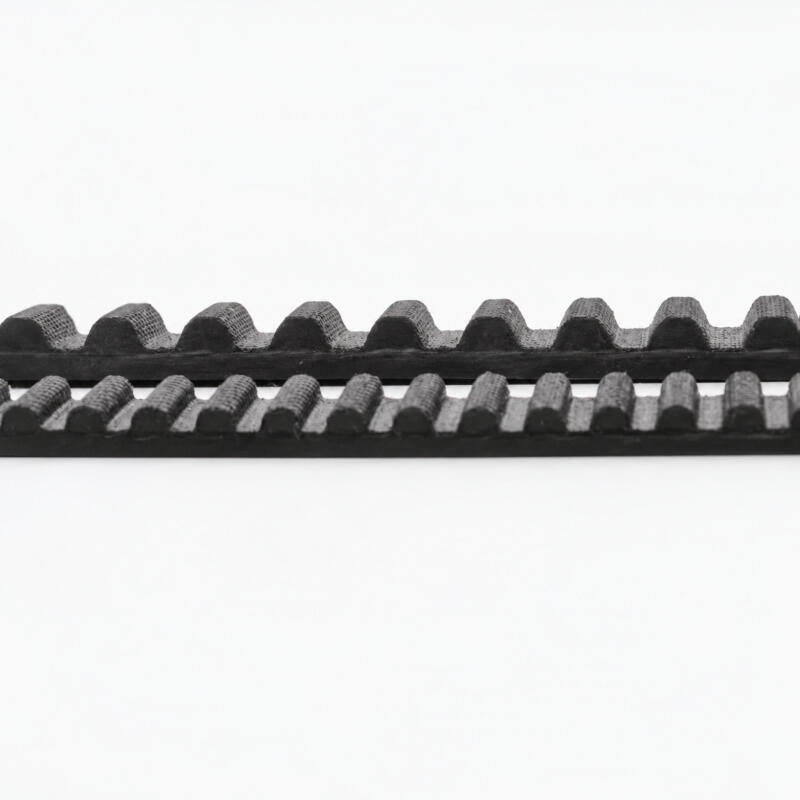

The following reference dimensions apply to the rubber-belt profiles shown. Do not apply these values to the black steel-cord options or the RPP 8M option without model-specific confirmation. Match the selected belt to the actual pulley before ordering.

Rubber-Belt Profile	Tooth Pitch	Tooth Height	Overall Belt Thickness
5M	5 mm	2.06 mm	3.8 mm
S5M	5 mm	1.91 mm	3.4 mm
8M	8 mm	3.36 mm	6 mm
S8M	8 mm	3.05 mm	5.3 mm

Confirm tooth pitch, tooth height and overall thickness with us for 3M, L075 or RPP 8M. The L075 options have 19 mm width; no conversion to another nominal width is implied.

Information for a Wholesale Enquiry

• Exact model and any specified HTD, STD or RPP designation.
• Rubber or black steel-cord option, required width in mm, and required length in m.
• Number of pieces, requested cut lengths and total length.
• Door-operator model, existing belt markings, pulley details and relevant measurements for compatibility checking.

For other models, please provide your required profile, construction and dimensions.

Contact IKSONIC with your required model, width and length for a wholesale enquiry. You can also browse our belts category.

Worldwide Delivery

Manufactured in China and shipped worldwide. For orders suitable for international express, delivery typically takes 3–7 days after dispatch, excluding production and order preparation. Transit times vary by destination and customs clearance. Confirm the shipping method and estimated transit time for your order.
