Red Rubber Timing Belts for Vertical Packaging Machines
IKSONIC manufactures red rubber timing belts for film pulling on vertical packaging machines, with integrated vulcanized construction. Choose from 45 model-specific options with widths, tooth counts and total thicknesses as detailed in the specification table.
Confirm 300H specifications and T10-560 or 240L circumferences before ordering. Manufactured in China and shipped worldwide.
- Description
- Contact Us
Description
Red Rubber Timing Belts for Vertical Packaging Machines
IKSONIC manufactures red rubber timing belts for the film-pulling systems of vertical packaging machines. The range includes T10, L, H, MXL, 3M, S8M and 5M model designations, with widths and other stated specifications detailed below. Contact IKSONIC for wholesale inquiries based on your machine’s existing belt specification.
Product Features
- Red rubber surface for packaging-machine film-pulling applications.
- Integrated vulcanized construction.
- Widths range from 12 mm to 35 mm; the available width depends on the model.
- Selected options specify total belt thickness. These values are not the thickness of the red rubber layer alone.
- Additional specifications can be discussed by inquiry.
Specifications / Models
Compare the 45 model options below. For 300H, contact us to confirm the specification before ordering. “Confirm” marks a dimension to specify for the selected option before ordering. Do not infer belt length, tooth count or thickness from a model code, or apply a thickness value from one option to another.
| Model | Width (mm) | Tooth Count | Total Thickness (mm) | Construction |
|---|---|---|---|---|
| T10-530 | 17 | 53 | Confirm | Integrated vulcanized |
| T10-530 | 25 | 53 | Confirm | Integrated vulcanized |
| T10-560 | 17 | 56 | Confirm | Integrated vulcanized |
| T10-560 | 25 | 56 | Confirm | Integrated vulcanized |
| 240L | 17 | 64 | Confirm | Integrated vulcanized |
| 240L | 25 | 64 | Confirm | Integrated vulcanized |
| 270L | 25 | 72 | Confirm | Integrated vulcanized |
| 255L | 35 | 68 | Confirm | Integrated vulcanized |
| 300L | 25 | 80 | Confirm | Integrated vulcanized |
| 150MXL | 30 | 150 | Confirm | Integrated vulcanized |
| 318-3M | 30 | Confirm | 6 | Integrated vulcanized |
| S8M760 | 25 | Confirm | 12 | Integrated vulcanized |
| T10-600 | 25 | 60 | Confirm | Integrated vulcanized |
| T10-600 | 30 | 60 | Confirm | Integrated vulcanized |
| T10-600 | 35 | 60 | Confirm | Integrated vulcanized |
| T10-610 | 25 | 61 | Confirm | Integrated vulcanized |
| T10-610 | 30 | 61 | Confirm | Integrated vulcanized |
| T10-610 | 35 | 61 | Confirm | Integrated vulcanized |
| T10-630 | 25 | 63 | Confirm | Integrated vulcanized |
| T10-630 | 30 | 63 | Confirm | Integrated vulcanized |
| T10-630 | 35 | 63 | Confirm | Integrated vulcanized |
| T10-720 | 25 | 72 | Confirm | Integrated vulcanized |
| T10-720 | 30 | 72 | Confirm | Integrated vulcanized |
| T10-730 | 25 | 73 | Confirm | Integrated vulcanized |
| T10-730 | 30 | 73 | Confirm | Integrated vulcanized |
| 630H | 30 | 126 | Confirm | Integrated vulcanized |
| 540H | 30 | 108 | Confirm | Integrated vulcanized |
| 1875-5M | 20 | Confirm | Confirm | Integrated vulcanized |
| 1875-5M | 30 | Confirm | Confirm | Integrated vulcanized |
| 143L | 20 | 38 | Confirm | Integrated vulcanized |
| 150L | 20 | 40 | 14 | Integrated vulcanized |
| 165L | 20 | 44 | 12 | Integrated vulcanized |
| 180L | 12 | 48 | Confirm | Integrated vulcanized |
| 187L | 19 | 50 | 10 | Integrated vulcanized |
| 187L | 19 | 50 | 12 | Integrated vulcanized |
| 217L | 19 | 58 | Confirm | Integrated vulcanized |
| 217L | 25 | 58 | Confirm | Integrated vulcanized |
| 217L | 19 | 58 | 12 | Integrated vulcanized |
| 210L | 20 | 56 | Confirm | Integrated vulcanized |
| 210L | 25 | 56 | Confirm | Integrated vulcanized |
| 225L | 25 | 60 | Confirm | Integrated vulcanized |
| 225L | 20 | 60 | Confirm | Integrated vulcanized |
| 240L | 25 | 64 | 12 | Integrated vulcanized |
| 270L | 25 | 72 | 12 | Integrated vulcanized |
| 300L | 25 | 80 | 12 | Integrated vulcanized |
For either 300H option, contact us to confirm the complete specification before ordering.
For additional specifications, send us your required dimensions and machine details.
Additional Circumference References
Use the circumference references below for model selection. Confirm the T10-560 and 240L circumferences with us before ordering; do not calculate them from the model codes.
| Model | Circumference (mm) | Specification Status |
|---|---|---|
| T10-560 | Requires verification | Confirm exact circumference before ordering |
| T10-530 | 530 | Circumference reference |
| 225L | 571.5 | Circumference reference |
| 240L | Requires verification | Confirm exact circumference before ordering |
| 255L | 647.7 | Circumference reference |
| 270L | 685.8 | Circumference reference |
| 300L | 762 | Circumference reference |
Material and Construction
These thickened red rubber belts use integrated vulcanized construction. Confirm the rubber compound, reinforcement and thickness for the selected model. Where total thickness is shown, it applies only to that specific table row.

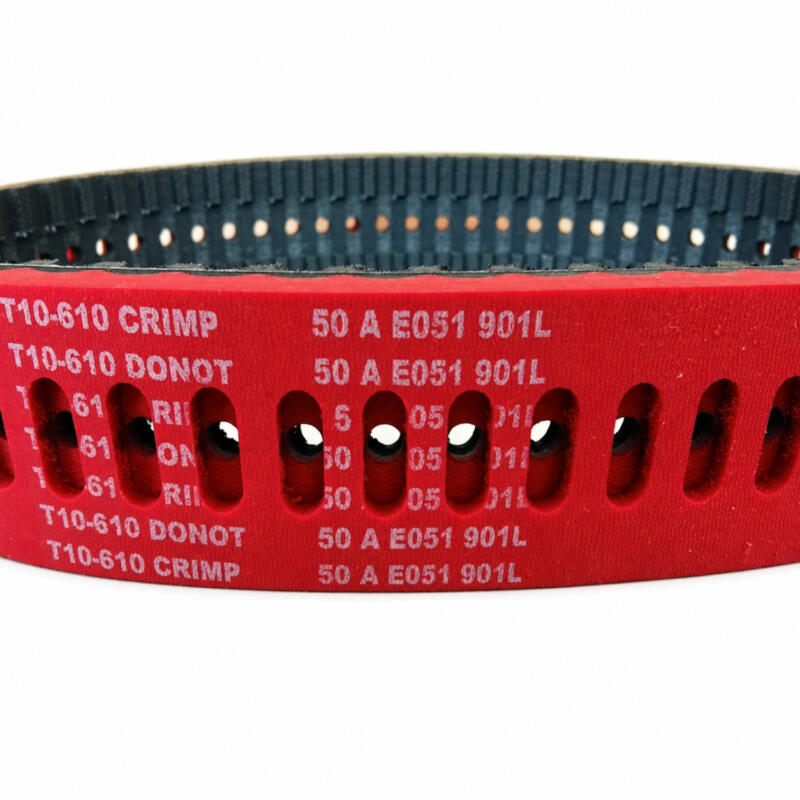

Confirm the required color, surface finish and any holes or slots separately for your selected belt.
Applications and Selection
These belts are designed for film pulling on vertical packaging machines. Match the replacement to the machine’s required belt model, width, tooth count and total thickness, as applicable. Model designation alone does not establish compatibility, especially when a model has multiple dimensional options.
For a wholesale inquiry, provide the existing belt marking, required dimensions, quantity and photographs of the belt and pulley arrangement. Please include all required dimensions and confirm the final specification before ordering.
Contact IKSONIC
Explore the IKSONIC belt product category or contact IKSONIC for model selection and wholesale inquiries.
Worldwide Delivery
Manufactured in China and shipped worldwide. For orders suitable for international express, delivery typically takes 3–7 days after dispatch, excluding production and order preparation. Transit times vary by destination and customs clearance. Confirm the shipping method and estimated transit time for your order.
