L Type PU Timing Belt, Seamless Steel-Wire Polyurethane

Description

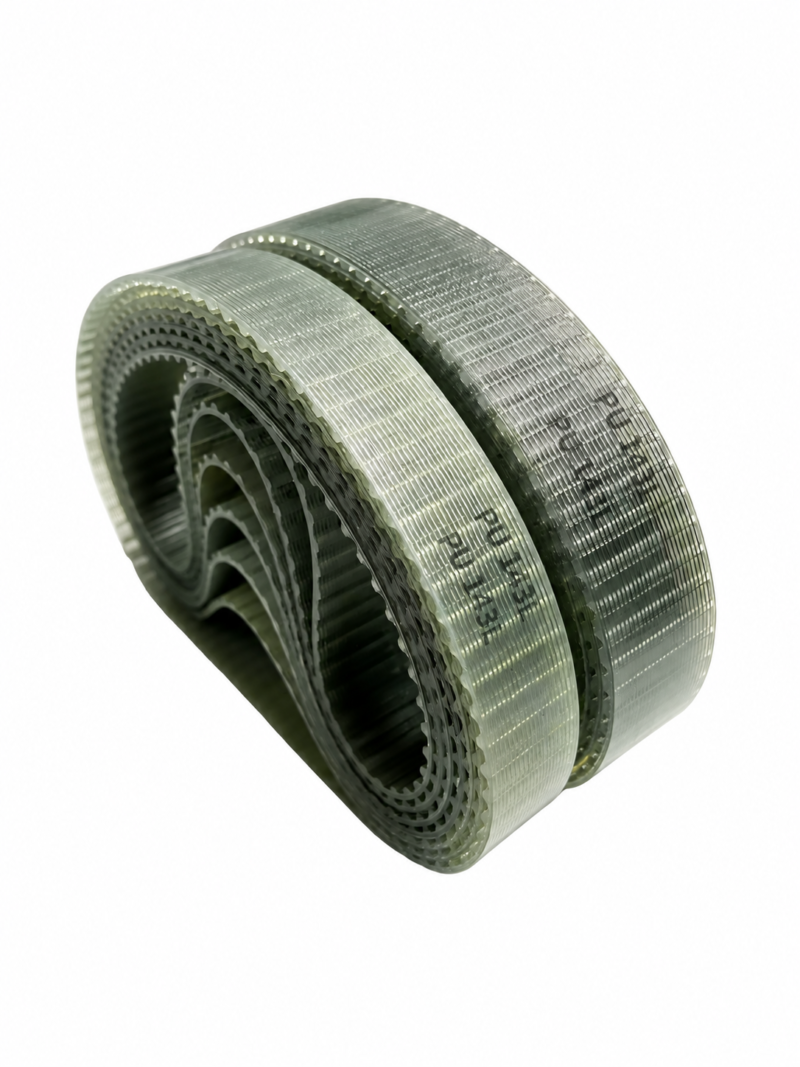

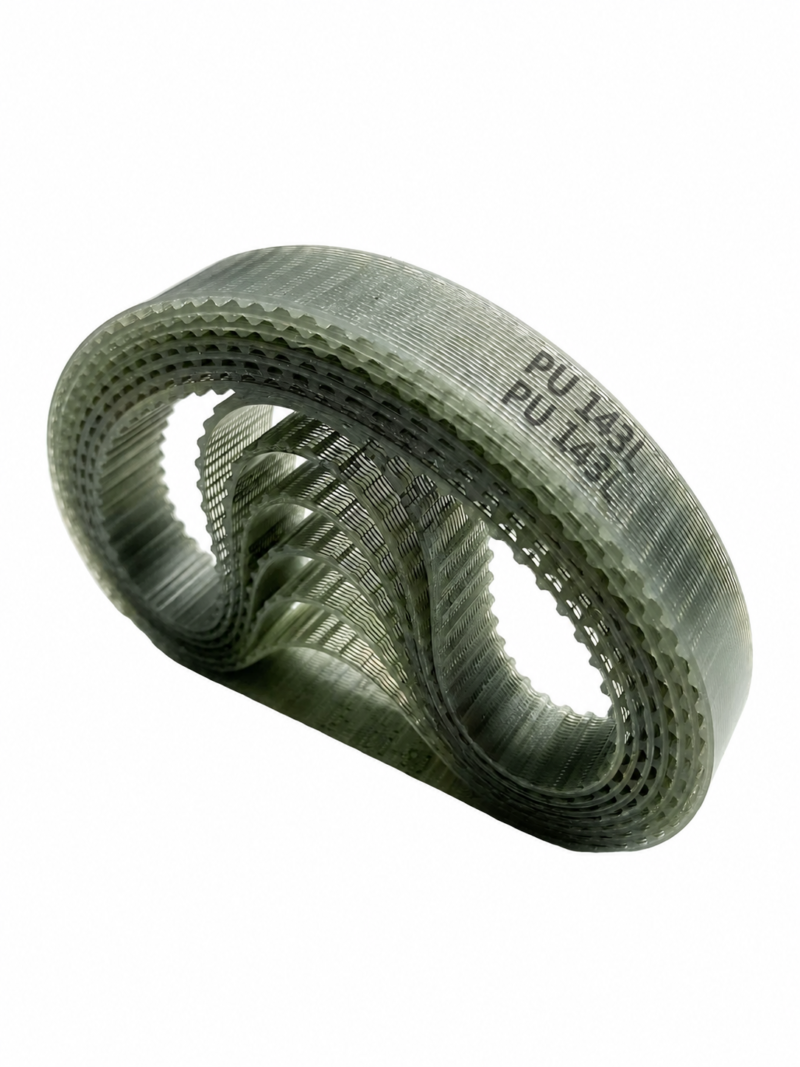

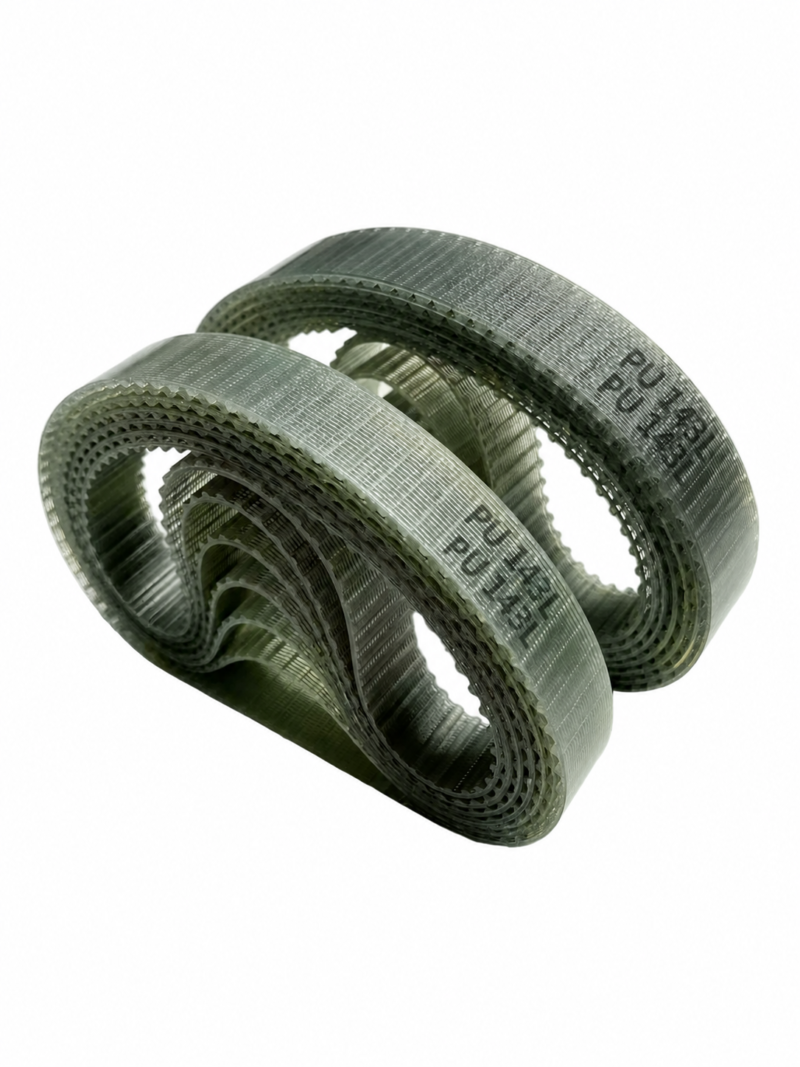

L Type PU Timing Belt with Steel-Wire Reinforcement

The IKSONIC L type PU timing belt combines a polyurethane body with steel-wire reinforcement, seamless endless construction and trapezoidal teeth. Choose a listed model and belt width, then confirm the dimensions and pulley compatibility for your application.

Construction and Width Options

• Belt material: polyurethane (PU).
• Reinforcement: steel wire.
• Construction: seamless endless belt.
• Tooth form: L type trapezoidal teeth.
• Listed widths: 10, 15, 20, 25, 30, 35, 40 and 50 mm.
• Width selection: specify the required finished width when requesting a cut-to-width belt.

Specifications / Models

The table lists 58 model options and the widths, tooth counts and colors recorded for each model. Widths are in millimetres. Details marked Not specified require confirmation before ordering. Model codes are retained as product identifiers; no belt length, pitch dimension or tooth count is inferred from them.

Model	Listed Widths (mm)	Tooth Count	Listed Color
109L	10, 15, 20, 25, 30, 35, 40, 50	29	Not specified
110L	10, 15, 20, 25, 30, 35, 40, 50	29	Not specified
113L	10, 15, 20, 25, 30, 35, 40, 50	30	Not specified
124L	10, 15, 20, 25, 30, 35, 40, 50	33	Not specified
125.5L	10, 15, 20, 25, 30, 35, 40, 50	34	Not specified
135L	10, 15, 20, 25, 30, 35, 40, 50	36	Not specified
143L	10, 15, 20, 25, 30, 35, 40, 50	38	Not specified
150L	10, 15, 20, 25, 30, 35, 40, 50	40	Not specified
154L	10, 15, 20, 25, 30, 35, 40, 50	41	Not specified
158L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
165L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
173L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
180L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
187L	10, 15, 20, 25, 30, 35, 40, 50	50	Not specified
189L	10, 15, 20, 25, 30, 35, 40, 50	51	Not specified
195L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
203L	10, 15, 20, 25, 30, 35, 40, 50	54	Not specified
210L	10, 15, 20, 25, 30, 35, 40, 50	56	Not specified
215L	10, 15, 20, 25, 30, 35, 40, 50	57	Not specified
217L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Grey
225L	10, 15, 20, 25, 30, 35, 40, 50	60	Not specified
229L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
240L	10, 15, 20, 25, 30, 35, 40, 50	64	Not specified
244L	10, 15, 20, 25, 30, 35, 40, 50	65	Not specified
248L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
255L	10, 15, 20, 25, 30, 35, 40, 50	68	Not specified
259L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
263L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
270L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
280L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
285L	10, 15, 20, 25, 30, 35, 40, 50	76	Not specified
300L	10, 15, 20, 25, 30, 35, 40, 50	80	Not specified
304L	10, 15, 20, 25, 30, 35, 40, 50	81	Not specified
315L	10, 15, 20, 25, 30, 35, 40, 50	84	Not specified
319L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
322L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
330L	10, 15, 20, 25, 30, 35, 40, 50	88	Not specified
334L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	White
338L	10, 15, 20, 25, 30, 35, 40, 50	90	Not specified
341L	10, 15, 20, 25, 30, 35, 40, 50	91	Not specified
345L	10, 15, 20, 25, 30, 35, 40, 50	92	Not specified
360L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
367L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
371L	10, 15, 20, 25, 30, 35, 40, 50	99	Not specified
375L	10, 15, 20, 25, 30, 35, 40, 50	100	Not specified
382L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
390L	10, 15, 20, 25, 30, 35, 40, 50	104	Not specified
420L	10, 15, 20, 25, 30, 35, 40, 50	112	Not specified
450L	10, 15, 20, 25, 30, 35, 40, 50	120	Not specified
495L	10, 15, 20, 25, 30, 35, 40, 50	132	Not specified
510L	10, 15, 20, 25, 30, 35, 40, 50	136	Not specified
525L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
540L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
600L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
720L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
750L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
757L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified
765L	10, 15, 20, 25, 30, 35, 40, 50	Not specified	Not specified

Before ordering, confirm the selected model, finished width, tooth count, required belt dimensions and matching pulley profile. For an unlisted width or model, request confirmation rather than assuming availability.

Wholesale Supply from China

IKSONIC is your China supplier and manufacturer contact for L type polyurethane timing belt wholesale inquiries. Provide the model, belt width, quantity and operating conditions so the requested specification can be reviewed. Include an existing belt marking or dimensional drawing when available.

Frequently Asked Questions

What is the belt made from?

This L type timing belt has a polyurethane body with steel-wire reinforcement.

Is this an endless or open-ended belt?

This product is a seamless endless belt with L type trapezoidal teeth, rather than an open-ended belt.

Which belt widths are listed?

The listed widths are 10, 15, 20, 25, 30, 35, 40 and 50 mm. Each model’s recorded width options are shown in the Specifications / Models table.

Can I select a belt using its model code alone?

Confirm the full specification before ordering. Check the model, width, tooth count, belt dimensions and pulley profile; the model code alone is not a substitute for dimensional confirmation.

What information is needed for a wholesale inquiry?

Send the model, required width, quantity and application details. For replacement belts, include the existing marking and measured dimensions where possible.
