Grey S8M Seamless PU Timing Belt with Steel Wire

Description

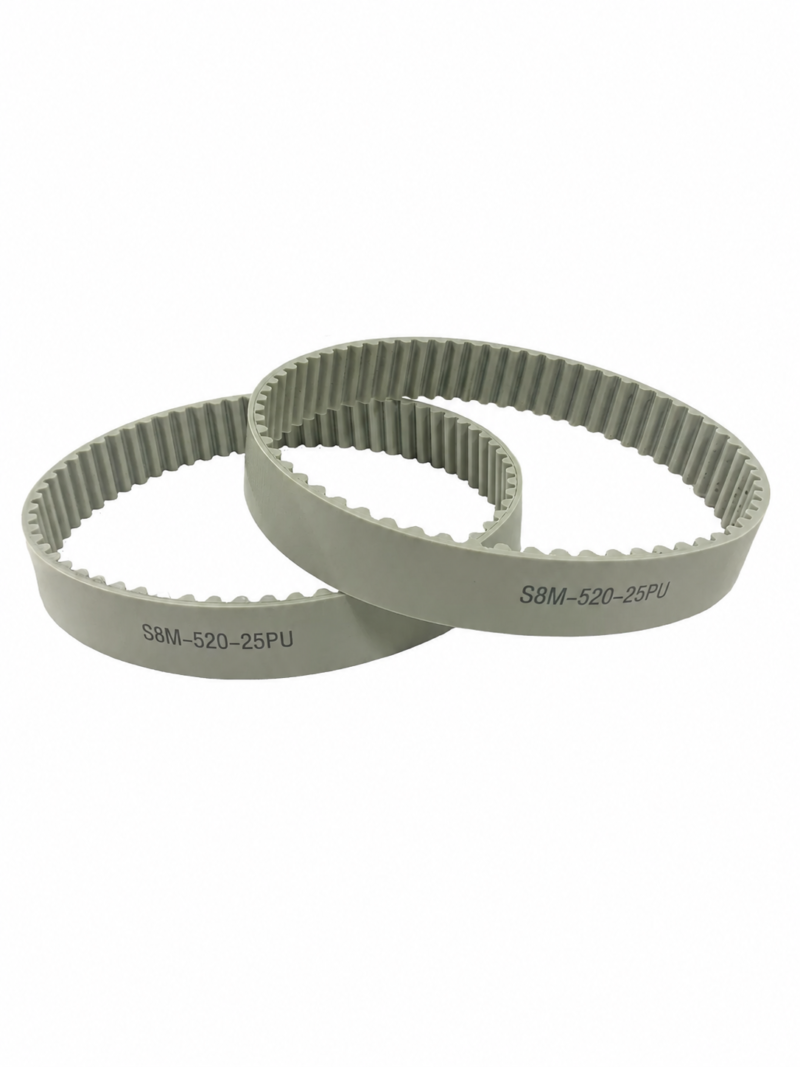

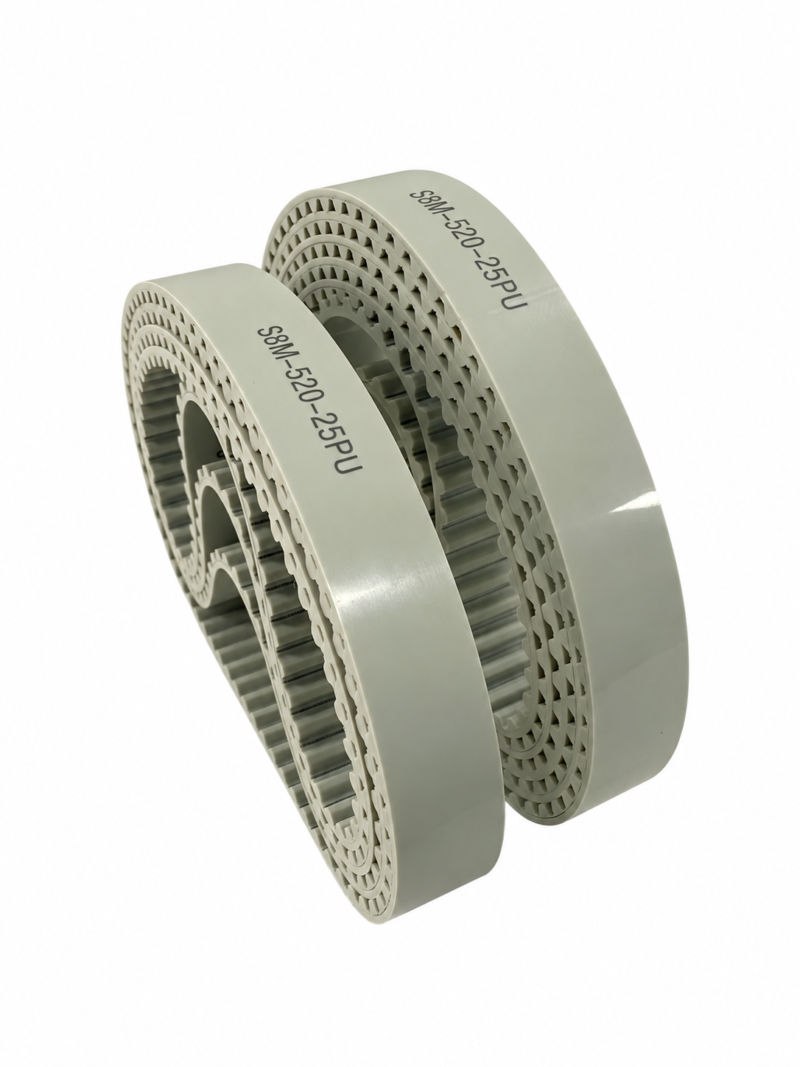

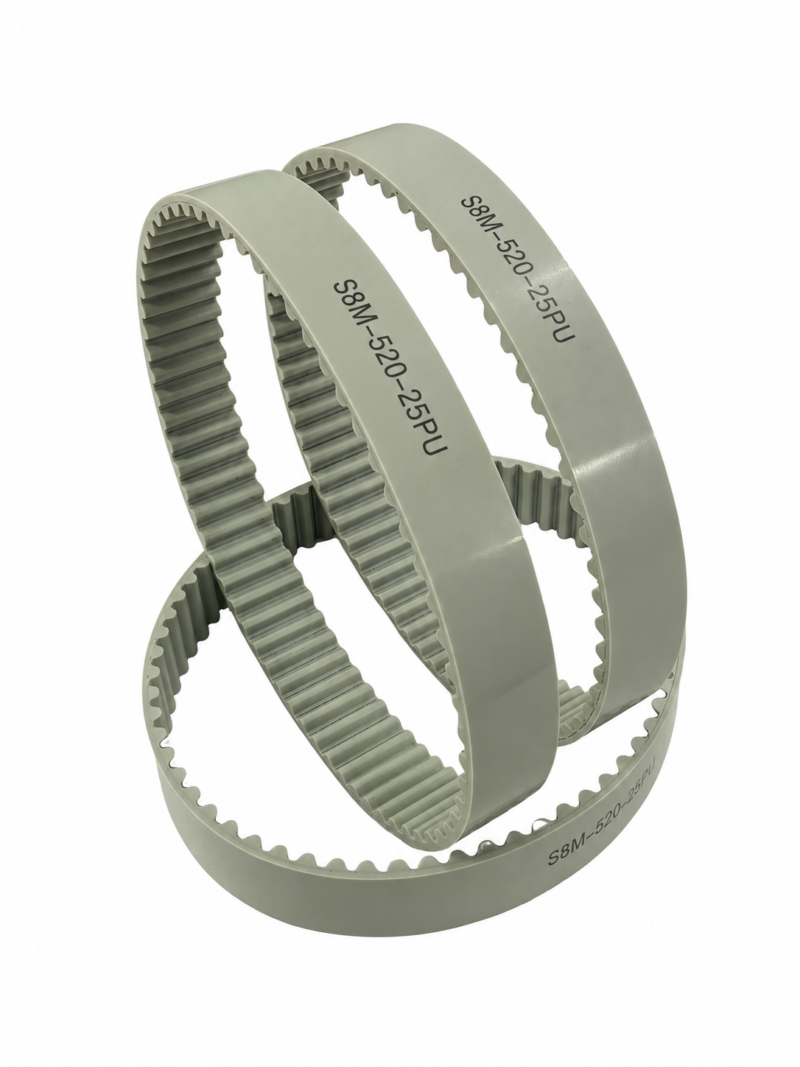

S8M Seamless PU Timing Belt with Steel Wire

This grey S8M seamless PU timing belt combines a polyurethane body, steel-wire reinforcement and a curved-tooth profile in an endless belt. IKSONIC is a China-based supplier for buyers specifying S8M timing belts. Select the model code and belt width below, then confirm the exact specification for your machine before ordering.

Product Overview

• Series: S8M timing belt.
• Belt material: Polyurethane (PU).
• Reinforcement: Steel wire.
• Construction: Seamless endless belt.
• Tooth profile: Curved tooth.
• Product color: Grey.
• Model selection: 20 listed model codes.
• Width selection: 4, 6, 10, 15, 20, 25, 30, 40 and 50 mm.

Specifications and Models

The table lists all 20 S8M model codes alongside the nine published width options. Model designations are reproduced as codes, not converted into belt lengths or tooth counts. Confirm availability of your chosen model and width combination when requesting a quotation.

S8M timing belt models and listed width options

Model code	Listed width options (mm)
S8M-432	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-440	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-448	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-464	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-472	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-480	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-520	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-528	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-560	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-576	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-584	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-616	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-632	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-664	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-760	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-848	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-880	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-920	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-1200	4, 6, 10, 15, 20, 25, 30, 40, 50
S8M-1344	4, 6, 10, 15, 20, 25, 30, 40, 50

If you need a specification that is not shown, contact IKSONIC with the required model and width. Unlisted specifications require confirmation before ordering.

Selecting Your S8M Belt

Start with the complete marking on the existing belt or the specification provided by the machine manufacturer. Match the model code and required width rather than selecting a replacement by appearance alone. A grey belt or an S8M marking by itself does not confirm the complete replacement specification.

For a quotation, provide the exact model code, width in millimeters and quantity. Include the machine application and any additional requirements you need confirmed. If the marking is unclear, a readable photograph of the existing belt marking can help explain your enquiry. Please confirm belt dimensions and compatibility before placing an order.

Frequently Asked Questions

What material and reinforcement does this belt use?

The belt is described as polyurethane (PU) with steel-wire reinforcement. It has seamless endless construction and a curved-tooth profile.

Which widths are listed?

The nine width choices are 4, 6, 10, 15, 20, 25, 30, 40 and 50 mm. Specify the required width together with the full model code. The model and width must be confirmed as a combination before ordering.

Are the numbers in the model codes belt lengths?

The numbers are presented here as part of the model designation. This page does not assign a length measurement or tooth count to them. If your purchase requires a specified belt length or tooth count, include that requirement in your enquiry for confirmation.

Can I request a different size?

You can enquire about other specifications through our contact page. Provide the required model, width and quantity so the specification can be checked. An enquiry does not confirm that an unlisted size is available.

What should a machine manufacturer include in an enquiry?

Include the full belt model, required width, quantity and the machine or replacement application. If a particular dimension, reinforcement detail or other technical requirement is essential, identify it explicitly rather than relying on the model name alone.

Enquire with IKSONIC

For S8M seamless PU timing belt sourcing from China, contact our team with your model and width selection. We can discuss the specification you need before you order.
