Compact Foam Vacuum Grippers for Robotic Handling

Description

Compact Foam Vacuum Grippers for Robotic Handling

IKSONIC manufactures compact foam vacuum grippers for automated picking and transfer of small, lightweight components. The range includes rectangular foam-contact tools, external-vacuum versions and built-in-vacuum configurations. Select the exact model and vacuum arrangement before matching the gripper to your robot or handling fixture.

IKSONIC manufactures these compact foam vacuum grippers in China and supports wholesale orders. We manufacture custom designs to agreed specifications; please provide your application requirements.

Construction and Application

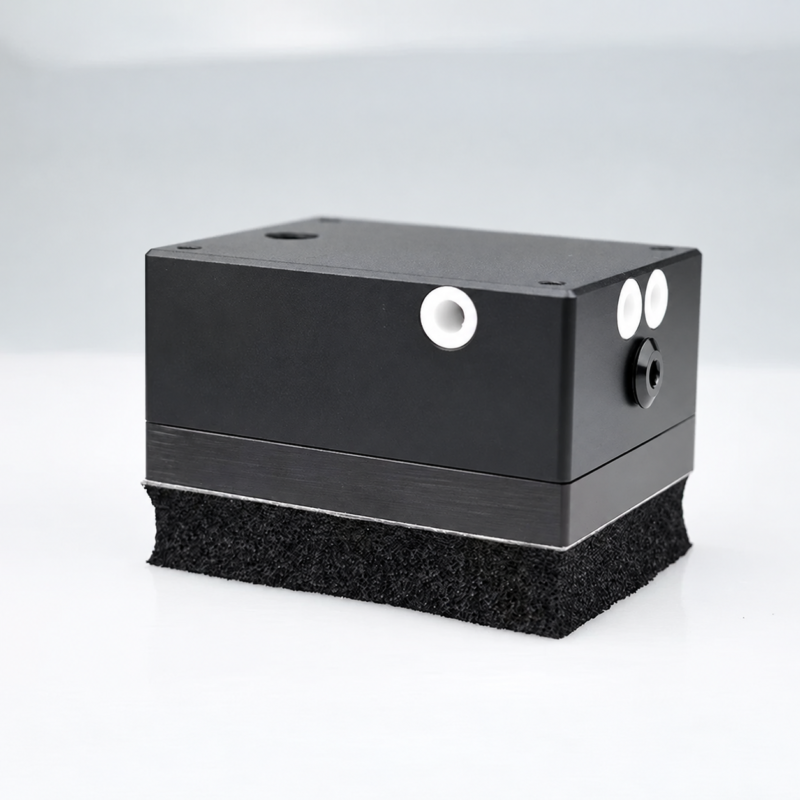

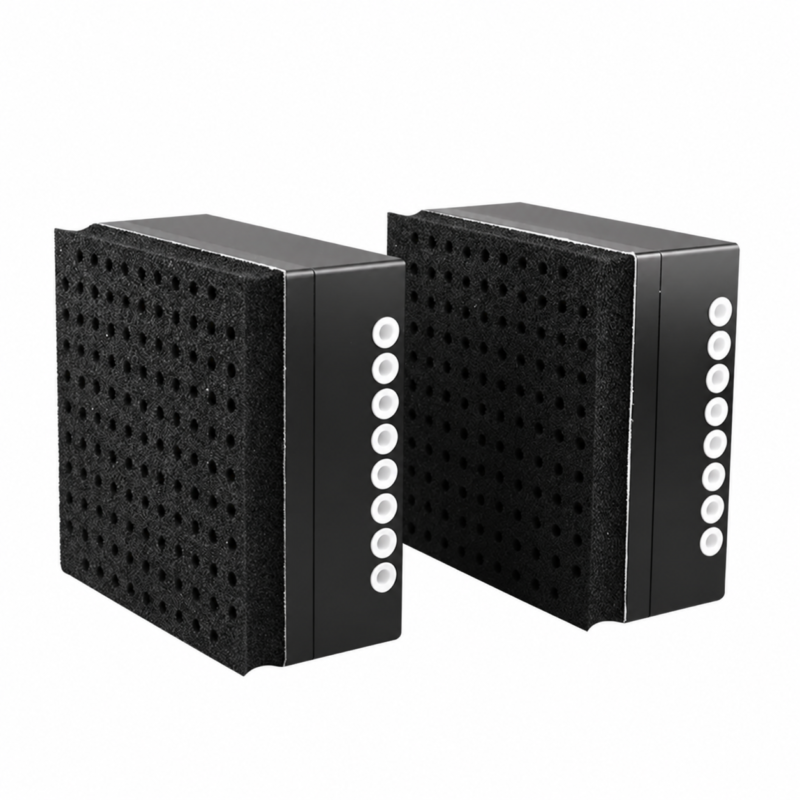

The illustrated construction uses an aluminum-alloy body and an imported foam contact layer. Imported refers to the foam material, not an imported finished gripper. Confirm the foam grade and service requirements for your handling conditions.

The illustrated built-in-vacuum design includes a logic valve and check-valve arrangement. For external-vacuum models, confirm the valve arrangement, vacuum equipment and connections for your selected code.

Application examples include wood, packaging, metal sheets, glass, plastic and carbon-fiber-reinforced plastic workpieces. These are selection examples, not a guarantee for every surface. In particular, porous materials, gaps and uneven contact require application-specific review.

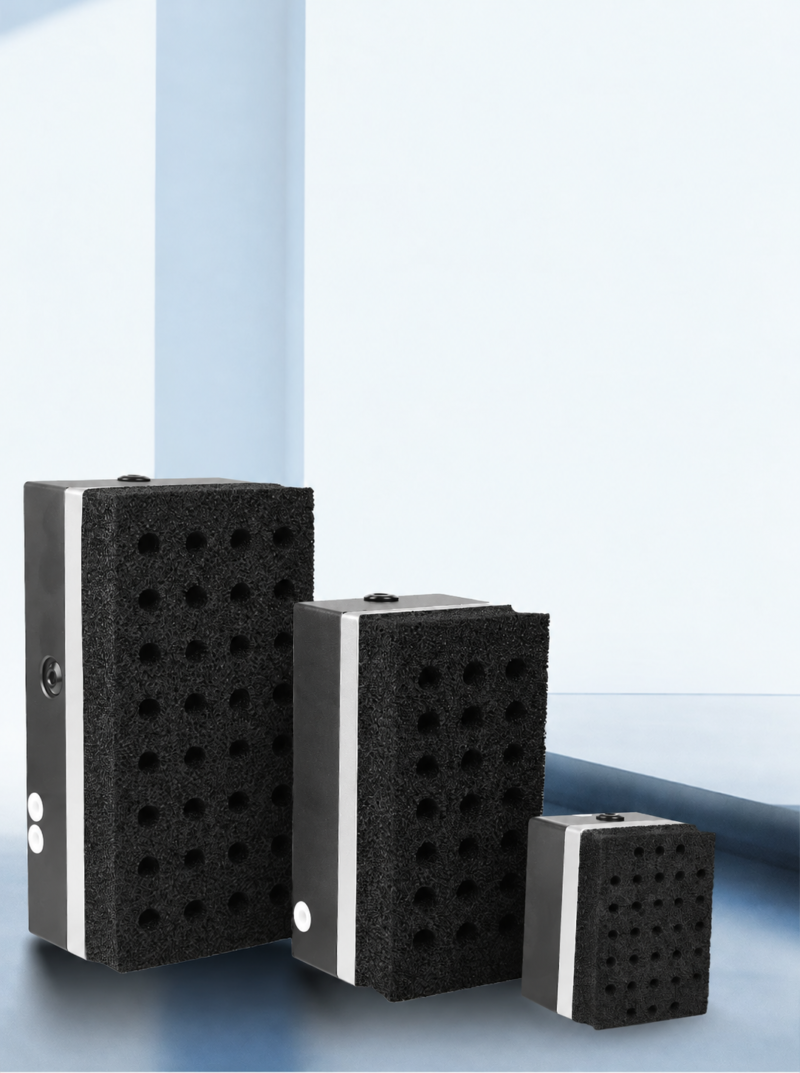

Specifications and Models

The table preserves the selectable model codes exactly. Associated option drawings supply dimensions and connection details below. Their dimensional units are not expressly printed, so the numerical values remain as labeled rather than being assumed to be millimeters. Confirm units and any drawing-label discrepancy before ordering.

Model	Item type	Vacuum configuration
WJH-SVK-40*80-H15	Foam vacuum gripper	External vacuum
WJH-SVK-60*40-H15	Foam vacuum gripper	External vacuum
WJH-SVK-60*80-H10	Foam vacuum gripper	Built-in vacuum
WJH-SVK-60*120-H15	Foam vacuum gripper	Built-in vacuum
WJH-SVK-80*160-H20	Foam vacuum gripper	Built-in vacuum (drawing confirmed)
WJC-SVK-60*415-H20	Foam vacuum gripper	Built-in vacuum
WJC-SVK-60*500-H20	Foam vacuum gripper	Built-in vacuum
WJH-SW-25*150-H5	Foam vacuum gripper	Built-in vacuum
PNP/NPN pressure gauge accessory	Pressure monitoring accessory	Not a gripper

Numeric Drawing Callouts (Unit Not Stated—Confirm)

These are drawing references, not interchangeable specifications. For the 40*80 option, the drawing prefix is WJC rather than WJH. For the 60*120 option, the drawing suffix is H10 rather than H15. For the 25*150 option, the drawing series is WJC-SVK rather than WJH-SW. Ask for confirmation of those three model matches.

Drawing model label	Plan dimensions as labeled	Height as labeled	Mounting spacing as labeled
WJC-SVK-40*80-H15	80 × 40	45	70 × 30
WJH-SVK-60*40-H15	60.00 × 40.00	40.00	50.00 × 30.00
WJH-SVK-60*80-H10	80.00 × 60.00	50.00	68.00 × 48.00
WJH-SVK-60*120-H10	120.00 × 60.00	53.20	108.00 × 46.00
WJH-SVK-80*160-H20	160.00 × 80.00	Body 39.00; foam 20.00	140.00 × 60.00
WJC-SVK-60*415-H20	Longitudinal span 415; transverse span 60	119 including silencer	Slot spacing 35
WJC-SVK-60*500-H20	Longitudinal span 500; transverse span 60	119 including silencer	Slot spacing 35
WJC-SVK-25*150-H5	150 × 25	30 excluding projecting fittings	Top 140 × 18; side hole pitch 60, end offset 45, top offset 10

The 415 and 500 longitudinal spans do not include the left end module in their respective drawings. Their height of 119 includes the silencer. For the 80*160 drawing, body height 39.00 and foam thickness 20.00 appear separately; neither should be confused with a verified overall installation height.

Drawing Connection and Mounting Details

Drawing model label	Mounting threads	Connection labels
WJC-SVK-40*80-H15	4 × M4	G1/8 inlet
WJH-SVK-60*40-H15	4 × M4	G1/8 inlet
WJH-SVK-60*80-H10	4 × M4	G1/8 inlet; additional G1/8 labeled mounting thread
WJH-SVK-60*120-H10	4 × M5	G1/8 top and side inlets; G3/8 mounting thread; silenced exhaust
WJH-SVK-80*160-H20	4 × M6	G1/8 top/side inlets and vacuum test port; G3/8 mounting thread; silenced exhaust
WJC-SVK-60*415-H20	M5 sliding-slot nuts	G1/8 inlet; M5 and G1/8 test ports; M5 and G1/8 blow-off ports
WJC-SVK-60*500-H20	M5 sliding-slot nuts	G1/8 inlet; M5 and G1/8 test ports; M5 and G1/8 blow-off ports
WJC-SVK-25*150-H5	4 × M4 top; 2 × M5 side	G1/8 inlet and test port; M5 side inlet

Information Needed for Selection

First, identify the model and whether your installation requires external or built-in vacuum. Next, provide the workpiece dimensions, material, surface condition, weight and orientation. Include robot mounting details, available space, motion requirements and vacuum or compressed-air arrangements. Finally, confirm the pressure-monitoring accessory separately, including PNP or NPN output, electrical supply, connector and measurement range.

Frequently Asked Questions

Is a pressure gauge included with every gripper?

The PNP/NPN pressure gauge is a separate accessory option. Confirm the scope of supply rather than assuming that it accompanies each gripper.

Does H15 confirm a 15 mm foam pad?

Do not infer it from the suffix alone. The 80*160 drawing separately labels foam thickness as 20.00, but units and the other models’ suffix definitions still require confirmation.

What is the rated payload?

Payload must be assessed for the selected model and installation. Review the complete vacuum system, workpiece and handling motion before establishing a suitable operating load.

Request a compact foam vacuum gripper quotation from IKSONIC with your preferred code and application requirements.
