Foam Vacuum Suction Cups for Rough Surfaces

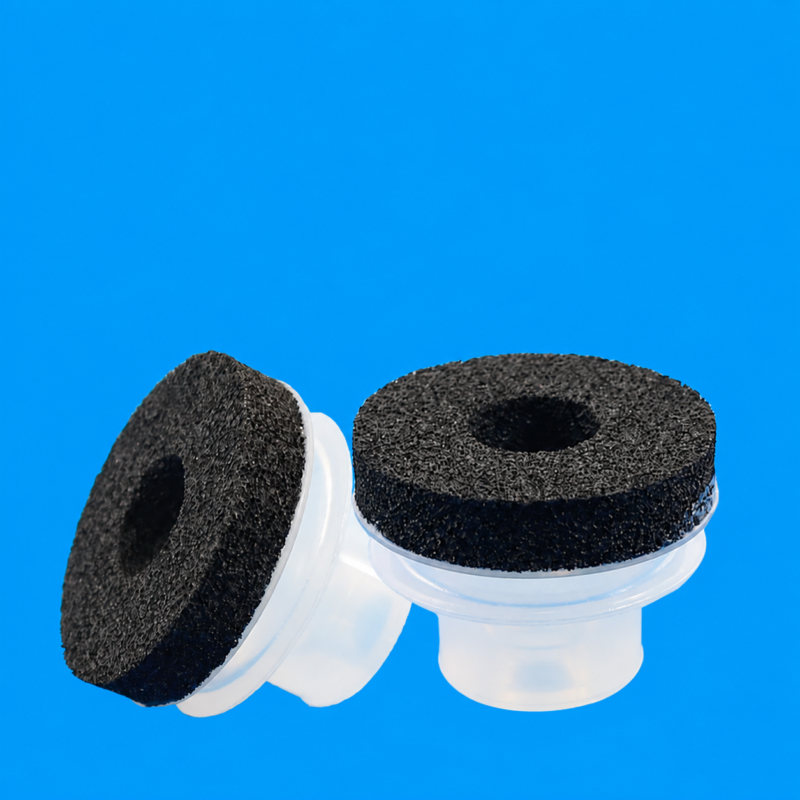

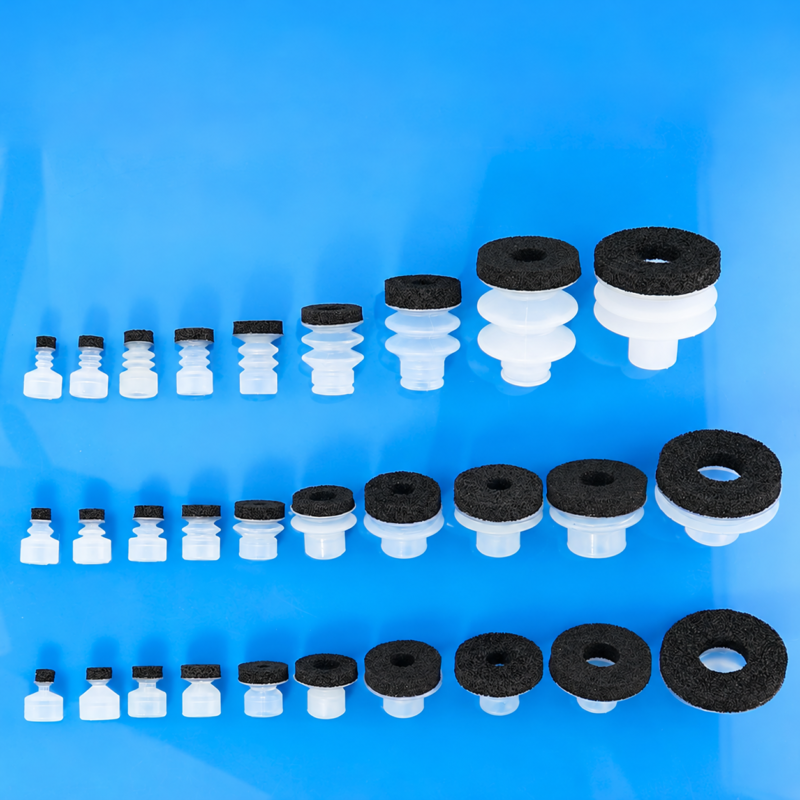

IKSONIC manufactures foam vacuum suction cups for robotic handling of uneven or rough workpiece surfaces. This range combines a white silicone cup body with a black polyurethane foam contact pad. SP, DP and MP designs provide single-, double- and triple-layer cup configurations, respectively, with model-specific dimensions for equipment selection.
IKSONIC manufactures these components in China and supports wholesale orders. Imported silicone refers to the body raw material, not an imported finished suction cup.
Materials and Contact Surface
The high-density polyurethane foam provides a resilient contact layer intended to reduce marking. However, confirm surface marking on your actual workpiece before production use. The black color identifies the foam pad in this product; it does not indicate a black NBR cup body.
Confirm the silicone formulation and operating limits for your temperature, surface and handling cycle. If food-contact, medical or other compliance documentation is required, identify the exact requirement with your inquiry.
Specifications and Models

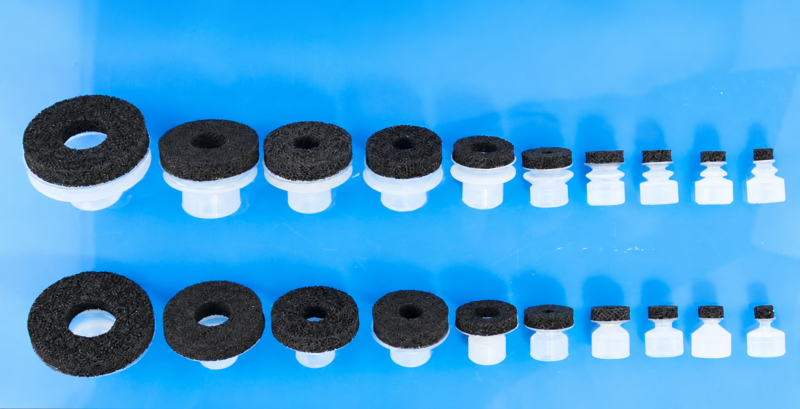

All dimensions below are in millimeters. Body height excludes the foam pad. Foam opening means the central opening in the contact pad, while mounting bore refers to the cup’s connection end. Confirm any dimension marked “Confirm” before ordering; a model number alone does not establish the exact diameter.
SP Single-Layer Foam Cups
| Model | Contact diameter (mm) | Foam opening (mm) | Foam thickness (mm) | Body height, excluding foam (mm) | Mounting bore (mm) | Neck OD (mm) |
|---|---|---|---|---|---|---|
| SP-06 | Confirm | Confirm | Confirm | Confirm | Confirm | Confirm |
| SP-08 | 8 | 2 | 5 | 15 | 8 | 15 |
| SP-10 | 10 | 2 | 5 | 15 | 8 | 15 |
| SP-12 | 12 | 2 | 5 | 15 | 8 | 15 |
| SP-15 | 15 | 3 | 5 | 15 | 8 | 15 |
| SP-20 | 20 | 3 | 5 | 15 | 8 | 15 |
| SP-25 | 25 | 3 | 5 | 15 | 8 | 15 |
| SP-30 | 30 | 3 | 8 | 15 | 8 | 16 |
| SP-35 | 35 | 3 | 8 | 15 | 8 | 16 |
| SP-40 | 40 | 3 | 8 | 15 | 8 | 17 |
| SP-50 | 50 | 3 | 8 | 15 | 8 | 20 |
DP Double-Layer Foam Cups
| Model | Contact diameter (mm) | Foam opening (mm) | Foam thickness (mm) | Body height, excluding foam (mm) | Mounting bore (mm) | Neck OD (mm) |
|---|---|---|---|---|---|---|
| DP-06 | Confirm | Confirm | Confirm | Confirm | Confirm | Confirm |
| DP-08 | 8 | 4 | 5 | 17 | 8 | 15 |
| DP-10 | 10 | 4.5 | 5 | 17 | 8 | 15 |
| DP-12 | 12 | 4.5 | 5 | 17 | 8 | 15 |
| DP-15 | 15 | 7.5 | 5 | 18 | 8 | 15 |
| DP-20 | 20 | 8 | 5 | 18 | 8 | 15 |
| DP-25 | 25 | 10 | 5 | 18 | 8 | 15 |
| DP-30 | 30 | 15.5 | 8 | 20 | 8 | 18 |
| DP-35 | 35 | 15.5 | 8 | 20 | 8 | 18 |
| DP-40 | 40 | 20 | 8 | 22 | 8 | 23 |
| DP-50 | 50 | 28 | 8 | 25 | 8 | 25 |
| DP-60 | Confirm | Confirm | Confirm | Confirm | Confirm | Confirm |
MP Triple-Layer Foam Cups
| Model | Contact diameter (mm) | Foam opening (mm) | Foam thickness (mm) | Body height, excluding foam (mm) | Mounting bore (mm) | Neck OD (mm) |
|---|---|---|---|---|---|---|
| MP-06 | Confirm | Confirm | Confirm | Confirm | Confirm | Confirm |
| MP-08 | 7 | 3.5 | 5 | 20 | 8 | 15 |
| MP-10 | 9 | 5 | 5 | 19.5 | 8 | 15 |
| MP-12 | 12 | 5 | 5 | 21.5 | 8 | 15 |
| MP-15 | 15 | 3 | 5 | 23.5 | 8 | 16 |
| MP-20 | 20 | 3 | 5 | 24 | 8 | 16 |
| MP-25 | 25 | 7.5 | 5 | 25 | 6 | 15 |
| MP-30 | 30 | 16 | 8 | 31 | 7.5 | 17.5 |
| MP-40 | 40 | 19.5 | 8 | Confirm | 7 | 20 |
| MP-50 | 50 | 26 | 8 | 49 | 7 | 20 |
The MP-08 and MP-10 drawings label contact diameters of 7 mm and 9 mm, respectively. These values remain separate from their model names. The mounting bore also varies within the MP series, so do not assume a universal 8 mm connection.
Preparing Your Selection
Send us the series, model and quantity, together with workpiece material, surface texture, weight, orientation and available vacuum. Include fitting dimensions and installation height, and specify whether you need the cup alone or a matching metal fitting.
Frequently Asked Questions
Are all foam pads the same thickness?
No. The specified foam thickness is 5 mm or 8 mm depending on the model. Refer to the individual model row rather than applying one value to the complete range.
Do the black pads mean NBR construction?
No. These models use black polyurethane foam on silicone bodies.
Can a theoretical suction table determine the safe payload?
No. Evaluate the actual vacuum, leakage, workpiece, motion and installation. This product does not provide a tested model-specific lifting rating.
Ask IKSONIC for a foam vacuum suction cup quotation with your model list and application details.
Worldwide Delivery
Manufactured in China and shipped worldwide. For orders suitable for international express, delivery typically takes 3–7 days after dispatch, excluding production and order preparation. Transit times vary by destination and customs clearance. Confirm the shipping method and estimated transit time for your order.
