PBK Vacuum Suction Cup Assemblies with Threaded Holders
IKSONIC manufactures PBK vacuum suction cup assemblies with threaded nickel-plated copper holders. Choose white silicone or black NBR and confirm the model-specific mounting dimensions with IKSONIC.
- Description
- Contact Us
Description
PBK Vacuum Suction Cup Assemblies

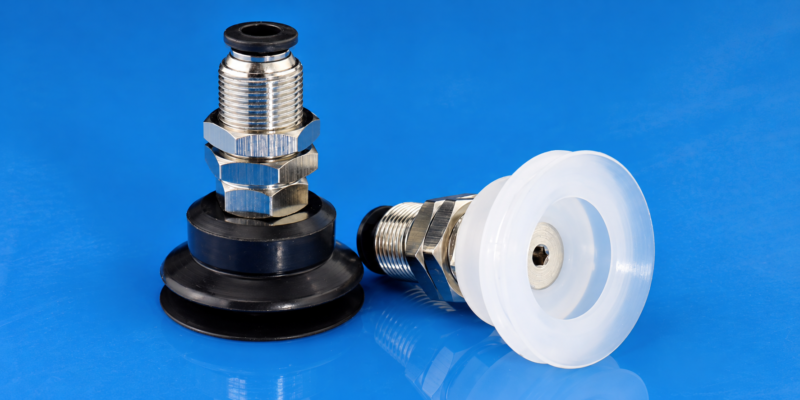

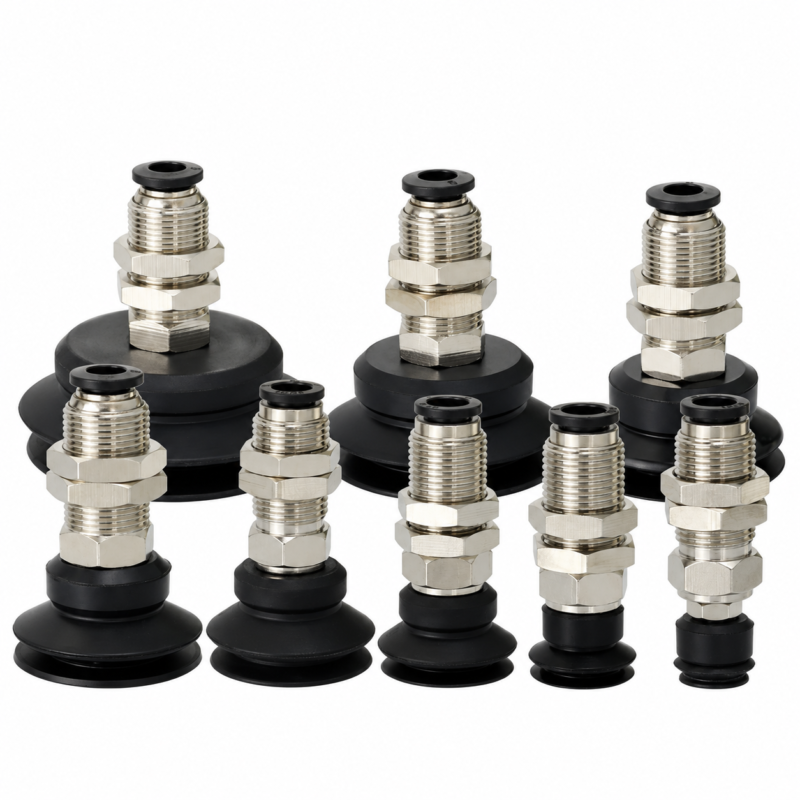

IKSONIC manufactures PBK vacuum suction cup assemblies for industrial robots, manipulators and pneumatic handling equipment. Each assembly combines a flexible suction cup with a threaded metal holder and a top pneumatic connection. Choose from white silicone and black NBR options, then confirm the complete mounting arrangement for your machine.
The white cups use silicone made from imported raw material, and the black cups use nitrile rubber (NBR). IKSONIC manufactures the finished assemblies in China for wholesale orders.
Materials and Assembly Selection

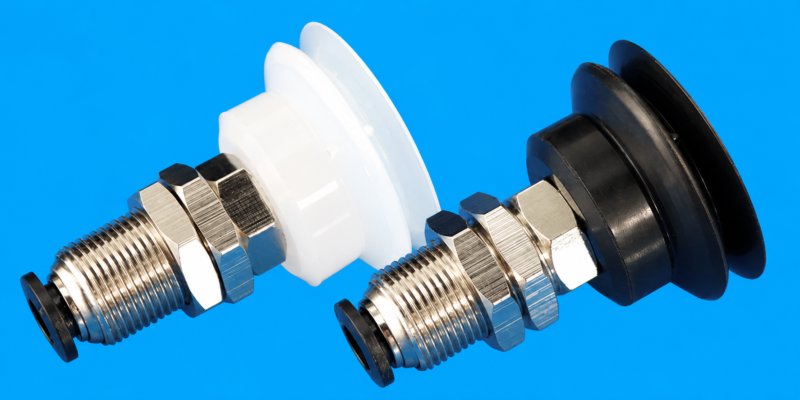

The metal fittings use nickel-plated copper. White silicone offers a relatively soft contact surface for suitable heat-resistant applications. Black NBR offers a firmer contact surface with oil and wear resistance; confirm any antistatic requirement for the selected compound. These descriptions do not establish a numerical temperature range, electrical resistance classification or tested load rating. Confirm the compound against the actual workpiece and operating conditions.
Specifications and Models
Compare the 20 model and color combinations below. Dimensions use millimeters; threads retain their metric designation. The available assembly drawings show white cups for PBK-10 through PBK-50. Therefore, dimensions for black NBR versions and PBK-06/PBK-08 require confirmation instead of assuming identical geometry from the model name.
White Cup Assemblies
| Model | Cup material | Cup diameter (mm) | Overall height (mm) | Tube OD (mm) | Mounting thread |
|---|---|---|---|---|---|
| PBK-06 | Silicone (imported raw material) | Confirm | Confirm | Confirm | Confirm |
| PBK-08 | Silicone (imported raw material) | Confirm | Confirm | Confirm | Confirm |
| PBK-10 | Silicone (imported raw material) | 10 | 40.8 | 4 | M12 × 1 |
| PBK-15 | Silicone (imported raw material) | 15 | 40 | 4 | M12 × 1 |
| PBK-20 | Silicone (imported raw material) | 20 | 41.9 | 4 | M14 × 1 |
| PBK-25 | Silicone (imported raw material) | 25 | 44 | 4 | M14 × 1 |
| PBK-30 | Silicone (imported raw material) | 30 | 49 | 6 | M14 × 1 |
| PBK-35 | Silicone (imported raw material) | 35 | 48.5 | 6 | M14 × 1 |
| PBK-40 | Silicone (imported raw material) | 40 | 49.6 | 6 | M14 × 1 |
| PBK-50 | Silicone (imported raw material) | 50 | 51 | 6 | M14 × 1 |
Black Cup Assemblies
| Model | Cup material | Cup diameter (mm) | Overall height (mm) | Tube OD (mm) | Mounting thread |
|---|---|---|---|---|---|
| PBK-06 | NBR | Confirm | Confirm | Confirm | Confirm |
| PBK-08 | NBR | Confirm | Confirm | Confirm | Confirm |
| PBK-10 | NBR | Confirm | Confirm | Confirm | Confirm |
| PBK-15 | NBR | Confirm | Confirm | Confirm | Confirm |
| PBK-20 | NBR | Confirm | Confirm | Confirm | Confirm |
| PBK-25 | NBR | Confirm | Confirm | Confirm | Confirm |
| PBK-30 | NBR | Confirm | Confirm | Confirm | Confirm |
| PBK-35 | NBR | Confirm | Confirm | Confirm | Confirm |
| PBK-40 | NBR | Confirm | Confirm | Confirm | Confirm |
| PBK-50 | NBR | Confirm | Confirm | Confirm | Confirm |
Additional White-Assembly Drawing Dimensions
AF means across flats. Reference lengths below follow the product drawing dimensions; they are not adjustable travel or buffer stroke ratings. Use the assembly drawing to check installation clearances.
| White models | Upper / lower hex AF (mm) | Holder reference height (mm) | Tube insertion reference (mm) | Body reference length (mm) | Mounting nut / lower hex thickness (mm) |
|---|---|---|---|---|---|
| PBK-10, PBK-15, PBK-20, PBK-25 | 14 / 12 | 26.5 | 14.4 | 23.6 | 4 / 4 |
| PBK-30, PBK-35, PBK-40, PBK-50 | 17 / 14 | 28.2 | 17.1 | 25.2 | 5 / 4 |
Information for an Inquiry
First, specify the PBK model, cup color and quantity. Next, provide the pneumatic tube outside diameter, mounting thread, available height and workpiece surface details. Please state the workpiece weight, orientation, cycle movement and available vacuum with the required assembly specification. Finally, confirm whether you need a complete cup-and-holder assembly or a replacement component.
Frequently Asked Questions
Does imported silicone mean an imported finished assembly?
No. Imported refers to the white silicone raw material. We manufacture the finished assemblies in China.
Can I choose a cup only by its model number?
No. Match the material, dimensions, connection and workpiece conditions as well. A shared PBK number alone does not verify every dimension across materials.
Is there a guaranteed lifting capacity?
No model-specific tested lifting capacity accompanies this product. Generic theoretical suction tables do not replace application testing and a suitable safety assessment.
Request a PBK vacuum suction cup assembly quotation from IKSONIC with your model list and mounting requirements.
