Mini Vacuum Suction Cups in Silicone and NBR

Description

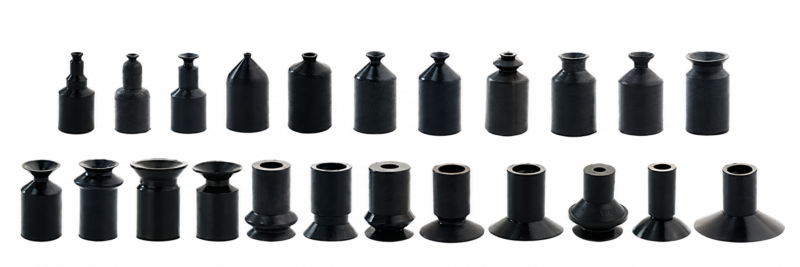

Mini Vacuum Suction Cups for Automated Handling

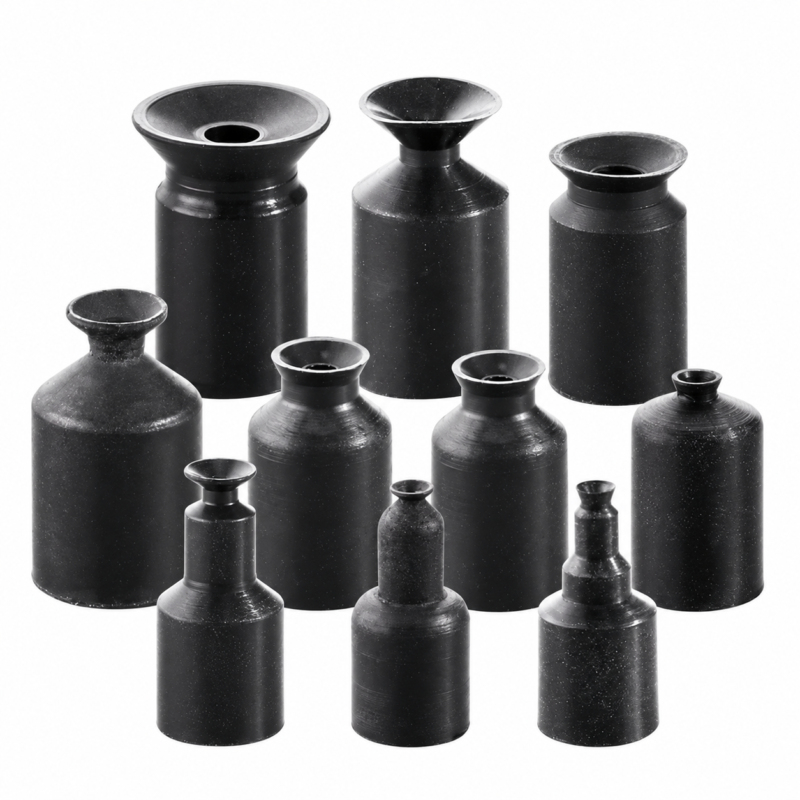

IKSONIC manufactures mini vacuum suction cups for industrial robots, manipulators and pneumatic handling equipment. Choose from ZP, ZPL, ZPLL, ZP2 and BT designs, together with selected fittings. Choose the complete model and material rather than relying on a similar shape or abbreviated model number.

IKSONIC manufactures these vacuum suction cups in China. The white silicone options use imported raw material; this does not mean imported finished cups. Confirm mounting dimensions and application suitability for the selected model.

Specifications and Listed Options

Compare the 97 model and material options below. Dimensions reproduce the clearly labeled, matching black-material drawings in millimeters. White and green options remain listed, but their dimensions require separate confirmation. We do not transfer dimensions across compounds. “Confirm” identifies an unavailable or unclear dimension, not a nominal value inferred from the model code.

Lower-profile outer diameter means the largest labeled width of the lower suction profile shown in the drawing. For bellows designs, this can exceed the contact-lip diameter; it is not an effective vacuum area. Height follows the drawing dimension; confirm the final installed height. Inner neck bore values do not specify a thread or complete connector profile. Some drawings show additional steps or recesses, so check the full mating geometry.

Flat / single-layer — 1

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
ZP-1.5S	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-1.5N	Black NBR	1.5	12	3.8
ZP-02S	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-02N	Black NBR	2.5	12	3
ZP-02US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-02UN	Black NBR	2.6	12	3
ZP-03S	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-03N	Black NBR	3.5	12	3
ZP-03US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-03UN	Black NBR	3.5	12	Confirm
ZP-04S	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-04N	Black NBR	4	12	3

Flat / single-layer — 2

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
ZP-04US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-04UN	Black NBR	4.7	12	Confirm
ZP-06S	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-06N	Black NBR	6	12	Confirm
ZP-06US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-06UN	Black NBR	7	12	3
ZP2-B06CS	White silicone (S code); ribbed	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP2-B06CN	Black NBR; ribbed	7	12	Confirm
ZP2-07CS	White silicone (S code); ribbed	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP2-07CN	Black NBR; ribbed	8	12	Confirm
ZP-08S	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-08N	Black NBR	9	12	3.5

Flat / single-layer — 3

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
ZP-08US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-08UN	Black NBR	9	12	3.5
ZP2-B08CS	White silicone (S code); ribbed	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP2-B08CN	Black NBR; ribbed	9	12	Confirm
ZP-10US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-10UN	Black NBR	11	12	3.5
ZP-12US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-12UN	Black NBR	12.5	12	Confirm
ZP-14US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-14UN	Black NBR	14	12	Confirm
ZP-15US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-15UN	Black NBR	15.5	12	Confirm

Flat / single-layer — 4

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
ZP-18US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-18UN	Black NBR	19	12	Confirm
ZP-18BS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-18BN	Black NBR	19	20	4.5
ZP-20US	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-20UN	Black NBR	21	12	Confirm

Double-layer

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
ZP-03BS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-03BN	Black NBR	5	13	4
ZP-05BS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-05BN	Black NBR	8.5	13	4
ZP-06BS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-06BN	Black NBR	9	13	Confirm
ZP-08BS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-08BN	Black NBR	10	13	Confirm
ZP-10BS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-10BN	Black NBR	11	15	4
ZP-15BS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP-15BN	Black NBR	16.5	19.5	4

Extended — 1

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
ZPL-1.5S	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZPL-1.5N	Black NBR; described as antistatic	2	15	5
ZPL-2AS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZPL-2AN	Black NBR; described as antistatic	3	15	5	Option omits leading zero; drawing shows 02 or 04 respectively
ZPL-2BS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZPL-2BN	Black NBR; described as antistatic	3	15	3.5	Option omits leading zero; drawing shows 02 or 04 respectively
ZPL-03S	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZPL-03N	Black NBR; described as antistatic	3.5	15	4
ZPL-04AS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZPL-4AN	Black NBR; described as antistatic	4.5	15	4	Option omits leading zero; drawing shows 02 or 04 respectively
ZPL-04BS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZPL-4BN	Black NBR; described as antistatic	4.5	15	3.5	Option omits leading zero; drawing shows 02 or 04 respectively

Extended — 2

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
ZPLL-04S	White; compound confirmation required	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZPLL-04N	Black; compound confirmation required	Confirm	Confirm	Confirm	Request a drawing for this exact model and material

Triple-layer — 1

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
BT-3	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-3	Green silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-3	Black NBR; described as antistatic	3.5	13.5	3.5
BT-4	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-4	Green silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-4	Black NBR; described as antistatic	4.5	14	4
BT-5	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-5	Green silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-5	Black NBR; described as antistatic	5.5	14	4
BT-6	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-6	Green silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-6	Black NBR; described as antistatic	6.5	14	4

Triple-layer — 2

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
BT-7	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-7	Green silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-7	Black NBR; described as antistatic	7.5	14	4
BT-9	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-9	Green silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
BT-9	Black NBR; described as antistatic	10	14	4
ZP2-06JS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP2-06JN	Black NBR; described as antistatic	8	15.5	Confirm
ZP2-B10JS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP2-B10JN	Black NBR; described as antistatic	12	15.5	Confirm
ZP2-B15JS	White silicone	Confirm	Confirm	Confirm	Request a drawing for this exact model and material
ZP2-B15JN	Black NBR; described as antistatic	17	15.5	Confirm

Fittings

Model	Material / Option	Lower-Profile Outer Diameter (mm)	Height (mm)	Inner Neck Bore (mm)	Note
M5-A5	Nickel-plated copper	Not applicable	Not applicable	Not applicable	Male M5 × 0.8 thread; 7 mm hex across flats; drawn stem OD 4.9 mm
M5-B5	Nickel-plated copper	Not applicable	Not applicable	Not applicable	Female M5 × 0.8 thread; 7 mm hex across flats; drawn stem OD 4.9 mm
ZPY1-B5	Material confirmation required	Not applicable	Not applicable	Not applicable	Listed for 04/06 air tube; confirm required tube size, units and connector fit
ZPY1-A5	Material confirmation required	Not applicable	Not applicable	Not applicable	Listed for 04/06 air tube; confirm required tube size, units and connector fit
ZPY1-A6	Material confirmation required	Not applicable	Not applicable	Not applicable	Listed for 04/06 air tube; confirm required tube size, units and connector fit

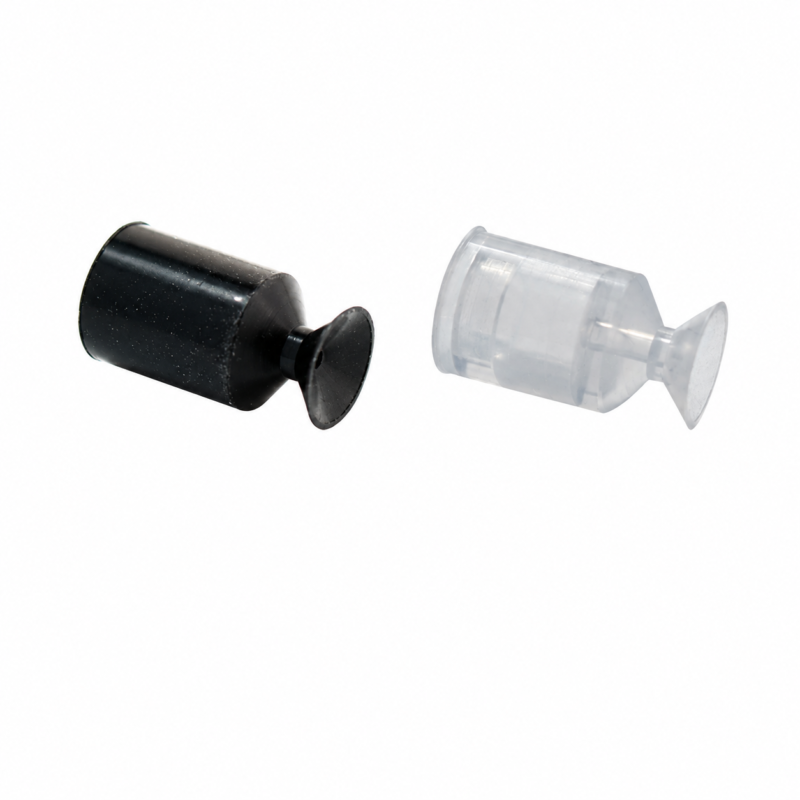

Material Selection

White silicone is intended for heat-resistant applications, while black NBR offers resistance to oil and certain chemicals. Compatibility depends on the actual compound and exposure. Specify the actual chemicals, exposure conditions and workpiece requirements before selecting a compound.

Some black options are described as antistatic. Confirm the required electrical resistance and test standard for the selected material. Confirm the selected compound and required performance rather than treating color alone as proof. The dimensions and material descriptions apply only to the corresponding rows.

Frequently Asked Questions

How should replacement fit be confirmed?

Compare the selected model drawing, dimensions and mounting arrangement with your equipment. A similar model designation does not establish interchangeability.

Can I substitute white silicone for black NBR?

First confirm both material suitability and the exact dimensional drawing. Similar model names do not independently verify matching dimensions across material options.

How do I request a quotation?

Send IKSONIC your inquiry with the model, material, quantity and connector details. Please include the workpiece surface and operating conditions with your required model and material.

Worldwide Delivery

Manufactured in China and shipped worldwide. For orders suitable for international express, delivery typically takes 3–7 days after dispatch, excluding production and order preparation. Transit times vary by destination and customs clearance. Confirm the shipping method and estimated transit time for your order.
