Integrated PCB Vacuum Grippers with Silicone Nozzle Arrays

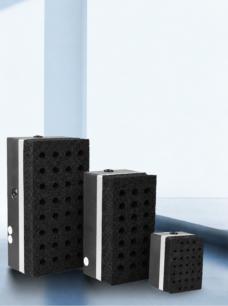

IKSONIC manufactures PCB vacuum grippers with imported-silicone nozzle arrays and hard-anodized aluminum-alloy bodies. Choose 30 × 42 mm, 42 × 90 mm or 60 × 126 mm footprints, with separate nozzle assemblies and generator-holder options. Manufactured in China and shipped worldwide.
- Description
- Contact Us
Description
Integrated PCB Vacuum Grippers

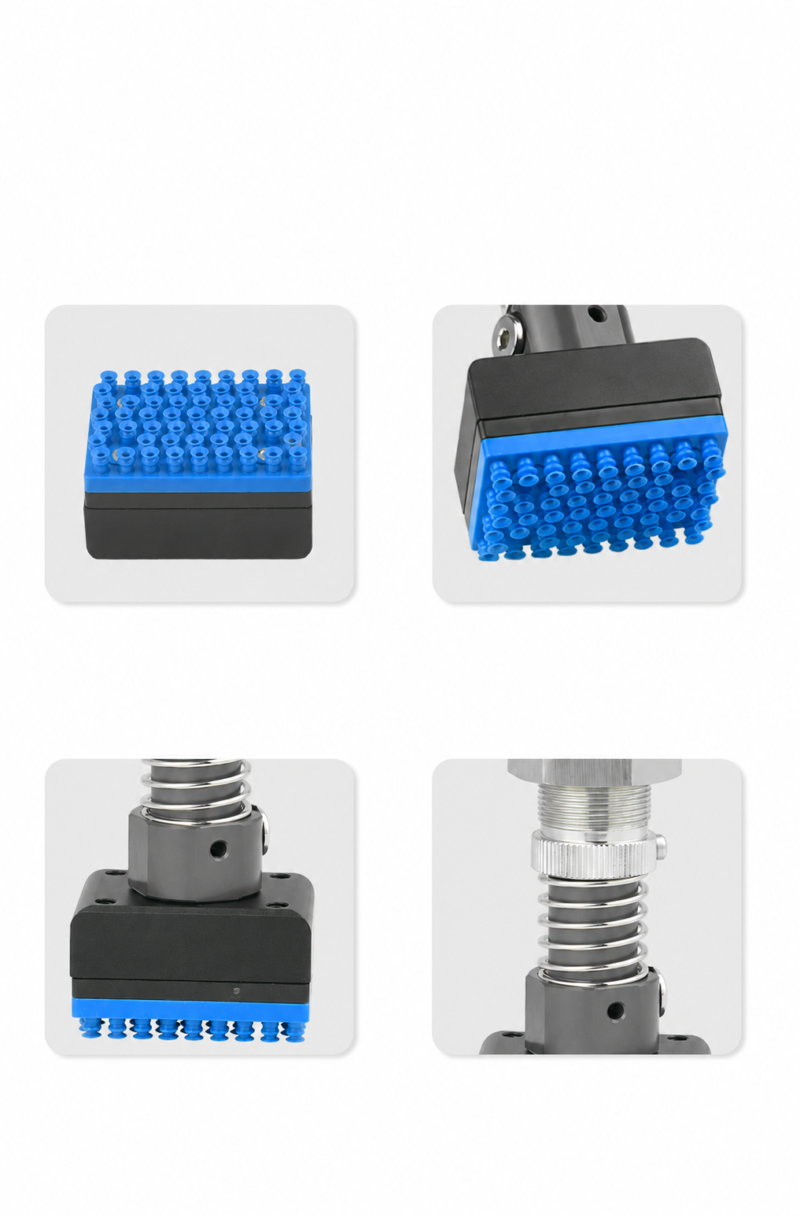

IKSONIC manufactures integrated PCB vacuum grippers for robotic handling of circuit boards and lightweight perforated workpieces. Our grippers combine an array of small silicone suction nozzles with a hard-anodized aluminum-alloy body. Choose a single-position, three-position or six-position assembly, or send us your requirements for a custom footprint.
We manufacture these grippers in China using imported silicone for the nozzles. We support wholesale orders for complete grippers, replacement nozzle assemblies and compatible mounting accessories.
Logic-Valve Contact Design
The logic-valve design closes suction points that are not in contact with the workpiece, helping limit leakage through uncovered points. For your inquiry, please provide the board layout, accessible contact areas, workpiece weight, handling motion and required vacuum arrangement.

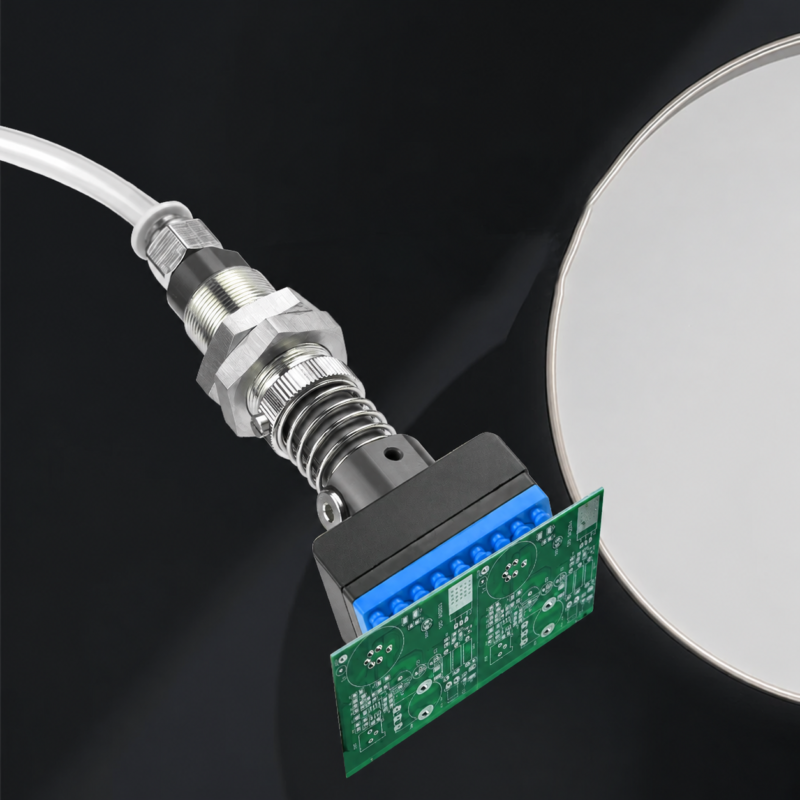

A spring-buffered holder with a built-in vacuum generator is available separately. Specify whether you need the gripper alone, a holder assembly or replacement components, and confirm the required air connections with us.
Specifications and Options

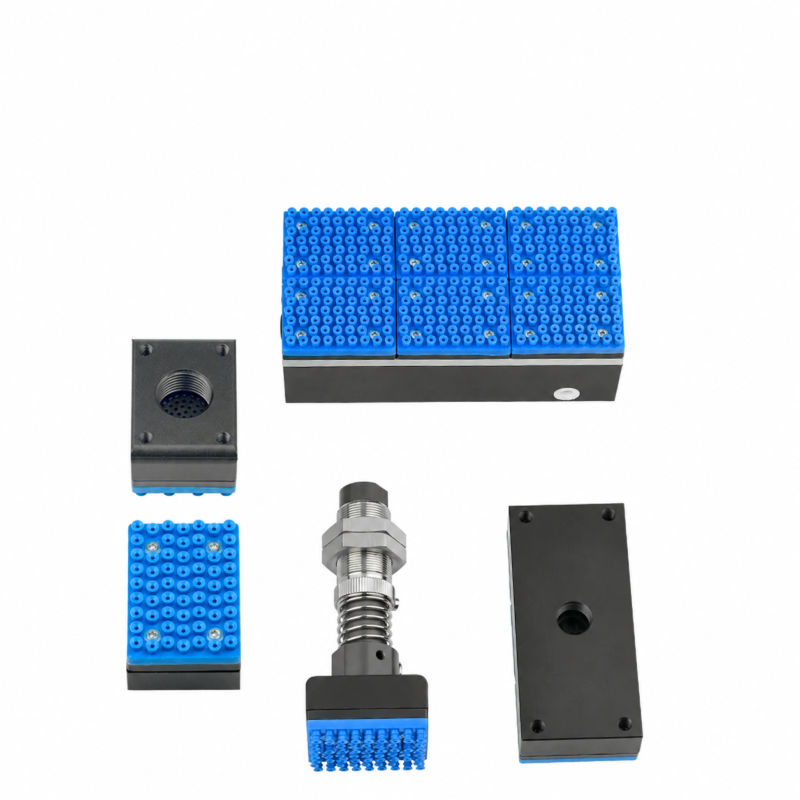

Compare the gripper configurations and accessories below. Footprints are given in millimeters. Contact us to discuss a custom size or connection arrangement.
| Option | Size / footprint | Connection / selection note |
|---|---|---|
| Single-position, single-layer integrated gripper | 30 × 42 mm | G3/8 interface |
| Single-position, double-layer integrated gripper | 30 × 42 mm | G3/8 interface |
| Three-position integrated gripper | 42 × 90 mm | G3/8 interface |
| Six-position integrated gripper | 60 × 126 mm | G3/8 mounting interface; G1/8 air inlets |
| Nozzles + check-valve cover plate accessory | 30 × 42 mm | Confirm accessory connection and scope |
| Matching holder with built-in vacuum generator | 85 mm overall; 19 mm buffer spacing | G1/8 inlet; G3/8 bottom thread |
| Custom-size request | Confirm dimensions | Confirm configuration |
Model-Specific Drawing Dimensions
Use the model-specific dimensions below to review mounting space. Confirm the dimensional units and final installation drawing with us before manufacture or installation. For the 30 × 42 mm double-layer option, request its configuration-specific height; do not use the 23.05 value as a confirmed double-layer height. For the nozzle-and-cover accessory, confirm the cover-plate thickness separately.
| Model reference | Body height | Contact-assembly height | Overall height | Mounting spacing | Mounting threads |
|---|---|---|---|---|---|
| WJA-SVK-30*42-D03 | 13.00 | 10.05 | 23.05 | 30.00 × 22.00 | 4 × M4 |
| WJA-SVK-42*90-D03 | 15.00 | 10.05 | Not separately labeled | 80.00 × 30.00 | 4 × M5 |
| WJA-SVK-60*126-D03 | 35.00 | 10.05 | 45.05 | 108.00 × 46.00 | 4 × M5 |
Model-Specific Connection Details
| Model reference | Connections |
|---|---|
| WJA-SVK-30*42-D03 | G3/8 air inlet |
| WJA-SVK-42*90-D03 | G3/8 air inlet |
| WJA-SVK-60*126-D03 | G3/8 mounting thread; G1/8 top and side air inlets; G1/8 vacuum test ports; silenced exhaust |
For the six-position assembly, G3/8 identifies the mounting thread; the air inlets are G1/8. The inlet center-to-edge reference is 18.00; confirm its unit with us. The separate holder has an overall length of 85 mm and buffer spacing of 19 mm, with a G1/8 inlet and G3/8 bottom thread.
Worldwide Shipping
Manufactured in China and shipped worldwide. International express delivery typically takes 3–7 days after dispatch, excluding production and order preparation. Transit times vary by destination and customs clearance.
Selection and Inquiry
Send us the required configuration, footprint and quantity, together with board dimensions, hole locations, accessible contact areas, workpiece weight and handling orientation. Include mounting constraints and the available pneumatic supply. Tell us whether you also need a replacement nozzle-and-cover assembly or a generator holder.
Frequently Asked Questions
Does each option include the generator holder?
The holder is a separate accessory. Please specify it in your inquiry so we can confirm the complete scope of supply.
Are single- and double-layer heights identical?
Please confirm the height for your selected configuration. Request the double-layer assembly drawing rather than assuming that it has the same height as the single-layer version.
Does the silicone nozzle specification establish ESD compliance?
Silicone material alone does not establish ESD compliance. If your process requires electrostatic control, please specify the required material properties and verification documentation.
Request an integrated PCB vacuum gripper quotation from IKSONIC with your selected configuration and board-handling requirements.
